Hi,
i have the problem that the host and guest complete lockup/crash when I try to install win10 and/or install gpu driver.
Since the host (unraid) doenst respond (no network, ssh, webgui, freezed screen vm) I can't pull any diagnostics.
The bios I used to use in the vm and I removed the header with HxD (spaceinvaderone method).
https://www.techpowerup.com/vgabios/151132/zotac-gtx760-2048-131028
All other system info and so should be in the diagnostics zip or ?
All info I can give you..
vm manger libvirt log from unraid start to lockup/crash
Quote2018-11-20 16:15:04.779+0000: 8244: info : libvirt version: 4.7.0
2018-11-20 16:15:04.779+0000: 8244: info : hostname: ByteNet
2018-11-20 16:15:04.779+0000: 8244: warning : qemuDomainObjTaint:7640 : Domain id=1 name='Windows 10 Main' uuid=753323d4-80e3-caf6-878f-c32c5abacafa is tainted: high-privileges
2018-11-20 16:15:04.779+0000: 8244: warning : qemuDomainObjTaint:7640 : Domain id=1 name='Windows 10 Main' uuid=753323d4-80e3-caf6-878f-c32c5abacafa is tainted: host-cpu
Quote1. Flashed BIOS to X399TC3.30 using BIOS Flashback
2. press Clear CMOS Switch
3. get in BIOS using F2 and config settings
4. Save and Reboot to Unraid OS (GUI Mode) in legacy mode
-> it rebooted on its own once and then got to unraid menu
5. log in and get trail key and basic array settinges using 2x 10tb diks + no cache, start array
6. check system status on dashboard = all ram modules, cpu, eth are OK
7. set disk settings (spin down delay, file system..)
8. set basic settings (Time, notification, display, root pwd, basic network settings) + check network services (all off except SMB)
9. set Flash SMB export to off
10. create new user and config some shares
11. install community.applications-2018.11.10-x86_64-1, Unassigned Devices Plugin, NerdPack-2018.09.20-x86_64-1, dynamix.system.temp, user.scripts-2018.10.19-x86_64-1
-> install perl-5.26.1-x86_64-4 using NerdPack
12. config System Temp, Unassigned Devices Plugins
13. set PCIe ACS override to "downstream" and reboot + set in bios ACS Enable to "Enabled"
14. install hwloc and reboot using SpaceInvaderOne Script

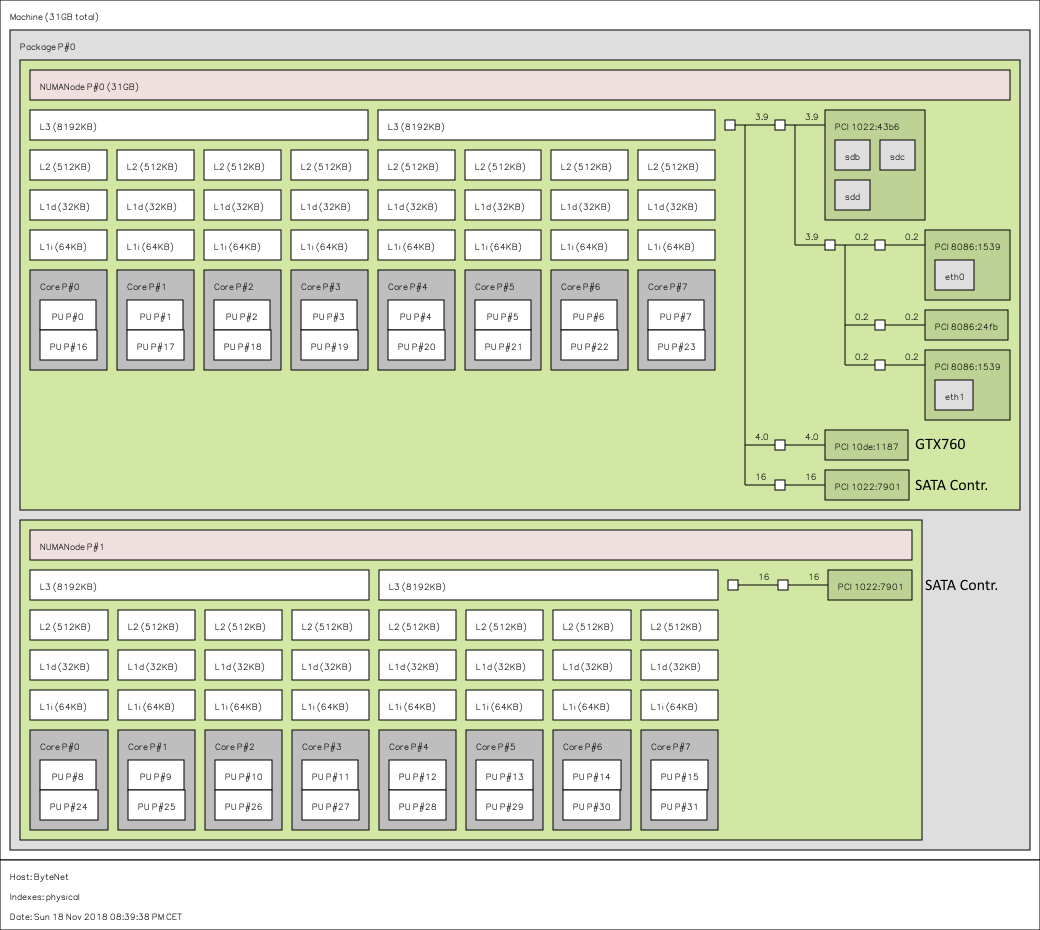

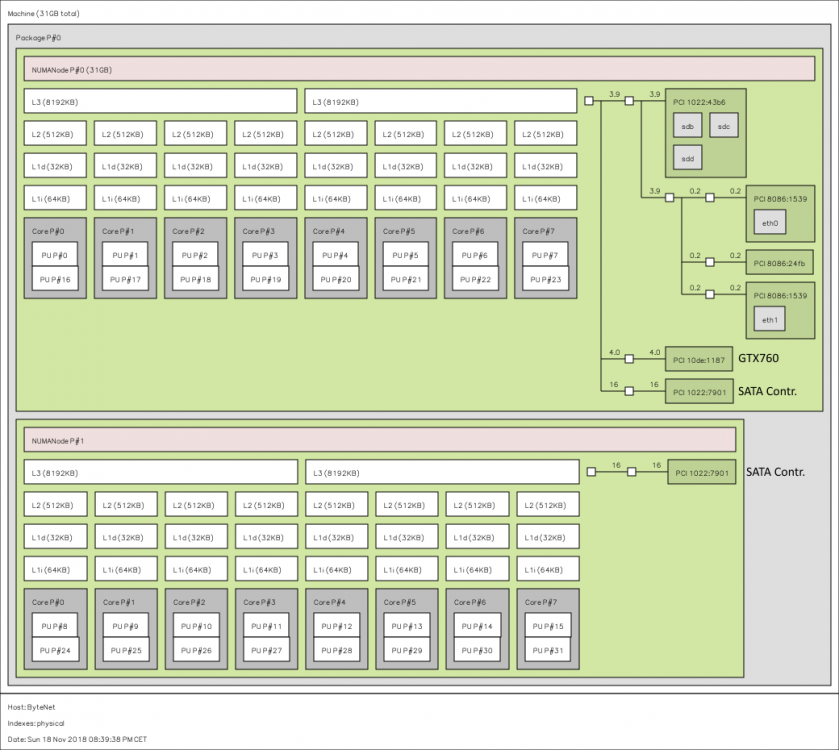

15. get topology png with lstopo /mnt/****/topo_gtx760.png
16. config win10 vm, start and install windows10 inside
...crash/lockup
17. hardreset and reboot into unraid18. shutdown rename "EFI--" to "EFI" and enabled in BIOS "SR-IOV Support"; set CSM to UIEF only
19. use the self read bios and create new vm
...still no luck20. VFIO allow unsafe interrupts to YES and reboot unraid
21. create new VM with vbios from techpowerup and install Win10 and besic setup
...just crashed after the reboot after driver install for ethernet (Host and Guest unresponsive)
QuoteBIOS Settings:
OC Tweaker
Overclock Mode AUTO
CPU Frequency and Voltage Change AUTO
SMT Mode AUTO
Precision Boot Overdrive AUTO
DRAM Frequency AUTO
DRAM Timing Config all AUTO
TR4 Advance Boot Training AUTO
Voltage Mode Stable Mode
all rest Voltage and so on AUTO
Advanced
CPU Configuration
AMD fTPM switch Disabled
SVM Mode EnabledNorth Bridge Configuration
IOMMU Enabled
SR-IOV Support Enabled ! Default was Disabled !
South Bridge Configuration
Onboard HD Audio Enabled
Front Panel HD
Deep Sleep Disabled
Restore on AC Power Loss Power Off
WAN Radio Enabled
BT Enabled
Onboard Debug Port LED Runtime CPU temp
Storage Configuration
Sata Controller Enabled
Sata Mode AHCI Mode
Sata Hot Plug Disabled
Super IO Configuration
PS2 Y-Cable Auto
ACPI Configuration
Suspend to RAM Auto
ACPI HPET Table Enabled
PS/2 Keyboard Wakeup Support Disabled
PCIE Devices Power ON Disabled
RTC Alarm Power ON by OS
AMD CBS
Zen Common Options
...
Global C-state Control AUTO
...
NBIO Common Options
IOMMU Enabled
...
ACS Enable Enabled ! Default was AUTO !
...
AMD PBS
...
BOOT
config Drive priorities
Fast Boot Disabled
Boot from Onboard LAN Disabled
...
Above 4G Decoding Disabled
CSM(Compatibility Support Module)
CSM Enabled
Launch PXE OpROM Legacy only
Launch Storage OpROM Legacy only
<?xml version='1.0' encoding='UTF-8'?> <domain type='kvm'> <name>Windows 10 Main</name> <uuid>65e161a2-8a31-f800-a239-648f7f32e6a6</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>8388608</memory> <currentMemory unit='KiB'>8388608</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>16</vcpu> <cputune> <vcpupin vcpu='0' cpuset='0'/> <vcpupin vcpu='1' cpuset='16'/> <vcpupin vcpu='2' cpuset='1'/> <vcpupin vcpu='3' cpuset='17'/> <vcpupin vcpu='4' cpuset='2'/> <vcpupin vcpu='5' cpuset='18'/> <vcpupin vcpu='6' cpuset='3'/> <vcpupin vcpu='7' cpuset='19'/> <vcpupin vcpu='8' cpuset='4'/> <vcpupin vcpu='9' cpuset='20'/> <vcpupin vcpu='10' cpuset='5'/> <vcpupin vcpu='11' cpuset='21'/> <vcpupin vcpu='12' cpuset='6'/> <vcpupin vcpu='13' cpuset='22'/> <vcpupin vcpu='14' cpuset='7'/> <vcpupin vcpu='15' cpuset='23'/> </cputune> <os> <type arch='x86_64' machine='pc-i440fx-3.0'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/65e161a2-8a31-f800-a239-648f7f32e6a6_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> <hyperv> <relaxed state='on'/> <vapic state='on'/> <spinlocks state='on' retries='8191'/> <vendor_id state='on' value='none'/> </hyperv> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='16' threads='1'/> </cpu> <clock offset='localtime'> <timer name='hypervclock' present='yes'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='block' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source dev='/dev/disk/by-id/ata-Samsung_SSD_860_EVO_1TB_S3Z9NB0K424505E'/> <target dev='hdc' bus='sata'/> <boot order='1'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/Win10_1809Oct_German_x64.iso'/> <target dev='hda' bus='usb'/> <readonly/> <boot order='2'/> <address type='usb' bus='0' port='3'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/virtio-win-0.1.160-1.iso'/> <target dev='hdb' bus='usb'/> <readonly/> <address type='usb' bus='0' port='4'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='pci' index='0' model='pci-root'/> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:82:a3:4e'/> <source bridge='virbr0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </interface> <serial type='pty'> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/isos/vbios/Zotac.GTX760.2048.131028.rom'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x08' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc083'/> </source> <address type='usb' bus='0' port='1'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x0e8f'/> <product id='0x0020'/> </source> <address type='usb' bus='0' port='2'/> </hostdev> <memballoon model='none'/> </devices> </domain>
I will insert 2 diagnostics..one before vm start and one after hard reset.
When any other info is needed I will try to insert it into the post as fast as possible.
I have no ideas anymore what to do. Any help would be appreciated.
bytenet-diagnostics-20181118-2110_beforevmstart.zip
bytenet-diagnostics-20181118-2140_afterhardreset.zip
