roy

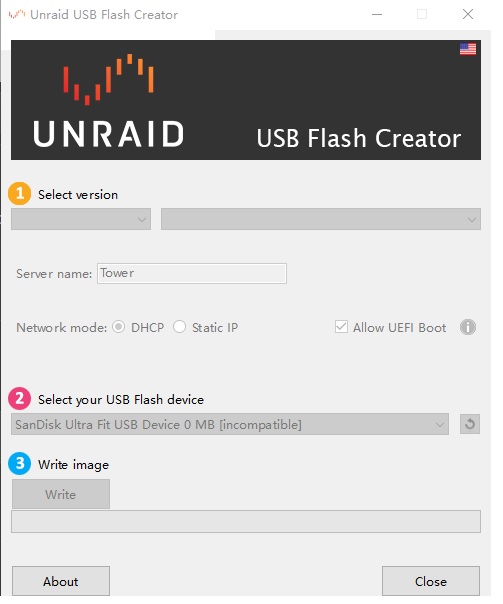

Hi guys, Today I faced one issues for Unraid.USB.Creator.Win32-2.1. It's a latest version from website. I can not choose or click on it. I can vist internet.

It's done. since HP MS biso issues, we just follow below topic to replact one file in flash drive.

Hello, guys, I'm trying to move freenas system to unriad on my MS GEN8, then I faced some problems that I can not solved. short introduction for GEN8, E3 1265L VT-D/VT-X enable//4G+4G smart memory// two ports network controller based on intel 82571. 6.7.2 trail version of unraid. Now, I following this topics Passing ThroughNetwork Controllers to unRAID 6 Virtual Machines(https://forums.unraid.net/search/?q=network controller). I'm sure that I understand and follow them 100%, I wanna pass through two ports of 82571 in IOMMU group 1, shown in below list from System Devices. IOMMU group 0:[8086:0108] 00:00.0 Host bridge: Intel Corporation Xeon E3-1200 Processor Family DRAM Controller (rev 09) IOMMU group 1:[8086:0101] 00:01.0 PCI bridge: Intel Corporation Xeon E3-1200/2nd Generation Core Processor Family PCI Express Root Port (rev 09) [8086:105e] 07:00.0 Ethernet controller: Intel Corporation 82571EB/82571GB Gigabit Ethernet Controller D0/D1 (copper applications) (rev 06) [8086:105e] 07:00.1 Ethernet controller: Intel Corporation 82571EB/82571GB Gigabit Ethernet Controller D0/D1 (copper applications) (rev 06) IOMMU group 2:[8086:010d] 00:06.0 PCI bridge: Intel Corporation Xeon E3-1200/2nd Generation Core Processor Family PCI Express Root Port (rev 09) IOMMU group 3:[8086:1c2d] 00:1a.0 USB controller: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #2 (rev 05) IOMMU group 4:[8086:1c10] 00:1c.0 PCI bridge: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 1 (rev b5) IOMMU group 5:[8086:1c18] 00:1c.4 PCI bridge: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 5 (rev b5) IOMMU group 6:[8086:1c1c] 00:1c.6 PCI bridge: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 7 (rev b5) IOMMU group 7:[8086:1c1e] 00:1c.7 PCI bridge: Intel Corporation 6 Series/C200 Series Chipset Family PCI Express Root Port 8 (rev b5) IOMMU group 8:[8086:1c26] 00:1d.0 USB controller: Intel Corporation 6 Series/C200 Series Chipset Family USB Enhanced Host Controller #1 (rev 05) IOMMU group 9:[8086:244e] 00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev a5) IOMMU group 10:[8086:1c54] 00:1f.0 ISA bridge: Intel Corporation C204 Chipset LPC Controller (rev 05) [8086:1c02] 00:1f.2 SATA controller: Intel Corporation 6 Series/C200 Series Chipset Family 6 port Desktop SATA AHCI Controller (rev 05) IOMMU group 11:[14e4:165f] 03:00.0 Ethernet controller: Broadcom Inc. and subsidiaries NetXtreme BCM5720 2-port Gigabit Ethernet PCIe [14e4:165f] 03:00.1 Ethernet controller: Broadcom Inc. and subsidiaries NetXtreme BCM5720 2-port Gigabit Ethernet PCIe IOMMU group 12:[1912:0014] 04:00.0 USB controller: Renesas Technology Corp. uPD720201 USB 3.0 Host Controller (rev 03) IOMMU group 13:[103c:3306] 01:00.0 System peripheral: Hewlett-Packard Company Integrated Lights-Out Standard Slave Instrumentation & System Support (rev 05) [102b:0533] 01:00.1 VGA compatible controller: Matrox Electronics Systems Ltd. MGA G200EH [103c:3307] 01:00.2 System peripheral: Hewlett-Packard Company Integrated Lights-Out Standard Management Processor Support and Messaging (rev 05) [103c:3300] 01:00.4 USB controller: Hewlett-Packard Company Integrated Lights-Out Standard Virtual USB Controller (rev 02) After reboot, I trying to build one VM using these 2 ports, if I used the default virtual port( br0), the VM worked, but if I add these 2 ports in system( from general interface or XML), then it crashed like below list: Execution error internal error: qemu unexpectedly closed the monitor: 2020-02-07T23:37:23.774435Z qemu-system-x86_64: -device vfio-pci,host=07:00.0,id=hostdev0,bus=pci.0,addr=0x9: vfio 0000:07:00.0: failed to setup container for group 1: failed to set iommu for container: Operation not permitted. Also, I'm aware of that the IOMMU group 1 include another device, which may bring some problems, so i pass through it too. but it do not help. Did you guys faced this ever? I have spent some days to solve it but all failed. Many thanks for your help, suggestions.
