  1. It looks like it may have been a bad processor. I swapped in my 3900x for a week and had zero issues. So I RMA'd the 3600x, which I got back and installed on Monday. It's been running without issue so far. BIOS is back at default, except I turned on XMP. Through my research, I found that the 3600 series has been known to have issues with the IMC (Integrated Memory Controller). Which if the culprit, explains why the kernel panics I had were never the same. If I run into any more issues, I will update the thread. UPDATE 10/5/21: Just shy of 2 weeks in, and it's rock solid. Had a parity check run, and didn't even notice. So yeah, I'm VERY confident it was the CPU.
  2. I swapped the power supply out, and I'm not sure what to make of the results. First boot up, I had a crash while running parity check. But the system was running super slow, there were some errors being thrown because the BIOS for some reason reverted back to default, so Virtualization was turned off. So I set the BIOS settings, rebooted and then started a parity check. That said, this morning there was a similar Kernel panic that would've crashed the system previously... but hasn't. However, my parity check, that should be nearly done, is saying it'll take another 7 hours to complete. I've got some new cases coming in soon, so I'm going to swap my other motherboard and CPU in next, to see if some of this goes away. Given that the system didn't crash when it normally would have, but I'm still getting some anomalies, I think I may be onto something with regards to power being a potential culprit. Perhaps something has been degrading either on the motherboard or the PSU, and the one started effecting the other, but with a different PSU in, it's picking up the slack. Syslog attached. unraid-server-syslog-20210825-1540.zip
  3. After my last crash, I'm beginning to lean towards hardware as well. I previously swapped RAM because it's the easiest, as well as took out the HBA and connected all the drives via SATA cables, but this weekend I'm going to swap the CPU, PSU and Motherboard one at a time. Given the fact that with my last crash, I didn't see cores maxing out getting hung up on tasks, and crashes almost always happen during a parity check (extra stress on the PSU), I'm leaning towards it being power related. Previously with versions < 6.10.0-rc1, and macvlan on Docker, cores would max out one by one before ultimately crashing even with no parity check; this to me suggests I may have had two concurrent issues, and 6.10.0-rc1 with Docker set to ipvlan, solved one of those issues. One concern I have is, the 'donor' PC (which is my main rig *cries in geek*) has the exact same PSU, and Motherboard. So if there is a compatibility issue as a result of upgraded BIOS and/or changes in the kernel, I will have a difficult time proving it. This seems to be an unlikely scenario, given that this build was stable at one time, through 6.8.2 to 6.9 and those builds weren't stable when I reverted back to them. That said, as a sanity check, if anyone reading this has the same Motherboard (Gigabyte X570 AORUS Elite (rev 1.0)) on the latest BIOS, and/or PSU (Corsair RM650i), please let me know if they're working for you on any version >= 6.8.3.

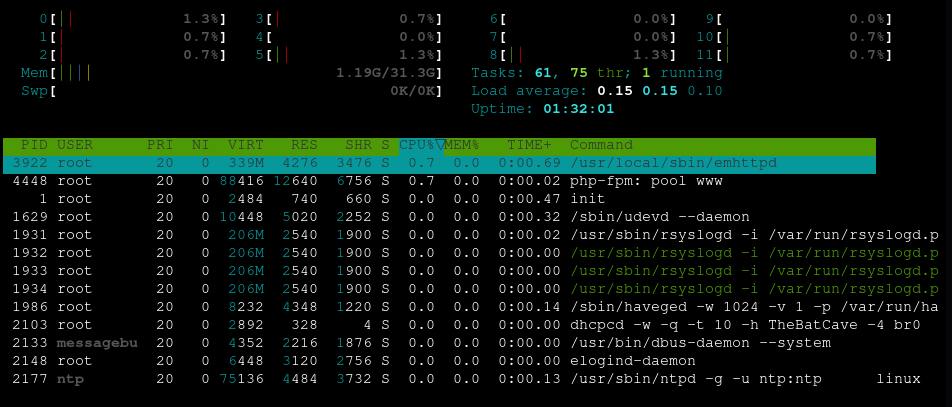

  4. I updated the BIOS to the newest version. Went back over settings to ensure C-State was off, Power Supply Idle was on Typical Current Idle and XMP was turned off. I seem to now have even more instability. Crashed once during a Parity check, roughly 3.5 hours in, and then a second time with no Parity check going. Due to the first crash not giving any syslogs, I kept my desktop going, with htop and log open. Attached is a screencap of htop, once again, no syslog was created during the crash.
  5. I've been having ongoing issues with Unraid crashing. Initially Unraid ran great (GPU Passthrough issues aside). Sometime in the first half of this year, I've started having nothing but problems with Unraid crashing. It started around the time I updated to 6.9.2. The server within 24-48 hours would hang, unable to ping, ssh, or navigate to the webGUI, and I could force a crash by running Parity Check. The Parity check wouldn't run more than ~12 minutes before crashing Also, around the time that I started seeing crashes, I went from a Synology RT2600ac as my router/switch/WiFi to a Netgate SG-3100 running pfSense for my router/switch. Not sure this could be a contributing factory, but since I believe docker's macvlan was the primary culprit, it's been in the back of my mind. I'm currently on 6.10.0-rc1 and stability has improved. However, I'm still getting crashes. I can complete a Parity check, and the server will stay up for a few days. I've had 3 crashed so far on 6.10.0-rc1. First was during the first parity check 60% through (much longer than the previously stated 12 minutes). So when I ran another parity check successfully, I thought perhaps it was a fluke. Second time was a few days later on the 18th, armed with my false sense of security, I neglected to set up a Syslog server, so I have no idea what happened. And now we're up to present day, where I caused a crash when I logged into the server. Syslog server was live this time. Hardware CPU: Ryzen 5 3600x Motherboard: Gigabyte X570 AORUS Elite (rev 1.0) RAM: 2x16GB G.SKILL Ripjaws V Series DDR4 3200 PSU: Corsair 650RMi GPU: Gigabyte Radeon RX 5500 XT 4GB HDD: 2x Seagate IronWolf 4TB, 2x Seagate IronWolf 3TB SSD: 2x 1TB WD Blue 3D NAND Steps I've taken to solve. I've ran MemTest (Passed) I've switched out the ram with Ballistic Sport LT 2x16GB DDR4 3200. Turned off XMP. (Current setting) I've disabled C-State, and changed Power Supply Idle Control to Typical Current Idle. (Current setting) I've updated the Motherboard BIOS (multiple times, and will be updating again after I post). I've tried each of the following Unraid versions 6.8.3, 6.9.0, 6.9.1, 6.9.2 and now 6.10.0-rc1 I've changed the thumbdrive from a USB 3.0 Samsung to a USB 2.0 Sandisk. (Currently on 2.0) I've offloaded my data and completely wiped the system, starting from new, testing out each version with no dockers or apps installed. Changed Docker from macvlan to ipvlan (6.10.0-rc1). I've included two files. One is the most recent crash, the other is when I reverted back to 6.8.3 months ago, I believe I induced the 6.8.3 crash with a parity check as mentioned above. I gave up on trouble shooting this and the box has been collecting dust until I saw that 6.10.0-rc1 allowed the use of ipvlan in docker. syslog_server-6.10.0-rc1.log syslog_server-6.8.3.log
  6. I’m in the same situation as you. I’ve got a post going about it, there are some suggestions in there, but I haven’t yet tried any of them. I’ll likely wait for the next update to Unraid, and hope that fixes the issues. I wish I could help out more. https://forums.unraid.net/topic/88832-5500-xt-primary-gpu-passthrough-help/?tab=comments#comment-824825
  7. I'm beginning to suspect this may be a kernel compatibility issue. The 5500XT is a newer card than the 5700XT, so perhaps there is a lack of support in the current Unraid Kernel 4.19.98, or QEMU version. I'm going to look into reverting to a previous version with the 5.x kernel, or possibly a custom kernel like what's spoken about in the thread below. [KERNEL] 6.8.0-RC5 w/ navi reset v2, vega reset, k10temp Ryzen patches, x570 onboard audio fix
  8. Yes, both are Gigabyte. I've tried a Gigabyte vBios for the same card, but 8GB version instead of 4GB, nothing. On to trying other vendors as you suggested. I'm tempted to try the Gigabyte 5700XT vBios, but I don't know if it would be any risk to the GPU if it somehow did work. From my understanding, the vBios is simply used for boot, and basically discarded after that. Update: No change after running other vendor's vBios.
  9. It does look like I'm still experiencing some reset bug issues however. The script I have, works to a degree, but I will no longer get video output if I have to use it, but the VM doesn't lock up the whole system. Small victories, eh? Other than that, Ubuntu installed perfectly, and boots up perfectly - at least after doing a reboot of the system. *shakes fist at AMD* So, anyone have any ideas to get this 5500XT working? I really would prefer to put this 5700XT back in my main system. **Put 5500XT back into the Unraid box, and 5700XT back in my main, attempted to boot into the VM with Ubuntu 18.0.4.4 installed - still nothing.
  10. And the plot thickens. I switched out the 5500XT for the 5700XT, and it works, audio as well. Booted right up, and is displaying on the screen. No problems either with USB passthrough of my mouse and keyboard. Passed through the vBios from poweruptech, made no changes to the xml. The only change I made to the system was adding the GPU to the blacklist. The NAVI 10 XL Upstream and Downstream ports are present on this setup as well, so this rules out those being an issue. Perhaps an issues with the vBios? kernel /bzimage append module_blacklist=amdgpu amd_iommu=true iommu=1 vfio-pci.ids=1002:7340,1002:ab38,1002:1479,1002:1478,1002:731f video=vesafb:off,efifb:off initrd=/bzroot -rtc base=utc,driftfix=slew \ -global kvm-pit.lost_tick_policy=delay \ -no-hpet \ -no-shutdown \ -boot strict=on \ -device pcie-root-port,port=0x8,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x1 \ -device pcie-root-port,port=0x9,chassis=2,id=pci.2,bus=pcie.0,addr=0x1.0x1 \ -device pcie-root-port,port=0xa,chassis=3,id=pci.3,bus=pcie.0,addr=0x1.0x2 \ -device pcie-root-port,port=0xb,chassis=4,id=pci.4,bus=pcie.0,addr=0x1.0x3 \ -device pcie-root-port,port=0xc,chassis=5,id=pci.5,bus=pcie.0,addr=0x1.0x4 \ -device pcie-root-port,port=0xd,chassis=6,id=pci.6,bus=pcie.0,addr=0x1.0x5 \ -device pcie-root-port,port=0xe,chassis=7,id=pci.7,bus=pcie.0,addr=0x1.0x6 \ -device pcie-root-port,port=0xf,chassis=8,id=pci.8,bus=pcie.0,addr=0x1.0x7 \ -device pcie-root-port,port=0x10,chassis=9,id=pci.9,bus=pcie.0,multifunction=on,addr=0x2 \ -device pcie-root-port,port=0x11,chassis=10,id=pci.10,bus=pcie.0,addr=0x2.0x1 \ -device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \ -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \ -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 \ -device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \ -device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x0 \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/Ubuntu/vdisk1.img","node-name":"libvirt-2-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-2-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-2-storage"}' \ -device virtio-blk-pci,scsi=off,bus=pci.3,addr=0x0,drive=libvirt-2-format,id=virtio-disk2,bootindex=1,write-cache=on \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/ubuntu-18.04.4-desktop-amd64.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \ -device ide-cd,bus=ide.0,drive=libvirt-1-format,id=sata0-0-0,bootindex=2 \ -netdev tap,fd=35,id=hostnet0,vhost=on,vhostfd=36 \ -device virtio-net-pci,netdev=hostnet0,id=net0,mac=52:54:00:1f:b4:94,bus=pci.1,addr=0x0 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0 \ -chardev socket,id=charchannel0,fd=38,server,nowait \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -device vfio-pci,host=0000:0b:00.0,id=hostdev0,bus=pci.4,multifunction=on,addr=0x0,romfile=/mnt/user/domains/vBios/Gigabyte.RX5700XT.8192.190909.rom \ -device vfio-pci,host=0000:0b:00.1,id=hostdev1,bus=pci.4,addr=0x0.0x1 \ -device usb-host,hostbus=3,hostaddr=3,id=hostdev2,bus=usb.0,port=1 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on 2020-02-20 04:39:29.159+0000: Domain id=1 is tainted: high-privileges 2020-02-20 04:39:29.159+0000: Domain id=1 is tainted: host-cpu char device redirected to /dev/pts/1 (label charserial0) -[0000:00]-+-00.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse Root Complex [1022:1480] +-00.2 Advanced Micro Devices, Inc. [AMD] Starship/Matisse IOMMU [1022:1481] +-01.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-01.2-[01-08]----00.0-[02-08]--+-01.0-[03]----00.0 ADATA Technology Co., Ltd. XPG SX8200 Pro PCIe Gen3x4 M.2 2280 Solid State Drive [1cc1:8201] | +-02.0-[04]----00.0 Broadcom / LSI SAS3008 PCI-Express Fusion-MPT SAS-3 [1000:0097] | +-04.0-[05]----00.0 Intel Corporation I211 Gigabit Network Connection [8086:1539] | +-08.0-[06]--+-00.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP [1022:1485] | | +-00.1 Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:149c] | | \-00.3 Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:149c] | +-09.0-[07]----00.0 Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] | \-0a.0-[08]----00.0 Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] +-02.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-03.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-03.1-[09-0b]----00.0-[0a-0b]----00.0-[0b]--+-00.0 Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 [Radeon RX 5600 OEM/5600 XT / 5700/5700 XT] [1002:731f] | \-00.1 Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 HDMI Audio [1002:ab38] +-04.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-05.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-07.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-07.1-[0c]----00.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function [1022:148a] +-08.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-08.1-[0d]--+-00.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP [1022:1485] | +-00.1 Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP [1022:1486] | +-00.3 Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:149c] | \-00.4 Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller [1022:1487] +-08.2-[0e]----00.0 Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] +-08.3-[0f]----00.0 Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] +-14.0 Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:790b] +-14.3 Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:790e] +-18.0 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 0 [1022:1440] +-18.1 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 1 [1022:1441] +-18.2 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 2 [1022:1442] +-18.3 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 3 [1022:1443] +-18.4 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 4 [1022:1444] +-18.5 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 5 [1022:1445] +-18.6 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 6 [1022:1446] \-18.7 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 7 [1022:1447] IOMMU group 0: [1022:1482] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1483] 00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge [1022:57ad] 01:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse Switch Upstream [1022:57a3] 02:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a3] 02:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a3] 02:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a4] 02:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a4] 02:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a4] 02:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1cc1:8201] 03:00.0 Non-Volatile memory controller: ADATA Technology Co., Ltd. XPG SX8200 Pro PCIe Gen3x4 M.2 2280 Solid State Drive (rev 03) [1000:0097] 04:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS3008 PCI-Express Fusion-MPT SAS-3 (rev 02) [8086:1539] 05:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03) [1022:1485] 06:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP [1022:149c] 06:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:149c] 06:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:7901] 07:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) [1022:7901] 08:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) IOMMU group 1: [1022:1482] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 2: [1022:1482] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1483] 00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge [1002:1478] 09:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Upstream Port of PCI Express Switch (rev c1) [1002:1479] 0a:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Downstream Port of PCI Express Switch [1002:731f] 0b:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 [Radeon RX 5600 OEM/5600 XT / 5700/5700 XT] (rev c1) [1002:ab38] 0b:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 HDMI Audio IOMMU group 3: [1022:1482] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 4: [1022:1482] 00:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 5: [1022:1482] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 6: [1022:1484] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 7: [1022:1482] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 8: [1022:1484] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 9: [1022:1484] 00:08.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 10: [1022:1484] 00:08.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 11: [1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 61) [1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51) IOMMU group 12: [1022:1440] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 0 [1022:1441] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 1 [1022:1442] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 2 [1022:1443] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 3 [1022:1444] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 4 [1022:1445] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 5 [1022:1446] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 6 [1022:1447] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 7 IOMMU group 13: [1022:148a] 0c:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function IOMMU group 14: [1022:1485] 0d:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP IOMMU group 15: [1022:1486] 0d:00.1 Encryption controller: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP IOMMU group 16: [1022:149c] 0d:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller IOMMU group 17: [1022:1487] 0d:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller IOMMU group 18: [1022:7901] 0e:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) IOMMU group 19: [1022:7901] 0f:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) 09:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Upstream Port of PCI Express Switch [1002:1478] (rev c1) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 37 Memory at f7d00000 (32-bit, non-prefetchable) [size=16K] Bus: primary=09, secondary=0a, subordinate=0b, sec-latency=0 I/O behind bridge: 0000f000-0000ffff [size=4K] Memory behind bridge: f7c00000-f7cfffff [size=1M] Prefetchable memory behind bridge: 00000000e0000000-00000000f01fffff [size=258M] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [58] Express Upstream Port, MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [150] Advanced Error Reporting Capabilities: [270] Secondary PCI Express <?> Capabilities: [320] Latency Tolerance Reporting Capabilities: [400] Data Link Feature <?> Capabilities: [410] Physical Layer 16.0 GT/s <?> Capabilities: [440] Lane Margining at the Receiver <?> Kernel driver in use: pcieport 0a:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Downstream Port of PCI Express Switch [1002:1479] (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 38 Bus: primary=0a, secondary=0b, subordinate=0b, sec-latency=0 I/O behind bridge: 0000f000-0000ffff [size=4K] Memory behind bridge: f7c00000-f7cfffff [size=1M] Prefetchable memory behind bridge: 00000000e0000000-00000000f01fffff [size=258M] Capabilities: [50] Power Management version 3 Capabilities: [58] Express Downstream Port (Slot-), MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [c0] Subsystem: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Downstream Port of PCI Express Switch [1002:1479] Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [150] Advanced Error Reporting Capabilities: [270] Secondary PCI Express <?> Capabilities: [2a0] Access Control Services Capabilities: [400] Data Link Feature <?> Capabilities: [410] Physical Layer 16.0 GT/s <?> Capabilities: [440] Lane Margining at the Receiver <?> Kernel driver in use: pcieport 0b:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 [Radeon RX 5600 OEM/5600 XT / 5700/5700 XT] [1002:731f] (rev c1) (prog-if 00 [VGA controller]) Subsystem: Gigabyte Technology Co., Ltd Device [1458:2313] Flags: bus master, fast devsel, latency 0, IRQ 255 Memory at e0000000 (64-bit, prefetchable) [size=256M] Memory at f0000000 (64-bit, prefetchable) [size=2M] I/O ports at f000 [disabled] [size=256] Memory at f7c00000 (32-bit, non-prefetchable) [size=512K] Expansion ROM at f7c80000 [disabled] [size=128K] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Legacy Endpoint, MSI 00 Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [150] Advanced Error Reporting Capabilities: [200] Resizable BAR <?> Capabilities: [240] Power Budgeting <?> Capabilities: [270] Secondary PCI Express <?> Capabilities: [2a0] Access Control Services Capabilities: [2b0] Address Translation Service (ATS) Capabilities: [2c0] Page Request Interface (PRI) Capabilities: [2d0] Process Address Space ID (PASID) Capabilities: [320] Latency Tolerance Reporting Capabilities: [400] Data Link Feature <?> Capabilities: [410] Physical Layer 16.0 GT/s <?> Capabilities: [440] Lane Margining at the Receiver <?> Kernel driver in use: vfio-pci 0b:00.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 HDMI Audio [1002:ab38] Subsystem: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 HDMI Audio [1002:ab38] Flags: fast devsel, IRQ 255 Memory at f7ca0000 (32-bit, non-prefetchable) [disabled] [size=16K] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Legacy Endpoint, MSI 00 Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [150] Advanced Error Reporting Capabilities: [2a0] Access Control Services Kernel driver in use: vfio-pci <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm' id='1'> <name>Ubuntu</name> <uuid>e989fcd7-806a-7e61-bf01-f5b3d66dc040</uuid> <metadata> <vmtemplate xmlns="unraid" name="Ubuntu" icon="ubuntu.png" os="ubuntu"/> </metadata> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>4</vcpu> <cputune> <vcpupin vcpu='0' cpuset='3'/> <vcpupin vcpu='1' cpuset='9'/> <vcpupin vcpu='2' cpuset='5'/> <vcpupin vcpu='3' cpuset='11'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-4.2'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/e989fcd7-806a-7e61-bf01-f5b3d66dc040_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='4' threads='1'/> </cpu> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/Ubuntu/vdisk1.img' index='1'/> <backingStore/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <alias name='virtio-disk2'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <alias name='usb'/> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <alias name='usb'/> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <alias name='usb'/> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'> <alias name='pcie.0'/> </controller> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x8'/> <alias name='pci.1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x9'/> <alias name='pci.2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0xa'/> <alias name='pci.3'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0xb'/> <alias name='pci.4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0xc'/> <alias name='pci.5'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/> </controller> <controller type='pci' index='6' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='6' port='0xd'/> <alias name='pci.6'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/> </controller> <controller type='pci' index='7' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='7' port='0xe'/> <alias name='pci.7'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x6'/> </controller> <controller type='pci' index='8' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='8' port='0xf'/> <alias name='pci.8'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x7'/> </controller> <controller type='pci' index='9' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='9' port='0x10'/> <alias name='pci.9'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='10' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='10' port='0x11'/> <alias name='pci.10'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </controller> <controller type='sata' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <interface type='bridge'> <mac address='52:54:00:1f:b4:94'/> <source bridge='br0'/> <target dev='vnet0'/> <model type='virtio'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/1'/> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/1'> <source path='/dev/pts/1'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-1-Ubuntu/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='mouse' bus='ps2'> <alias name='input0'/> </input> <input type='keyboard' bus='ps2'> <alias name='input1'/> </input> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <rom file='/mnt/user/domains/vBios/Gigabyte.RX5700XT.8192.190909.rom'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x1'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x1'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc52b'/> <address bus='3' device='3'/> </source> <alias name='hostdev2'/> <address type='usb' bus='0' port='1'/> </hostdev> <memballoon model='none'/> </devices> <seclabel type='dynamic' model='dac' relabel='yes'> <label>+0:+100</label> <imagelabel>+0:+100</imagelabel> </seclabel> </domain>
  11. The reset bug has been somewhat resolved, but for my use case once I get passthrough going, it's not a major concern. Since I've had to force stop a lot of VMs going through this process, I've had to run a script that resets the GPU, so it won't hang when trying to passthrough after making changes to the XML. If I don't, the VM will lock up the entire system. #!/bin/bash # #replace xx\:xx.x with the number of your gpu and sound counterpart # # echo "disconnecting amd graphics" echo "1" | tee -a /sys/bus/pci/devices/0000\:0b\:00.x0/remove echo "disconnecting amd sound counterpart" echo "1" | tee -a /sys/bus/pci/devices/0000\:0b\:00.1/remove echo "entered suspended state press power button to continue" echo -n mem > /sys/power/state echo "reconnecting amd gpu and sound counterpart" echo "1" | tee -a /sys/bus/pci/rescan echo "AMD graphics card sucessfully reset" I'm not sure either if I'd have better luck booting unraid from a second GPU, I may. My hang up on that is the Upstream/Downstream not getting passed through at the moment. But, maybe I'd have better luck with a completely different GPU? Sounds like perfect opportunity to swap my 5500XT for my 5700XT in my main system as a test. I'll let everyone know how that goes.
  12. True, but conceptually, not much different. I've come across several other people passing through their sole Radeon GPU, unfortunately, it tends to be older AMD's such a RX 580. I haven't yet come across anyone trying to passthrough the 5500 XT. Either way, the as long as the GPU isn't in use by the system, I should be good to go. And as of right now, I've gotten that far, where the GPU and Audio are in use by vfio-pci. I just haven't figured out how to passthrough the Navi 10 XL Upstream and Downstream, which are associated with the card, and in the same IOMMU Group, which I believe is my hang up. 09:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Upstream Port of PCI Express Switch (rev c5) (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 37 Memory at f7d00000 (32-bit, non-prefetchable) [size=16K] Bus: primary=09, secondary=0a, subordinate=0b, sec-latency=0 I/O behind bridge: 0000f000-0000ffff [size=4K] Memory behind bridge: f7c00000-f7cfffff [size=1M] Prefetchable memory behind bridge: 00000000e0000000-00000000f01fffff [size=258M] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [58] Express Upstream Port, MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [150] Advanced Error Reporting Capabilities: [270] Secondary PCI Express <?> Capabilities: [320] Latency Tolerance Reporting Capabilities: [370] L1 PM Substates Capabilities: [400] Data Link Feature <?> Capabilities: [410] Physical Layer 16.0 GT/s <?> Capabilities: [440] Lane Margining at the Receiver <?> Kernel driver in use: pcieport 0a:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Downstream Port of PCI Express Switch (prog-if 00 [Normal decode]) Flags: bus master, fast devsel, latency 0, IRQ 38 Bus: primary=0a, secondary=0b, subordinate=0b, sec-latency=0 I/O behind bridge: 0000f000-0000ffff [size=4K] Memory behind bridge: f7c00000-f7cfffff [size=1M] Prefetchable memory behind bridge: 00000000e0000000-00000000f01fffff [size=258M] Capabilities: [50] Power Management version 3 Capabilities: [58] Express Downstream Port (Slot-), MSI 00 Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+ Capabilities: [c0] Subsystem: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Downstream Port of PCI Express Switch Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [150] Advanced Error Reporting Capabilities: [270] Secondary PCI Express <?> Capabilities: [2a0] Access Control Services Capabilities: [400] Data Link Feature <?> Capabilities: [410] Physical Layer 16.0 GT/s <?> Capabilities: [440] Lane Margining at the Receiver <?> Kernel driver in use: pcieport 0b:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Navi 14 [Radeon RX 5500/5500M / Pro 5500M] (rev c5) (prog-if 00 [VGA controller]) Subsystem: Gigabyte Technology Co., Ltd Device 231a Flags: fast devsel, IRQ 36 Memory at e0000000 (64-bit, prefetchable) [size=256M] Memory at f0000000 (64-bit, prefetchable) [size=2M] I/O ports at f000 [size=256] Memory at f7c00000 (32-bit, non-prefetchable) [size=512K] Expansion ROM at f7c80000 [disabled] [size=128K] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Legacy Endpoint, MSI 00 Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [150] Advanced Error Reporting Capabilities: [200] Resizable BAR <?> Capabilities: [240] Power Budgeting <?> Capabilities: [270] Secondary PCI Express <?> Capabilities: [2a0] Access Control Services Capabilities: [2b0] Address Translation Service (ATS) Capabilities: [2c0] Page Request Interface (PRI) Capabilities: [2d0] Process Address Space ID (PASID) Capabilities: [320] Latency Tolerance Reporting Capabilities: [400] Data Link Feature <?> Capabilities: [410] Physical Layer 16.0 GT/s <?> Capabilities: [440] Lane Margining at the Receiver <?> Kernel driver in use: vfio-pci 0b:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 HDMI Audio Subsystem: Gigabyte Technology Co., Ltd Device 231a Flags: fast devsel, IRQ 255 Memory at f7ca0000 (32-bit, non-prefetchable) [disabled] [size=16K] Capabilities: [48] Vendor Specific Information: Len=08 <?> Capabilities: [50] Power Management version 3 Capabilities: [64] Express Legacy Endpoint, MSI 00 Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+ Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?> Capabilities: [150] Advanced Error Reporting Capabilities: [2a0] Access Control Services Kernel driver in use: vfio-pci
  13. That's not the impression I've had with the research I've done. From my understanding, Unraid only requires a GPU for for the initial setup, after that, you can run headless. In addition, Spaceinvader One has the following video, and in others, where he speaks about how to pass through the only GPU. In the following video, he only needed a second card for dumping the vBios, which I've already done. How to passthrough an nvidia gpu as primary gpu in unRAID
  14. I'd prefer my first post wasn't a plea for help, but here I am; after days of beating my head against the wall. I'm very new to VFIO, messing with hardware at this level, and am still getting familiar with Linux. After being on laptops for years, I finally decided to build a PC to run Linux, so that I would have a stable programming learning environment. Of course that lead to wanting a server for NAS and VMs. So here I am, trying to get my 5500XT to passthrough to VMs as the primary card with no success. System Specifications: AMD Ryzen 5 3600X Gigabyte X570 Aorus Elite (non-wifi) - Bios Version F11 Gigabyte Radeon RX 5500 XT 4GB G.SKILL Ripjaws DDR4 3200 (2 x 16GB) Cache: Adata XPG SX8200 1TB Parity: Seagate Ironwolf 4TB Drive 1: Seagate Ironwolf 4TB Drive 2: Seagate Ironwolf 3TB Drive 3: Seagate Ironwolf 3TB LSI SAS3008 HBA Unraid 6.8.2 All drives using XFS (kept corrupting filesystems with hard reboots when VMs froze, and XFS has proven far easier to recover than BTRFS) After watching several Spaceinvader One videos, and doing searches through here, Reddit (unraid & VFIO) as well as Level1Techs, this is where I'm at: Since this is the Primary GPU, it seems Unraid still wants to grab a hold of it no matter what I do, even when not booting into GUI. Blacklisting didn't seem to completely alleviate this, so I've got a script that runs at the start of the array to unbind the GPU, or else I'll just get resource busy errors. Yes, the script is a mess, I just mashed everything I found together with the plan to take out what ultimately wasn't needed later once I got the GPU to work. I've tried SeaBIOS, which strangely has seemed to actually get so far as to display to the TV, but would get a PXE failed to boot error, and the screen output would freeze. When running OVMF, I usually get a blank/black screen, or the screen loses all connection to the card. Current configuration loses connection completely. As per Spaceinvader One's video with the 5700XT, I decided to rip the vBios, as one wasn't available at the time on techpowerup. This changed nothing. The next week one became available on techpowerup, so I figured I'd try that one just in case. No change. In addition, I've tried Windows, and other Ubuntu versions, as well as rolled back the Q35 version to 4, 3.1. and 3.0. My best guess, is that I need to passthrough the Navi 10 XL Upstream and Downstream. I've been searching for ways to do this, but many of the posts I've come across that I think touch on it, assume a greater level of knowledge than I currently have. Thus, I haven't been able to successfully adapt it to my situation without errors or VM lockups. I've included hopefully more information than needed, but please let me know if there is anything else you'd like for me to provide. Any assistance you can give will be greatly appreciated. #!/bin/bash echo 0 > /sys/class/vtconsole/vtcon0/bind echo 0 > /sys/class/vtconsole/vtcon1/bind echo 0 > /sys/devices/virtual/vtconsole/vtcon0/bind echo 0 > /sys/devices/virtual/vtconsole/vtcon1/bind echo efi-framebuffer.0 > /sys/bus/platform/drivers/efi-framebuffer/unbind echo efi-framebuffer.0 > /sys/devices/platform/efi-framebuffer.0/driver/unbind kernel /bzimage append module_blacklist=amdgpu amd_iommu=true iommu=1 vfio-pci.ids=1002:7340,1002:ab38,1002:1479,1002:1478 video=vesafb:off,efifb:off initrd=/bzroot -[0000:00]-+-00.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse Root Complex [1022:1480] +-00.2 Advanced Micro Devices, Inc. [AMD] Starship/Matisse IOMMU [1022:1481] +-01.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-01.2-[01-08]----00.0-[02-08]--+-01.0-[03]----00.0 ADATA Technology Co., Ltd. XPG SX8200 Pro PCIe Gen3x4 M.2 2280 Solid State Drive [1cc1:8201] | +-02.0-[04]----00.0 Broadcom / LSI SAS3008 PCI-Express Fusion-MPT SAS-3 [1000:0097] | +-04.0-[05]----00.0 Intel Corporation I211 Gigabit Network Connection [8086:1539] | +-08.0-[06]--+-00.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP [1022:1485] | | +-00.1 Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:149c] | | \-00.3 Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:149c] | +-09.0-[07]----00.0 Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] | \-0a.0-[08]----00.0 Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] +-02.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-03.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-03.1-[09-0b]----00.0-[0a-0b]----00.0-[0b]--+-00.0 Advanced Micro Devices, Inc. [AMD/ATI] Navi 14 [Radeon RX 5500/5500M / Pro 5500M] [1002:7340] | \-00.1 Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 HDMI Audio [1002:ab38] +-04.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-05.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-07.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-07.1-[0c]----00.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function [1022:148a] +-08.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1482] +-08.1-[0d]--+-00.0 Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP [1022:1485] | +-00.1 Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP [1022:1486] | +-00.3 Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:149c] | \-00.4 Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller [1022:1487] +-08.2-[0e]----00.0 Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] +-08.3-[0f]----00.0 Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] +-14.0 Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:790b] +-14.3 Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:790e] +-18.0 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 0 [1022:1440] +-18.1 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 1 [1022:1441] +-18.2 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 2 [1022:1442] +-18.3 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 3 [1022:1443] +-18.4 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 4 [1022:1444] +-18.5 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 5 [1022:1445] +-18.6 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 6 [1022:1446] \-18.7 Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 7 [1022:1447] IOMMU group 0: [1022:1482] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1483] 00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge [1022:57ad] 01:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse Switch Upstream [1022:57a3] 02:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a3] 02:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a3] 02:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a4] 02:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a4] 02:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1022:57a4] 02:0a.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Matisse PCIe GPP Bridge [1cc1:8201] 03:00.0 Non-Volatile memory controller: ADATA Technology Co., Ltd. XPG SX8200 Pro PCIe Gen3x4 M.2 2280 Solid State Drive (rev 03) [1000:0097] 04:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS3008 PCI-Express Fusion-MPT SAS-3 (rev 02) [8086:1539] 05:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03) [1022:1485] 06:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP [1022:149c] 06:00.1 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:149c] 06:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller [1022:7901] 07:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) [1022:7901] 08:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) IOMMU group 1: [1022:1482] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 2: [1022:1482] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge [1022:1483] 00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse GPP Bridge [1002:1478] 09:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Upstream Port of PCI Express Switch (rev c5) [1002:1479] 0a:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Downstream Port of PCI Express Switch [1002:7340] 0b:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Navi 14 [Radeon RX 5500/5500M / Pro 5500M] (rev c5) [1002:ab38] 0b:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 HDMI Audio IOMMU group 3: [1022:1482] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 4: [1022:1482] 00:05.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 5: [1022:1482] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 6: [1022:1484] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 7: [1022:1482] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Host Bridge IOMMU group 8: [1022:1484] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 9: [1022:1484] 00:08.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 10: [1022:1484] 00:08.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Internal PCIe GPP Bridge 0 to bus[E:B] IOMMU group 11: [1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 61) [1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51) IOMMU group 12: [1022:1440] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 0 [1022:1441] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 1 [1022:1442] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 2 [1022:1443] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 3 [1022:1444] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 4 [1022:1445] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 5 [1022:1446] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 6 [1022:1447] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Matisse Device 24: Function 7 IOMMU group 13: [1022:148a] 0c:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse PCIe Dummy Function IOMMU group 14: [1022:1485] 0d:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Reserved SPP IOMMU group 15: [1022:1486] 0d:00.1 Encryption controller: Advanced Micro Devices, Inc. [AMD] Starship/Matisse Cryptographic Coprocessor PSPCPP IOMMU group 16: [1022:149c] 0d:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Matisse USB 3.0 Host Controller IOMMU group 17: [1022:1487] 0d:00.4 Audio device: Advanced Micro Devices, Inc. [AMD] Starship/Matisse HD Audio Controller IOMMU group 18: [1022:7901] 0e:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) IOMMU group 19: [1022:7901] 0f:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51) <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm'> <name>Ubuntu</name> <uuid>e989fcd7-806a-7e61-bf01-f5b3d66dc040</uuid> <metadata> <vmtemplate xmlns="unraid" name="Ubuntu" icon="ubuntu.png" os="ubuntu"/> </metadata> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>4</vcpu> <cputune> <vcpupin vcpu='0' cpuset='3'/> <vcpupin vcpu='1' cpuset='9'/> <vcpupin vcpu='2' cpuset='5'/> <vcpupin vcpu='3' cpuset='11'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-4.2'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/e989fcd7-806a-7e61-bf01-f5b3d66dc040_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='4' threads='1'/> </cpu> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/domains/Ubuntu/vdisk1.img'/> <target dev='hdc' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/isos/ubuntu-18.04.4-desktop-amd64.iso'/> <target dev='hda' bus='sata'/> <readonly/> <boot order='2'/> <address type='drive' controller='0' bus='0' target='0' unit='0'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x8'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x9'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0xa'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0xb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0xc'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/> </controller> <controller type='pci' index='6' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='6' port='0xd'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/> </controller> <controller type='pci' index='7' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='7' port='0xe'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x6'/> </controller> <controller type='pci' index='8' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='8' port='0xf'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x7'/> </controller> <controller type='pci' index='9' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='9' port='0x10'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='10' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='10' port='0x11'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:1f:b4:94'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </interface> <serial type='pty'> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/domains/vBios/Gigabyte.RX5500XT.4096.191206.rom'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x1'/> </hostdev> <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x046d'/> <product id='0xc52b'/> </source> <address type='usb' bus='0' port='1'/> </hostdev> <memballoon model='none'/> </devices> </domain> -rtc base=utc,driftfix=slew \ -global kvm-pit.lost_tick_policy=delay \ -no-hpet \ -no-shutdown \ -boot strict=on \ -device pcie-root-port,port=0x8,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x1 \ -device pcie-root-port,port=0x9,chassis=2,id=pci.2,bus=pcie.0,addr=0x1.0x1 \ -device pcie-root-port,port=0xa,chassis=3,id=pci.3,bus=pcie.0,addr=0x1.0x2 \ -device pcie-root-port,port=0xb,chassis=4,id=pci.4,bus=pcie.0,addr=0x1.0x3 \ -device pcie-root-port,port=0xc,chassis=5,id=pci.5,bus=pcie.0,addr=0x1.0x4 \ -device pcie-root-port,port=0xd,chassis=6,id=pci.6,bus=pcie.0,addr=0x1.0x5 \ -device pcie-root-port,port=0xe,chassis=7,id=pci.7,bus=pcie.0,addr=0x1.0x6 \ -device pcie-root-port,port=0xf,chassis=8,id=pci.8,bus=pcie.0,addr=0x1.0x7 \ -device pcie-root-port,port=0x10,chassis=9,id=pci.9,bus=pcie.0,multifunction=on,addr=0x2 \ -device pcie-root-port,port=0x11,chassis=10,id=pci.10,bus=pcie.0,addr=0x2.0x1 \ -device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \ -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \ -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 \ -device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \ -device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x0 \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/Ubuntu/vdisk1.img","node-name":"libvirt-2-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-2-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-2-storage"}' \ -device virtio-blk-pci,scsi=off,bus=pci.3,addr=0x0,drive=libvirt-2-format,id=virtio-disk2,bootindex=1,write-cache=on \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/ubuntu-18.04.4-desktop-amd64.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \ -device ide-cd,bus=ide.0,drive=libvirt-1-format,id=sata0-0-0,bootindex=2 \ -netdev tap,fd=35,id=hostnet0,vhost=on,vhostfd=36 \ -device virtio-net-pci,netdev=hostnet0,id=net0,mac=52:54:00:1f:b4:94,bus=pci.1,addr=0x0 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0 \ -chardev socket,id=charchannel0,fd=37,server,nowait \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -device vfio-pci,host=0000:0b:00.0,id=hostdev0,bus=pci.4,multifunction=on,addr=0x0,romfile=/mnt/user/domains/vBios/Gigabyte.RX5500XT.4096.191206.rom \ -device vfio-pci,host=0000:0b:00.1,id=hostdev1,bus=pci.4,addr=0x0.0x1 \ -device usb-host,hostbus=3,hostaddr=3,id=hostdev2,bus=usb.0,port=1 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on 2020-02-19 13:40:18.752+0000: Domain id=2 is tainted: high-privileges 2020-02-19 13:40:18.752+0000: Domain id=2 is tainted: host-cpu char device redirected to /dev/pts/3 (label charserial0)
