Good day everybody,
Would appreciate your assistance to find out the possible cause of my issue.
My system specification below:
CPU: Ryzen 7 3700X
Motherboard: Gigabyte B450 Aorus Elite (version: F51)
GPU: EVGA GTX 1080 SC Gaming (P/N: 08G-P4-6183-KR)
I have watched numerous videos guide to set up GPU passthrough. I still can't get it working unfortunately.
1) Monitor would simply go to standby mode when I start the VM. Monitor was connected through the GPU DP port.
2) VM did not boot at all when using GPU passthrough. VNC works fine however.
3) 1 CPU core that I have pinned to the VM gets stuck at 100% usage.
4) VM would not shut down gracefully. Have to force stop.
Steps performed:
1) SVM and IOMMU mode is enabled.
2) GPU was grouped with other devices. I've Isolated the groupings as per mentioned is this video (https://www.youtube.com/watch?v=qQiMMeVNw-o) using step 2 by setting PCIe ACS override to both.
3) Downloaded and edited the appropriate VBIOS for my GPU. (https://www.techpowerup.com/vgabios/201504/evga-gtx1080-8192-180308)
4) Tried both machine models (i440fx & Q35). None worked.
5) Tried OVMF and SeaBIOS. None worked.
Is there anything else that I might have missed? Some Information that may help troubleshoot:

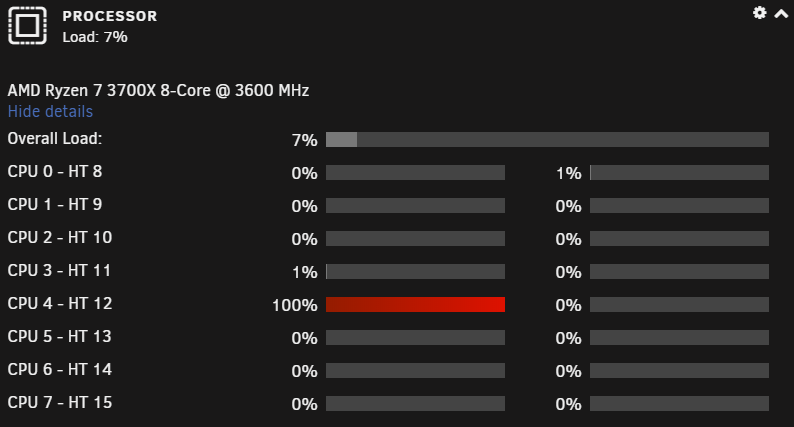

100% CPU:

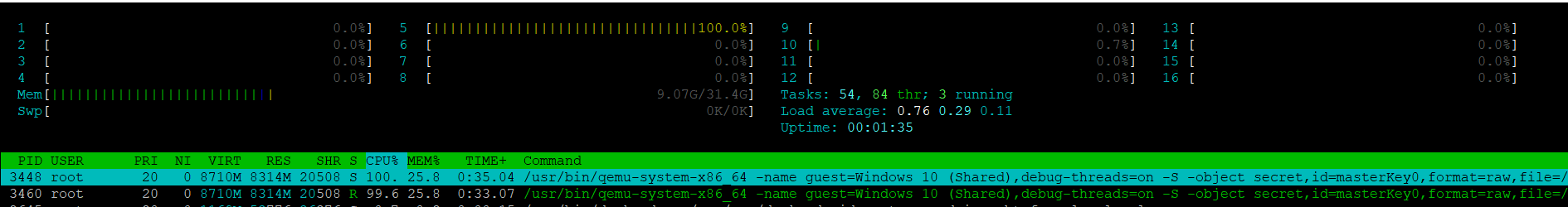

HTOP:
IOMMU Group:
IOMMU group 24: [10de:1b80] 07:00.0 VGA compatible controller: NVIDIA Corporation GP104 [GeForce GTX 1080] (rev a1)
IOMMU group 25: [10de:10f0] 07:00.1 Audio device: NVIDIA Corporation GP104 High Definition Audio Controller (rev a1)
VM Configuration
<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' id='1'>
<name>Windows 10 (Shared)</name>
<uuid>e2de9569-5950-d734-0806-c014274fbb67</uuid>
<metadata>
<vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
</metadata>
<memory unit='KiB'>8388608</memory>
<currentMemory unit='KiB'>8388608</currentMemory>
<memoryBacking>
<nosharepages/>
</memoryBacking>
<vcpu placement='static'>8</vcpu>
<cputune>
<vcpupin vcpu='0' cpuset='4'/>
<vcpupin vcpu='1' cpuset='12'/>
<vcpupin vcpu='2' cpuset='5'/>
<vcpupin vcpu='3' cpuset='13'/>
<vcpupin vcpu='4' cpuset='6'/>
<vcpupin vcpu='5' cpuset='14'/>
<vcpupin vcpu='6' cpuset='7'/>
<vcpupin vcpu='7' cpuset='15'/>
</cputune>
<resource>
<partition>/machine</partition>
</resource>
<os>
<type arch='x86_64' machine='pc-i440fx-4.2'>hvm</type>
<loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
<nvram>/etc/libvirt/qemu/nvram/e2de9569-5950-d734-0806-c014274fbb67_VARS-pure-efi.fd</nvram>
</os>
<features>
<acpi/>
<apic/>
<hyperv>
<relaxed state='on'/>
<vapic state='on'/>
<spinlocks state='on' retries='8191'/>
<vendor_id state='on' value='none'/>
</hyperv>
</features>
<cpu mode='host-passthrough' check='none'>
<topology sockets='1' cores='4' threads='2'/>
<cache mode='passthrough'/>
<feature policy='require' name='topoext'/>
</cpu>
<clock offset='localtime'>
<timer name='hypervclock' present='yes'/>
<timer name='hpet' present='no'/>
</clock>
<on_poweroff>destroy</on_poweroff>
<on_reboot>restart</on_reboot>
<on_crash>restart</on_crash>
<devices>
<emulator>/usr/local/sbin/qemu</emulator>
<disk type='file' device='disk'>
<driver name='qemu' type='qcow2' cache='writeback'/>
<source file='/mnt/user/domains/Windows 10 (Shared)/vdisk1.img' index='1'/>
<backingStore/>
<target dev='hdc' bus='sata'/>
<boot order='1'/>
<alias name='sata0-0-2'/>
<address type='drive' controller='0' bus='0' target='0' unit='2'/>
</disk>
<controller type='pci' index='0' model='pci-root'>
<alias name='pci.0'/>
</controller>
<controller type='sata' index='0'>
<alias name='sata0'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
</controller>
<controller type='virtio-serial' index='0'>
<alias name='virtio-serial0'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
</controller>
<controller type='usb' index='0' model='qemu-xhci' ports='15'>
<alias name='usb'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
</controller>
<interface type='bridge'>
<mac address='52:54:00:53:e5:c0'/>
<source bridge='br0'/>
<target dev='vnet0'/>
<model type='virtio'/>
<alias name='net0'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
</interface>
<serial type='pty'>
<source path='/dev/pts/0'/>
<target type='isa-serial' port='0'>
<model name='isa-serial'/>
</target>
<alias name='serial0'/>
</serial>
<console type='pty' tty='/dev/pts/0'>
<source path='/dev/pts/0'/>
<target type='serial' port='0'/>
<alias name='serial0'/>
</console>
<channel type='unix'>
<source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-1-Windows 10 (Shared)/org.qemu.guest_agent.0'/>
<target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
<alias name='channel0'/>
<address type='virtio-serial' controller='0' bus='0' port='1'/>
</channel>
<input type='tablet' bus='usb'>
<alias name='input0'/>
<address type='usb' bus='0' port='1'/>
</input>
<input type='mouse' bus='ps2'>
<alias name='input1'/>
</input>
<input type='keyboard' bus='ps2'>
<alias name='input2'/>
</input>
<hostdev mode='subsystem' type='pci' managed='yes'>
<driver name='vfio'/>
<source>
<address domain='0x0000' bus='0x07' slot='0x00' function='0x0'/>
</source>
<alias name='hostdev0'/>
<rom file='/mnt/user/isos/EVGA.GTX1080.8192.180308.dump'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
</hostdev>
<hostdev mode='subsystem' type='pci' managed='yes'>
<driver name='vfio'/>
<source>
<address domain='0x0000' bus='0x07' slot='0x00' function='0x1'/>
</source>
<alias name='hostdev1'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
</hostdev>
<memballoon model='none'/>
</devices>
<seclabel type='dynamic' model='dac' relabel='yes'>
<label>+0:+100</label>
<imagelabel>+0:+100</imagelabel>
</seclabel>
</domain>
