hcook

YUP! that was it thanks for the help Squid!

So I deselected all the items for passthrough, then deleted the VMs and turned off VM manager in settings, and still same issue. Diagnostics attached for this attempt. When I get home I think I will create a new USB with a fresh install of unraid and see if this is still an issue, since the last USB was from the previous intel build and and had VFIO-PCI Config plugin installed on it at one point, although its now deleted I cant remember if I did anything else in the settings previously. toxicserv-diagnostics-20201221-0826.zip

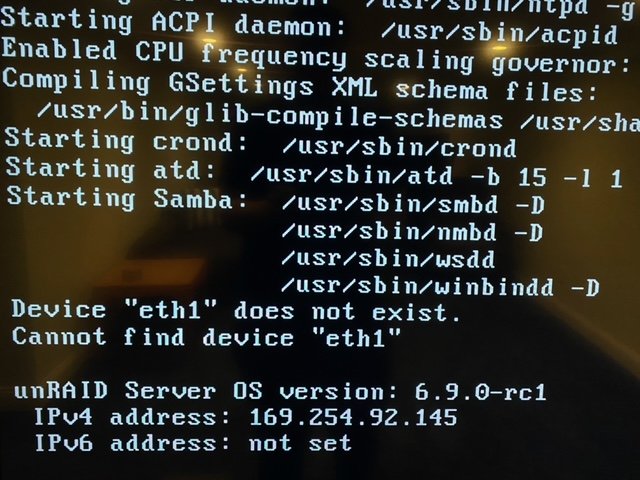

Thanks Squid. I enabled IOMMU in bios, booted up to the below screen (IP should be 192.*.*.*), and logged in. Updated OP to have the new diagnostic file.

I have unraid 6.9.0-rc1 installed and running smoothly then IOMMU is disabled in BIOS, however whenever it is enabled it wont detect USB 3 ports but more importantly doesn't connect to my home network and instead connects to a weird IP and is not visible on network. Setup: ASRock B550 Taichi Razer Edition ATX AM4 Motherboard AMD Ryzen 9 3950X 3.5 GHz 16-Core Processor Unraid 6.9.0-rc1 HVM is enabled in bios, and bios is running the latest 1.3 from ASRock Attached is the syslog from diagnostics when IOMMU is enabled. However I don't know how to get the same thing when IOMMU is enabled and it won't connect to network (gets assigned a 169.254.*.* IP address) using the onboard NIC. I tried two different PCIE NIC cards to see if the NIC was the issue but had the same issue with the strange IP. USB 3 ports are also all disabled. I have tried amending the syslinux.cfg with multiple different iommu criteria like below, I tried both amd_iommu and iommu, as well as "pt" and "soft" for each and I still have the same issue. (this was the only solution I could find on google). label Unraid OS menu default kernel /bzimage append initrd=/bzroot amd_iommu=pt I need IOMMU enabled to be able to pass through my GPU to VM. I am not great at linux systems but can generally follow directions, if there is a way to get the diagnostic file when it doesn't connect to network please let me know, I also presume it would help but maybe someone knows if have the incorrect boot command or can try something different? I didn't have this issue on the Rog Maximus Formula VI. Maybe its just the motherboard? I could change the motherboard but there are limited options for one that has 8 sata ports (since I dont want to mess around with getting a SAS card yet, I have plenty of space on my 40TB setup) toxicserv-diagnostics-20201220-1922.zip
