Hey everyone hope someone can help me.
I have several VMs (Windows, Linux) All VMs can not access via bridged networks (br0, br1 , br2) any webserver except the webserver which is running on the gateway.
How is my setup:
- Unraid 6.8.2
- Bridge configured via Webinterface of Unraid.
- Enable bonding: No
- Enable bridging: Yes
- Bridging members of br2: eth2
- Network protocol: IPv4 only
- IPv4 address assignment: None
- Desired MTU: 1496
- Enable VLANs: No
The VM gets successful the IP of brided network an can access the webserver of the Gateway (Router) thats the only webserver I can open from the VM. I can Ping all devices and SSH works as well to all of the devices (for sure Internet access works also).
For example my router has the IP 192.168.111.1 which is DHCP, DNS and Gateway for my network. There I can get access to http://192.168.111.1:80 from another device like http://192.168.111.124:80 I can not do it.

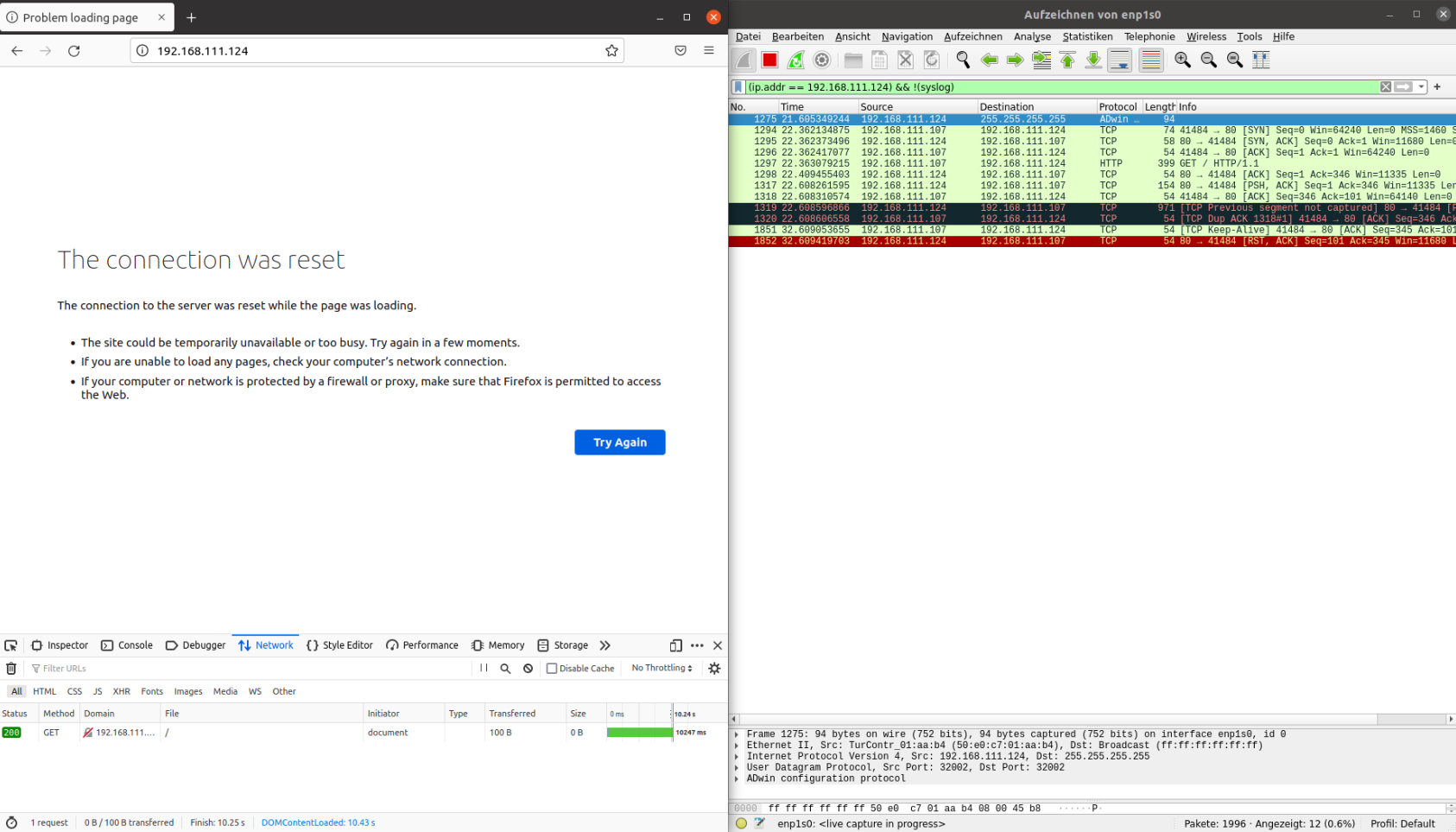

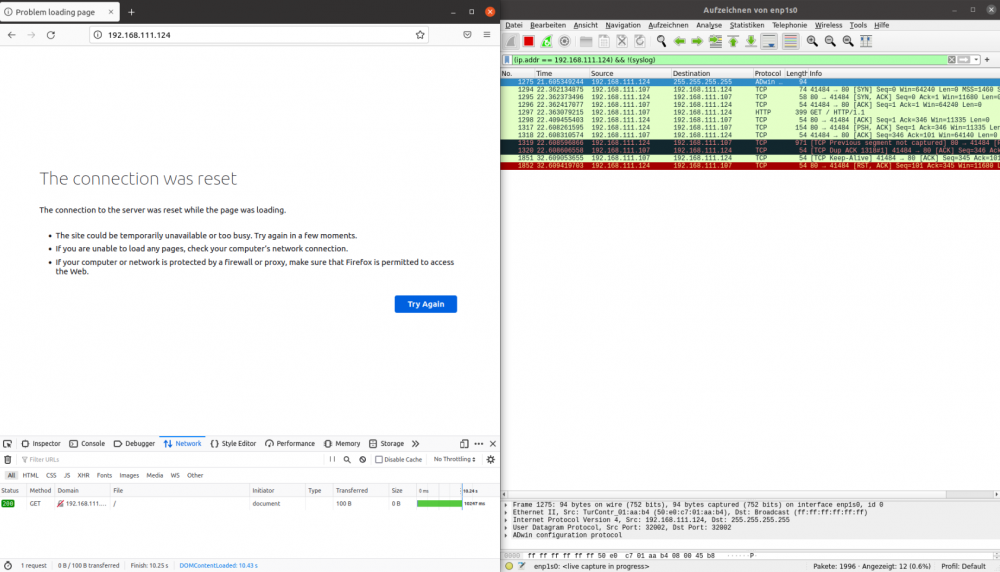

I did same with several browsers (Chome-ium, Firefox), every browser response with connection reset.
