  1. Thanks for the link. Interesting, but also pretty complicated and its hard to determine what really is the issue there and how does it link to my case. We should not forget that all my experiments done so far indicate, that neither Windows nor Ubuntu has a power limit problem here. Only Unraid does. On that basis it seems reasonable to think, that there is no issue with the hardware. And even if there was we have two good examples that it can be dealt with purely by software configuration without doing anything special - as we could see Windows and Ubuntu are working just fine out of the box - literally without doing anything special like manually correcting binary bios images. It must be some other way than extracting and modifying BIOSes to get it right - since it is already right on other OSes. I only hope that with your help we will be able to find that way. I would really wish to switch to Unraid as soon as possible, but these kind of unexpected and bizarre issues hold me back. I need to have them solved before moving on with Unraid.
  2. Well, problem still not solved - but perhaps I have ruled out some possibilities. First I have checked that it does not matter whether load comes from a VM or local process running directly on Unraid box. For load testing I have used Stockfish chess program. Sometimes it is used for benchmarking by some portals. It is small, generates real workload, works from CLI and can use as many threads as you want. You may also easily run multiple single thread instances. All in all it did not change anything - I could see the same 20-22W power limit to kick in after a few seconds and stay at that level during the rest of the test. So even without VM in play it is bad. Then I thought I should follow the suggestion and check the same case on some other linux distro. I went for latest Ubuntu LTS. To my surprise I was able to do everything on Ubuntu Live booted directly from pendrive - even compile CoreFreq. Of course there was no changes to the hardware or any hardware settings - just plug in the pendrive, boot Ubuntu and do the testing. I did the same "Stockfish" test on Ubuntu and I must say - It worked Ok. It was keeping 50W (and running about 4.0-4.1 GHz for 3 core load test) which is the default setting for PL1. I used the same tools and same settings (Intel Pstate, performance governor). I have also checked powersave governor and it worked really well showing almost same results as performance. All in all everything was working just fine here and the power limit was kept at 50W as expected and not at 20-22W as I could see on Unraid. I looks like there is no hardware or hardware config (bios setting or anything else) issue since all is running fine on Ubuntu. There must be something specific in Unraid (6.11.1) which causes the problem with low power limit and poor performance. Maybe someone from Unraid team can have a look and suggest what could be wrong?
  3. I disabled Intel Pstate driver but it didn't help much. It is all the same that performance settles around 22W after a few seconds. Intel pstate_driver was replaced by acpi-cpufreq driver which can be seen in both - cpufreq-info and Tips&Twiks plugin (governor set to performance). cpufreq-info gives the following output: analyzing CPU 10: driver: acpi-cpufreq CPUs which run at the same hardware frequency: 10 CPUs which need to have their frequency coordinated by software: 10 maximum transition latency: 10.0 us. hardware limits: 800 MHz - 2.80 GHz available frequency steps: 2.80 GHz, 2.80 GHz, 2.70 GHz, 2.60 GHz, 2.40 GHz, 2.30 GHz, 2.10 GHz, 2.00 GHz, 1.80 GHz, 1.70 GHz, 1.50 GHz, 1.40 GHz, 1.20 GHz, 1.10 GHz, 900 MHz, 800 MHz available cpufreq governors: conservative, ondemand, userspace, powersave, performance, schedutil current policy: frequency should be within 800 MHz and 2.80 GHz. The governor "performance" may decide which speed to use within this range. current CPU frequency is 2.80 GHz (asserted by call to hardware). cpufreq stats: 2.80 GHz:95.61%, 2.80 GHz:0.00%, 2.70 GHz:0.00%, 2.60 GHz:0.02%, 2.40 GHz:0.03%, 2.30 GHz:0.00%, 2.10 GHz:0.01%, 2.00 GHz:0.00%, 1.80 GHz:0.02%, 1.70 GHz:0.21%, 1.50 GHz:0.02%, 1.40 GHz:0.10%, 1.20 GHz:0.02%, 1.10 GHz:0.09%, 900 MHz:0.96%, 800 MHz:2.90% (262) analyzing CPU 11: driver: acpi-cpufreq CPUs which run at the same hardware frequency: 11 CPUs which need to have their frequency coordinated by software: 11 maximum transition latency: 10.0 us. hardware limits: 800 MHz - 2.80 GHz available frequency steps: 2.80 GHz, 2.80 GHz, 2.70 GHz, 2.60 GHz, 2.40 GHz, 2.30 GHz, 2.10 GHz, 2.00 GHz, 1.80 GHz, 1.70 GHz, 1.50 GHz, 1.40 GHz, 1.20 GHz, 1.10 GHz, 900 MHz, 800 MHz available cpufreq governors: conservative, ondemand, userspace, powersave, performance, schedutil current policy: frequency should be within 800 MHz and 2.80 GHz. The governor "performance" may decide which speed to use within this range. current CPU frequency is 2.80 GHz (asserted by call to hardware). cpufreq stats: 2.80 GHz:95.62%, 2.80 GHz:0.00%, 2.70 GHz:0.00%, 2.60 GHz:0.01%, 2.40 GHz:0.00%, 2.30 GHz:0.02%, 2.10 GHz:0.01%, 2.00 GHz:0.05%, 1.80 GHz:0.26%, 1.70 GHz:0.11%, 1.50 GHz:0.01%, 1.40 GHz:0.19%, 1.20 GHz:0.02%, 1.10 GHz:0.09%, 900 MHz:0.19%, 800 MHz:3.42% (376) ,which is not fully consistent. According to cpufreq-info frequency should vary between 800 MHz and 2.8 GHz, but it is not exactly true. In the first seconds of the load test when power is not limited to 22W we can see much higher frequency in corefreq-cli and in /proc/cpuinfo: root@Tower:~# grep MHz /proc/cpuinfo cpu MHz : 4299.991 cpu MHz : 4255.252 cpu MHz : 4262.476 cpu MHz : 4290.778 cpu MHz : 4301.467 cpu MHz : 4300.020 cpu MHz : 4293.844 cpu MHz : 4304.088 cpu MHz : 4095.436 cpu MHz : 4296.918 cpu MHz : 4281.509 cpu MHz : 4300.015 Even in stable state when 3 core load is running for some time, the frequency stabilizes at 3.0-3.1 GHz which is higher than 2.8 upper bound shown by cpufreq-info. So in some way cpufreq-info is mistaken here because reported current frequency is lower than it actually is. I have checked loaded modules with "intel" phrase: root@Tower:~# lsmod | grep intel intel_powerclamp 16384 0 intel_gtt 24576 1 i915 kvm_intel 270336 2 intel_wmi_thunderbolt 16384 0 kvm 958464 1 kvm_intel crc32c_intel 24576 2 ghash_clmulni_intel 16384 0 aesni_intel 380928 0 crypto_simd 16384 1 aesni_intel cryptd 24576 2 crypto_simd,ghash_clmulni_intel intel_cstate 20480 0 intel_uncore 200704 0 btintel 36864 1 btusb bluetooth 475136 5 btrtl,btintel,btbcm,btusb agpgart 40960 2 intel_gtt,ttm intel_soc_dts_iosf 16384 1 processor_thermal_device_pci_legacy intel_pch_thermal 16384 0 iosf_mbi 16384 2 intel_soc_dts_iosf,i915 wmi 28672 3 intel_wmi_thunderbolt,wmi_bmof,mxm_wmi It looks like there could be some other modules which can have something to do with power management/limits. All in all intel_pstate driver was disabled and acpi-cpufreq took over, but it did not change anything with power limit. It still does not exceed 20-22 W in long run, which results in low frequency and poor performance. Any suggestions?
  4. Hello all, I have HP ZBook 15 G5 (with Xeon E-2186M CPU and nVidia Quadro P2000 dGPU) laptop which I use to explore Unraid features. I'm also running one Win10 guest VM on this Unraid box. For now I'm dealing just with this one VM. My VM has 5 CPUs organized as follows (VM cores do not occupy two HT threads of the same core): <vcpu placement='static'>5</vcpu> <cputune> <vcpupin vcpu='0' cpuset='1,7'/> <vcpupin vcpu='1' cpuset='2,8'/> <vcpupin vcpu='2' cpuset='3,9'/> <vcpupin vcpu='3' cpuset='4,10'/> <vcpupin vcpu='4' cpuset='5,11'/> </cputune> <cpu mode='host-passthrough' check='none' migratable='on'> <topology sockets='1' dies='1' cores='5' threads='1'/> <cache mode='passthrough'/> </cpu> Although my Unraid box is doing virtually nothing except running this VM I have observed that VM performance is worse than expected. First I did a test under native Win10 without Unraid. I have measured frequency and power when one, two and finally three CPU cores are fully utilized. Hera are results which I get under plain Win10: 1 Core load test (affnity CPU 4); temp= 90 C; freq= 4,6 GHz; pwr= ~28,5 W 2 Cores load test (affinity CPU 4, 6); temp= 96 C; freq= 4,57 GHz; pwr= ~45,7 W 3 Cores load test (affinity CPU 4, 6, 8); temp= 98 C; freq= 4,32 GHz; pwr= ~53,1 W, Thermal throttling These are sustainable numbers that I get after the test is running for some time. I think these results are something one could expect. However, when the same test is repeated on a Win10 VM hosted by Unraid I get inferior results. For one core during the first 20 seconds I get: 1 Core load test; temp= 96 C; freq= 4,4 GHz; pwr= ~32 W but when ~20 seconds have past it drops and stabilizes at: 1 Core load test; temp=78 C; freq= 4,0 GHz; pwr= ~22 W For two and three core loads we finally get: First 10 seconds: 2 Cores load test; temp= 97 C; freq= 4,4 GHz; pwr= ~50 W then: 2 Cores load test; temp= 76 C; freq= 3,4 GHz; pwr= ~22 W First ~7 seconds: 3 Cores load test; temp= 97 C; freq= 4,4 GHz; pwr= ~54 W then: 3 Cores load test; temp= 70 C; freq= 3,1 GHz; pwr= ~22 W (results gathered by corefreq-cli form CoreFreq plugin) It looks to me that except for a short period of time, Unraid keeps CPU in some kind of 22W power limit. Results observed in a native Win10 show that machine can do over 50 W in a long run (by the way Throttlestop shows default PL1=50W and PL2=90W), which comes with significant noise but also with a decent performance. For some reason it is not the case when machine is managed by Unraid with mysterious 22 W power limit in use. When VM is doing 3 cores load test, cpufreq-info on Unraid shows the following for all cores: cpufrequtils 008: cpufreq-info (C) Dominik Brodowski 2004-2009 Report errors and bugs to [email protected], please. analyzing CPU 0: driver: intel_pstate CPUs which run at the same hardware frequency: 0 CPUs which need to have their frequency coordinated by software: 0 maximum transition latency: 4294.55 ms. hardware limits: 800 MHz - 4.80 GHz available cpufreq governors: performance, powersave current policy: frequency should be within 800 MHz and 4.80 GHz. The governor "performance" may decide which speed to use within this range. current CPU frequency is 3.10 GHz. analyzing CPU 1: driver: intel_pstate CPUs which run at the same hardware frequency: 1 CPUs which need to have their frequency coordinated by software: 1 maximum transition latency: 4294.55 ms. hardware limits: 800 MHz - 4.80 GHz available cpufreq governors: performance, powersave current policy: frequency should be within 800 MHz and 4.80 GHz. The governor "performance" may decide which speed to use within this range. current CPU frequency is 3.10 GHz. which generally seems to be ok. Intel Pstate driver is running and Performance governor is in use. Yet, the actual frequency is low (3.10 GHz) due to some mysterious ~22W power limit. How to make Unraid to use some higher power limit than ~22W? With 22W limit Win10 VM can't even get close to the same Win10 running natively on the same hardware. Any ideas what could be wrong and how to make performance better?

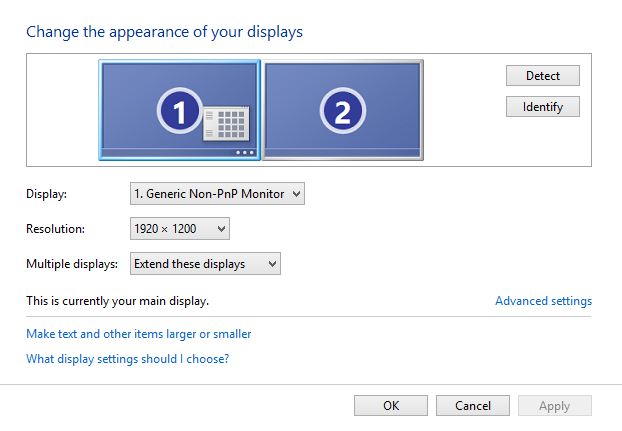

  5. Hi, I'm trying to find my way from VMware to Unraid/KVM. It is no always easy but I'm making progress. I have migrated my hosts from VMware and I could get them running. However, not everything is as good as it was on VMware. One thing is getting 2 displays in my guest VM (have a look at attached picture) and then getting it presented on 2 of 3 monitors attached to my physical host. I'm not doing (and don't intend to) any GPU passthrough here. All I want to do here is make my (Windows) guest to see it has two screens available and be able to use these screens to present desktop in "Extend displays mode". Then I want to get these two virtual displays presented on my physical screens (preferably in full screen mode). So far all my attempts have miserably failed. I could not get even my guest to see it has two displays available. Is there a way to achieve that kind of functionality in Unraid/KVM? I could get it running pretty easy in VMware (both in Player/Workstation as well as in ESXi via VMRC). PS. My VMs have typical configuration with VNC graphic card and QXL VNC video driver. Cheers, Marek.
  6. The same here. I have an array purely on mediocre HDD drives. I'm doing some testing now and for that purpose there is also no SSD Cache Pool in my unRAID. There is VM with a virtual disk (raw, VirtIO) attached. I have prepared virtual disk by running SDelete -c in VM in order to get virtual disk fully initialized (just to make sure that entire space of the disk was written with some data). After that (and restart of the unRAID server) I've tested a virtual disk performance by running CrystalDiskMark in the VM. These are my example results: ------------------------------------------------------------------------------ CrystalDiskMark 8.0.1 x64 ------------------------------------------------------------------------------ * MB/s = 1,000,000 bytes/s [SATA/600 = 600,000,000 bytes/s] * KB = 1000 bytes, KiB = 1024 bytes [Read] SEQ 1MiB (Q= 8, T= 1): 791.518 MB/s [ 754.9 IOPS] < 10448.04 us> SEQ 1MiB (Q= 1, T= 1): 885.947 MB/s [ 844.9 IOPS] < 1180.72 us> RND 4KiB (Q= 32, T= 1): 18.143 MB/s [ 4429.4 IOPS] < 7121.53 us> RND 4KiB (Q= 1, T= 1): 19.230 MB/s [ 4694.8 IOPS] < 212.33 us> [Write] SEQ 1MiB (Q= 8, T= 1): 221.328 MB/s [ 211.1 IOPS] < 37301.93 us> SEQ 1MiB (Q= 1, T= 1): 195.541 MB/s [ 186.5 IOPS] < 5350.16 us> RND 4KiB (Q= 32, T= 1): 168.338 MB/s [ 41098.1 IOPS] < 763.88 us> RND 4KiB (Q= 1, T= 1): 14.531 MB/s [ 3547.6 IOPS] < 280.21 us> Profile: Default Test: 16 GiB (x5) [D: 0% (0/80GiB)] Mode: [Admin] Time: Measure 10 sec / Interval 0 sec Date: 2021/06/05 20:14:42 OS: Windows 10 Professional [10.0 Build 19041] (x64) Write results are way beyond that HDD hardware can do. Especially random 4K writes. I can see no other explanation than that an unRAID is doing a lot of write-back caching when VM is writing to a virtual disk. Is it safe for our data when unRAID is doing that kind caching? Any machine crash or a power outage can corrupt a lot of data if write-back caching is in use. For that purpose we have a BBU on hardware raid controllers which makes write-back caching safe. Lets imagine that we have a database running in VM and it stores data files on a virtual disk. Should it not be the case that if a database engine commits a transaction and user code is informed about successful commit all the data is already persisted and safe? Is it even possible when unRAID seems to be doing write-back caching? Can you explain what is going on here and how much safe are our data already written to virtual disk?
  7. Greetings! I have heard many voices saying that a hardware controller (e.g. PERC) having drives configured as a RAID volume (e.g. 6) would not work with unRAID? Can anyone explain why is that? Should unRAID care what type of block device it gets to build its own array? For example I was thinking about the following config: => 2x hardware controller => 2x raid 6 volume built on each of hardware controllers => unRAID array built of raid 6 volumes provided by the hardware controllers => no parity or redundancy configured for the unRAID array Due to the fact of having hardware controllers with cache and BBU/FBWC I would expect: => better write and read performance in comparison to pure unRAID array with redundancy => ability to survive 2 disk failures in each of the raid 6 volumes (4 disks in total) => ability to trade performance vs reliability by adding extra redundancy in unRAID (parity drive) What I'm missing here? Why the above config is no go for unRAID? It cannot be done with unRAID or it is just not recommended? What are the main reasons? Thanks.
