FizzPumpkin

It was in fact the 3.3v issue. I'm surprised it happened since I did not change anything other than re-buying the same motherboard. I followed the instructions in the video below to resolve it (using the tape). Everything now detects. Thank you!

OH RIGHT! I've heard of this issue but never experienced it. I'll review and report back.

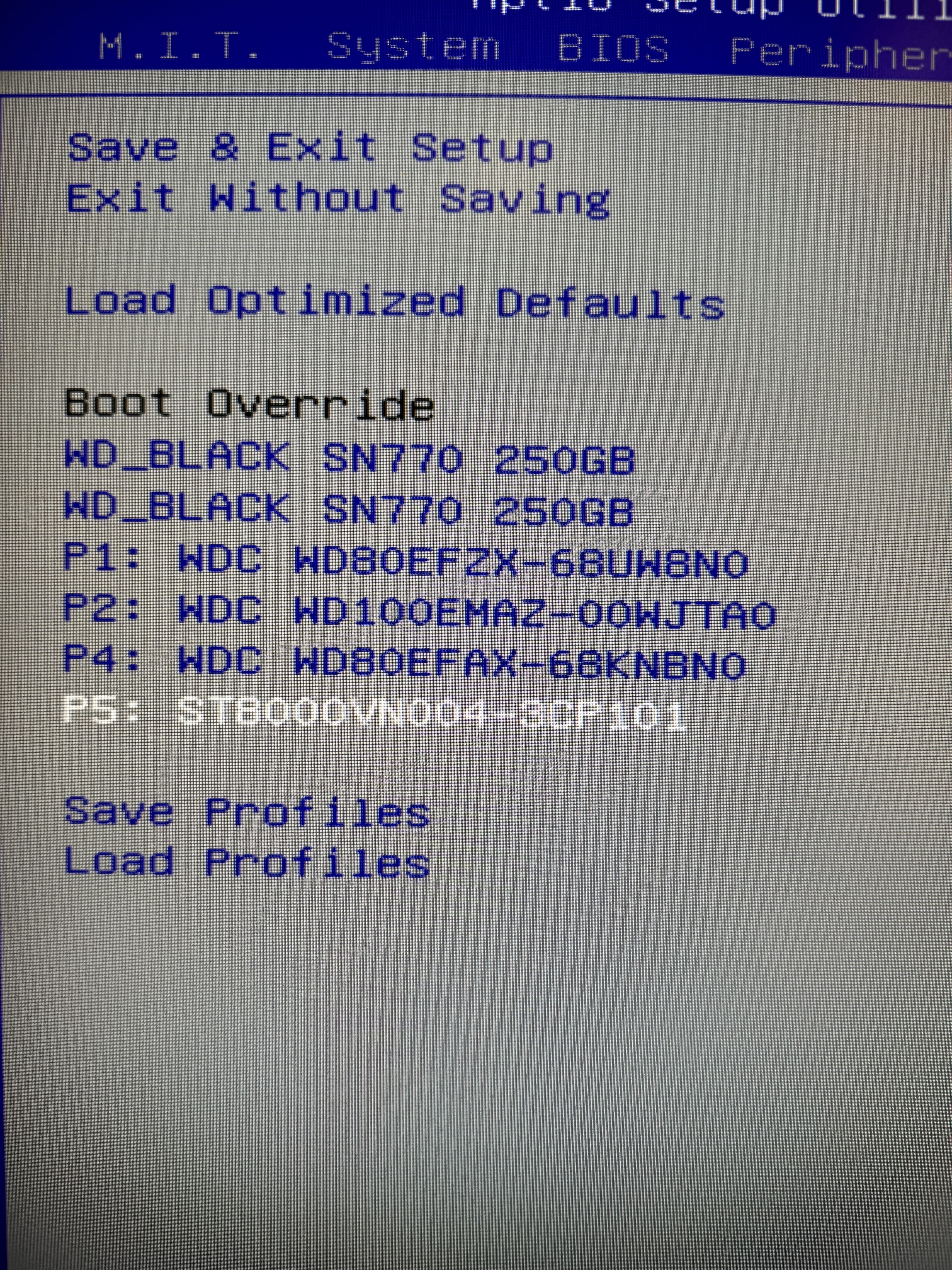

I tried that and was able to narrow the problem to two of the drives. WD100EMAZ-OOWJTAO WD120EDAZ-11F3RAO When I put them back in the drive toaster, they're still detected on my laptop, but not in BIOS when I put them in the board, even after swapping the sata data cables around.

Thanks for your help. I checked and only see 4 of the HDD drives. I have a total of 6. I got this from some old logs I had: WDC_WD20PURZ-85GU6Y0_WD-WCC4M5UN4636 (sdh) 512 3907029168 WDC_WD100EMAZ-00WJTA0_1EGKSV7Z (sde) 512 19532873728 ST1000LM024_HN-M101MBB_S30CJ9DDC00672 (sdb) 512 1953525167 WDC_WD80EFAX-68KNBN0_VAHX169L (sdf) 512 15628053168 WDC_WD100EMAZ-00WJTA0_1EGAB99N (sdc) 512 19532873728 Here is a list of each drive's model numbers: WD120EDAZ-11F3RAO WD80EFZX-68UW8N0 WD100EMAZ-OOWJTAO WD100EMAZ-00WJTAO WD80EFAX-68KNBN0 ST8000VN004 [I was planning to use this IronWolf811d8eb460b23ddd79546314200bb51b55b28f3b.rtfd to replace either WD80EFAX-68KNBN0 or WD80EFZX-68UW8N0, can't remember which was having temp issues].

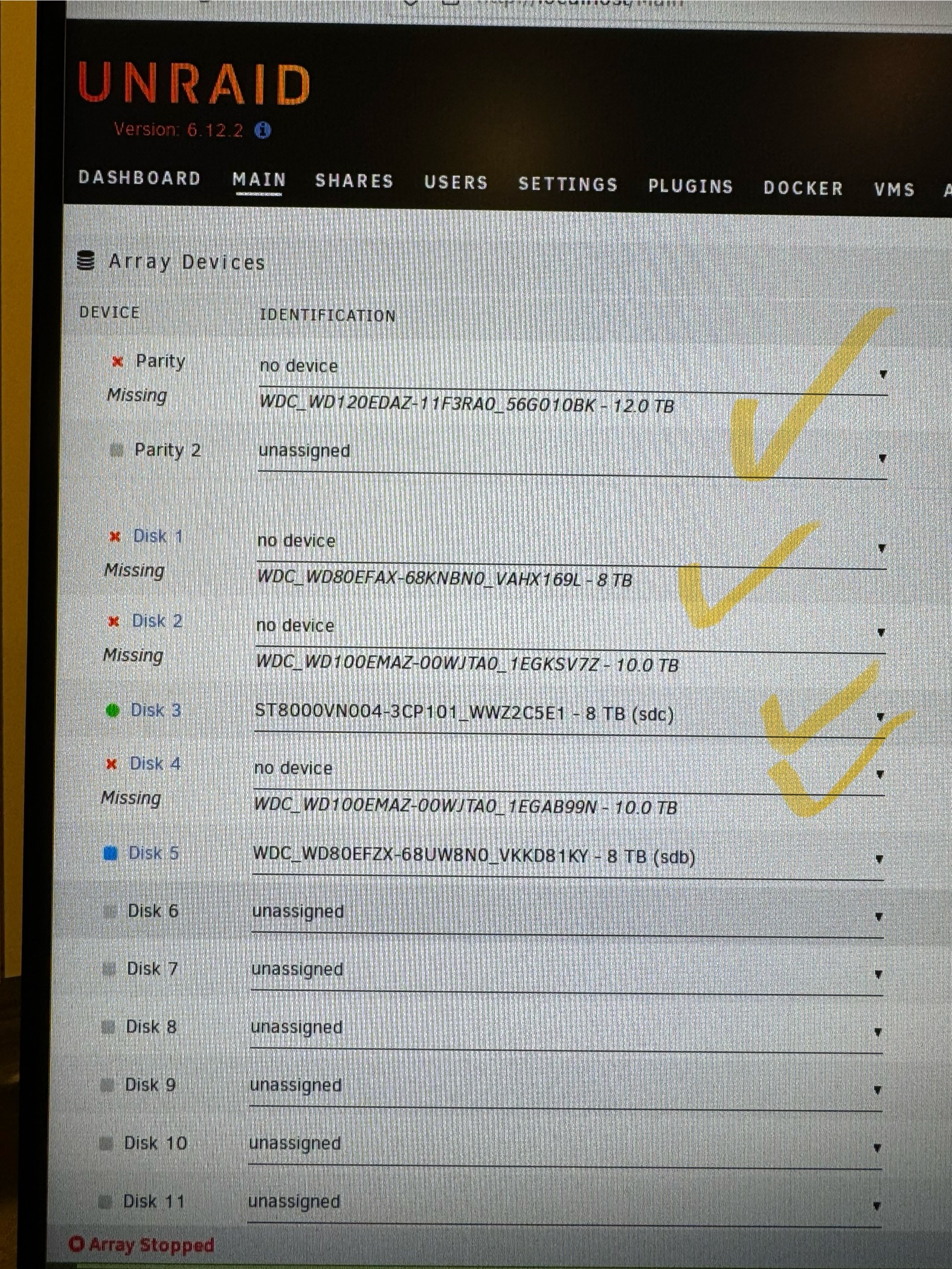

My drives aren't all detected when I start the array after moving to a new machine (new but same board). I took out the drives into a hard drive toaster and all of them boot normal and are detected on my normal laptop. I've provided diagnostics and an image of what the array looks like (apologies for quality). Would anyone be able to help me figure out what's going on? I have a backup of most of the data. Any input is greatly appreciated. starforge-diagnostics-20240411-0454.zip
