franksb89

Thanks again for the support everyone, both disks replaced and everything is back up!

Yea I have another 16tb drive to replace disk2. Alright thanks, I'll start a parity check now and replace disk2 tomorrow :)

Uploaded! frank-diagnostics-20260227-1758.zip Would you recommend doing a parity check before doing a rebuild on disk2?

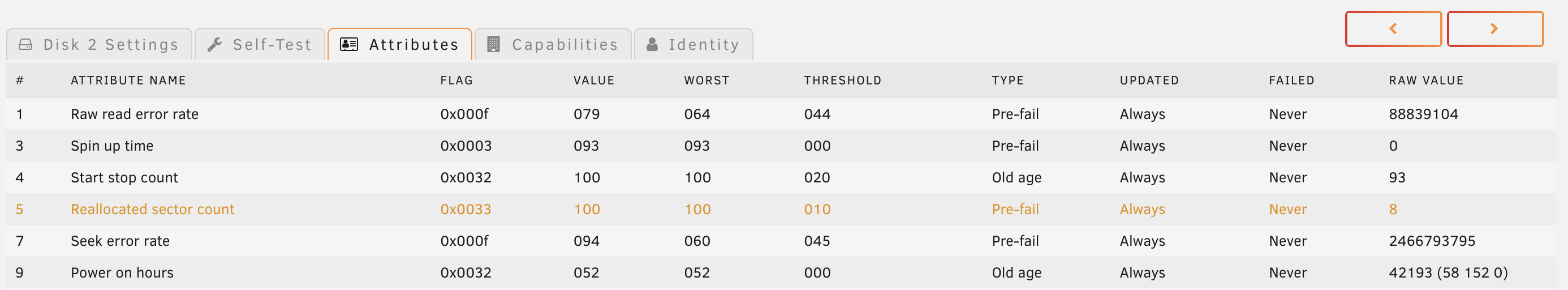

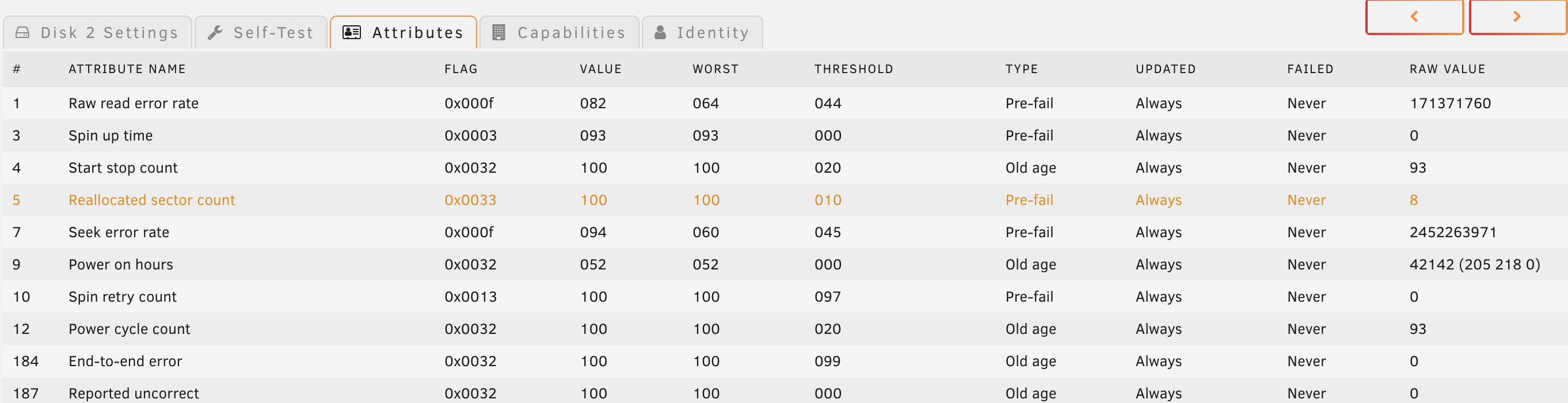

Hi all, Thanks for the support. Parity has been copied and disk1 rebuild was succesful. Next I need to replace disk2, before I replace it should I do a parity check? It currently says parity is valid but the last parity check only took 6 seconds so I'm assuming this is from when I told it to accept parity with the new config? The SMART report of disk2 isn't as bad as disk1 was, however this is how disk1 started before it got worse: Thanks, Frank

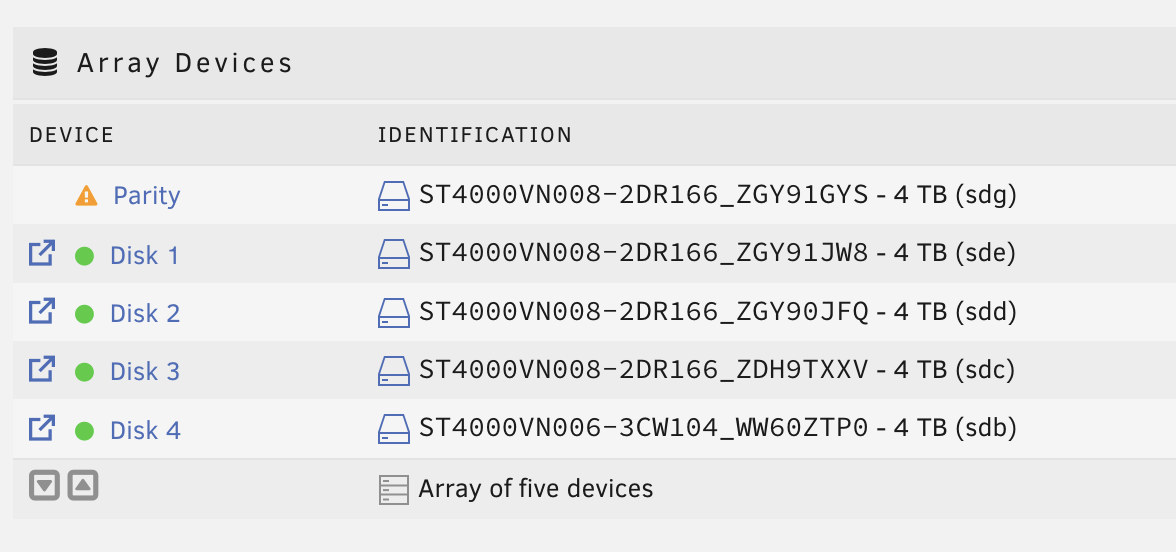

Thanks everyone for the help so far! I've done a new config with the original drives with the parity valid box checked. Seems like the array is back to normal now: I've attached the diagnostics zip file: frank-diagnostics-20260225-1611.zip How do I go about starting the parity swap procedure? Thanks again! Frank

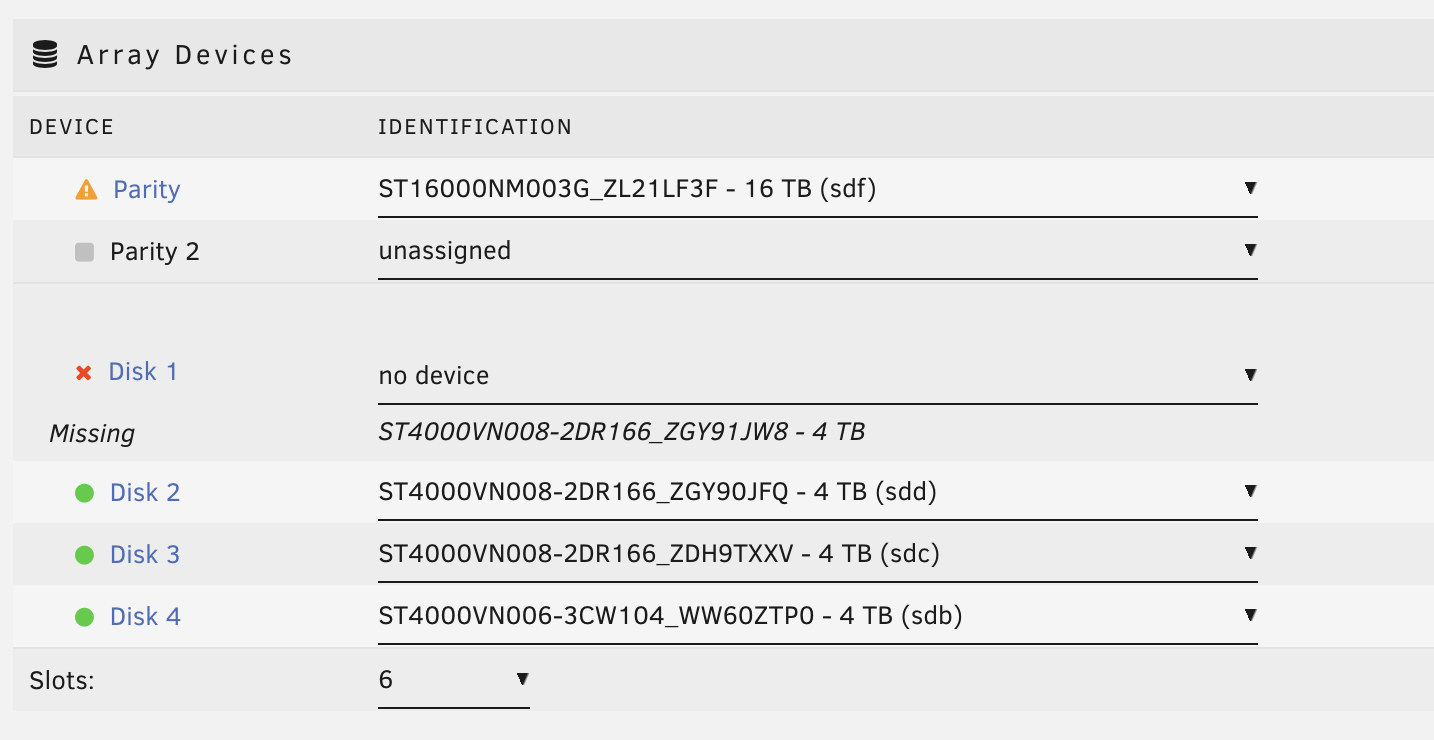

Ah, no then I do think it's still intact. I replaced the parity drive with the new 16tb drive and let it run parity sync until it started showing errors. I then cancelled parity sync and tried to put back the old drive as parity. I have started the array with the old drive back in place but cancelled the parity sync as soon as it started running. No data was written to the array since.

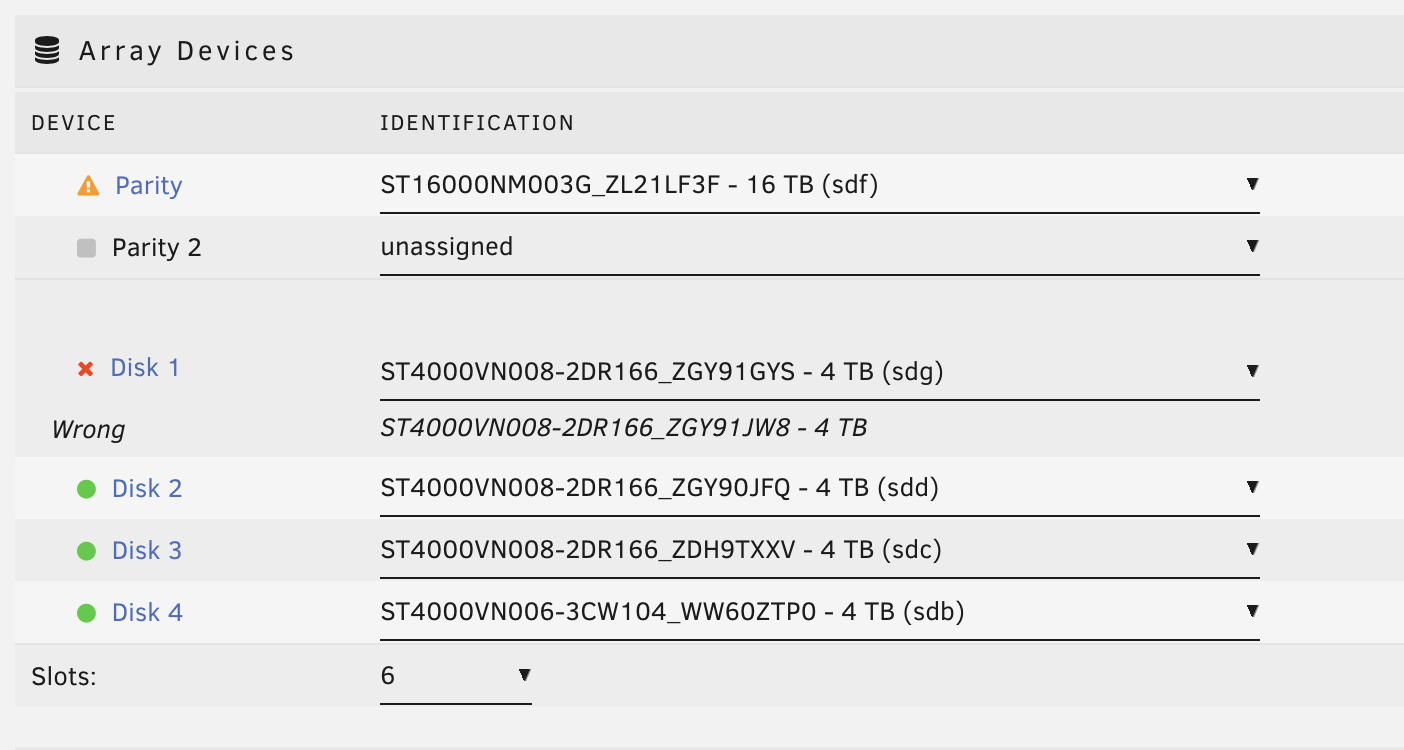

If I try to reassign the previous parity disk as parity it wants to start parity sync, so I assume no..

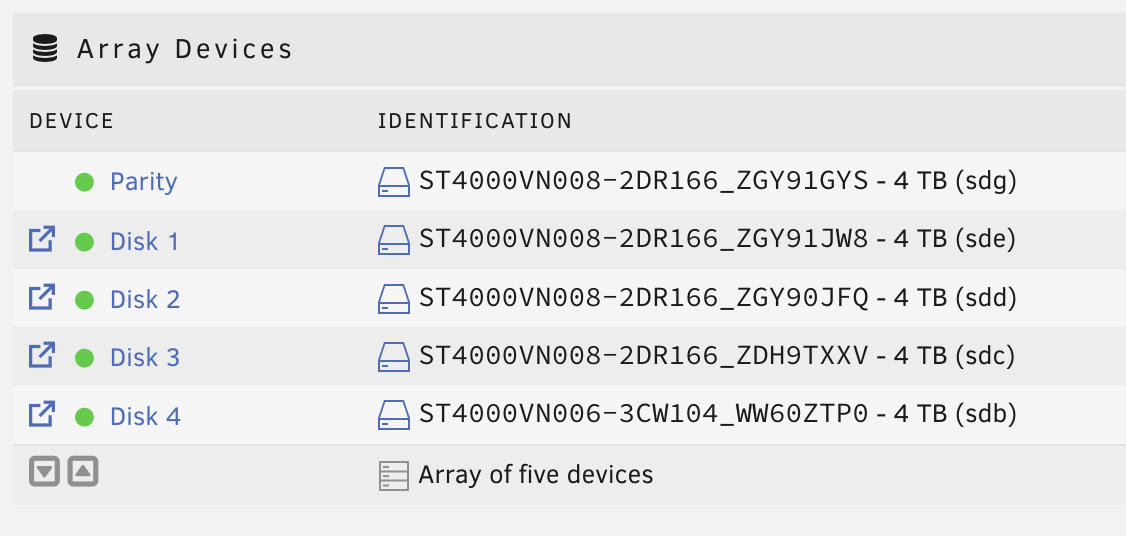

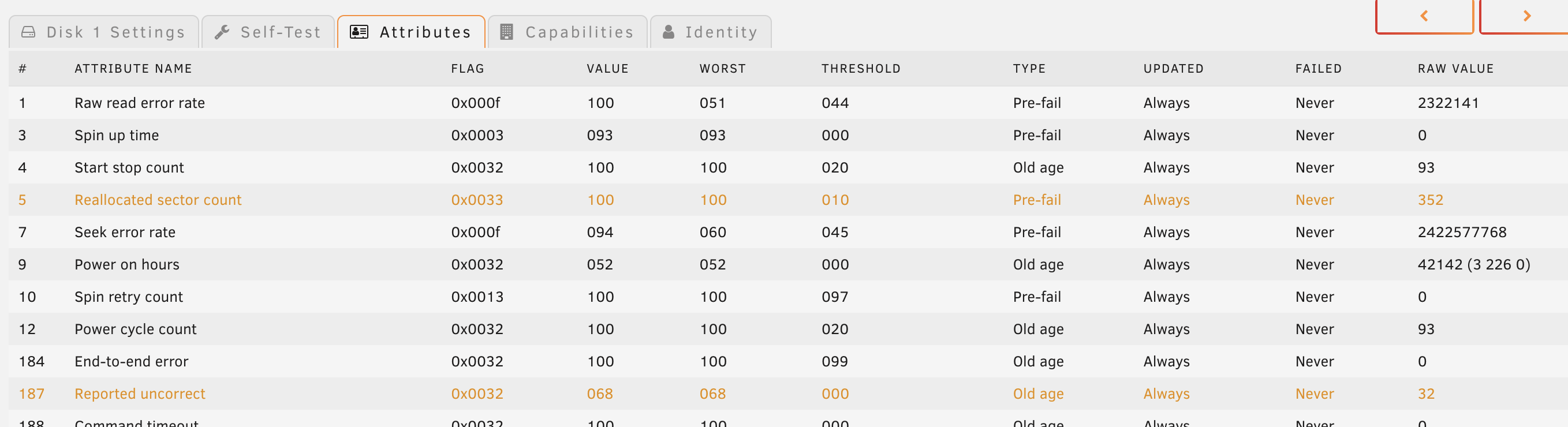

Hi all, This is on unraid 7.0.1 I'm looking for some support on how to replace two failing hard drives. Below is a snapshot of my array: Disk 1 and disk 2 were beginning to show smart errors so I've ordered two replacement drives, they are however 16TB drives. Disk 1: Disk 2: My thought process was to first replace the parity drive with a 16TB drive and let the parity rebuild, however during the rebuild I started getting the following syslog errors and 187 reported uncorrect started climbing on disk1: Feb 25 12:23:50 AnneFrankNAS kernel: ata4.00: exception Emask 0x0 SAct 0x72011c7f SErr 0x0 action 0x0 Feb 25 12:23:50 AnneFrankNAS kernel: ata4.00: irq_stat 0x40000008 Feb 25 12:23:50 AnneFrankNAS kernel: ata4.00: failed command: READ FPDMA QUEUED Feb 25 12:23:50 AnneFrankNAS kernel: ata4.00: cmd 60/c0:c8:30:96:24/02:00:6e:00:00/40 tag 25 ncq dma 360448 in Feb 25 12:23:50 AnneFrankNAS kernel: ata4.00: res 43/40:c0:80:97:24/00:02:6e:00:00/00 Emask 0x408 (media error) <F> Feb 25 12:23:50 AnneFrankNAS kernel: ata4.00: status: { DRDY SENSE ERR } Feb 25 12:23:50 AnneFrankNAS kernel: ata4.00: error: { UNC } Feb 25 12:23:50 AnneFrankNAS kernel: ata4.00: configured for UDMA/133 Feb 25 12:23:50 AnneFrankNAS kernel: ata4: EH complete Feb 25 12:23:56 AnneFrankNAS kernel: ata4.00: exception Emask 0x0 SAct 0x7fe0001f SErr 0x0 action 0x0 Feb 25 12:23:56 AnneFrankNAS kernel: ata4.00: irq_stat 0x40000008 Feb 25 12:23:56 AnneFrankNAS kernel: ata4.00: failed command: READ FPDMA QUEUED Feb 25 12:23:56 AnneFrankNAS kernel: ata4.00: cmd 60/c0:a8:30:96:24/02:00:6e:00:00/40 tag 21 ncq dma 360448 in Feb 25 12:23:56 AnneFrankNAS kernel: ata4.00: res 43/40:c0:60:98:24/00:02:6e:00:00/00 Emask 0x408 (media error) <F> Feb 25 12:23:56 AnneFrankNAS kernel: ata4.00: status: { DRDY SENSE ERR } Feb 25 12:23:56 AnneFrankNAS kernel: ata4.00: error: { UNC } Feb 25 12:23:56 AnneFrankNAS kernel: ata4.00: configured for UDMA/133 Feb 25 12:23:56 AnneFrankNAS kernel: ata4: EH complete Feb 25 12:24:26 AnneFrankNAS kernel: ata4.00: exception Emask 0x0 SAct 0x7ff0060f SErr 0x0 action 0x0 Feb 25 12:24:26 AnneFrankNAS kernel: ata4.00: irq_stat 0x40000008 Feb 25 12:24:26 AnneFrankNAS kernel: ata4.00: failed command: READ FPDMA QUEUED Feb 25 12:24:26 AnneFrankNAS kernel: ata4.00: cmd 60/28:a0:50:81:2e/02:00:6e:00:00/40 tag 20 ncq dma 282624 in Feb 25 12:24:26 AnneFrankNAS kernel: ata4.00: res 43/40:28:40:82:2e/00:02:6e:00:00/00 Emask 0x408 (media error) <F> Feb 25 12:24:26 AnneFrankNAS kernel: ata4.00: status: { DRDY SENSE ERR } Feb 25 12:24:26 AnneFrankNAS kernel: ata4.00: error: { UNC } Feb 25 12:24:26 AnneFrankNAS kernel: ata4.00: configured for UDMA/133 Feb 25 12:24:26 AnneFrankNAS kernel: ata4: EH complete Feb 25 12:25:37 AnneFrankNAS kernel: ata4.00: exception Emask 0x0 SAct 0xff00001f SErr 0x0 action 0x0 Feb 25 12:25:37 AnneFrankNAS kernel: ata4.00: irq_stat 0x40000008 Feb 25 12:25:37 AnneFrankNAS kernel: ata4.00: failed command: READ FPDMA QUEUED Feb 25 12:25:37 AnneFrankNAS kernel: ata4.00: cmd 60/28:c0:b0:17:46/02:00:6e:00:00/40 tag 24 ncq dma 282624 in Feb 25 12:25:37 AnneFrankNAS kernel: ata4.00: res 43/40:28:c8:18:46/00:02:6e:00:00/00 Emask 0x408 (media error) <F> Feb 25 12:25:37 AnneFrankNAS kernel: ata4.00: status: { DRDY SENSE ERR } Feb 25 12:25:37 AnneFrankNAS kernel: ata4.00: error: { UNC } Feb 25 12:25:37 AnneFrankNAS kernel: ata4.00: configured for UDMA/133 Feb 25 12:25:37 AnneFrankNAS kernel: ata4: EH complete Feb 25 12:25:43 AnneFrankNAS kernel: ata4.00: exception Emask 0x0 SAct 0x3fcd8 SErr 0x0 action 0x0 Feb 25 12:25:43 AnneFrankNAS kernel: ata4.00: irq_stat 0x40000008 Feb 25 12:25:43 AnneFrankNAS kernel: ata4.00: failed command: READ FPDMA QUEUED Feb 25 12:25:43 AnneFrankNAS kernel: ata4.00: cmd 60/e0:30:e0:28:46/01:00:6e:00:00/40 tag 6 ncq dma 245760 in Feb 25 12:25:43 AnneFrankNAS kernel: ata4.00: res 43/40:e0:30:29:46/00:01:6e:00:00/00 Emask 0x408 (media error) <F> Feb 25 12:25:43 AnneFrankNAS kernel: ata4.00: status: { DRDY SENSE ERR } Feb 25 12:25:43 AnneFrankNAS kernel: ata4.00: error: { UNC } Feb 25 12:25:43 AnneFrankNAS kernel: ata4.00: configured for UDMA/133 Feb 25 12:25:43 AnneFrankNAS kernel: ata4: EH complete Feb 25 12:25:53 AnneFrankNAS kernel: ata4.00: exception Emask 0x0 SAct 0x3e00 SErr 0x0 action 0x0 Feb 25 12:25:53 AnneFrankNAS kernel: ata4.00: irq_stat 0x40000008 Feb 25 12:25:53 AnneFrankNAS kernel: ata4.00: failed command: READ FPDMA QUEUED Feb 25 12:25:53 AnneFrankNAS kernel: ata4.00: cmd 60/40:48:a8:a4:46/05:00:6e:00:00/40 tag 9 ncq dma 688128 in Feb 25 12:25:53 AnneFrankNAS kernel: ata4.00: res 43/40:40:08:a9:46/00:05:6e:00:00/00 Emask 0x408 (media error) <F> Feb 25 12:25:53 AnneFrankNAS kernel: ata4.00: status: { DRDY SENSE ERR } Feb 25 12:25:53 AnneFrankNAS kernel: ata4.00: error: { UNC } Feb 25 12:25:53 AnneFrankNAS kernel: ata4.00: configured for UDMA/133 Feb 25 12:25:53 AnneFrankNAS kernel: ata4: EH complete Feb 25 12:26:24 AnneFrankNAS kernel: ata4.00: exception Emask 0x0 SAct 0x7c03003f SErr 0x0 action 0x0 Feb 25 12:26:24 AnneFrankNAS kernel: ata4.00: irq_stat 0x40000008 Feb 25 12:26:24 AnneFrankNAS kernel: ata4.00: failed command: READ FPDMA QUEUED Feb 25 12:26:24 AnneFrankNAS kernel: ata4.00: cmd 60/b0:80:18:07:54/02:00:6e:00:00/40 tag 16 ncq dma 352256 in Feb 25 12:26:24 AnneFrankNAS kernel: ata4.00: res 43/40:b0:48:07:54/00:02:6e:00:00/00 Emask 0x408 (media error) <F> Feb 25 12:26:24 AnneFrankNAS kernel: ata4.00: status: { DRDY SENSE ERR } Feb 25 12:26:24 AnneFrankNAS kernel: ata4.00: error: { UNC } Feb 25 12:26:24 AnneFrankNAS kernel: ata4.00: configured for UDMA/133 Feb 25 12:26:24 AnneFrankNAS kernel: ata4: EH complete Feb 25 12:26:44 AnneFrankNAS kernel: ata4.00: exception Emask 0x0 SAct 0xff SErr 0x0 action 0x0 Feb 25 12:26:44 AnneFrankNAS kernel: ata4.00: irq_stat 0x40000008 Feb 25 12:26:44 AnneFrankNAS kernel: ata4.00: failed command: READ FPDMA QUEUED Feb 25 12:26:44 AnneFrankNAS kernel: ata4.00: cmd 60/40:00:78:af:5c/05:00:6e:00:00/40 tag 0 ncq dma 688128 in Feb 25 12:26:44 AnneFrankNAS kernel: ata4.00: res 43/40:40:a8:b1:5c/00:05:6e:00:00/00 Emask 0x408 (media error) <F> Feb 25 12:26:44 AnneFrankNAS kernel: ata4.00: status: { DRDY SENSE ERR } Feb 25 12:26:44 AnneFrankNAS kernel: ata4.00: error: { UNC } Feb 25 12:26:44 AnneFrankNAS kernel: ata4.00: configured for UDMA/133 Feb 25 12:26:44 AnneFrankNAS kernel: ata4: EH completeI realise now I probably should've swapped disk1 to the old parity dive when I assigned the 16TB as parity? I've cancelled the parity sync as I don't want to risk losing the data on disk1 (it has data we definitely don't want to lose). Could someone please walk me through how best to proceed? When I stop the array and assign the old parity drive back as parity it obviously wants to parity sync, if I then stop the array again it auto populates the 16TB as parity and I'm unable to assign another drive for disk1, nor can I start the array with disk1 unassigned: Hopefully I haven't borked it up already, thanks for any help! Frank
