t0ny84

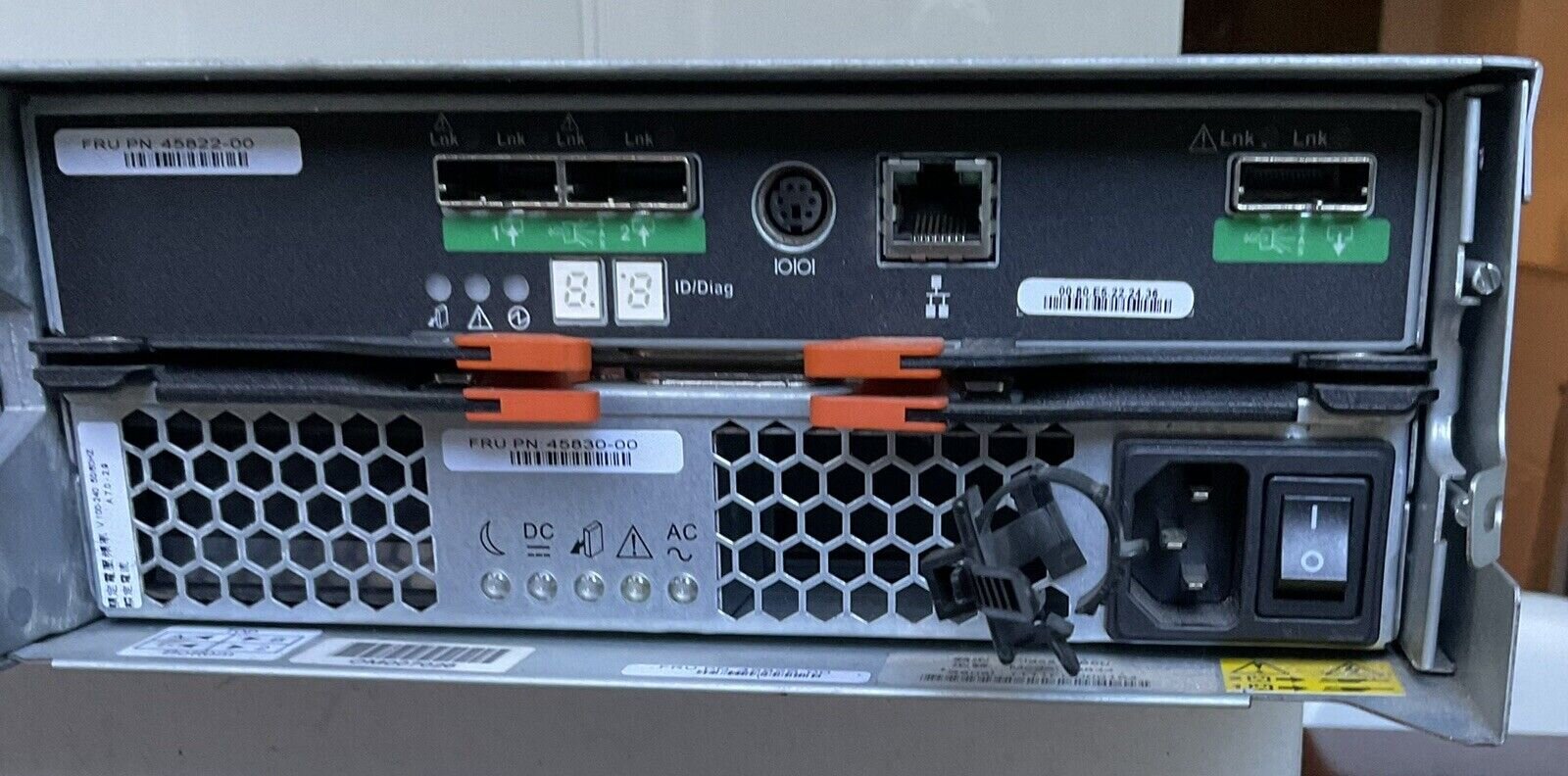

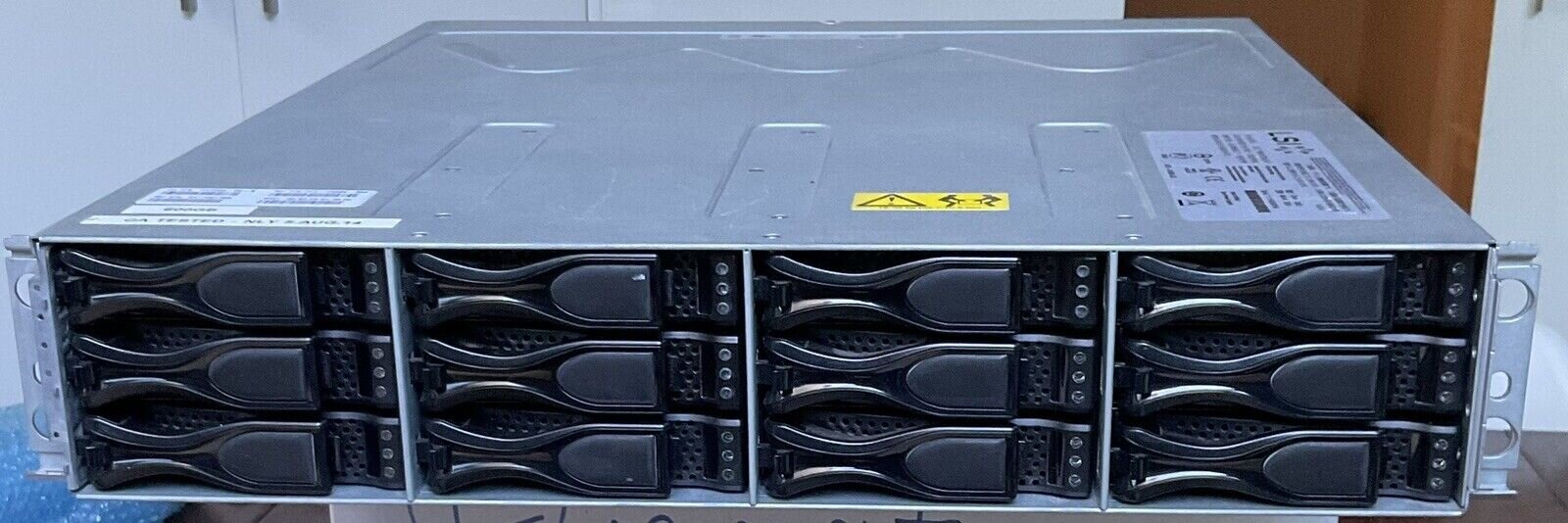

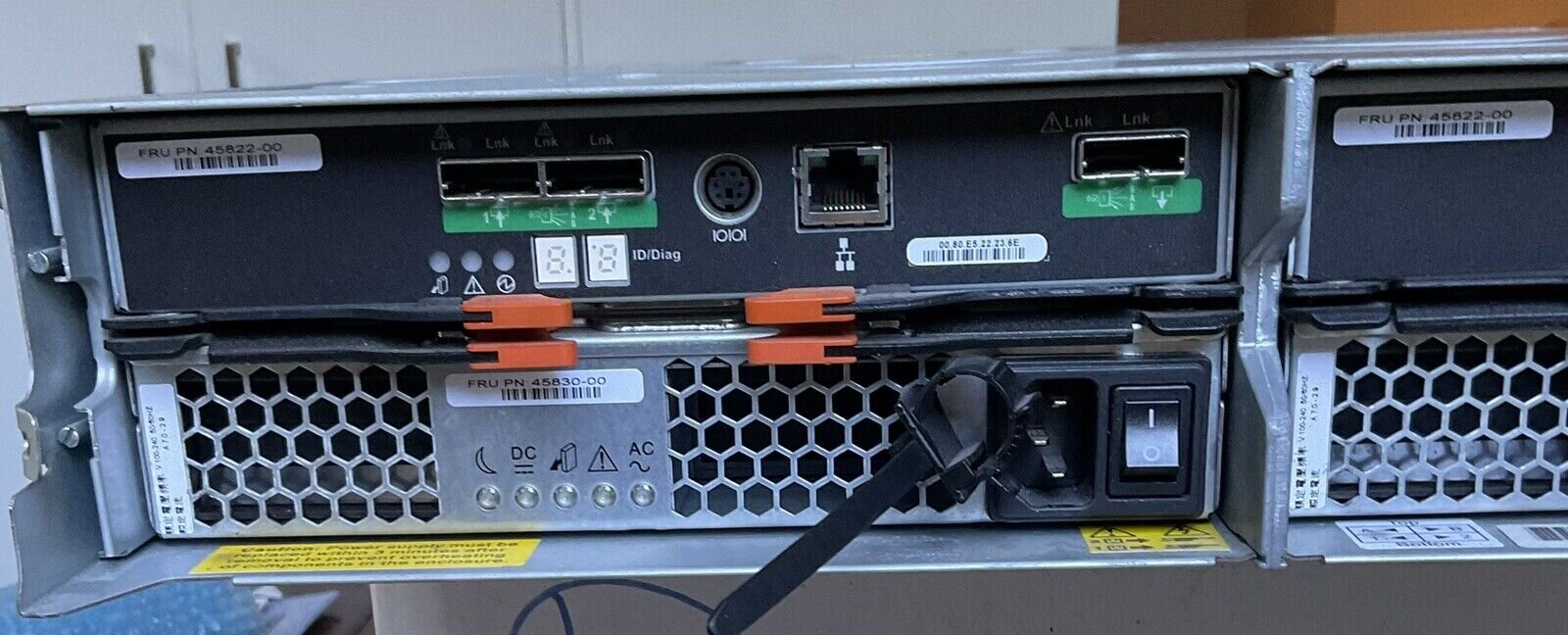

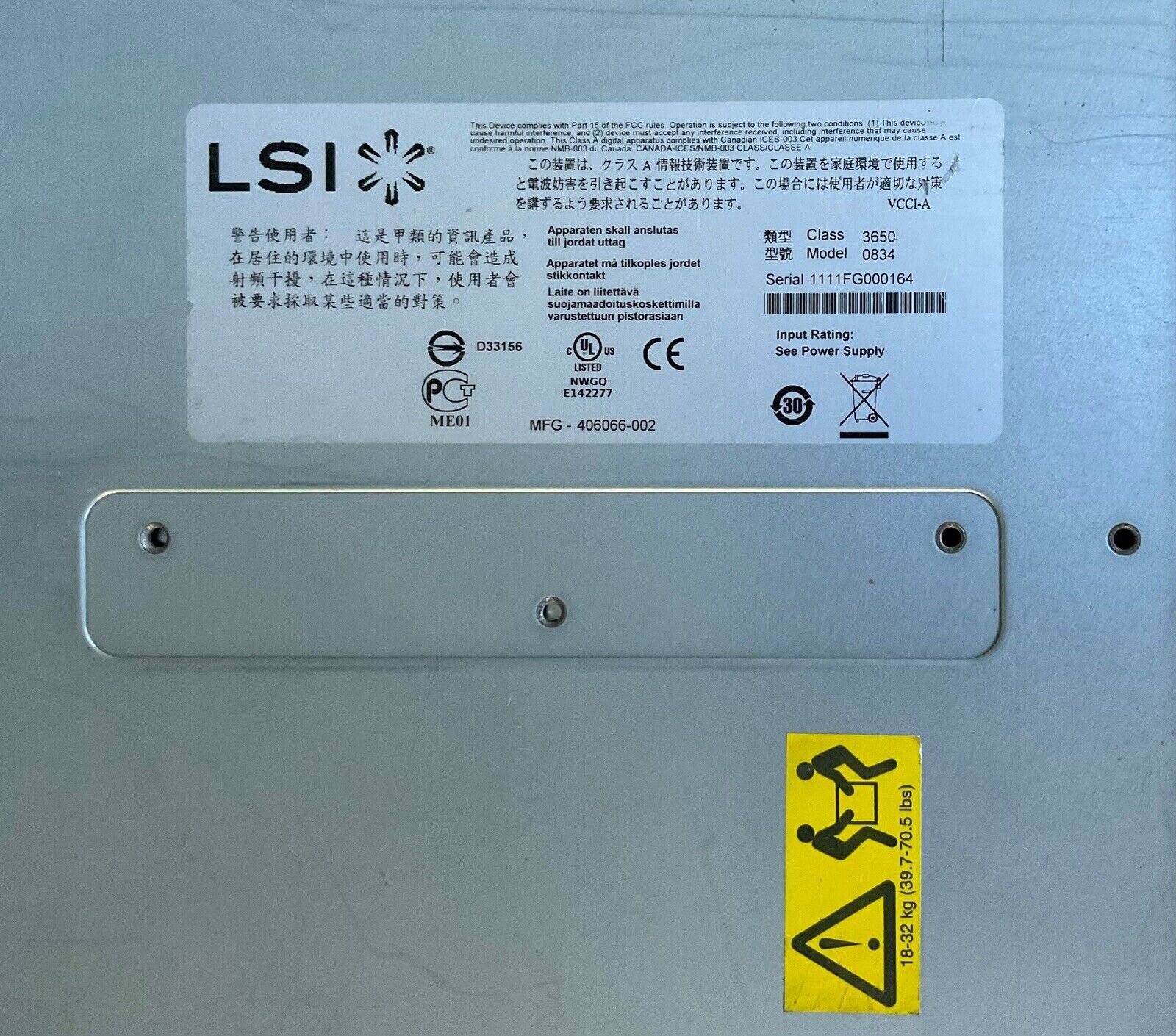

Hi All, Cross Post Advice So everyone is aware, to get the most input and advice I have posted this on both TrueNAS Forum and UnRAID Forum. Links: TrueNAS Post UnRaid Post I have recently purchased a NetApp Class 3650 Model 0834 Storage Array and am hoping someone can give me some guidance in relation to a suitable SAS HBA that will work with this storage array. I will be using either TrueNAS, UnRaid or OMV. The storage array has 12 x 4TB Seagate EXOS SATA drives. From my research I have found: The storage array has dual (primary and redundancy unit) NetApp Drive Module I/F-4 100120-113 FRU PN 45822-00 Controllers. These controllers both have 3 x SF-8088 Ports but I only require 1 x SF-8088 cable for each controller, the other 2 ports are for daisy chaining or attaching multiple HBA Cards to the controllers. Based on the above I believe my HBA requirements are: - 2 x SF-8088 ports. - 6gb/s speed minimum. - IT Mode capable. - Capable to handle 4TB drives (x12). - Reasonably priced (I am based in Australia and have found most external cards quite expensive, for the initial setup I would prefer a rather inexpensive card in case the NetApp Storage Array doesn't work. This is where I have become slightly confused as I have noticed a lot of cards being sold do not state the cable type or much information about the card but names and descriptions like: "Dell PERC 5/E Dual Channel 8-Port PCI-Express SAS Controller with 256MB Cache E2" "HP SAS 3801E-HP Dual Port SAS PCI-E 489103-001 488901-001" "HP P410 462919-001 SAS RAID Controller Full Profile w/512MB Cache No Battery HPE" My shortlist is: Card Name - Connector Type Confirmed Dell PERC H200e - Unknown Dell PERC 5e (M778G) - Unknown Dell PERC 6e - Unknown LSI 9200-8e - SFF-8088 LSI 9286-8e - SFF-8088 Thanks in advance! t0ny84
