amberesque

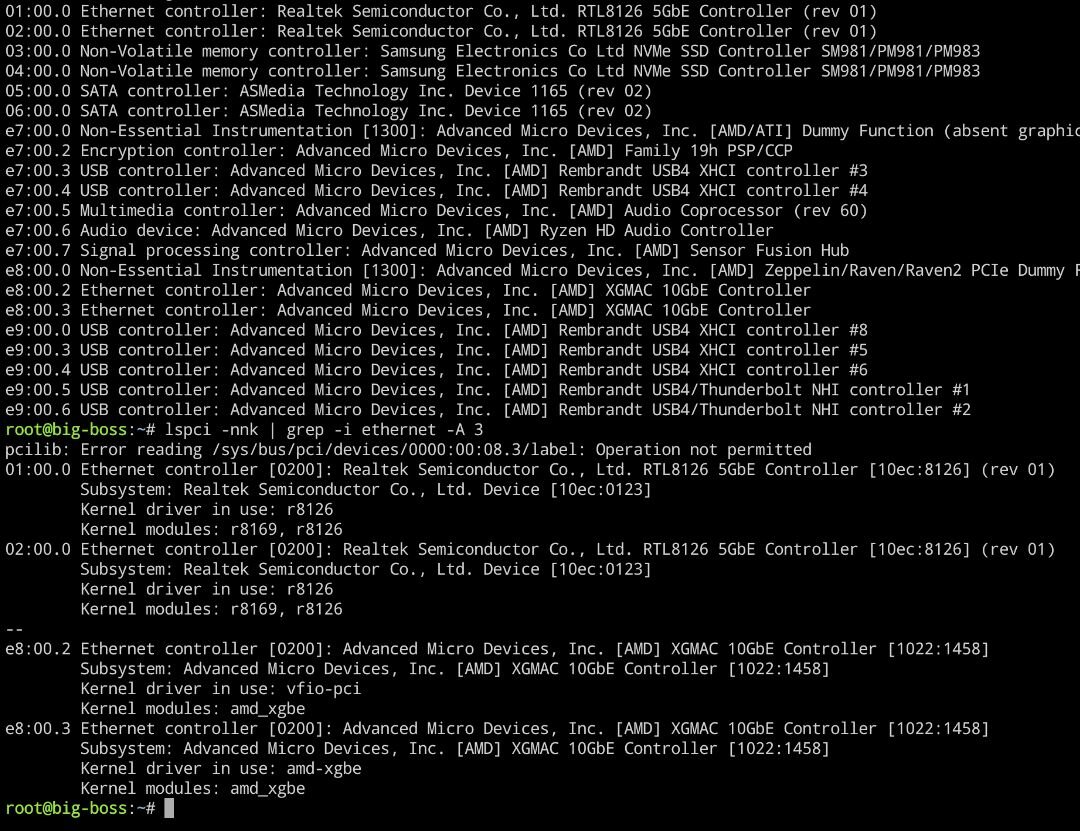

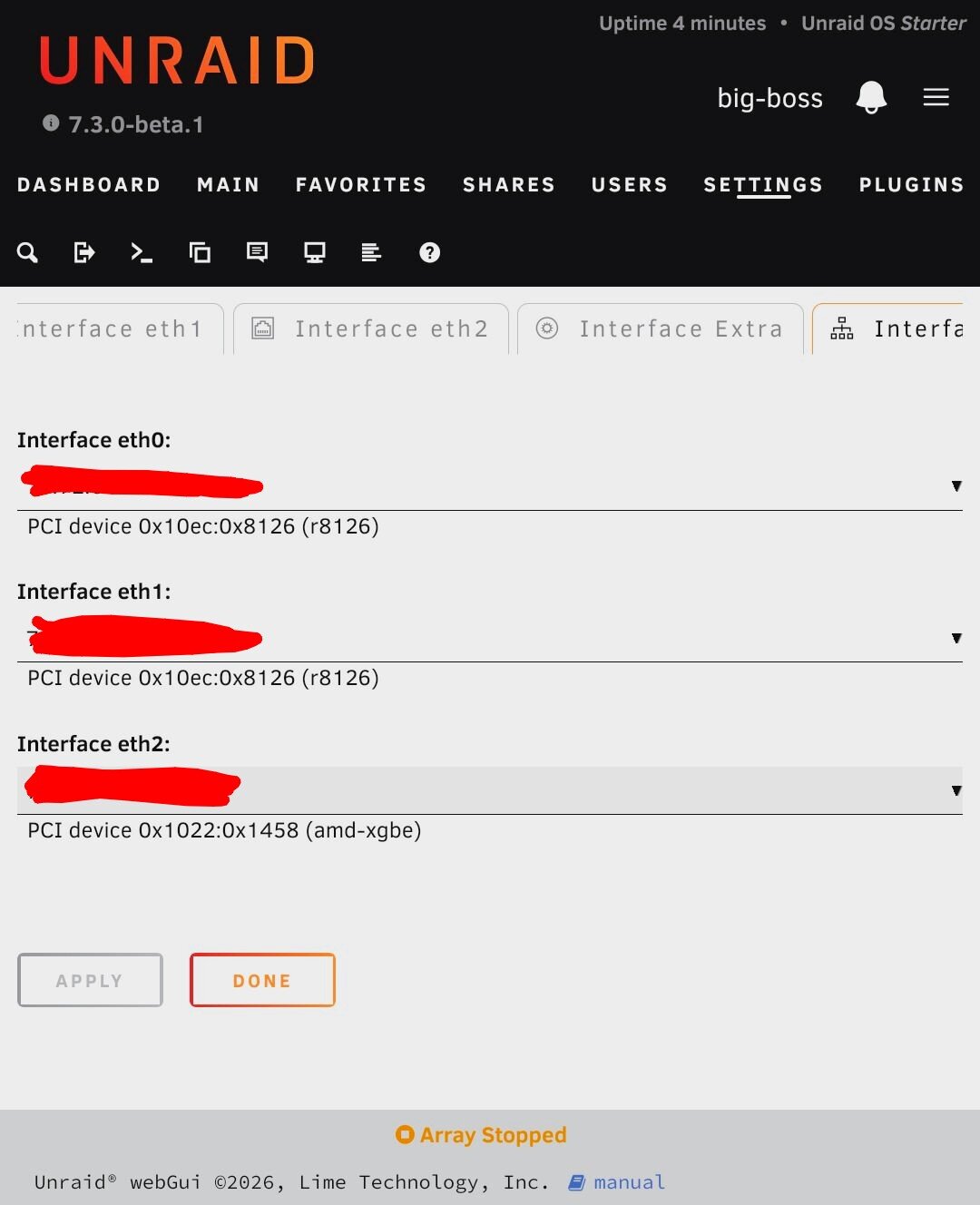

Great thank you for the reminder! Looks like after updating and restarting, we now have 1 of the 2 10GbE nics using the amd-xgbe drivers: Not sure why the e8:00.2 nic is still reported as vfio-pci, but it's certainly better than before! Thank you! If we can get the nic to work that would be great, but if not I appreciate the 1.

I have AMD 10GbE ports that will hopefully be supported with the kernel update in 7.3...... sooo I would also love to test a beta haha

Thank you! Went ahead and marked this as the solution. Once 7.3 comes out, I will double-check that the 10G ports are working as expected, as I already have the infrastructure for that, and post a follow-up to fully document it. I appreciate your time.

Great! Would really appreciate it! 🤞

Sorry for the delay in getting this to you! big-boss-safemode-diagnostics-20260204-0215.zip

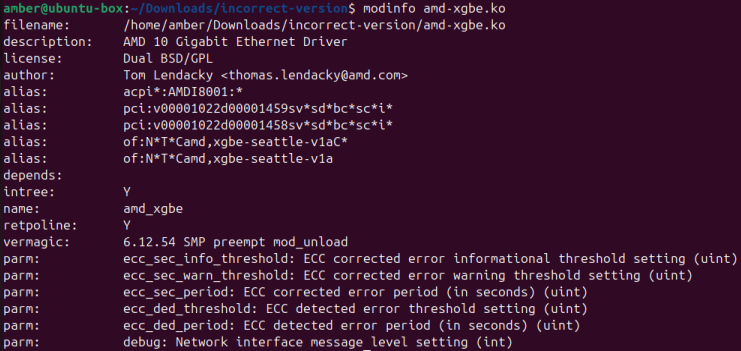

This is from me rather than a plugin. I tried to make the missing .ko file with the above method from the Reddit thread. I did manage to successfully generate a .ko file by using a separate VM, but unfortunately it was not the -Unraid version. So essentially: I need the driver, Unraid doesn't come with it, and my attempt to make my own driver failed. I can get the new diagnostics file after work.

Oop gotcha, here you go. Apologies I should have included that! big-boss-diagnostics-20260201-0804.zip

Hello everyone, Apologies if this is a dumb question and/or already answered somewhere here. I'm sure it is. It seems like I might be out of luck to get the 10GbE ports on my NAS working. Some context for this: uname -r 6.12.54-Unraid uname -m x86_64 OS OS Version = 7.2.3 Unraid is installed on a Lockerstore 8 Gen 3. Here are the specs on that: Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo 16GB of server-grade DDR5-4800 ECC memory (Max 64GB) Quad M.2 slots for NVMe SSDs PCIe 4.0 2x USB4 ports at 40 Gbps 3x USB 3.2 Gen 2 Type-A at 10 Gbps 2x 10-Gigabit Ethernet 2x 5-Gigabit Ethernet Supports Wake on LAN and Wake on WAN (5 GbE) It has this problematic Ethernet controller: e8:00.2 Ethernet controller [0200]: Advanced Micro Devices, Inc. [AMD] XGMAC 10GbE Controller [1022:1458] e8:00.3 Ethernet controller [0200]: Advanced Micro Devices, Inc. [AMD] XGMAC 10GbE Controller [1022:1458] It would seem my Realtek 5GbE drivers are working as expected, but the amd-xgbe drivers are not installed as shown here: lspci -nnk | grep -i ethernet -A 3 01:00.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL8126 5GbE Controller [10ec:8126] (rev 01) Subsystem: Realtek Semiconductor Co., Ltd. Device [10ec:0123] Kernel driver in use: r8126 Kernel modules: r8169, r8126 02:00.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL8126 5GbE Controller [10ec:8126] (rev 01) Subsystem: Realtek Semiconductor Co., Ltd. Device [10ec:0123] Kernel driver in use: r8126 Kernel modules: r8169, r8126 -- e8:00.2 Ethernet controller [0200]: Advanced Micro Devices, Inc. [AMD] XGMAC 10GbE Controller [1022:1458] Subsystem: Advanced Micro Devices, Inc. [AMD] XGMAC 10GbE Controller [1022:1458] Kernel driver in use: vfio-pci Kernel modules: amd_xgbe e8:00.3 Ethernet controller [0200]: Advanced Micro Devices, Inc. [AMD] XGMAC 10GbE Controller [1022:1458] Subsystem: Advanced Micro Devices, Inc. [AMD] XGMAC 10GbE Controller [1022:1458] Kernel modules: amd_xgbe modinfo amd-xgbe modinfo: ERROR: Module amd-xgbe not found. lsmod | grep amd-xgbe -- returns nothing dmesg | grep xgbe -- returns nothing I'm not sure why 1 of the XGMAC lines reports: Kernel driver in use: vfio-pci Because it certainly is not acting like it has a driver. I found this strange because from my google-fu it appears that the amd-xgbe drivers are native in the newer linux kernels, but not Unraid, it seems? There is a whole Reddit post for fixing this problem for TrueNAS users: https://www.reddit.com/r/asustor/comments/1h9zvs9/flashstor_gen_2_fs6812xfs6806x_getting_the_amd/ Asustor replied to the original post with this link: https://www.amd.com/en/support/downloads/drivers.html/processors/ryzen-embedded/ryzen-embedded-v3000-series.html The original poster ended up commenting back to the Asustor people, saying: "TrueNAS is confirmed working fine as well, it's possible to compile the module in a VM and just copy over the amd-xgbe.ko file to make it work." ^^^ maybe I am just too low-brain to do this, but I could not get it to work. I tried using ich777's repository here: https://github.com/ich777/unraid_kernel/releases/tag/6.12.54-Unraid and running that through chatgpt for instructions.... did not make the supposed amd-xgbe.ko file I need for drivers. If anyone knows how in the world I can get these 10GbE ports working with Unraid please let me know, and thank you for your time!
