koyetsu

Ran into a strange issue. NFS only seems to work on BR0. I have my main network on BR0 but have ETH2 as a 10gb nic connecting to my server storage network. I have had no luck connecting to NFS on the subnet that is assigned to ETH2. It is an isolated network, not even a dhcp server. I can ping the server from unraid and vice versa, but have been unable to mount an NFS share to it. Cannot find any info on nfs being ip/interface locked.

johnnie.black, That appears to be the issue...weird. Have it booted and working. thanks for the help. BTW all I did was change usb's wasn't gonna fight it is the other usb didn't want to work

So I just tried this and I still get the line in the boot stream that "Cannot find device bond0" and I get a 169 address i'm almost at a total loss as to how to make this work. really irritating. I have a dual e5-2680 with 160gb ram and 2 tb of ssd and more in spin sitting here and I can't use it.....

I am trying to setup a new unraid system on an HP ML350p G8 and when it boots up I always get a message saying that it couldn't find device bond0. it will not pull an ip address. I have edited the network.cfg file on the flash drive to say bonding="no" and when that didn't work I tried bonding= Leaving it blank still boots with same message and all I get is a 169 address. lspci shows all 5 network adapters but when I ifconfig all I get is br0 and loopback. booted to gui and tried to get the web config. but it will NOT show me the website even going to 127.0.0.1 or localhost. In the system is 4 1gb onboard Broadcom nics and a 10gb Mellanox connect-x 2. the Mellanox card came out of another unraid system so I KNOW it's a known working and compatible card. everything I've found online says this is a problem with bonding but what I can't find out is how to turn it off. so can anyone help with the commands to disable in unraid cli?

BUMP Anyone able to help on this? It doesn't seem like it would be complicated i just can't find what i'm looking for. It can obviously be done because it was done for br0.

I am trying to figure out how to add additional bridged networks to my unraid. I have br0 (came with unraid) set to my 2 1GB nics in a bonded balanced config. I have created a vsan for iscsi that i want to use on a storage network with 10GB fiber. this would allow the unraid box to have an internet facing network and an isolated highspeed network for Virtual Machines, Dockers and External Hosts/Clients. I have been digging and haven't found how to do this. can anyone help? i assume it would be done from the cli but it would be nice if in the future this became configurable from the gui. Can anyone help me?

that was the problem johnodon. thank you so much for the help. i'm used to vmware/esxi where that is kind of a given. that and it has a bios that you can get into to set that stuff.

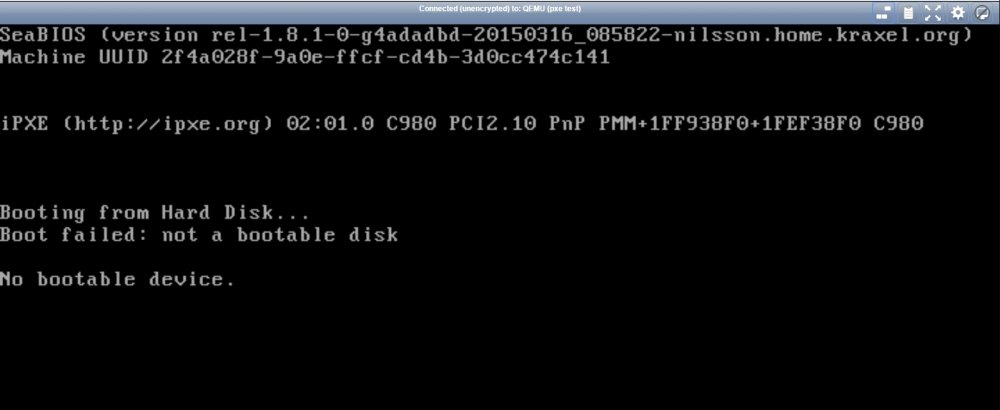

The problem isn't time out it's that it doesn't seem to try for an IP for pxe boot Screenshot attached

Ok i don't know if this has been answered or not but haven't had any luck searching. I have a PXE server setup on the network. if i boot the physical machine it will pxe boot. but when i create a VM and try to get it to do the same it will not. i have the bridge reconfigured so that VM's pull an ip from the network not from unraid. i assume this is something super simple but i can't figure it out. below is the XML for my basic test vm. <domain type='kvm'> <name>pxe test</name> <uuid>8f024a2f-0e9a-cfff-cd4b-3d0cc474c141</uuid> <metadata> <vmtemplate name="Custom" icon="ubuntu.png" os="ubuntu"/> </metadata> <memory unit='KiB'>524288</memory> <currentMemory unit='KiB'>524288</currentMemory> <memoryBacking> <nosharepages/> <locked/> </memoryBacking> <vcpu placement='static'>1</vcpu> <cputune> <vcpupin vcpu='0' cpuset='3'/> </cputune> <os> <type arch='x86_64' machine='pc-q35-2.3'>hvm</type> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> <topology sockets='1' cores='1' threads='1'/> </cpu> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/disk1/vmachine/pxe test/vdisk1.img'/> <target dev='hda' bus='virtio'/> <boot order='1'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x04' function='0x0'/> </disk> <controller type='usb' index='0' model='ich9-ehci1'> <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0' multifunction='on'/> </controller> <controller type='sata' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/> </controller> <controller type='pci' index='2' model='pci-bridge'> <address type='pci' domain='0x0000' bus='0x01' slot='0x01' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/> </controller> <interface type='bridge'> <mac address='52:54:00:c8:b7:e9'/> <source bridge='br0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/pxe test.org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'/> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='vmvga' vram='16384' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/> </video> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x02' slot='0x05' function='0x0'/> </memballoon> </devices> </domain> Thanks in advance for any help and suggestions
