geekdomo

Ok I can connect to it on my phone but not any PC in the house. Weird

I did search the forums and most solutions have to do with the boot disk? I have an install that has been running for over 5 years. I updated it recently but other than that nothing has happened other than installing a new 10GB switch and rebooting the Unraid server. I can ping the server. It shows up in my router table. I can get to all of my drives and shares. When I goto the webUI address its not there. From the server (I have a monitor attached) I can ping the gateway and every device on the network. I have restarted it 4-5 times, unplugged it and plugged it back in, sacrificed a goat, nothing works.

So. I tried to connect to the console and it was blank. No prompt. I then tried to write, nothing would show up. I jumped on my PC (I was on my Mac) and on my pc ALL OF MY DRIVES show up. Not sure what or how my Mac OS can be blocking the drives from showing (its still blank on my Mac) yet on my PC its absolutely fine. I can use it as normal. I am on Safari. Gonna try another browser. Microsoft Edge on my Mac works absolutely fine. I am sorry about this. It appears its some sort of OS browser issue. (oddly enough I am unable to upload any photos on safari to any web UI as well).

I did not. What is the command to do so?

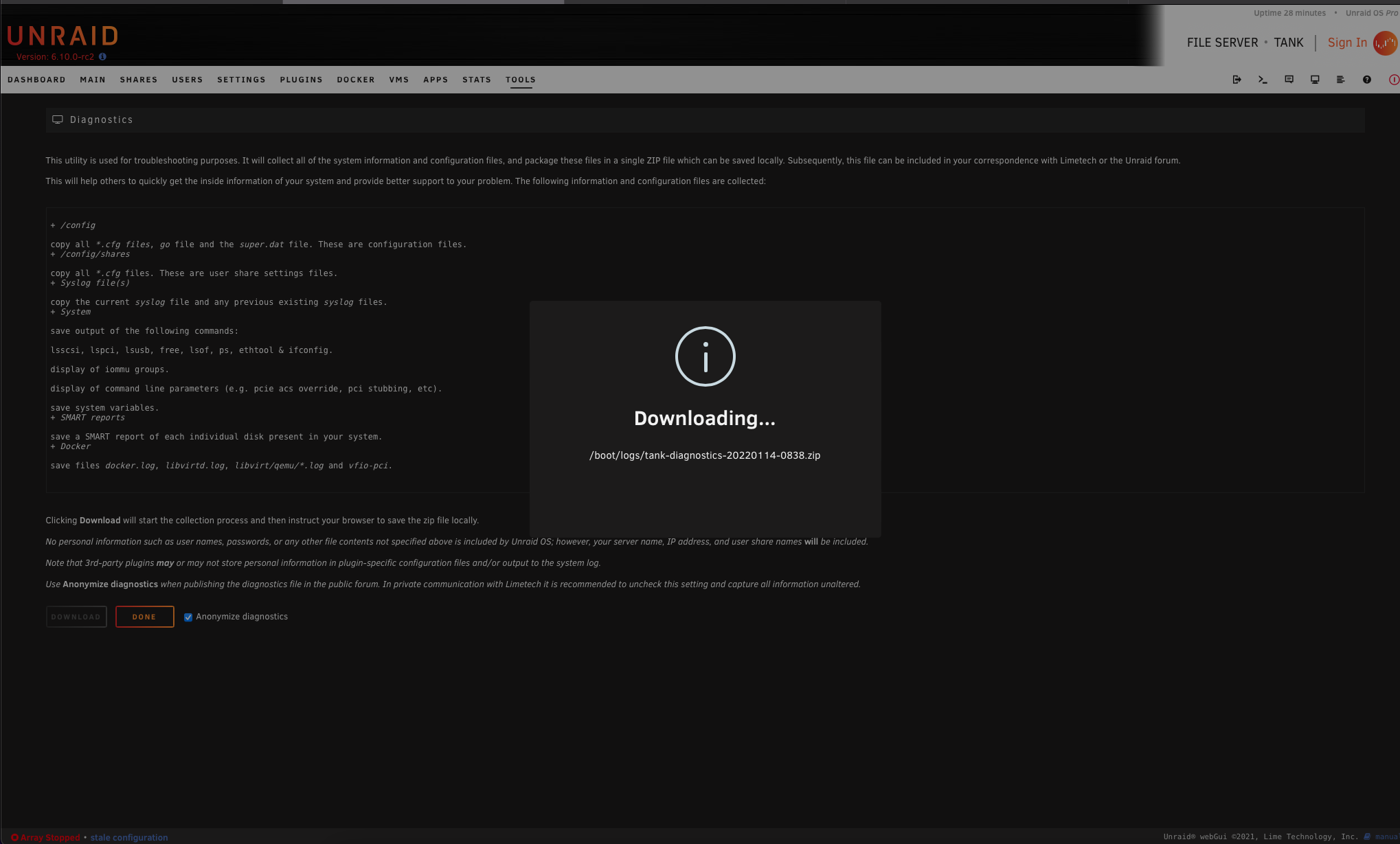

Also cannot download diagnostic. It just stalls.

I have a serious issue (to me) that just popped up. I was having issues with my server so I got a new case with a new backplane and power distribution. Yesterday I rebuilt it and it seemed to be working fine. Parity repaired the one bad drive. I managed to copy a bunch of my photos off to my desktop array. This morning the server was still running. I went to update one of my dockers and it said it was not connected to the internet. I rebooted the server and when it came back up there were NO drives listed. Another thing is that it says that its connect to unraid and then it disconnects regularly. I also cannot download a diagnostic report. Every time I run it it just stalls and never downloads. Steps I have done: - Replaced the SAS controller with a different model - Rebooted with no cards in it other than SAS controller. No matter what I do I cannot find the drive.

Let me summarize what the issue was for anyone that might fall down the rabbit hole I did in months/years to come. I had an older case without a proper backplane. During a simple install of a 10GB NIC upon reboot I noticed that I had a couple of drives with red * on them. They were my oldest drives so I assumed (incorrectly) that they somehow blew up during the install. I then tried to trouble shoot it through UNRAID whereas it was always a power issue. My case, being it didn't have a proper backplane and power distribution, I was using a daisy chain SATA power cable that split off from a standard SATA power connector. Somehow during the NIC install I must have broken one of the wires or traces? Not sure but that simple break caused me to chase issues that were not related to the OS. Solution: I broke down and purchased a proper 12 slot 2u Rack chassis and reinstalled all of the drives. Initially upon boot 2 of the drives that had power issues during the troubleshooting were unmounted. I used the command xfs_repair /dev/md1 -L and xfs_repair /dev/md3 -L. This repaired the file system enough so that the parity could be written. Thanks to Turl and itimpi (although they came in later it was their post on fixing unmountable drive that I referred to when fixing these).

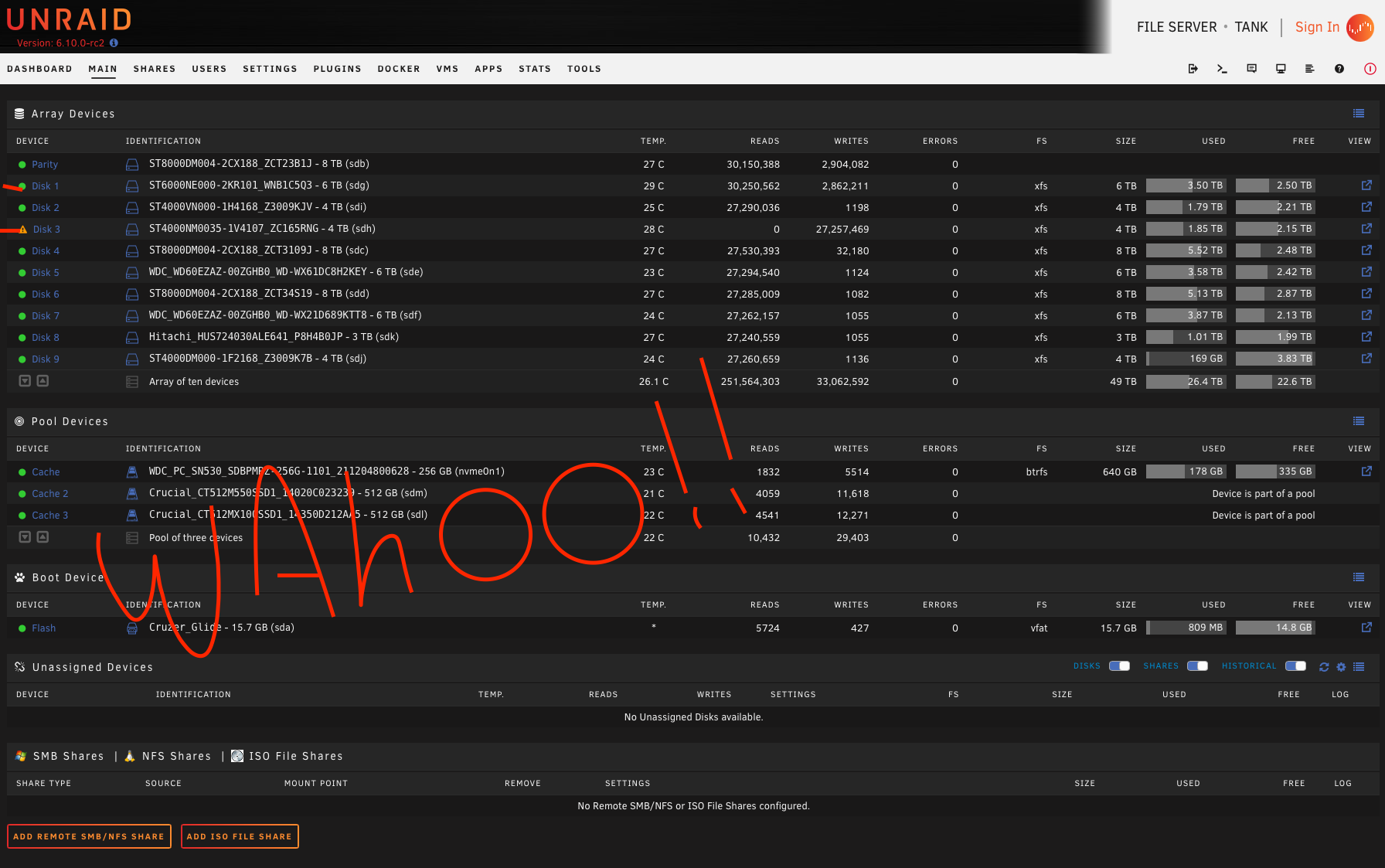

I restarted the array and.... WAHOO!! Its working! Happily repairing Disk 3 (which by the way was never a problem all along but somehow got corrupted with all of the power faults). Thank YOU ALL especially @trurl for sticking with helping me out. I have to say I spent a few nights feeling sick to my stomach. I purchased a dropbox business account with unlimited data and will be backing up to that + my 27TB desktop array along with getting another parity drive.

I just ran the repair with -L and it completed but both are unmountable. Should I restart the array?

Yes I have. It immediately started parity rebuild however was acting strange (to me I have never been in this situation with Unraid). It looked like it was reading from all of the drives and writing to Disk 3. It was somehow reading from disk 1 although it was also unmountable. I am assuming it was virtual.

Both. GUI first stab at it and command line for next 2

Ok I have run xfs_repair /dev/md1 and xfs_repair /dev/md3 on both drives it says it was successful and done but both drives still say unmountable. What would be my next step?

Here is Check -n for Drive 1 (Also unmountable) Phase 1 - find and verify superblock... Phase 2 - using internal log - zero log... totally zeroed log - scan filesystem freespace and inode maps... sb_fdblocks 609418691, counted 610885709 - found root inode chunk Phase 3 - for each AG... - scan (but don't clear) agi unlinked lists... - process known inodes and perform inode discovery... - agno = 0 - agno = 1 - agno = 2 - agno = 3 - agno = 4 - agno = 5 - process newly discovered inodes... Phase 4 - check for duplicate blocks... - setting up duplicate extent list... - check for inodes claiming duplicate blocks... - agno = 0 - agno = 2 - agno = 5 - agno = 3 - agno = 4 - agno = 1 No modify flag set, skipping phase 5 Phase 6 - check inode connectivity... - traversing filesystem ... - traversal finished ... - moving disconnected inodes to lost+found ... Phase 7 - verify link counts... Maximum metadata LSN (4:3113599) is ahead of log (0:0). Would format log to cycle 7. No modify flag set, skipping filesystem flush and exiting.

Ok this is the result for Disk 3 running the check -n Phase 1 - find and verify superblock... - reporting progress in intervals of 15 minutes Phase 2 - using internal log - zero log... - 08:48:32: zeroing log - 7632 of 7632 blocks done - scan filesystem freespace and inode maps... bad magic number Metadata CRC error detected at 0x43a516, xfs_agf block 0x4a886901/0x200 agf has bad CRC for ag 40 Metadata CRC error detected at 0x465ab6, xfs_agi block 0x4a886902/0x200 agi has bad CRC for ag 40 bad on-disk superblock 40 - bad magic number primary/secondary superblock 40 conflict - AG superblock geometry info conflicts with filesystem geometry would zero unused portion of secondary superblock (AG #40) bad magic # 0xaf275efa for agf 40 bad version # 1328099507 for agf 40 bad sequence # 189338519 for agf 40 bad length -1980524498 for agf 40, should be 3907668 flfirst -1486662249 in agf 40 too large (max = 118) fllast -1347596919 in agf 40 too large (max = 118) bad uuid e2791e17-7505-a00f-d9ce-026c1e2b579c for agf 40 bad magic # 0xb147897c for agi 40 bad version # 482171254 for agi 40 bad sequence # 2013798562 for agi 40 bad length # -328340048 for agi 40, should be 3907668 bad uuid 0d210c10-af38-f0a3-3bd4-f995b5668666 for agi 40 would reset bad sb for ag 40 would reset bad agf for ag 40 would reset bad agi for ag 40 bad uncorrected agheader 40, skipping ag... sb_icount 92928, counted 92672 sb_ifree 18772, counted 18606 sb_fdblocks 526796607, counted 522891235 - 08:48:36: scanning filesystem freespace - 249 of 250 allocation groups done - found root inode chunk Phase 3 - for each AG... - scan (but don't clear) agi unlinked lists... - 08:48:36: scanning agi unlinked lists - 250 of 250 allocation groups done - process known inodes and perform inode discovery... - agno = 15 - agno = 30 - agno = 90 - agno = 75 - agno = 45 - agno = 0 - agno = 105 - agno = 60 - agno = 120 - agno = 135 - agno = 165 - agno = 180 - agno = 195 - agno = 150 - agno = 225 - agno = 240 - agno = 210 - agno = 91 - agno = 121 - agno = 61 - agno = 151 - agno = 46 - agno = 211 - agno = 76 - agno = 92 - agno = 16 - agno = 196 - agno = 166 - agno = 106 - agno = 181 - agno = 226 - agno = 241 - agno = 197 - agno = 212 - agno = 152 - agno = 122 - agno = 182 - agno = 167 - agno = 198 - agno = 123 - agno = 227 - agno = 213 - agno = 228 - agno = 199 - agno = 153 - agno = 62 - agno = 136 - agno = 93 - agno = 107 - agno = 124 - agno = 94 - agno = 154 - agno = 168 - agno = 31 - agno = 183 - agno = 108 - agno = 200 - agno = 125 - agno = 47 - agno = 95 - agno = 155 - agno = 63 - agno = 77 - agno = 32 - agno = 109 - agno = 137 - agno = 78 - agno = 110 - agno = 201 - agno = 156 - agno = 48 - agno = 17 - agno = 1 - agno = 111 - agno = 126 - agno = 79 - agno = 138 - agno = 64 - agno = 33 - agno = 202 - agno = 214 - agno = 169 - agno = 96 - agno = 127 - agno = 242 - agno = 229 - agno = 157 - agno = 97 - agno = 80 - agno = 203 - agno = 49 - agno = 215 - agno = 98 - agno = 34 - agno = 230 - agno = 65 - agno = 184 - agno = 139 - agno = 158 - agno = 112 - agno = 128 - agno = 129 - agno = 170 - agno = 99 - agno = 113 - agno = 114 - agno = 100 - agno = 159 - agno = 216 - agno = 115 - agno = 140 - agno = 204 - agno = 50 - agno = 35 - agno = 81 - agno = 18 - agno = 51 - agno = 36 - agno = 130 - agno = 160 - agno = 66 - agno = 116 - agno = 117 - agno = 101 - agno = 82 - agno = 118 - agno = 243 - agno = 102 - agno = 185 - agno = 19 - agno = 2 - agno = 103 - agno = 67 - agno = 231 - agno = 161 - agno = 37 - agno = 52 - agno = 38 - agno = 83 - agno = 104 - agno = 53 - agno = 68 - agno = 39 - agno = 141 - agno = 119 - agno = 205 - agno = 69 - agno = 162 - agno = 20 - agno = 84 - agno = 54 - agno = 55 - agno = 186 - agno = 217 - agno = 85 - agno = 131 - agno = 171 - agno = 70 - agno = 244 - agno = 232 - agno = 86 - agno = 163 - agno = 206 - agno = 142 - agno = 132 - agno = 187 - agno = 133 - agno = 164 - agno = 21 - agno = 3 - agno = 245 - agno = 218 - agno = 56 - agno = 188 - agno = 143 - agno = 172 - agno = 134 - agno = 87 - agno = 233 - agno = 144 - agno = 71 - agno = 189 - agno = 4 - agno = 219 - agno = 40 - agno = 41 - agno = 207 - agno = 57 - agno = 72 - agno = 88 - agno = 220 - agno = 234 - agno = 22 - agno = 208 - agno = 190 - agno = 145 - agno = 42 - agno = 58 - agno = 89 - agno = 173 - agno = 146 - agno = 191 - agno = 174 - agno = 209 - agno = 235 - agno = 221 - agno = 236 - agno = 147 - agno = 246 - agno = 73 - agno = 5 - agno = 43 - agno = 59 - agno = 23 - agno = 6 - agno = 74 - agno = 44 - agno = 24 - agno = 175 - agno = 25 - agno = 148 - agno = 7 - agno = 192 - agno = 237 - agno = 149 - agno = 26 - agno = 8 - agno = 27 - agno = 176 - agno = 28 - agno = 9 - agno = 193 - agno = 29 - agno = 177 - agno = 194 - agno = 178 - agno = 238 - agno = 247 - agno = 248 - agno = 239 - agno = 249 - agno = 222 - agno = 223 - agno = 179 - agno = 10 - agno = 224 - agno = 11 - agno = 12 - agno = 13 - agno = 14 - 08:48:47: process known inodes and inode discovery - 92672 of 92928 inodes done - process newly discovered inodes... - 08:48:47: process newly discovered inodes - 500 of 250 allocation groups done Phase 4 - check for duplicate blocks... - setting up duplicate extent list... - 08:48:47: setting up duplicate extent list - 250 of 250 allocation groups done - check for inodes claiming duplicate blocks... - agno = 0 - agno = 1 - agno = 2 - agno = 7 - agno = 8 - agno = 10 - agno = 3 - agno = 13 - agno = 6 entry "Nicole RL" at block 0 offset 680 in directory inode 335544416 references non-existent inode 1342177378 would clear inode number in entry at offset 680... - agno = 5 - agno = 15 - agno = 16 - agno = 17 - agno = 11 - agno = 18 - agno = 19 - agno = 20 - agno = 21 - agno = 12 - agno = 22 - agno = 23 - agno = 24 - agno = 25 - agno = 9 - agno = 26 - agno = 27 - agno = 28 entry "layer" in shortform directory 734378473 references non-existent inode 1342177395 would have junked entry "layer" in directory inode 734378473 entry "de" in shortform directory 905969790 references non-existent inode 1342177376 would have junked entry "de" in directory inode 905969790 - agno = 30 - agno = 31 - agno = 32 - agno = 33 entry "75628" in shortform directory 943323502 references non-existent inode 1358959046 would have junked entry "75628" in directory inode 943323502 entry "35L" in shortform directory 943323544 references non-existent inode 1358955675 would have junked entry "35L" in directory inode 943323544 - agno = 34 entry "bucket 2" at block 0 offset 216 in directory inode 319419305 references non-existent inode 1358959060 would clear inode number in entry at offset 216... - agno = 35 - agno = 36 entry "ViewPublic" in shortform directory 1068227613 references non-existent inode 1358959043 would have junked entry "ViewPublic" in directory inode 1068227613 - agno = 37 - agno = 38 entry "vehicle" in shortform directory 1275068519 references non-existent inode 1358959042 would have junked entry "vehicle" in directory inode 1275068519 entry "Win2K" in shortform directory 1023412938 references non-existent inode 1342177466 would have junked entry "Win2K" in directory inode 1023412938 - agno = 40 - agno = 41 - agno = 42 - agno = 43 - agno = 44 - agno = 45 - agno = 46 - agno = 47 - agno = 48 - agno = 49 - agno = 50 - agno = 51 - agno = 52 - agno = 53 - agno = 54 - agno = 55 - agno = 57 - agno = 58 - agno = 59 - agno = 4 - agno = 60 - agno = 61 - agno = 62 - agno = 63 - agno = 64 - agno = 65 - agno = 66 - agno = 67 - agno = 68 - agno = 14 - agno = 70 - agno = 56 - agno = 72 - agno = 73 - agno = 74 - agno = 75 - agno = 39 - agno = 76 - agno = 77 entry "PNGS" in shortform directory 1308623001 references non-existent inode 1342177380 would have junked entry "PNGS" in directory inode 1308623001 - agno = 78 - agno = 71 - agno = 79 - agno = 80 - agno = 81 - agno = 82 - agno = 83 - agno = 84 - agno = 85 - agno = 86 - agno = 87 - agno = 88 - agno = 89 - agno = 90 - agno = 91 - agno = 92 - agno = 93 - agno = 94 - agno = 29 - agno = 96 - agno = 97 - agno = 98 - agno = 99 - agno = 100 - agno = 101 - agno = 102 - agno = 103 - agno = 104 - agno = 105 - agno = 106 - agno = 107 - agno = 108 - agno = 109 - agno = 110 - agno = 111 - agno = 112 - agno = 114 - agno = 115 - agno = 116 - agno = 95 - agno = 117 - agno = 118 - agno = 119 - agno = 120 - agno = 121 - agno = 122 - agno = 123 - agno = 124 - agno = 125 - agno = 126 - agno = 127 - agno = 128 - agno = 129 - agno = 130 - agno = 131 - agno = 132 - agno = 133 - agno = 134 - agno = 135 - agno = 136 - agno = 137 - agno = 138 - agno = 139 - agno = 140 - agno = 141 - agno = 142 - agno = 143 - agno = 69 - agno = 145 - agno = 146 - agno = 147 - agno = 148 - agno = 150 - agno = 149 - agno = 151 - agno = 152 - agno = 153 - agno = 154 - agno = 155 - agno = 156 - agno = 157 - agno = 158 - agno = 159 - agno = 160 - agno = 161 - agno = 162 - agno = 163 - agno = 164 - agno = 165 - agno = 166 - agno = 167 entry "7" in shortform directory 4395632429 references non-existent inode 1358959049 would have junked entry "7" in directory inode 4395632429 - agno = 168 - agno = 169 - agno = 170 - agno = 144 entry "38701" at block 0 offset 3000 in directory inode 5624557818 references non-existent inode 1358959047 would clear inode number in entry at offset 3000... - agno = 171 - agno = 172 - agno = 173 - agno = 174 - agno = 175 - agno = 176 - agno = 177 - agno = 178 - agno = 179 - agno = 180 - agno = 181 entry "mt0014" at block 0 offset 408 in directory inode 6013583046 references non-existent inode 1342177388 would clear inode number in entry at offset 408... - agno = 182 entry "page0002" in shortform directory 5949564318 references non-existent inode 1358959057 would have junked entry "page0002" in directory inode 5949564318 - agno = 183 - agno = 184 - agno = 185 - agno = 186 - agno = 187 - agno = 188 - agno = 190 - agno = 191 - agno = 192 - agno = 193 - agno = 194 - agno = 195 - agno = 196 entry "crack" in shortform directory 6394219821 references non-existent inode 1342177470 would have junked entry "crack" in directory inode 6394219821 - agno = 197 - agno = 199 - agno = 200 - agno = 201 - agno = 202 - agno = 203 - agno = 204 - agno = 205 - agno = 206 entry "passage1" in shortform directory 6681474117 references non-existent inode 1342177387 would have junked entry "passage1" in directory inode 6681474117 - agno = 207 - agno = 208 - agno = 209 - agno = 210 - agno = 211 - agno = 212 - agno = 213 - agno = 214 - agno = 215 - agno = 216 - agno = 217 - agno = 218 - agno = 219 entry "6" in shortform directory 6890576677 references non-existent inode 1358959054 would have junked entry "6" in directory inode 6890576677 - agno = 220 - agno = 221 - agno = 222 - agno = 223 - agno = 224 - agno = 198 - agno = 225 - agno = 226 - agno = 227 - agno = 189 - agno = 228 - agno = 229 - agno = 230 - agno = 231 - agno = 232 - agno = 233 - agno = 234 - agno = 235 - agno = 236 entry "Drivers" in shortform directory 7852131040 references non-existent inode 1358959041 would have junked entry "Drivers" in directory inode 7852131040 entry "2" in shortform directory 7886016084 references non-existent inode 1358959048 would have junked entry "2" in directory inode 7886016084 - agno = 237 - agno = 238 - agno = 239 - agno = 241 - agno = 242 - agno = 243 - agno = 244 - agno = 245 - agno = 246 - agno = 247 - agno = 248 - agno = 249 - agno = 240 - agno = 113 entry "(Footage)" at block 0 offset 96 in directory inode 7617116544 references non-existent inode 1358959040 would clear inode number in entry at offset 96... - 08:48:47: check for inodes claiming duplicate blocks - 92672 of 92928 inodes done No modify flag set, skipping phase 5 Phase 6 - check inode connectivity... - traversing filesystem ... entry "Win2K" in shortform directory 1023412938 references non-existent inode 1342177466 would junk entry entry "ViewPublic" in shortform directory 1068227613 references non-existent inode 1358959043 would junk entry entry "38701" in directory inode 5624557818 points to non-existent inode 1358959047, would junk entry bad hash table for directory inode 5624557818 (no data entry): would rebuild would rebuild directory inode 5624557818 entry "passage1" in shortform directory 6681474117 references non-existent inode 1342177387 would junk entry entry "(Footage)" in directory inode 7617116544 points to non-existent inode 1358959040, would junk entry bad hash table for directory inode 7617116544 (no data entry): would rebuild would rebuild directory inode 7617116544 entry "6" in shortform directory 6890576677 references non-existent inode 1358959054 would junk entry entry "7" in shortform directory 4395632429 references non-existent inode 1358959049 would junk entry entry "vehicle" in shortform directory 1275068519 references non-existent inode 1358959042 would junk entry entry "crack" in shortform directory 6394219821 references non-existent inode 1342177470 would junk entry entry "layer" in shortform directory 734378473 references non-existent inode 1342177395 would junk entry entry "page0002" in shortform directory 5949564318 references non-existent inode 1358959057 would junk entry entry "PNGS" in shortform directory 1308623001 references non-existent inode 1342177380 would junk entry entry "Drivers" in shortform directory 7852131040 references non-existent inode 1358959041 would junk entry entry "bucket 2" in directory inode 319419305 points to non-existent inode 1358959060, would junk entry bad hash table for directory inode 319419305 (no data entry): would rebuild would rebuild directory inode 319419305 entry "Nicole RL" in directory inode 335544416 points to non-existent inode 1342177378, would junk entry bad hash table for directory inode 335544416 (no data entry): would rebuild would rebuild directory inode 335544416 entry "de" in shortform directory 905969790 references non-existent inode 1342177376 would junk entry entry "75628" in shortform directory 943323502 references non-existent inode 1358959046 would junk entry entry "35L" in shortform directory 943323544 references non-existent inode 1358955675 would junk entry entry "2" in shortform directory 7886016084 references non-existent inode 1358959048 would junk entry entry "mt0014" in directory inode 6013583046 points to non-existent inode 1342177388, would junk entry bad hash table for directory inode 6013583046 (no data entry): would rebuild would rebuild directory inode 6013583046 - traversal finished ... - moving disconnected inodes to lost+found ... disconnected dir inode 1375731818, would move to lost+found disconnected dir inode 1409286245, would move to lost+found disconnected dir inode 1409286258, would move to lost+found disconnected dir inode 1468307365, would move to lost+found disconnected dir inode 1479327555, would move to lost+found disconnected dir inode 1479327567, would move to lost+found disconnected dir inode 1512656963, would move to lost+found disconnected dir inode 1512809041, would move to lost+found disconnected dir inode 1543507111, would move to lost+found disconnected dir inode 1577058427, would move to lost+found disconnected dir inode 1711276317, would move to lost+found disconnected dir inode 1780914726, would move to lost+found disconnected dir inode 2148532684, would move to lost+found disconnected dir inode 3626478636, would move to lost+found disconnected dir inode 3659628132, would move to lost+found disconnected dir inode 3704243783, would move to lost+found disconnected dir inode 3727704286, would move to lost+found Phase 7 - verify link counts... would have reset inode 319419305 nlinks from 26 to 25 would have reset inode 1023412938 nlinks from 4 to 3 would have reset inode 905969790 nlinks from 23 to 22 would have reset inode 1275068519 nlinks from 3 to 2 would have reset inode 1308623001 nlinks from 4 to 3 would have reset inode 1068227613 nlinks from 11 to 10 would have reset inode 4395632429 nlinks from 9 to 8 would have reset inode 5624557818 nlinks from 271 to 270 would have reset inode 6013583046 nlinks from 26 to 25 would have reset inode 5949564318 nlinks from 13 to 12 would have reset inode 6394219821 nlinks from 4 to 3 would have reset inode 6890576677 nlinks from 14 to 13 would have reset inode 7617116544 nlinks from 4 to 3 would have reset inode 7852131040 nlinks from 7 to 6 would have reset inode 7886016084 nlinks from 4 to 3 would have reset inode 6681474117 nlinks from 8 to 7 would have reset inode 734378473 nlinks from 3 to 2 would have reset inode 943323502 nlinks from 14 to 13 would have reset inode 943323544 nlinks from 14 to 13 would have reset inode 335544416 nlinks from 40 to 39 - 08:48:58: verify and correct link counts - 250 of 250 allocation groups done No modify flag set, skipping filesystem flush and exiting.

Here are my diagnostics. tank-diagnostics-20220113-1235.zip
