ktpd Posted April 15, 2021 Share Posted April 15, 2021 (edited) 将系统从6.9.1升级到6.9.2后出现下述问题: 1. 外网无法访问unraid,同时桥接方式安装的Docker应用也无法通过外网访问,内网可以访问。但自定义网络br0安装的Docker应用和虚拟群晖可以外网访问。 2. 连接App失败,出现 : appfeed下载失败 Community Applications requires your server to have internet access. The most common cause of this failure is a failure to resolve DNS addresses. You can try and reset your modem and router to fix this issue, or set static DNS addresses (Settings - Network Settings) of 208.67.222.222 and 208.67.220.220 and try again. Alternatively, there is also a chance that the server handling the application feed is temporarily down. Last JSON error Recorded: Syntax error 哪位大佬能解决此问题? Edited April 15, 2021 by ktpd 完善问题描述 Quote Link to comment
lyqalex Posted April 15, 2021 Share Posted April 15, 2021 unraid主机是不是静态IP地址?建议你检查路由器和unraid主机的映射设置是否有效。ps:unraid的网关和dns设置有否错误?通过我的 SM-N9860 上的 Tapatalk发言 Quote Link to comment
ktpd Posted April 16, 2021 Author Share Posted April 16, 2021 (edited) 问题解决了。是直通网卡造成的。我的主板是双网口(eth0和eth1),将第二网口eth1屏蔽并直通后就出现上述现象了。未直通前都是正常的。 已反复验证。但造成该问题的原因不是很清楚。板载网卡信息如下: IOMMU group 11:[8086:1539] 02:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03) IOMMU group 12:[8086:1539] 03:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03) Edited April 16, 2021 by ktpd Quote Link to comment
lyqalex Posted April 16, 2021 Share Posted April 16, 2021 问题解决了。是直通网卡造成的。我的主板是双网口(eth0和eth1),将第二网口eth1屏蔽并直通后就出现上述现象了。未直通前都是正常的。 IOMMU group 11:[8086:1539] 02:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03) IOMMU group 12:[8086:1539] 03:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)你好,ktpd。感谢你解决问题的反馈,直通网口会改网口的排序,如eth1,因为eth0直通了“不存在了”,那么eth1会变为eth0,所以最好在unraid~网络设置改变一下网口次序或者改变端口模式再直通。通过我的 SM-N9860 上的 Tapatalk发言 Quote Link to comment
ktpd Posted April 16, 2021 Author Share Posted April 16, 2021 你好lyqalex,我是直通的eth1啊(也就是上图的IOMMU group 12),eth0没有动。 同时自定义网络br0安装的Docker应用却可以联通。 Quote Link to comment
lyqalex Posted April 18, 2021 Share Posted April 18, 2021 你好,我估计是直通的这个端口和某些设置或应用捆绑(如网络模式)没解除,或者系统bug也未可知,我最近一直在外地,无法测试,建议等待更新或者系统降级6.91使用。通过我的 SM-N9860 上的 Tapatalk发言 Quote Link to comment

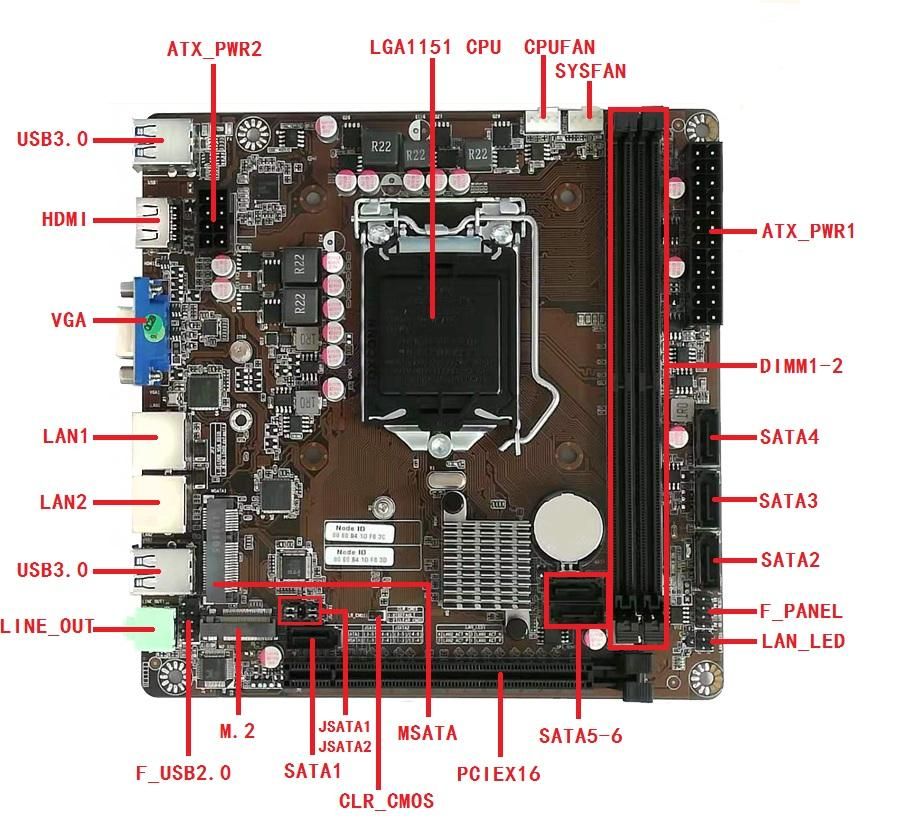

ktpd Posted April 21, 2021 Author Share Posted April 21, 2021 你好,我试验过,只要把直通的网卡与unraid解除绑定,主机绑定的IP(另外一个网卡)就不能与外网通信,但用自定义的br0安装的docker应用确能与外网通信;两个网卡交换分别直通也是同样现象。将系统回退到6.9.1也同样如此。不知什么原因? 我用的主板如下,cpu是 I3 8100T 内存 16M Quote Link to comment
lyqalex Posted April 21, 2021 Share Posted April 21, 2021 你好,这样说明不是升级6.92造成的,br0是虚拟网卡,如果正常使用,应该绑定在br0里面的实体网口是正常的 ,unraid~网络设置是怎么样的? Quote Link to comment
ktpd Posted April 28, 2021 Author Share Posted April 28, 2021 (edited) 你好,最近有点忙,没及时回信息,抱歉!下面是我的unraid的网络设置,请帮我参考一下。 NetworkSettings_1.pdf Edited April 28, 2021 by ktpd Quote Link to comment
lyqalex Posted April 28, 2021 Share Posted April 28, 2021 你好,ktpd。看你的网络配置路由表似乎不是直通后的网络配置表,但可以看出IPv4 defaul是br1,如果是直通eth1,那么应该是br0为默认。我建议在最下面输入路由+网关+指标正确填写网关地址。 Quote Link to comment
ktpd Posted April 29, 2021 Author Share Posted April 29, 2021 你好,将br0设为默认路由后问题解决。谢谢提出解决问题的思路! 但还有一个小问题,就是设置br0为默认路由后,系统重启就消失了,必须每次重启后要重新设置,能自动保存设置吗? Quote Link to comment
lyqalex Posted April 29, 2021 Share Posted April 29, 2021 你好,ktpd。在unraid~网络设置里面,接口eth1~启用绑定选否~启用桥接选否~ipv4地址选无~端口关闭~完成。 最好把eth0的启用绑定设置为否,因为启用绑定对于单个端口无意义,当你将多个网卡端口绑定在一个虚拟网卡内,作为并发连接或者线路冗余才有用。 Quote Link to comment
ktpd Posted April 29, 2021 Author Share Posted April 29, 2021 (edited) 是按照你说的步骤:“在unraid~网络设置里面,接口eth1~启用绑定选否~启用桥接选否~ipv4地址选无~端口关闭~完成。”设置的。可以与外网连通了,eth1也直通给虚拟机了。就是系统重启后要重新设置br0为默认路由,好像系统不能保存这个设置。 Edited April 29, 2021 by ktpd Quote Link to comment
lyqalex Posted April 29, 2021 Share Posted April 29, 2021 你好,ktpd。将重启后未更改的网络设置发来看看,另外是否有部署软路由vm在这台服务器上面,而使用了br1作为网络端口? Quote Link to comment
ktpd Posted April 29, 2021 Author Share Posted April 29, 2021 (edited) 没有部署软路由,vm是用的br0。 这个是br0配置为默认的状态。 ktpd_NetworkSettings.pdf 这个是系统重启后的网络配置状态,br0的默认配置项消失了。 ktpd_NetworkSettings_1.pdf Edited April 29, 2021 by ktpd Quote Link to comment
lyqalex Posted April 29, 2021 Share Posted April 29, 2021 你好,ktpd。网络设置~接口eth0~ipv4默认网关的192.168.1.1的 /24不正确,把/24删掉,然后应用。 Quote Link to comment
ktpd Posted April 29, 2021 Author Share Posted April 29, 2021 是这样吗? ktpd_NetworkSettings_2.pdf Quote Link to comment
ktpd Posted April 29, 2021 Author Share Posted April 29, 2021 重启后br0默认网关配置还是消失了! Quote Link to comment
lyqalex Posted April 29, 2021 Share Posted April 29, 2021 你好,ktpd。留空,并应用,不要留下 / 。可选指标只能填数字,不能加 /,一般情况下不需要填写。 Quote Link to comment
ktpd Posted April 29, 2021 Author Share Posted April 29, 2021 完全正确!!按照您的指导设置后,重启后保留了br0网关的默认设置。再次感谢!! Quote Link to comment
ktpd Posted April 29, 2021 Author Share Posted April 29, 2021 以后在使用中有问题还要向您讨教哦。 Quote Link to comment
lyqalex Posted April 29, 2021 Share Posted April 29, 2021 客气,互相学习。通过我的 SM-N9860 上的 Tapatalk发言 1 Quote Link to comment
WILLSOCK Posted May 14, 2021 Share Posted May 14, 2021 我几乎和楼主问题一样。双网口,设置其中一个网口直通了。我记得是第一个网口。 然后做了双虚拟路由器:爱快+openwrt 目前的问题: unraid里装的tr和ob等,完全无法下载。求大佬帮忙。 Tower:NetworkSettings.pdf Quote Link to comment
lyqalex Posted May 16, 2021 Share Posted May 16, 2021 On 5/15/2021 at 1:27 AM, WILLSOCK said: 我几乎和楼主问题一样。双网口,设置其中一个网口直通了。我记得是第一个网口。 然后做了双虚拟路由器:爱快+openwrt 目前的问题: unraid里装的tr和ob等,完全无法下载。求大佬帮忙。 Tower:NetworkSettings.pdf 89.44 kB · 1 download WILLSOCK,你好。建议开一个新帖,因为描述不清晰,坛友所以很难判断问题给予你建议。因为涉及到主旁路由,建议检查unraid网络设置的网关指向,调整一下这些下载docker的网络模式测试。 ps:个人建议不要使用双软路由,单openwrt路由,自己编译也很稳定。 Quote Link to comment
