hello guys,



yes i asked this earlyer in a other post, wrong place, so i hope i am at the correct place now ,



im a newbie at stuff like unraid, there are plenty of guides i know but i don't understand them well or i don't understand them at all,



i have been trying to get video output from vm,



my system is for now a test build from left over parts, i want to well cheaply expand , buying a new nas with more drive slots is quite expansive,



my system

amd ryzen 7 3700x

asrock x570 pro4

16 gb ddr4 3600mhz cl 18 corsair vengeance

gigabyte aorus 1080ti

2x nvme sam evo 970 1tb



thing is i tried all 3 bios files i got from https://www.techpowerup.com/vgabios/?architecture=NVIDIA&manufacturer=Gigabyte&model=GTX+1080+Ti&interface=&memType=&memSize=&since=



but none of the 3 works or i do something wrong,

i updated my gpu to the latest driver of gigabyte,



as so as i start the vm the screen blacks out and no visuals, the unraid still works fine from remote,



i posted the vm log in attachments, if you need more info i have to google how to

1.txt

Dump your own V-BIOS. I never had any luck with hex editing one.



this is the method I use.





however this is a newer method.



I would check you can pass the GPU to a VM as a secondary card as this is easier because you don’t need a v-bios file.



can you RDP into the VM (assuming windows) is the GPU detected in device manager?



Edited August 9, 20214 yr by gray squirrel

That is the point , i cant install windows because screen blacks out,

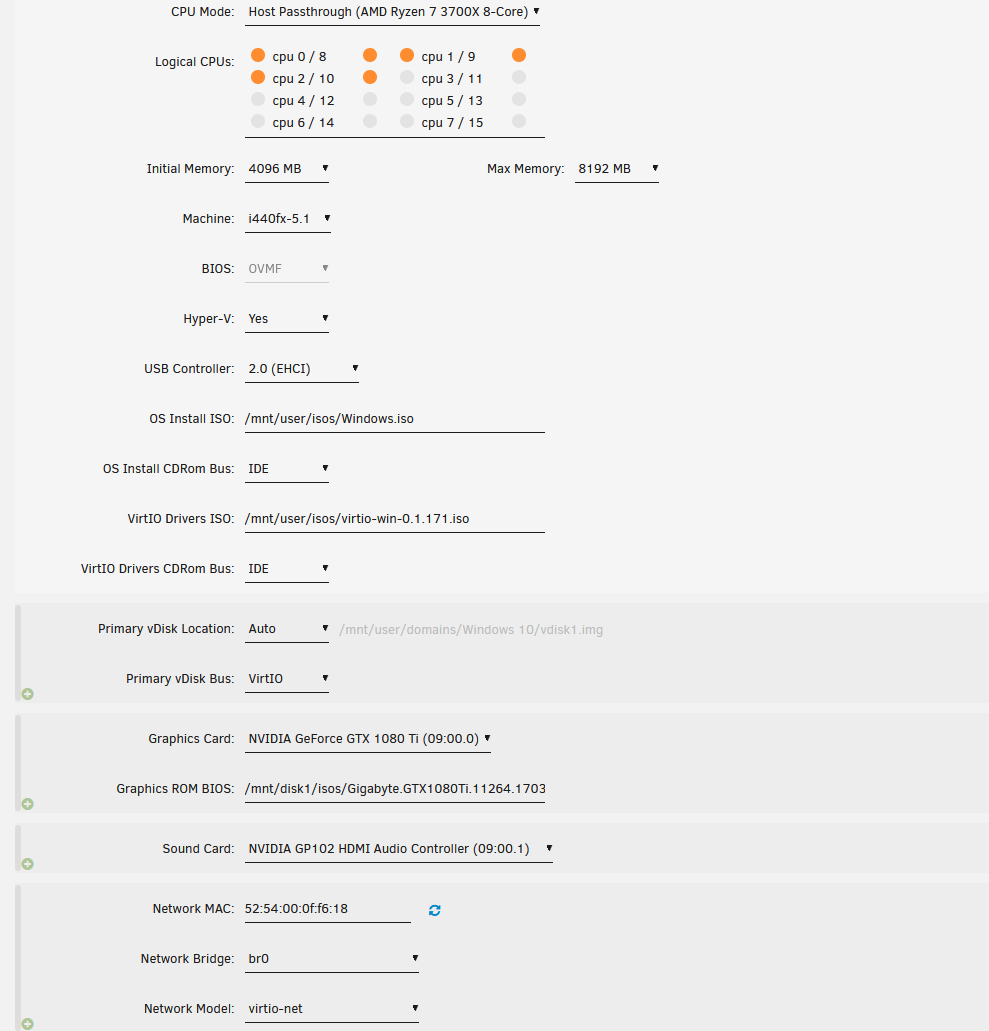

i created vm with gpu passtrough



so remote to windows , is that possbile without it being installed ?

Install windows using VNC graphics first.



Follow this guide.
