February 10, 20224 yr Hi, I have 3 GPUs installed in my server and I'm attempting to passthrough 3 VMs, through 3 GPUs. GPU 1 - GTX1660ti is set as initial display adapter in my bios and server boots up fine, but does not passthrough when I startup a Ubuntu vm GPU 2 - GTX710 passed through Windows 10 PC fine. GPU 3 - GT730 passes through MacOS Big Sur fine. If I change initial display adapter to GPU2 it boots into Unraid OS and when I start VM it passes through fine. No matter what I do, I cannot get my GTX1660ti to passthrough, even when it's not setup as initial display. I have dumped vbios as per SpaceInvaderOne's instructions. Has anybody had a similar issue and possibly resolved it? Thanks in advance. djw-unraid-diagnostics-20220210-1421.zip Edited February 10, 20224 yr by Daryl Williams
February 10, 20224 yr vfio: Cannot reset device 0000:0b:00.1, depends on group 31 which is not owned. Even if in different iommu groups, maybe you need to attach to vfio also the usb controller at 0b:00.2 and the serial bus controller at 0b:00.3 of the gpu: 0b:00.2 USB controller [0c03]: NVIDIA Corporation TU116 USB 3.1 Host Controller [10de:1aec] (rev a1) Subsystem: NVIDIA Corporation Device [10de:2182] Kernel driver in use: xhci_hcd 0b:00.3 Serial bus controller [0c80]: NVIDIA Corporation TU116 USB Type-C UCSI Controller [10de:1aed] (rev a1) Subsystem: NVIDIA Corporation Device [10de:2182] Attach them to vfio and change in your ubuntu vm from this: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/isos/vbios/gtx1660ti.rom'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/> </hostdev> to this: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/isos/vbios/gtx1660ti.rom'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x1'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x2'/> </source> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x2'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x3'/> </source> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x3'/> </hostdev> Reboot before running the ubuntu vm. Edited February 10, 20224 yr by ghost82
February 10, 20224 yr Author I tried what you suggested but it didn't work. I get No Signal Detected. That's assuming that I did what you said correctly. I've generated new diagnostics. djw-unraid-diagnostics-20220210-1708.zip
February 11, 20224 yr As far as I can see there are no more info in the logs, and all should be setup correctly, so no more ideas.. Check if the vm hangs at boot or if the vm is booting but you have only no video output, maybe an issue inside the vm (drivers)?
February 11, 20224 yr Author If I change any VMs to VNC they boot. It's only when I try and passthrough the GTX1660ti that I get 'No Signal Detected'
February 11, 20224 yr Author To add to this. I've discovered that the Ubuntu VM boots fine when passing through the GTX1660ti but there is no signal. I can RDP to the VM from another, so the VM appears to be fine.
February 11, 20224 yr What's the output of lspci -vv for the gpu inside the vm (rdp server inside the vm + gpu passthrough)?Can you see it?What driver is attached?
February 11, 20224 yr Author The only reference to Nvidia that I can find relates to the Audio Controller. 00:00.0 Host bridge: Intel Corporation 82G33/G31/P35/P31 Express DRAM Controller Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 00:01.0 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90607000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=01, subordinate=02, sec-latency=0 I/O behind bridge: 00006000-00006fff [size=4K] Memory behind bridge: 90000000-902fffff [size=3M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.1 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90606000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=03, subordinate=03, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90500000-905fffff [size=1M] Prefetchable memory behind bridge: 0000000800000000-00000008000fffff [size=1M] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.2 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90605000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=04, subordinate=04, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90400000-904fffff [size=1M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.3 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90604000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=05, subordinate=05, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: [disabled] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.4 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90603000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=06, subordinate=06, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90300000-903fffff [size=1M] Prefetchable memory behind bridge: 0000000800100000-00000008001fffff [size=1M] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.5 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90602000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=07, subordinate=07, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: [disabled] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:07.0 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #1 (rev 03) (prog-if 00 [UHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 23 Region 4: I/O ports at 70a0 [size=32] Kernel driver in use: uhci_hcd 00:07.1 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #2 (rev 03) (prog-if 00 [UHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin B routed to IRQ 20 Region 4: I/O ports at 7080 [size=32] Kernel driver in use: uhci_hcd 00:07.2 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #3 (rev 03) (prog-if 00 [UHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin C routed to IRQ 21 Region 4: I/O ports at 7060 [size=32] Kernel driver in use: uhci_hcd 00:07.7 USB controller: Intel Corporation 82801I (ICH9 Family) USB2 EHCI Controller #1 (rev 03) (prog-if 20 [EHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin D routed to IRQ 22 Region 0: Memory at 90601000 (32-bit, non-prefetchable) [size=4K] Kernel driver in use: ehci-pci 00:1f.0 ISA bridge: Intel Corporation 82801IB (ICH9) LPC Interface Controller (rev 02) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Kernel driver in use: lpc_ich Kernel modules: lpc_ich 00:1f.2 SATA controller: Intel Corporation 82801IR/IO/IH (ICH9R/DO/DH) 6 port SATA Controller [AHCI mode] (rev 02) (prog-if 01 [AHCI 1.0]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 35 Region 4: I/O ports at 7040 [size=32] Region 5: Memory at 90600000 (32-bit, non-prefetchable) [size=4K] Capabilities: <access denied> Kernel driver in use: ahci Kernel modules: ahci 00:1f.3 SMBus: Intel Corporation 82801I (ICH9 Family) SMBus Controller (rev 02) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 16 Region 4: I/O ports at 7000 [size=64] Kernel driver in use: i801_smbus Kernel modules: i2c_i801 01:00.0 PCI bridge: Red Hat, Inc. Device 000e (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90200000 (64-bit, non-prefetchable) [size=256] Bus: primary=01, secondary=02, subordinate=02, sec-latency=0 I/O behind bridge: 00006000-00006fff [size=4K] Memory behind bridge: 90000000-901fffff [size=2M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz+ FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> 03:00.0 Communication controller: Red Hat, Inc. Virtio console (rev 01) Subsystem: Red Hat, Inc. Virtio console Physical Slot: 0-2 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 1: Memory at 90500000 (32-bit, non-prefetchable) [size=4K] Region 4: Memory at 800000000 (64-bit, prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: virtio-pci 04:00.0 Audio device: NVIDIA Corporation TU116 High Definition Audio Controller (rev a1) Subsystem: NVIDIA Corporation TU116 High Definition Audio Controller Physical Slot: 0-3 Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin B routed to IRQ 22 Region 0: Memory at 90400000 (32-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: snd_hda_intel Kernel modules: snd_hda_intel 06:00.0 Ethernet controller: Red Hat, Inc. Virtio network device (rev 01) Subsystem: Red Hat, Inc. Virtio network device Physical Slot: 0-5 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 1: Memory at 90300000 (32-bit, non-prefetchable) [size=4K] Region 4: Memory at 800100000 (64-bit, prefetchable) [size=16K] Expansion ROM at 90340000 [disabled] [size=256K] Capabilities: <access denied> Kernel driver in use: virtio-pci
February 11, 20224 yr Something is wrong here...did you change anything?You have only audio at 04:00.0, no traces of vga, usb and serial bus..and all these things should be at bus 3 not 4..
February 11, 20224 yr Author Sorry, idiotically, I'd removed them from the binding. I've added them back in and here is the output. 00:00.0 Host bridge: Intel Corporation 82G33/G31/P35/P31 Express DRAM Controller Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 00:01.0 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90707000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=01, subordinate=02, sec-latency=0 I/O behind bridge: 00006000-00006fff [size=4K] Memory behind bridge: 90000000-902fffff [size=3M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.1 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90706000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=03, subordinate=03, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90600000-906fffff [size=1M] Prefetchable memory behind bridge: 0000000800000000-00000008000fffff [size=1M] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.2 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90705000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=04, subordinate=04, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90500000-905fffff [size=1M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.3 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90704000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=05, subordinate=05, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: [disabled] Prefetchable memory behind bridge: 0000000800100000-00000008001fffff [size=1M] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.4 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90703000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=06, subordinate=06, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90400000-904fffff [size=1M] Prefetchable memory behind bridge: 0000000800200000-00000008002fffff [size=1M] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.5 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90702000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=07, subordinate=07, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90300000-903fffff [size=1M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:07.0 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #1 (rev 03) (prog-if 00 [UHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 23 Region 4: I/O ports at 70a0 [size=32] Kernel driver in use: uhci_hcd 00:07.1 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #2 (rev 03) (prog-if 00 [UHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin B routed to IRQ 20 Region 4: I/O ports at 7080 [size=32] Kernel driver in use: uhci_hcd 00:07.2 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #3 (rev 03) (prog-if 00 [UHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin C routed to IRQ 21 Region 4: I/O ports at 7060 [size=32] Kernel driver in use: uhci_hcd 00:07.7 USB controller: Intel Corporation 82801I (ICH9 Family) USB2 EHCI Controller #1 (rev 03) (prog-if 20 [EHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin D routed to IRQ 22 Region 0: Memory at 90701000 (32-bit, non-prefetchable) [size=4K] Kernel driver in use: ehci-pci 00:1f.0 ISA bridge: Intel Corporation 82801IB (ICH9) LPC Interface Controller (rev 02) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Kernel driver in use: lpc_ich Kernel modules: lpc_ich 00:1f.2 SATA controller: Intel Corporation 82801IR/IO/IH (ICH9R/DO/DH) 6 port SATA Controller [AHCI mode] (rev 02) (prog-if 01 [AHCI 1.0]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 34 Region 4: I/O ports at 7040 [size=32] Region 5: Memory at 90700000 (32-bit, non-prefetchable) [size=4K] Capabilities: <access denied> Kernel driver in use: ahci Kernel modules: ahci 00:1f.3 SMBus: Intel Corporation 82801I (ICH9 Family) SMBus Controller (rev 02) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 16 Region 4: I/O ports at 7000 [size=64] Kernel driver in use: i801_smbus Kernel modules: i2c_i801 01:00.0 PCI bridge: Red Hat, Inc. Device 000e (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90200000 (64-bit, non-prefetchable) [size=256] Bus: primary=01, secondary=02, subordinate=02, sec-latency=0 I/O behind bridge: 00006000-00006fff [size=4K] Memory behind bridge: 90000000-901fffff [size=2M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz+ FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> 03:00.0 Communication controller: Red Hat, Inc. Virtio console (rev 01) Subsystem: Red Hat, Inc. Virtio console Physical Slot: 0-2 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 1: Memory at 90600000 (32-bit, non-prefetchable) [size=4K] Region 4: Memory at 800000000 (64-bit, prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: virtio-pci 04:00.0 Audio device: NVIDIA Corporation TU116 High Definition Audio Controller (rev a1) Subsystem: NVIDIA Corporation TU116 High Definition Audio Controller Physical Slot: 0-3 Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin B routed to IRQ 22 Region 0: Memory at 90500000 (32-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: snd_hda_intel Kernel modules: snd_hda_intel 05:00.0 USB controller: NVIDIA Corporation TU116 USB 3.1 Host Controller (rev a1) (prog-if 30 [XHCI]) Subsystem: NVIDIA Corporation TU116 USB 3.1 Host Controller Physical Slot: 0-4 Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin C routed to IRQ 32 Region 0: Memory at 800100000 (64-bit, prefetchable) [size=256K] Region 3: Memory at 800140000 (64-bit, prefetchable) [size=64K] Capabilities: <access denied> Kernel driver in use: xhci_hcd Kernel modules: xhci_pci 06:00.0 Ethernet controller: Red Hat, Inc. Virtio network device (rev 01) Subsystem: Red Hat, Inc. Virtio network device Physical Slot: 0-5 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 1: Memory at 90400000 (32-bit, non-prefetchable) [size=4K] Region 4: Memory at 800200000 (64-bit, prefetchable) [size=16K] Expansion ROM at 90440000 [disabled] [size=256K] Capabilities: <access denied> Kernel driver in use: virtio-pci 07:00.0 Serial bus controller [0c80]: NVIDIA Corporation TU116 USB Type-C UCSI Controller (rev a1) Subsystem: NVIDIA Corporation TU116 USB Type-C UCSI Controller Physical Slot: 0-6 Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin D routed to IRQ 33 Region 0: Memory at 90300000 (32-bit, non-prefetchable) [size=4K] Capabilities: <access denied> Kernel driver in use: nvidia-gpu Kernel modules: i2c_nvidia_gpu
February 11, 20224 yr Change from: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/isos/vbios/gtx1660ti.rom'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x2'/> </source> <address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x3'/> </source> <address type='pci' domain='0x0000' bus='0x07' slot='0x00' function='0x0'/> </hostdev> to: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x0'/> </source> <rom file='/mnt/user/isos/vbios/gtx1660ti.rom'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x1'/> </source> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x1'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x2'/> </source> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x2'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x3'/> </source> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x3'/> </hostdev> to apply multifunction, re run the command to see if you can list VGA at 04:00.0, not audio, and other gpu devices at 04:00.1, 04:00.2 and 04:00.3 Clean also your sysconfig: from: append vfio-pci.ids=1022:43d5 xen-pciback.hide=(23:00.0)(24:00.0)(25.00.0)(26.00.0) vfio_iommu_type1.allow_unsafe_interrupts=1 initrd=/bzroot pcie_acs_override=multifunction kvm_amd.nested=1 to append vfio_iommu_type1.allow_unsafe_interrupts=1 pcie_acs_override=multifunction kvm_amd.nested=1 initrd=/bzroot
February 12, 20224 yr Author Unfortunately, I still can't see anything. 00:00.0 Host bridge: Intel Corporation 82G33/G31/P35/P31 Express DRAM Controller Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 00:01.0 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90707000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=01, subordinate=02, sec-latency=0 I/O behind bridge: 00006000-00006fff [size=4K] Memory behind bridge: 90000000-902fffff [size=3M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.1 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90706000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=03, subordinate=03, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90600000-906fffff [size=1M] Prefetchable memory behind bridge: 0000000800000000-00000008000fffff [size=1M] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.2 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90705000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=04, subordinate=04, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90500000-905fffff [size=1M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.3 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90704000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=05, subordinate=05, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: [disabled] Prefetchable memory behind bridge: 0000000800100000-00000008001fffff [size=1M] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.4 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90703000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=06, subordinate=06, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90400000-904fffff [size=1M] Prefetchable memory behind bridge: 0000000800200000-00000008002fffff [size=1M] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.5 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90702000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=07, subordinate=07, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90300000-903fffff [size=1M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:07.0 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #1 (rev 03) (prog-if 00 [UHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 23 Region 4: I/O ports at 70a0 [size=32] Kernel driver in use: uhci_hcd 00:07.1 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #2 (rev 03) (prog-if 00 [UHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin B routed to IRQ 20 Region 4: I/O ports at 7080 [size=32] Kernel driver in use: uhci_hcd 00:07.2 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #3 (rev 03) (prog-if 00 [UHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin C routed to IRQ 21 Region 4: I/O ports at 7060 [size=32] Kernel driver in use: uhci_hcd 00:07.7 USB controller: Intel Corporation 82801I (ICH9 Family) USB2 EHCI Controller #1 (rev 03) (prog-if 20 [EHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin D routed to IRQ 22 Region 0: Memory at 90701000 (32-bit, non-prefetchable) [size=4K] Kernel driver in use: ehci-pci 00:1f.0 ISA bridge: Intel Corporation 82801IB (ICH9) LPC Interface Controller (rev 02) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Kernel driver in use: lpc_ich Kernel modules: lpc_ich 00:1f.2 SATA controller: Intel Corporation 82801IR/IO/IH (ICH9R/DO/DH) 6 port SATA Controller [AHCI mode] (rev 02) (prog-if 01 [AHCI 1.0]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 33 Region 4: I/O ports at 7040 [size=32] Region 5: Memory at 90700000 (32-bit, non-prefetchable) [size=4K] Capabilities: <access denied> Kernel driver in use: ahci Kernel modules: ahci 00:1f.3 SMBus: Intel Corporation 82801I (ICH9 Family) SMBus Controller (rev 02) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 16 Region 4: I/O ports at 7000 [size=64] Kernel driver in use: i801_smbus Kernel modules: i2c_i801 01:00.0 PCI bridge: Red Hat, Inc. Device 000e (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90200000 (64-bit, non-prefetchable) [size=256] Bus: primary=01, secondary=02, subordinate=02, sec-latency=0 I/O behind bridge: 00006000-00006fff [size=4K] Memory behind bridge: 90000000-901fffff [size=2M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz+ FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> 03:00.0 Communication controller: Red Hat, Inc. Virtio console (rev 01) Subsystem: Red Hat, Inc. Virtio console Physical Slot: 0-2 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 1: Memory at 90600000 (32-bit, non-prefetchable) [size=4K] Region 4: Memory at 800000000 (64-bit, prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: virtio-pci 04:00.0 Audio device: NVIDIA Corporation TU116 High Definition Audio Controller (rev a1) Subsystem: NVIDIA Corporation TU116 High Definition Audio Controller Physical Slot: 0-3 Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin B routed to IRQ 22 Region 0: Memory at 90500000 (32-bit, non-prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: snd_hda_intel Kernel modules: snd_hda_intel 05:00.0 USB controller: NVIDIA Corporation TU116 USB 3.1 Host Controller (rev a1) (prog-if 30 [XHCI]) Subsystem: NVIDIA Corporation TU116 USB 3.1 Host Controller Physical Slot: 0-4 Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin C routed to IRQ 37 Region 0: Memory at 800100000 (64-bit, prefetchable) [size=256K] Region 3: Memory at 800140000 (64-bit, prefetchable) [size=64K] Capabilities: <access denied> Kernel driver in use: xhci_hcd Kernel modules: xhci_pci 06:00.0 Ethernet controller: Red Hat, Inc. Virtio network device (rev 01) Subsystem: Red Hat, Inc. Virtio network device Physical Slot: 0-5 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 1: Memory at 90400000 (32-bit, non-prefetchable) [size=4K] Region 4: Memory at 800200000 (64-bit, prefetchable) [size=16K] Expansion ROM at 90440000 [disabled] [size=256K] Capabilities: <access denied> Kernel driver in use: virtio-pci 07:00.0 Serial bus controller [0c80]: NVIDIA Corporation TU116 USB Type-C UCSI Controller (rev a1) Subsystem: NVIDIA Corporation TU116 USB Type-C UCSI Controller Physical Slot: 0-6 Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin D routed to IRQ 32 Region 0: Memory at 90300000 (32-bit, non-prefetchable) [size=4K] Capabilities: <access denied> Kernel driver in use: nvidia-gpu Kernel modules: i2c_nvidia_gpu
February 12, 20224 yr 31 minutes ago, Daryl Williams said: 04:00.0 Audio device: NVIDIA Corporation TU116 High Definition Audio Controller (rev a1) 31 minutes ago, Daryl Williams said: 05:00.0 USB controller: NVIDIA Corporation TU116 USB 3.1 Host Controller (rev a1) (prog-if 30 [XHCI]) 31 minutes ago, Daryl Williams said: 07:00.0 Serial bus controller [0c80]: NVIDIA Corporation TU116 USB Type-C UCSI Controller (rev a1) Sorry but something is wrong, either you are not applying my advices or for whatever reason your changes aren't applied, you can't have with the changes applied in the vm components of the gpu in different buses.
February 12, 20224 yr Author I've changed the XML as per your instructions on the VM, bound the devices in Tools>System devices and have changed the sysconfig in Flash> Unraid OS. I just wanted to check that I'm applying correctly.
February 12, 20224 yr 9 minutes ago, Daryl Williams said: I've changed the XML as per your instructions on the VM I have no doubts you have good intentions to fix it However I cannot be of more help if buses are not fixed, because I don't know what to do in addition to give you the settings to set the gpu as multifunction Have no idea why these settings aren't applied..
February 12, 20224 yr Author You were right. For some reason the settings did not save in the XML. I've managed to ensure that they are now saved. I've run the command from the RDP session and this is the output. I can't see a reference to NVIDIA. 00:00.0 Host bridge: Intel Corporation 82G33/G31/P35/P31 Express DRAM Controller Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 00:01.0 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90507000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=01, subordinate=02, sec-latency=0 I/O behind bridge: 00006000-00006fff [size=4K] Memory behind bridge: 90000000-902fffff [size=3M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.1 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90506000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=03, subordinate=03, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90400000-904fffff [size=1M] Prefetchable memory behind bridge: 0000000800000000-00000008000fffff [size=1M] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.2 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90505000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=04, subordinate=04, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: [disabled] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.3 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90504000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=05, subordinate=05, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: [disabled] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.4 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90503000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=06, subordinate=06, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: 90300000-903fffff [size=1M] Prefetchable memory behind bridge: 0000000800100000-00000008001fffff [size=1M] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:01.5 PCI bridge: Red Hat, Inc. QEMU PCIe Root port (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90502000 (32-bit, non-prefetchable) [size=4K] Bus: primary=00, secondary=07, subordinate=07, sec-latency=0 I/O behind bridge: [disabled] Memory behind bridge: [disabled] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> Kernel driver in use: pcieport 00:07.0 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #1 (rev 03) (prog-if 00 [UHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 23 Region 4: I/O ports at 70a0 [size=32] Kernel driver in use: uhci_hcd 00:07.1 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #2 (rev 03) (prog-if 00 [UHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin B routed to IRQ 20 Region 4: I/O ports at 7080 [size=32] Kernel driver in use: uhci_hcd 00:07.2 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #3 (rev 03) (prog-if 00 [UHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin C routed to IRQ 21 Region 4: I/O ports at 7060 [size=32] Kernel driver in use: uhci_hcd 00:07.7 USB controller: Intel Corporation 82801I (ICH9 Family) USB2 EHCI Controller #1 (rev 03) (prog-if 20 [EHCI]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0, Cache Line Size: 64 bytes Interrupt: pin D routed to IRQ 22 Region 0: Memory at 90501000 (32-bit, non-prefetchable) [size=4K] Kernel driver in use: ehci-pci 00:1f.0 ISA bridge: Intel Corporation 82801IB (ICH9) LPC Interface Controller (rev 02) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Kernel driver in use: lpc_ich Kernel modules: lpc_ich 00:1f.2 SATA controller: Intel Corporation 82801IR/IO/IH (ICH9R/DO/DH) 6 port SATA Controller [AHCI mode] (rev 02) (prog-if 01 [AHCI 1.0]) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 35 Region 4: I/O ports at 7040 [size=32] Region 5: Memory at 90500000 (32-bit, non-prefetchable) [size=4K] Capabilities: <access denied> Kernel driver in use: ahci Kernel modules: ahci 00:1f.3 SMBus: Intel Corporation 82801I (ICH9 Family) SMBus Controller (rev 02) Subsystem: Red Hat, Inc. QEMU Virtual Machine Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap- 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 16 Region 4: I/O ports at 7000 [size=64] Kernel driver in use: i801_smbus Kernel modules: i2c_i801 01:00.0 PCI bridge: Red Hat, Inc. Device 000e (prog-if 00 [Normal decode]) Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx- Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 0: Memory at 90200000 (64-bit, non-prefetchable) [size=256] Bus: primary=01, secondary=02, subordinate=02, sec-latency=0 I/O behind bridge: 00006000-00006fff [size=4K] Memory behind bridge: 90000000-901fffff [size=2M] Prefetchable memory behind bridge: [disabled] Secondary status: 66MHz+ FastB2B+ ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- <SERR- <PERR- BridgeCtl: Parity- SERR+ NoISA- VGA- VGA16- MAbort- >Reset- FastB2B- PriDiscTmr- SecDiscTmr- DiscTmrStat- DiscTmrSERREn- Capabilities: <access denied> 03:00.0 Communication controller: Red Hat, Inc. Virtio console (rev 01) Subsystem: Red Hat, Inc. Virtio console Physical Slot: 0-2 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 1: Memory at 90400000 (32-bit, non-prefetchable) [size=4K] Region 4: Memory at 800000000 (64-bit, prefetchable) [size=16K] Capabilities: <access denied> Kernel driver in use: virtio-pci 06:00.0 Ethernet controller: Red Hat, Inc. Virtio network device (rev 01) Subsystem: Red Hat, Inc. Virtio network device Physical Slot: 0-5 Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 21 Region 1: Memory at 90300000 (32-bit, non-prefetchable) [size=4K] Region 4: Memory at 800100000 (64-bit, prefetchable) [size=16K] Expansion ROM at 90340000 [disabled] [size=256K] Capabilities: <access denied> Kernel driver in use: virtio-pci And here is the XML, just to check. <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm' id='10'> <name>Ubuntu</name> <uuid>c603de0e-ca95-e14d-c454-f55db0802430</uuid> <metadata> <vmtemplate xmlns="unraid" name="Ubuntu" icon="ubuntu.png" os="ubuntu"/> </metadata> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>2</vcpu> <cputune> <vcpupin vcpu='0' cpuset='7'/> <vcpupin vcpu='1' cpuset='19'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-q35-6.1'>hvm</type> <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader> <nvram>/etc/libvirt/qemu/nvram/c603de0e-ca95-e14d-c454-f55db0802430_VARS-pure-efi.fd</nvram> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough' check='none' migratable='on'> <topology sockets='1' dies='1' cores='1' threads='2'/> <cache mode='passthrough'/> <feature policy='require' name='topoext'/> </cpu> <clock offset='utc'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='qcow2' cache='writeback'/> <source file='/mnt/user/vms/Ubuntu/vdisk1.qcow2' index='1'/> <backingStore/> <target dev='hdc' bus='sata'/> <boot order='1'/> <alias name='sata0-0-2'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <controller type='pci' index='0' model='pcie-root'> <alias name='pcie.0'/> </controller> <controller type='pci' index='1' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='1' port='0x8'/> <alias name='pci.1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/> </controller> <controller type='pci' index='2' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='2' port='0x9'/> <alias name='pci.2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='pci' index='3' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='3' port='0xc'/> <alias name='pci.3'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/> </controller> <controller type='pci' index='4' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='4' port='0x13'/> <alias name='pci.4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/> </controller> <controller type='pci' index='5' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='5' port='0xa'/> <alias name='pci.5'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='6' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='6' port='0xb'/> <alias name='pci.6'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/> </controller> <controller type='pci' index='7' model='pcie-root-port'> <model name='pcie-root-port'/> <target chassis='7' port='0xd'/> <alias name='pci.7'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/> </controller> <controller type='pci' index='8' model='pcie-to-pci-bridge'> <model name='pcie-pci-bridge'/> <alias name='pci.8'/> <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/> </controller> <controller type='sata' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/> </controller> <controller type='usb' index='0' model='ich9-ehci1'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <alias name='usb'/> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <alias name='usb'/> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <alias name='usb'/> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <interface type='bridge'> <mac address='52:54:00:73:95:a7'/> <source bridge='br0'/> <target dev='vnet8'/> <model type='virtio-net'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/1'/> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/1'> <source path='/dev/pts/1'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-10-Ubuntu/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <alias name='input0'/> <address type='usb' bus='0' port='1'/> </input> <input type='mouse' bus='ps2'> <alias name='input1'/> </input> <input type='keyboard' bus='ps2'> <alias name='input2'/> </input> <audio id='1' type='none'/> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x0'/> </source> <alias name='hostdev0'/> <rom file='/mnt/user/isos/vbios/gtx1660ti.rom'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0' multifunction='on'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x1'/> </source> <alias name='hostdev1'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x1'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x2'/> </source> <alias name='hostdev2'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x2'/> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x0b' slot='0x00' function='0x3'/> </source> <alias name='hostdev3'/> <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x3'/> </hostdev> <memballoon model='none'/> </devices> <seclabel type='dynamic' model='dac' relabel='yes'> <label>+0:+100</label> <imagelabel>+0:+100</imagelabel> </seclabel> </domain> Thanks for all your help.,
February 12, 20224 yr ok, good that you found how to fix the xml. Now that the xml is set correctly can you attach a new diagnostics file, so we can see if there's something useful in it to track the issue?
February 12, 20224 yr In latest diagnostics no gpus is attached to vfio at boot and you have nvidia plugin installed in unraid which is attaching to them. Try to attach gpu to vfio at boot to properly isolate them.

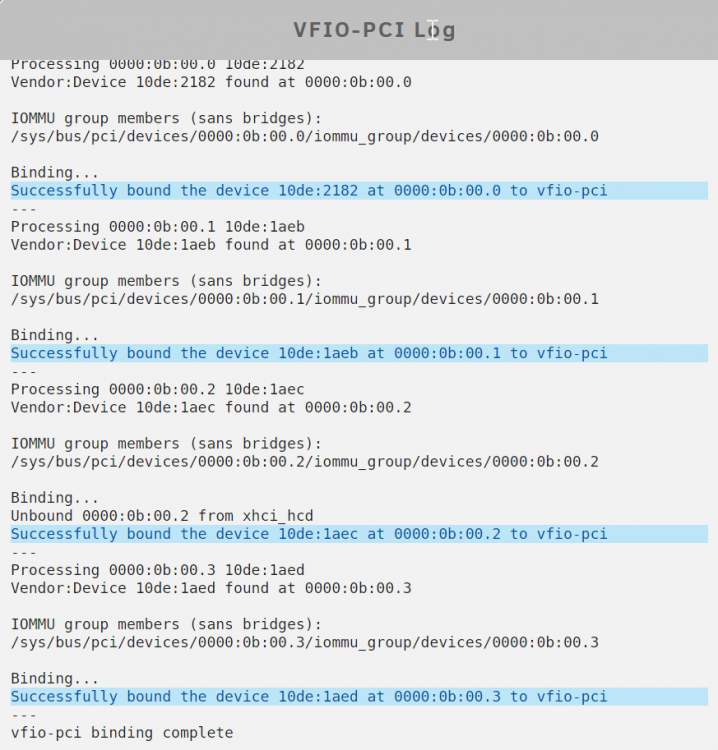

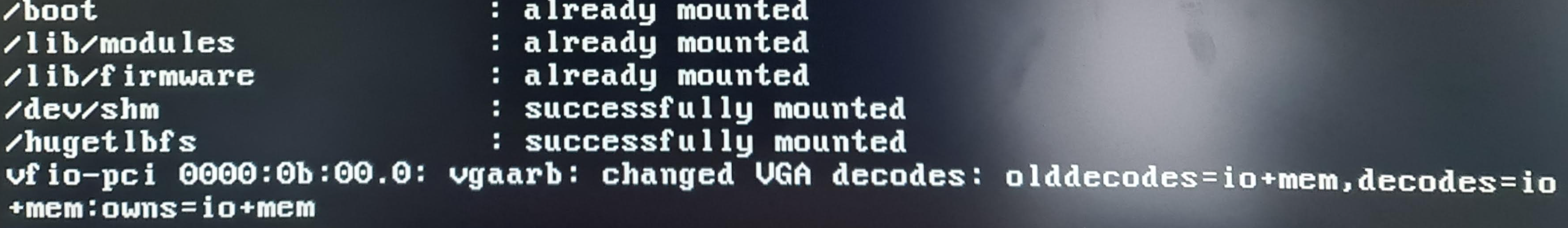

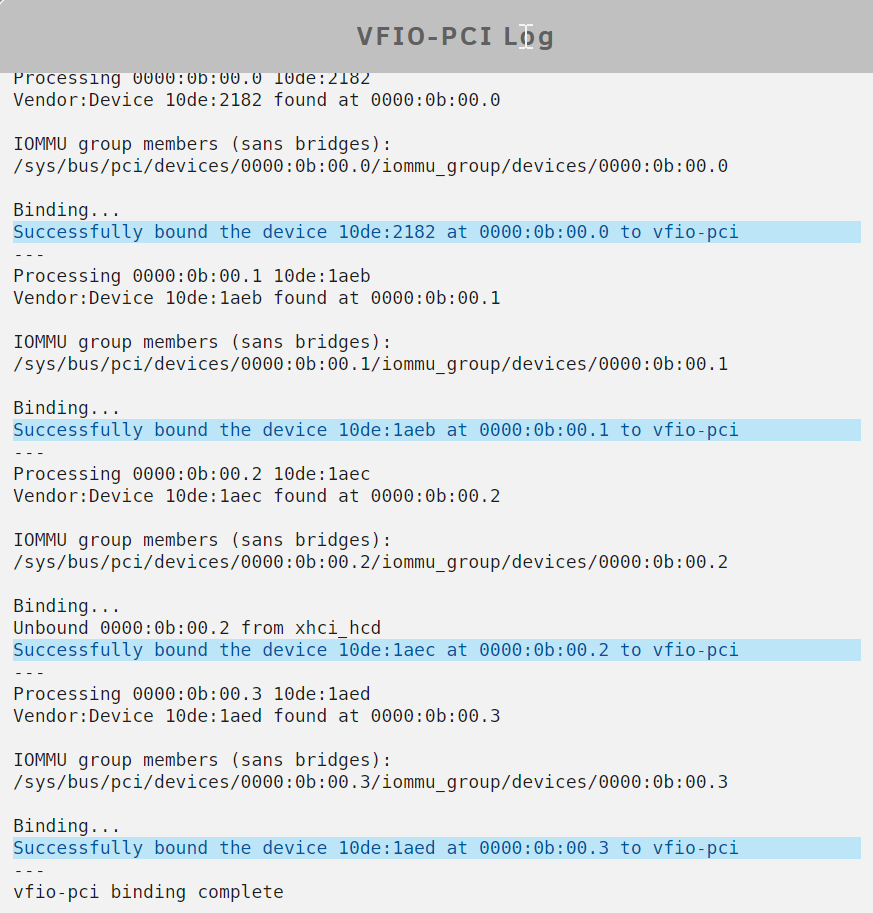

February 15, 20224 yr Author I've bound the devices again for the device. It shows this in the vfio log. I've noticed at boot it doesn't get to the login prompt when binding these devices. Is this normal? It still doesn't passthrough. I've attached the latest diagnostics. djw-unraid-diagnostics-20220215-1406.zip
February 17, 20224 yr Author Solution I found that other people have reported this problem. It appears to be something to do with the HDMI port which doesn't passthrough. I swapped to using display port and it passed through straight away. It's strange as the 2 other GPU cards passthrough via HDMI but the GTX1660ti does not. Cable and port are fine as Unraid boots on the card as it's the primary GPU in BIOS. On 10/9/2019 at 7:47 AM, stvwndr219 said: SOLVED: The issue appears to be with using an HDMI cable on the VM. I got my DisplayPort to HDMI cable out and converted one of the DisplayPort slots on the 1080 Ti to HDMI on my monitor and we are good to go. I do wonder if passing through HDMI audio from the GPU means you can't use the HDMI output due to the HDMI audio being on the same IOMMU group as the GPU. Not sure, but it works now.
