MCE Error - Need Help Identifying DIMM

noja
in General Support

Featured Replies

Fix Common Problems identified that I have an MCE error.  I took a look at my logs and found this:

1 CE memory scrubbing error on CPU_SrcID#1_Ha#0_Chan#1_DIMM#0 or CPU_SrcID#1_Ha#0_Chan#1_DIMM#1 or CPU_SrcID#1_Ha#0_Chan#1_DIMM#2 (channel:1 page:0xd7237f offset:0x0 grain:32 syndrome:0x0 -  area:DRAM err_code:0008:00c1 socket:1 ha:0 channel_mask:2 rank:255)



First - is that going to be the source of the error? I didn't have the MCE log installed in NerdPack so I'm not sure how to check that.

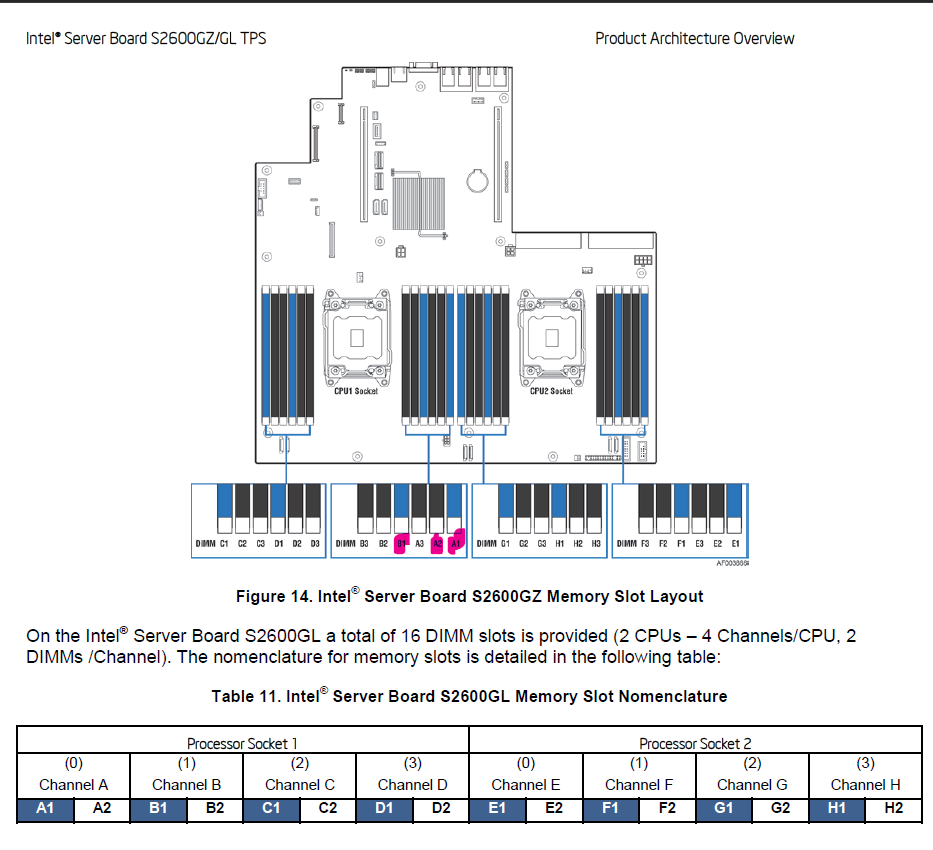

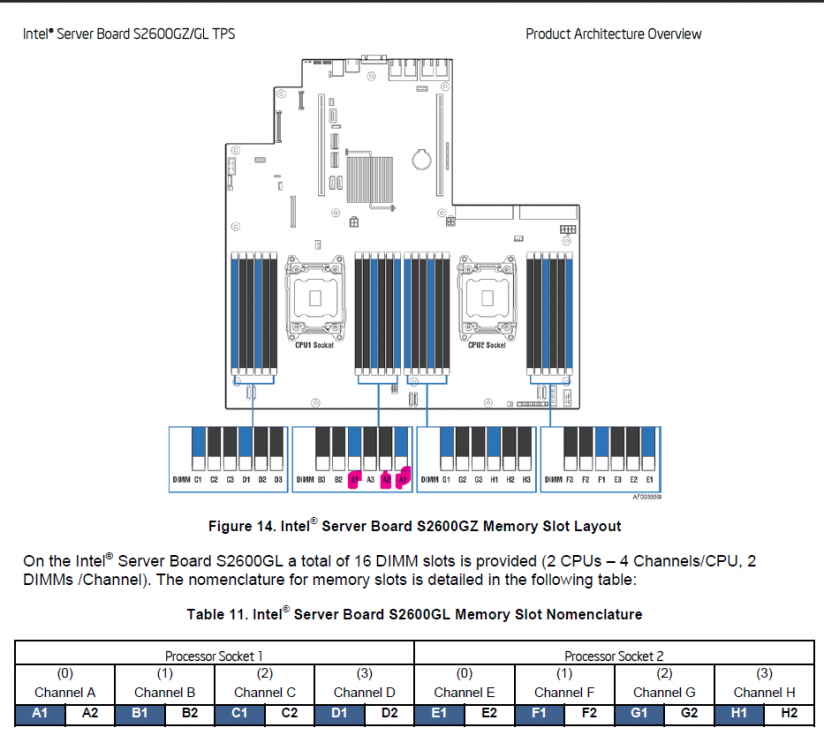

Second - assuming that would be the source of the error - would the highlighted slots be what I'm looking to pull in order to find the culprit?




  • Quote

    Check the board's system even log in the BIOS, there should be more info there.

  • Quote
