Mattlevant Posted June 30, 2022 Share Posted June 30, 2022 Hi, my parity drives keep getting disabled after i replaced a dead drive I have tried removing, starting in maintenance mode, readding different cables (connecting directly to the motherboard sata instead of my lsi sas-sata card) difference power configurations(moving the power connectors to different slots on the string like from 4th to first in the string, also having some drives unplugged) diagnostics attached tower-diagnostics-20220630-1013.zip i cannot figure out the cause, they were fine until i replaced the dead drive when i first boot they show up in unassigned, i can view the smart attributes etc but then i add them start the array they get diabled then lose the ability to view the smart attributes and they disappear from the unassigned devices Quote Link to comment
JorgeB Posted June 30, 2022 Share Posted June 30, 2022 Strange, they are both SMR drives, still they should not drop out like that, also the LSI is in RAID mode and with a firmware with known issues, but if the same with the onboard ports I would suggest trying different disks, SMR are not recommended anyway, especially for parity. Quote Link to comment

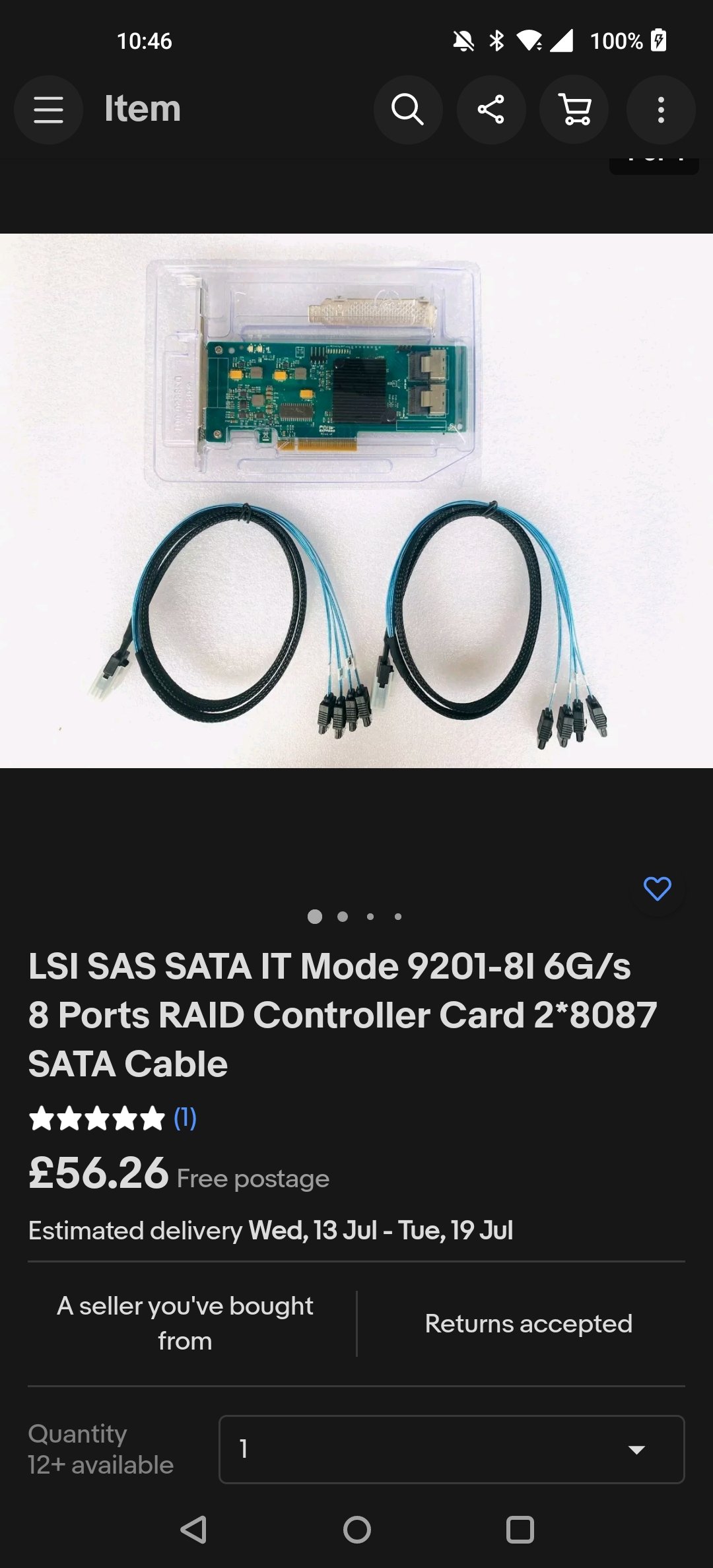

Mattlevant Posted June 30, 2022 Author Share Posted June 30, 2022 (edited) 9 minutes ago, JorgeB said: Strange, they are both SMR drives, still they should not drop out like that, also the LSI is in RAID mode and with a firmware with known issues, but if the same with the onboard ports I would suggest trying different disks, SMR are not recommended anyway, especially for parity. Hmm I bought the LSI as it was supposed to be in IT mode If it's in raid mode how do I show it is so I can try get a refund from eBay? I can't afford to keep buying disks so if I can get it back working with a firmware flash on the LSI card to put it in it mode then that would be preferable Edited June 30, 2022 by Mattlevant Quote Link to comment
JorgeB Posted June 30, 2022 Share Posted June 30, 2022 Jun 30 01:55:04 Tower kernel: mpt2sas_cm0: LSISAS2008: FWVersion(20.00.06.00), ChipRevision(0x03), BiosVersion(07.39.02.00) Jun 30 01:55:04 Tower kernel: mpt2sas_cm0: Protocol=(Initiator), Capabilities=(Raid,TLR,EEDP,Snapshot Buffer,Diag Trace Buffer,Task Set Full,NCQ) Firmware should be 20.00.07.00, and IT mode looks like this: Jun 27 16:56:23 Tower7 kernel: mpt2sas_cm0: LSISAS2008: FWVersion(20.00.07.00), ChipRevision(0x03), BiosVersion(00.00.00.00) Jun 27 16:56:23 Tower7 kernel: mpt2sas_cm0: Protocol=(Initiator,Target), Capabilities=(TLR,EEDP,Snapshot Buffer,Diag Trace Buffer,Task Set Full,NCQ) Jun 27 16:56:23 Tower7 kernel: scsi host11: Fusion MPT SAS Host Note Protocol=(Initiator,Target) and no RAID mentioned in the capabilities like above. Quote Link to comment
JorgeB Posted June 30, 2022 Share Posted June 30, 2022 BTW, it's usually easy to reflash to IT mode. Quote Link to comment
Mattlevant Posted June 30, 2022 Author Share Posted June 30, 2022 14 minutes ago, JorgeB said: BTW, it's usually easy to reflash to IT mode. Okay I have just flashed it mode Still same issue, disk gets disabled as soon as the array is started Quote Link to comment
Mattlevant Posted June 30, 2022 Author Share Posted June 30, 2022 19 minutes ago, JorgeB said: BTW, it's usually easy to reflash to IT mode. another diagnostics attched now its in IT mode tower-diagnostics-20220630-1124.zip Quote Link to comment
JorgeB Posted June 30, 2022 Share Posted June 30, 2022 Yes, now it's IT mode, but like mentioned if it also happened with the onboard SATA that would not be the problem. I would suggest trying different non SMR disks. Quote Link to comment
Mattlevant Posted June 30, 2022 Author Share Posted June 30, 2022 (edited) 5 minutes ago, JorgeB said: Yes, now it's IT mode, but like mentioned if it also happened with the onboard SATA that would not be the problem. I would suggest trying different non SMR disks. What brand/model would you suggest? I've always used WD red since back when I ran freenas 9/10/11 and truenas12 so wouldn't even know which to look for I can't afford to just buy disks repeatedly so need some that are known to be good for unraid Edited June 30, 2022 by Mattlevant Quote Link to comment
JorgeB Posted June 30, 2022 Share Posted June 30, 2022 Any brand/model, just not SMR, especially for parity. Quote Link to comment
Mattlevant Posted June 30, 2022 Author Share Posted June 30, 2022 (edited) 3 minutes ago, JorgeB said: Any brand/model, just not SMR, especially for parity. I'm not too clued up on it, what other types are there apart from smr and how do I know if they are smr or not 🤷♂️ Edited June 30, 2022 by Mattlevant Quote Link to comment
JorgeB Posted June 30, 2022 Share Posted June 30, 2022 If you want 6TB you have for example: WD RED Plus - WD60EFZX Toshiba N300 - HDWG460UZSVA Seagate Ironwolf - ST6000VN001 Quote Link to comment
Mattlevant Posted June 30, 2022 Author Share Posted June 30, 2022 1 minute ago, JorgeB said: If you want 6TB you have for example: WD RED Plus - WD60EFZX Toshiba N300 - HDWG460UZSVA Seagate Ironwolf - ST6000VN001 👌 Ordered a brand new red plus see if it fixes my issue I hope it does at £180 a drive 😭 Is smr ok for the main storage array? I can't be replacing 8 drives 😂 Quote Link to comment
JorgeB Posted June 30, 2022 Share Posted June 30, 2022 It can be fine, depending on the use case, still they should not be dropping just because they are SMR, all your other drives are CMR, just both parity drives are SMR. Quote Link to comment
Mattlevant Posted June 30, 2022 Author Share Posted June 30, 2022 2 minutes ago, JorgeB said: It can be fine, depending on the use case, still they should not be dropping just because they are SMR, all your other drives are CMR, just both parity drives are SMR. The other 6tb are CMR? Is it possible to move all the data to my 4tb drives and use the other 6tb as parity if they are CMR? Quote Link to comment
JorgeB Posted June 30, 2022 Share Posted June 30, 2022 6 minutes ago, Mattlevant said: The other 6tb are CMR? Yes, WD60EFRX original RED drives - CMR WD60EFAX new RED drives - SMR 7 minutes ago, Mattlevant said: Is it possible to move all the data to my 4tb drives and use the other 6tb as parity if they are CMR? Yes, as long as there's enough space. Quote Link to comment
