So I’ve been partially following Spaceinvader One guid to setting up cctv cameras with Shinobi on unraid and I’ve got to the point were I’m trying to assign the vlan with my cameras are on to the Shinobi docker it doesn’t show up on there list of device and I’ve tried messing with it for a few hours and got know where so I’ve come for help ill try give you as much info as possible but to be honest not my area of expertise so its also possible its something dumb thanks

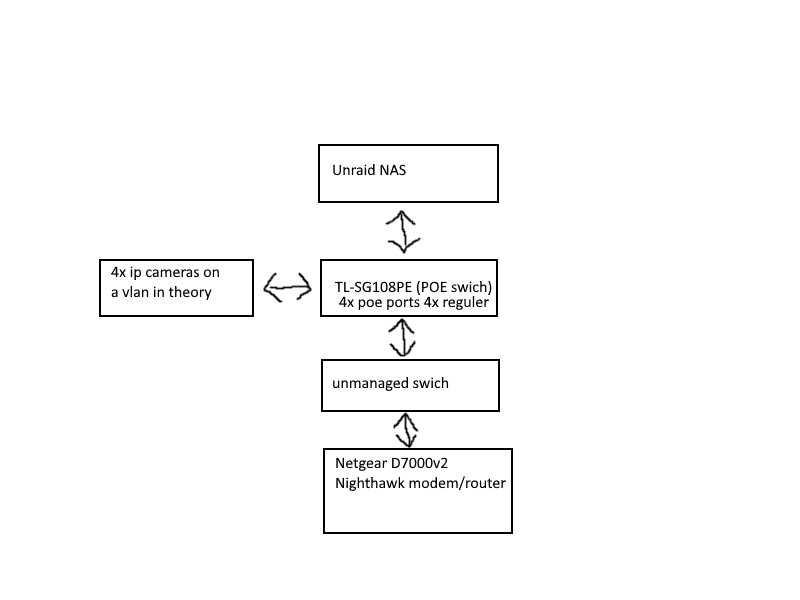

Network setup

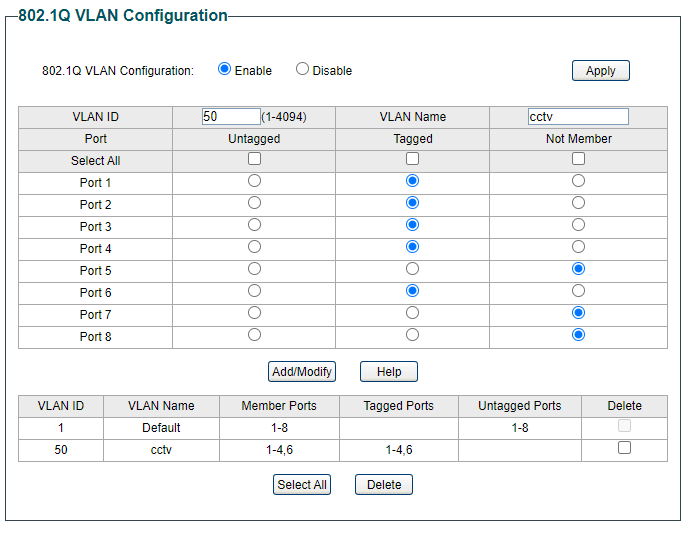

1. You should set Untag for port 1-4 unless camera also set enable  VLAN50, pls also static the IP on camera as you haven't mention have DHCP for that.

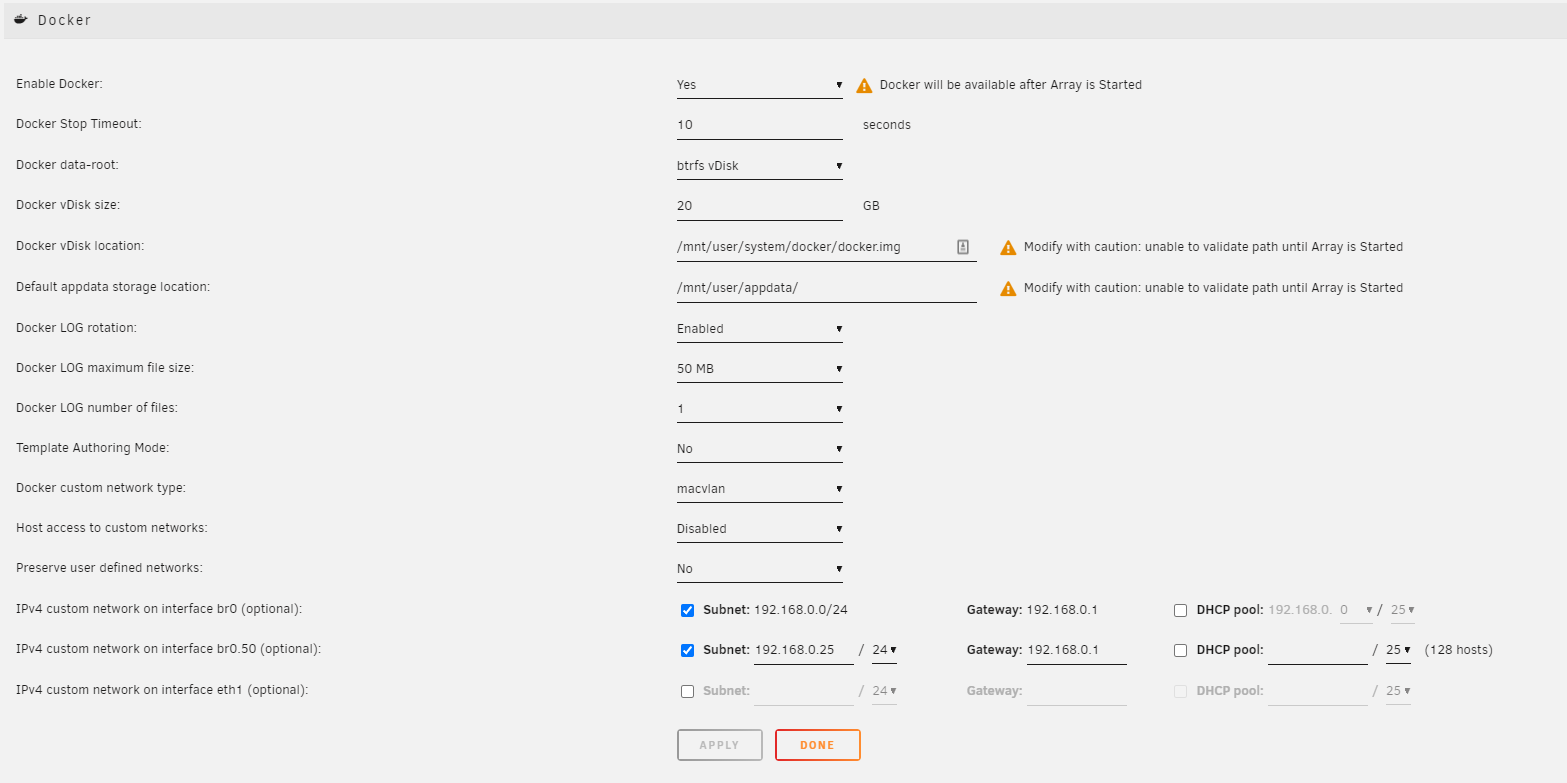

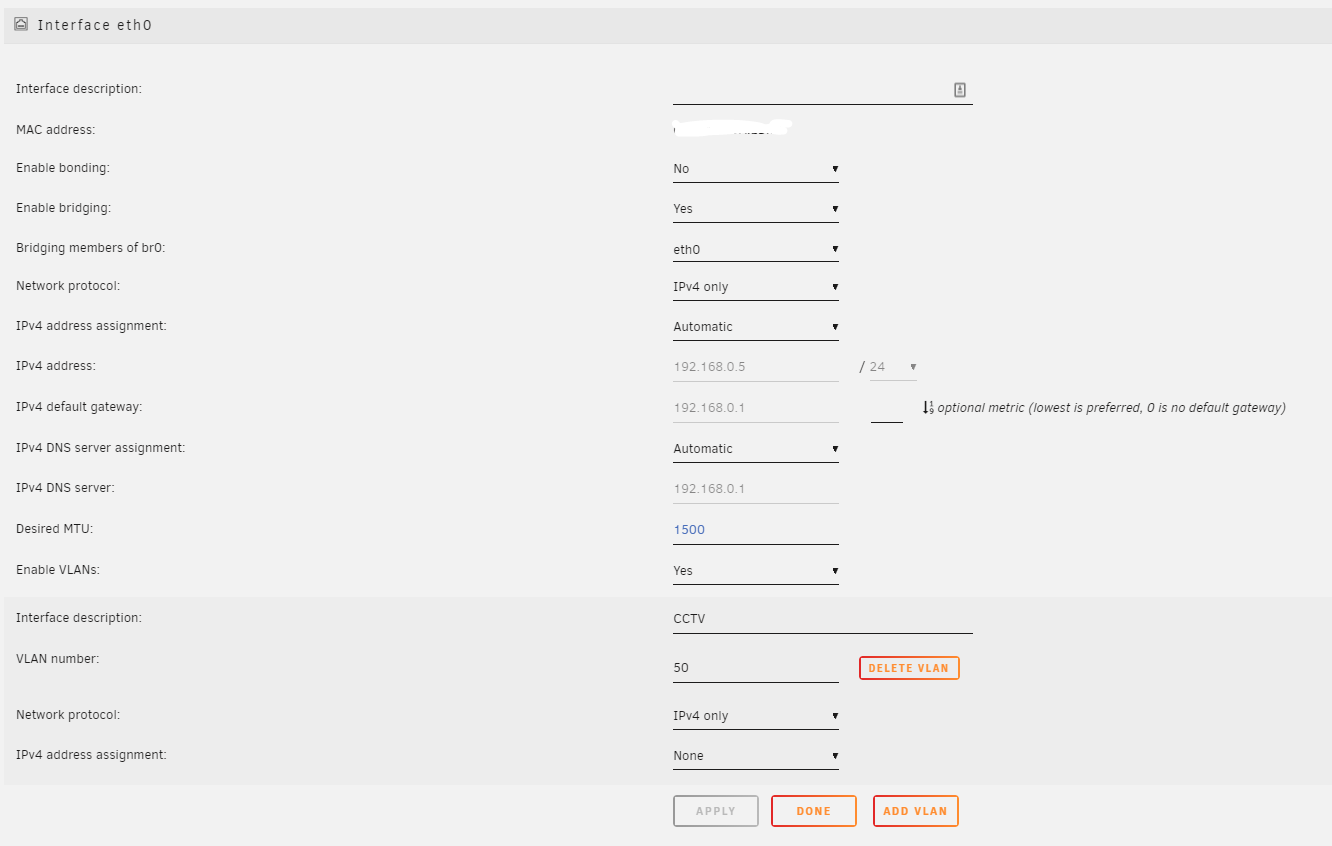

2. br0.50 shouldn't same subnet in 192.168.0.X

hi sorry don’t really understand what you mean if this helps ports 1-4 have my cctv cameras on port 5 has the connection to rest of network and port 6 has the connection to the unraid nas



my poe swish has this info



IP Address 192.168.0.25

Subnet Mask 255.255.255.0

Default Gateway 192.168.0.1



thanks

2 hours ago, minibuck said:

hi sorry don’t really understand what you mean if this helps ports 1-4 have my cctv cameras on port 5 has the connection to rest of network and port 6 has the connection to the unraid nas



Set as below



And br0.50 set different subnet out of 192.168.0.x, i.e. 192.168.1.0/24 and cameras in static IP 192.168.1.x
