Matrix Synapse setup: using nginx proxy manage, coturn & cloudflare

[Tweak91]

• Cloudflare & Nginx proxy manager Step one

https://www.cloudflare.com/

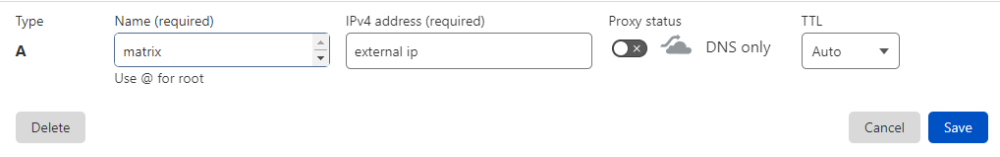

• Create a A name record pointing at your external IP DNS only.

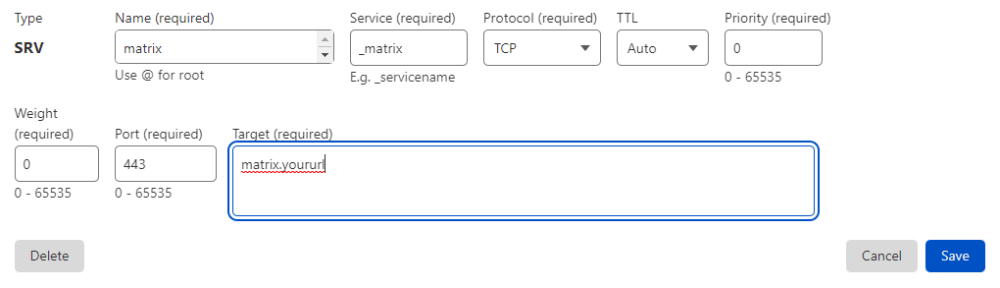

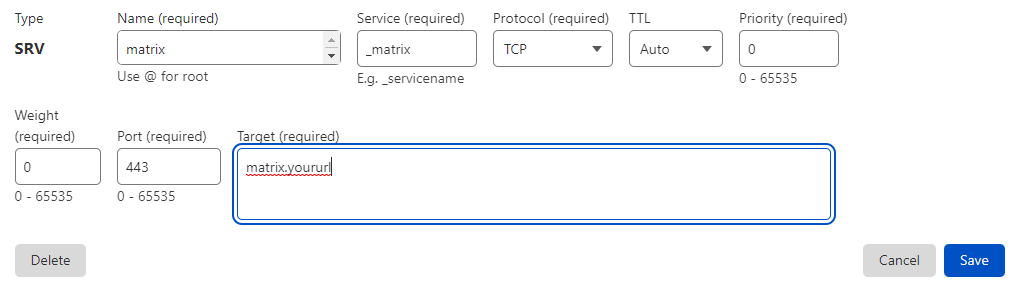

• Create an SRV record _matrix targeted at your subdomain

• Create a C name for coturn turn.yoururl DNS only

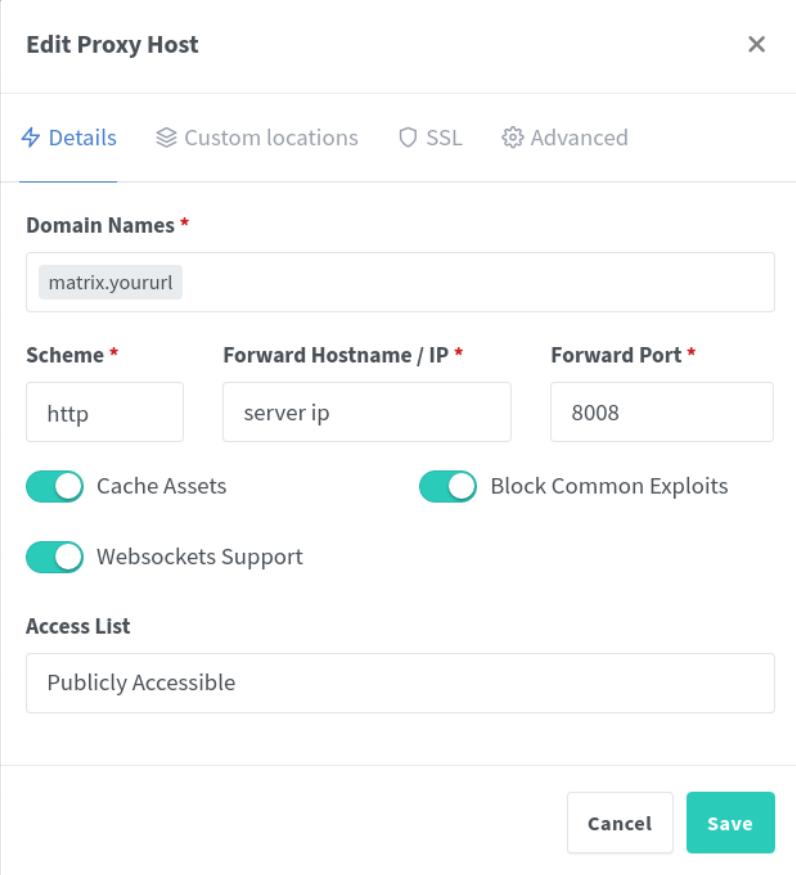

• Nginx proxy manager

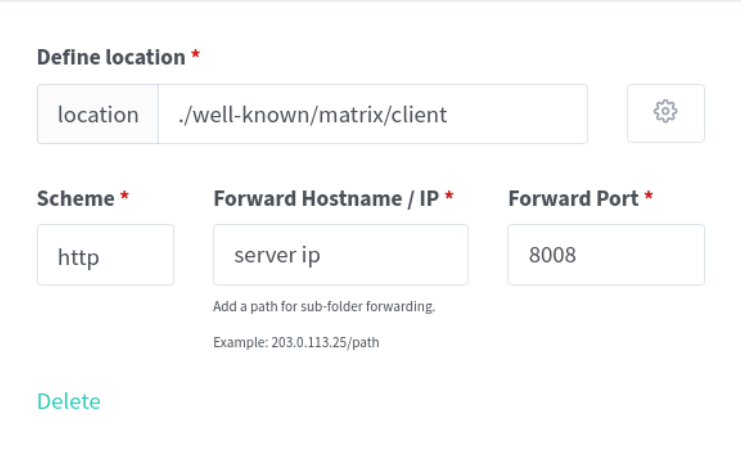

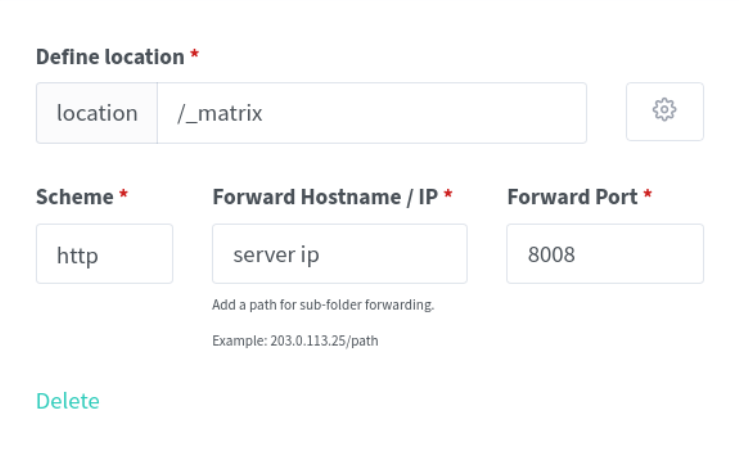

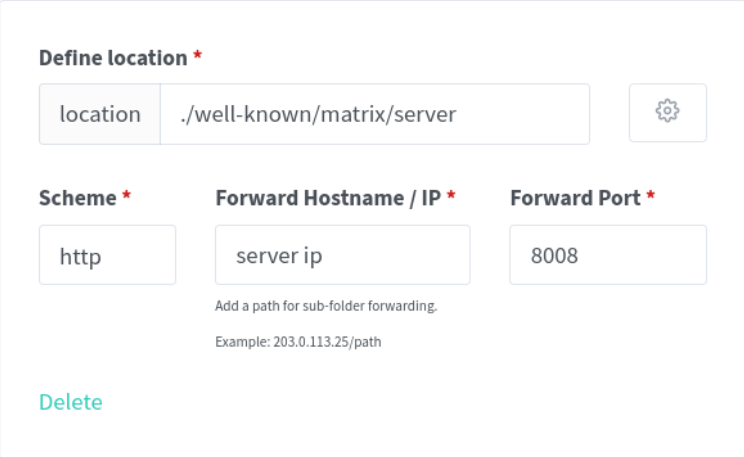

custom location Tap add 3

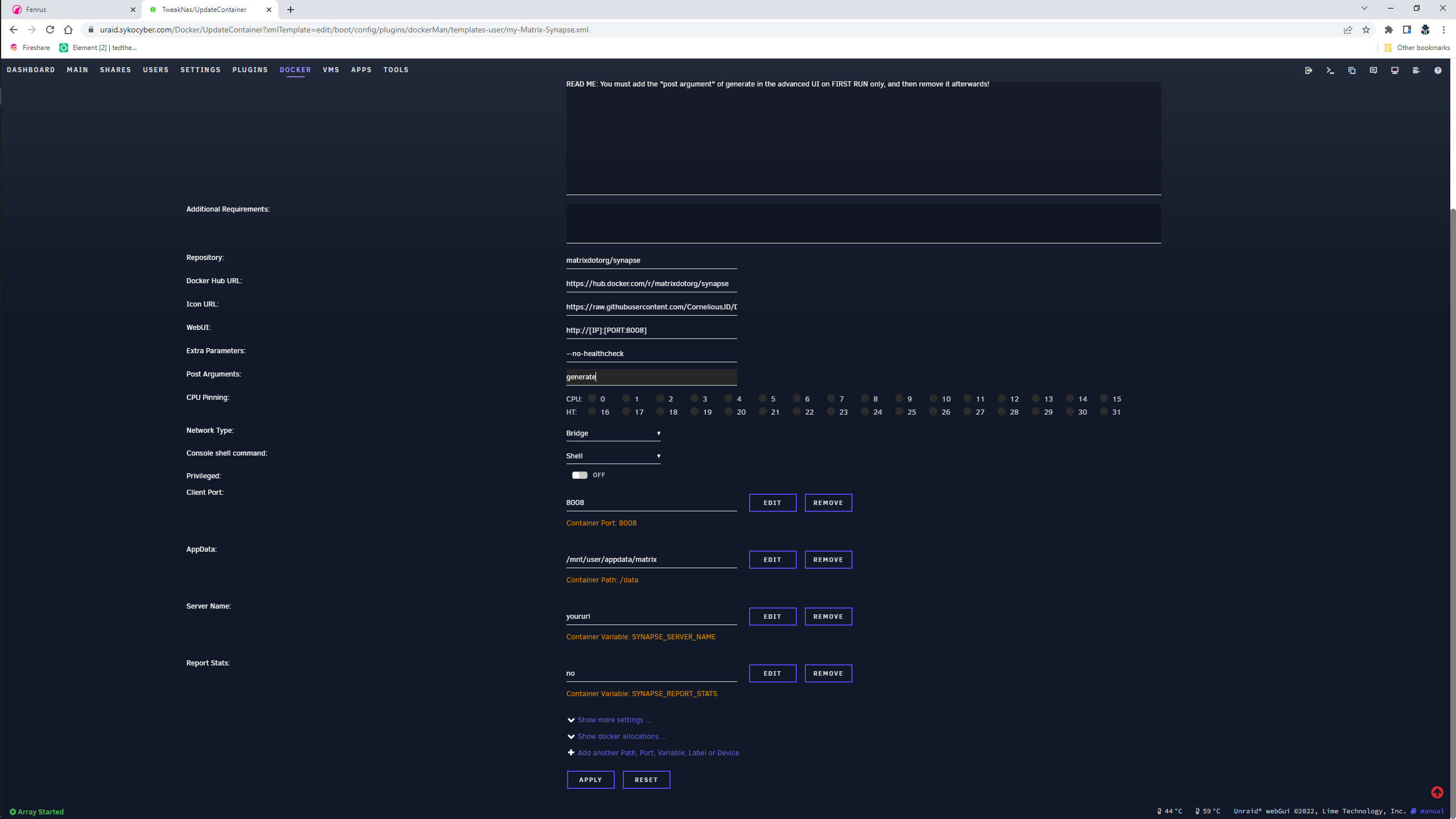

• Matrix-Synapse Step two

Matrix-Synapse docker by matrixdotorg.

Delete all ports except Client Port 8008

add Server Name: matrix.yoururl



ADVANCED VIEW  Post Arguments: add generate

install the docker



• homeserver.yaml edit Step three

# Configuration file for Synapse.
#
# This is a YAML file: see [1] for a quick introduction. Note in particular
# that *indentation is important*: all the elements of a list or dictionary
# should have the same indentation.
#
# [1] https://docs.ansible.com/ansible/latest/reference_appendices/YAMLSyntax.html
#
# For more information on how to configure Synapse, including a complete accounting of
# each option, go to docs/usage/configuration/config_documentation.md or
# https://matrix-org.github.io/synapse/latest/usage/configuration/config_documentation.html
server_name: "matrix.yoururl"
pid_file: /data/homeserver.pid
public_baseurl: https://matrix.yoururl
#web_client_location: https://matrix.yoururl
listeners:
  - port: 8008
    tls: false
    type: http
    x_forwarded: true
    bind_addresses: ['0.0.0.0']
    resources:
      - names: [client, federation]
        compress: false
database:
  name: sqlite3
  args:
    database: /data/homeserver.db

log_config: "/data/matrix.yoururl.log.config"
media_store_path: /data/media_store
registration_shared_secret: ""
report_stats: false
macaroon_secret_key: ""
form_secret: ""
signing_key_path: "/data/matrix.yoururl.signing.key"
trusted_key_servers:
  - server_name: "matrix.org"

# Enable registration for new users.
enable_registration: true
enable_registration_without_verification: true
registration_shared_secret:
trusted_third_party_id_servers:
    - matrix.org
    - vector.im
    - riot.im
    - matrix.yoururl

allow_public_rooms_over_federation: true
allow_public_rooms_without_auth: false
enable_search: true
push:
include_content: true
group_unread_count_by_room: true


 ## TURN ##
# The public URIs of the TURN server to give to clients
turn_uris: ["turn:your turn url:3478?transport=udp"]

# The shared secret used to compute passwords for the TURN server
turn_username: user
turn_password: pass



# vim:ft=yaml

change all matrix.yoururl to your url

registration_shared_secret use key created on install homeserver.yaml

macaroon_secret_key use key created on install homeserver.yaml

form_secret use key created on install homeserver.yaml

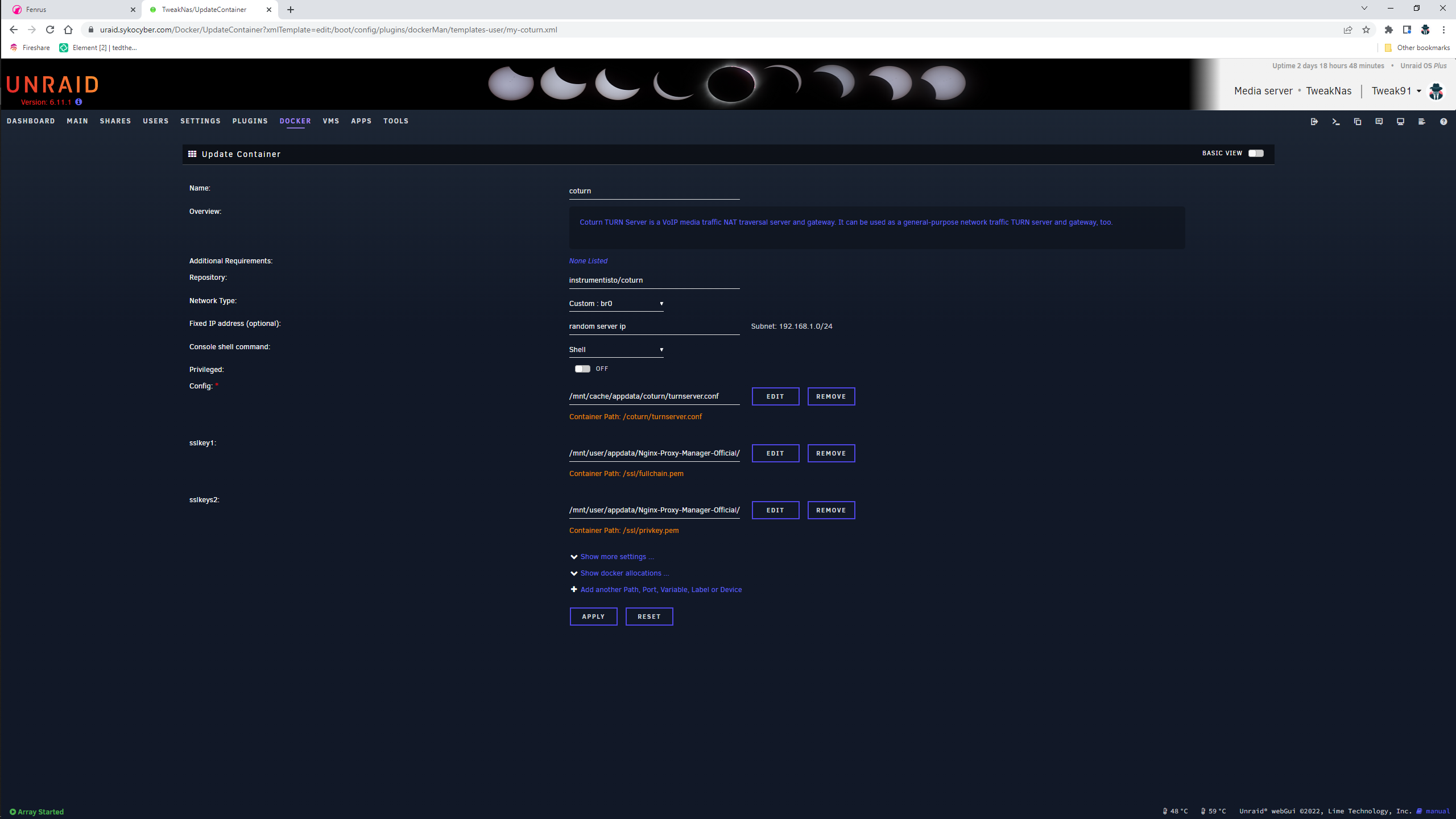

• coturn Step four

change Network Type: too br0 use a open server IP

Delete all ports install



coturn turnserver.conf

listening-port=3478
tls-listening-port=5349
listening-ip=0.0.0.0
external-ip=Br0 server IP
min-port=49152
max-port=65535

verbose
fingerprint
lt-cred-mech
user=user:pass

total-quota=100
stale-nonce=600

realm=turn.yoururl
server-name=turn.yoururl

#cert=/ssl/fullchain.pem
#pkey=/ssl/privkey.pem
#cipher-list="ECDHE-RSA-AES256-GCM-SHA512:DHE-RSA-AES256-GCM-SHA512:ECDHE-RSA-AES256-GCM-SHA384:DHE-RSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-SHA384"

syslog
pidfile="/var/run/turnserver.pid"

#no-tls
#no-udp
#no-tcp
#no-cli
#no-tlsv1
#no-tlsv1_1
#no-tlsv1_2

cli-password=passs



change turn.yoururl to your coturn url

change user=user:pass add the same user:pass created to homeserver.yaml

change cli password

port forwarding 49152- 65535 UDP



!!!!!!!DONT FORGET!!!!!!!! !!!!before starting matrix docker remove generate from Post Arguments!!!!

you should now be up and running

check https://federationtester.matrix.org/

full homeserver.yaml https://matrix-org.github.io/synapse/v1.37/usage/configuration/homeserver_sample_config.html

adding POSTGRES DB, and ELEMENT Web





LDAP USERS

password_providers:
 - module: "ldap_auth_provider.LdapAuthProvider"
   config:
     enabled: true
     mode: "search"
     uri: "ldap://domain:389"
     start_tls: false
     base: "OU=home,DC=example,dc=com"
     attributes:
        uid: "saMAccountName"
        mail: "mail"
        name: "givenName"
     bind_dn: "cn=ldap,cn=Users,dc=example,dc=com"
     bind_password: "password"
     #filter: "(objectClass=posixAccount)"

When you get up and running come say hi



https://matrix.to/#/#sykocyberofficial:m.sykocyber.com









Edited October 24, 2022 by Tweak91

[Shadax]

Hey man I followed this to the T, but cannot get it to work. I can get the matrix page up and working on [localip]:8008, but my page times out on matrix.mydomain.com. Federation tester also doesn't work. Anything I'm missing? Were there any ports that needed to be forwarded or anything specific about your NGINX config I'm missing?

[Tweak91]

4 hours ago, Shadax said:

Hey man I followed this to the T, but cannot get it to work. I can get the matrix page up and working on [localip]:8008, but my page times out on matrix.mydomain.com. Federation tester also doesn't work. Anything I'm missing? Were there any ports that needed to be forwarded or anything specific about your NGINX config I'm missing?

DNS only??

[Tweak91]

1 minute ago, Tweak91 said:

DNS only??



1 minute ago, Tweak91 said:

DNS only??



4 hours ago, Shadax said:

Hey man I followed this to the T, but cannot get it to work. I can get the matrix page up and working on [localip]:8008, but my page times out on matrix.mydomain.com. Federation tester also doesn't work. Anything I'm missing? Were there any ports that needed to be forwarded or anything specific about your NGINX config I'm missing?

What dose your log say ??

[Tweak91]

5 hours ago, Shadax said:

Hey man I followed this to the T, but cannot get it to work. I can get the matrix page up and working on [localip]:8008, but my page times out on matrix.mydomain.com. Federation tester also doesn't work. Anything I'm missing? Were there any ports that needed to be forwarded or anything specific about your NGINX config I'm missing?

homeserver.yaml

Try this forget the coturn for now.

Anywhere you see "URL" add your own

anywhere you see "KEY" add your key from the default catered homeserver.yaml

Test federation

After that step than you can try turn.

I'll give you my full homeserver.yaml tonight

[Tweak91]

Just now, Tweak91 said:

homeserver.yaml 1.69 kB · 0 downloads

Try this forget the coturn for now.

Anywhere you see "URL" add your own

anywhere you see "KEY" add your key from the default catered homeserver.yaml

Test federation

After that step than you can try turn.

I'll give you my full homeserver.yaml tonight

Make sure you delete generate from Post Arguments or it won't work.

[Pava]

Hello, thank you for Matrix setup all its working. Please for what need coturn?

Please what is ip : external-ip=Br0 server IP, and turn.yoururl? Is it matrix.chat url?
