Idea for leftover hardware?

[Pulteney]

Ordered a new server to run Unraid. As I went for overkill specs I could only afford one HDD - a Seagate EXOS 20TB. I'll buy more in a few weeks for more storage and parity.

Sadly the Exos was DOA. I'm an impatient person, so I threw in 6 old 2TB's from a previous Linux software raid setup. This was a AMD Phenom II 955 and 4GB of RAM.

The drives have been powered on from around 60 to 70k hours. A few throws out a few SMART errors, but nothing critical.



My replacement Exos 20TB arrives tomorrow, so I'm a bit torn with what to do with the old hardware and drives. I don't want to run these old drives in my main array. When can we have multiple arrays with parity, pls?

Taking idea for what do with them, but I'm considering to move the drives back in my old server, and run Unraid on it. I have a total of 8 2TB drives I can deploy. 14TB of pure storage is dumb to throw in a closet, even if the drives are old. As a straight smb/backup/fileserver, I assume the specs are good enough.

I would like to keep my current USB drive/config for the main server though.
If I move these drives back to my old hardware, can I just add the drives in the same order to a new array, and the data will be there - or do I need some config files from the current USB drive?


When buying new hardware the WD 850x 1TB NVME was on 50% sale, so naturally I bought two. My current server already has a Firecuda 520 1TB. Looking for ideas for how to include them all in a sensible way.

The WD 850x's in raid 1 for appdata and important files, also backed up to the array + gdrive. And the Firecuda as download cache? Seems a bit overkill, lmao. I'm still deciding if I need a NVME for download cache, or if a good old HDD is good enough.

I'm also a bit skeptical of running two new and identical NVME drives to a raid1. The likeyhood of them both failing at the same time is small, but could happen.

If this is nonsensical, I can still return the Firecuda.

Apologize for the messy OP, hope it makes sense. Every idea is appreciated.

Regards,
A fresh Unraid fanboy

[57thStIncident]

Your situation has some parallels with my own.  I am also contemplating how I can make good use of still-decent drives that are a little too small while making sensible incremental additions.  My main desktop has a 1TB firecuda as cache and a single 6TB disk array, currently with no parity.

I've been using it more of a dual-GPU VM host than for data storage, as I still have an aging 4-bay Synology DS415+ with assorted disks (2+4+4+6) for backups.  Both machines are getting a little on the full side though.  I think I also have a few loose, currently unused 2TB disks but no bays to put them in at the moment.



A nice thing about both unRAID and the Synology is that both can accommodate and make pretty good use of varying drive sizes, so I hate to waste the smaller disks.



Unfortunately my desktop case is currently poor for HDD -- when I bought it I don't think I'd yet decided to try unRAID on it, so it's more of a standard modern gaming case, with much better support for SSD than HDD (there are only 2x3.5" bays).  So I'm wrestling with when I should bite the bullet and change or add case...and of course the Synology won't last forever -- it's quite old now so when it dies likely I'll replace it with something homebuilt.



What I'm thinking of doing is getting 2x larger 3.5" disks (maybe 12TB?) and using those for my unRAID array (will get 4TB more space, and finally parity protected). I think I might have a 2TB 2.5" disk unused that could also be added though obviously it's a lower-performing disk.  Maybe I can distribute the data so that vs. one of the other disks might be able to spin down sometimes.



I'd then move the 6TB disk from unRAID to replace the 2TB disk in the Synology, which would add 4TB to that unit as well.

I have a 4-bay USB3 JBOD enclosure that could be used for the random smaller drives but I'm not sure attached USB is particularly well integrated or advisable for the Synology or unRAID so not sure what i'll do with those until I decide on a case that can handle more drives.



I'm also considering adding a second SSD.



1TB Firecuda seems generous for a cache drive.  Mine is really being used more for VM disk images, less for array caching.  Not sure about your usage pattern but I imagine the job could be done with less.  I don't think you're alone about wondering what to do with 2x SSD...whether to combine them with BTRFS in a single cache pool, or use one for cache, the other as an unassigned device, with the intent of backing the necessary contents to the array as necessary.  This approach is a little less flexible as you don't get the full combined capacity in one pool (and there may be some performance benefit to combining them?) but it is probably a little safer should one of the SSD's fail.  If you make a point of backing up their contents to the array often I'm not sure it matters *that* much between the two choices.



I believe your existing disks can be moved retaining data without too much trouble but you'll want to read up on the procedure to avoid any pitfalls.  Pls confirm elsewhere but I don't think there's any configuration you need, and I'd think the order might not matter -- I'm kind of assuming you're just moving data disks and that you're going to regen the parity on the other hardware.  If you're trying to move multiple disks + parity I'd think that would require a bit of extra care.  Again, I haven't done enough of that sort of activity to be an authority so perhaps read up the docs and look for other tutorials/experts.

[apandey]

I am on an array with 8TB drives, and some pools with 1TB SSDs. I had some leftover 4TB disks which have been heavily used in a raid6 previously, and now they make up a zfs raidz2 pool in my unraid serve that I use for backups with snapshots

[Pulteney]

Thanks for the input.

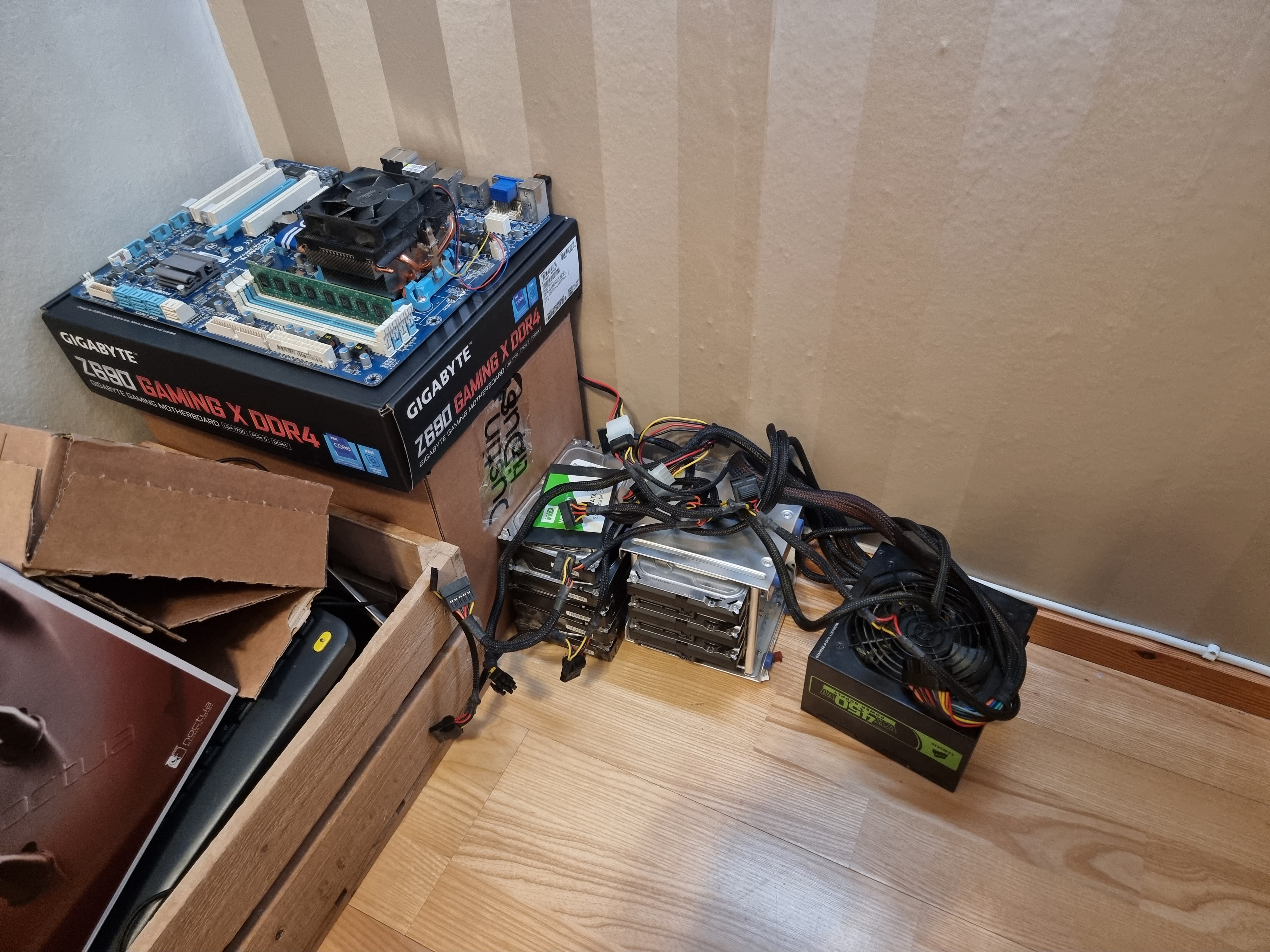

I ended up retiring the old server. Simply couldnt justify the power usage from 8 2TB drives I don't really trust with any important data.
Decided to set up rclone with mergerfs on my main server instead and it suits my needs beautifully.



Rest in peace ye old faithful





Edited February 3, 2023 by Pulteney
