Hi.



Just starting out with Unraid OS (Version: 6.11.5). Everything looks good and there are a lot of apps to use (almost everything I need). But what if i want to run Opendronemaps https://opendronemap.org/ on my server? I need to run the WebODM service and not just the console version. I know there is a docker version and I used to run it on my ubuntu server, kind of one click setup and everything just worked.



Can someone guide me on how to get WebODM work on my server? Any good dockercontainer or App that installs automagically? 😁

You should be able to run the same container on Unraid.



if the container is started using Docker Run then as it appears nobody has created an Unraid specific template it is just a case of providing the relevant parameters in the blank template Unraid provides.



if the container is started via Docker Compose then there an Unraid plugin for Docker Compose to help with doing it that way.

Thank you!



I installed the compose plugin and found a WebODM docker-compose.yml file on github https://github.com/OpenDroneMap/WebODM/blob/master/docker-compose.yml but I don't know exactly how to configure all the volumes? I don't know much about docker to begin with. Maybe you can give me some examples about the volumes. I have the appdata share and some shares created by plex app etc etc 😀



This is the compose file from github.

# This configuration does not include a processing node
# Which makes for faster setup times
version: '2.1'
volumes:
  dbdata:
  appmedia:
services:
  db:
    image: opendronemap/webodm_db
    container_name: db
    ports:
      - "5432"
    volumes:
      - dbdata:/var/lib/postgresql/data:Z
    restart: unless-stopped
    oom_score_adj: -100
  webapp:
    image: opendronemap/webodm_webapp
    container_name: webapp
    entrypoint: /bin/bash -c "chmod +x /webodm/*.sh && /bin/bash -c \"/webodm/wait-for-postgres.sh db /webodm/wait-for-it.sh -t 0 broker:6379 -- /webodm/start.sh\""
    volumes:
      - ${WO_MEDIA_DIR}:/webodm/app/media:z
    ports:
      - "${WO_PORT}:8000"
    depends_on:
      - db
      - broker
      - worker
    environment:
      - WO_PORT
      - WO_HOST
      - WO_DEBUG
      - WO_BROKER
      - WO_DEV
      - WO_DEV_WATCH_PLUGINS
    restart: unless-stopped
    oom_score_adj: 0
  broker:
    image: redis
    container_name: broker
    restart: unless-stopped
    oom_score_adj: -500
  worker:
    image: opendronemap/webodm_webapp
    container_name: worker
    entrypoint: /bin/bash -c "/webodm/wait-for-postgres.sh db /webodm/wait-for-it.sh -t 0 broker:6379 -- /webodm/wait-for-it.sh -t 0 webapp:8000 -- /webodm/worker.sh start"
    volumes:
      - ${WO_MEDIA_DIR}:/webodm/app/media:z
    depends_on:
      - db
      - broker
    environment:
      - WO_BROKER
      - WO_DEBUG
    restart: unless-stopped
    oom_score_adj: 250



I am afraid I do not use Docker Compose so not able to help.   Hopefully someone else who is experienced in Compose can help.

Hey @nordicpipeline, were you able to get ODM running on your unraid server? I find myself in the same situation - wanting to run it and having minimal knowledge of docker etc..

Did you have any luck?

TIA



me three 😁 i would love to get this going on my unraid rig...

Ok, I got webODM installed and here is what I did.

1) make sure you have the docker compose plugin installed

2) Click "add new stack" and give it a name

3) Scroll down to it and click the cog wheel (settings) and select "Compose File"

4) REMOVE any text thats pre-populated and paste the unedited docker-compose.yml (file is on github) and click "SAVE"

5) Same as step 3 but select "ENV FILE"

6) REMOVE anything in box and this is the contents of the one I used:  (I only edited WO_PORT and WO_MEDIA_DIR

Quote



WO_HOST=localhost
WO_PORT=8645
WO_MEDIA_DIR=/mnt/user/appdata/webODM/media
WO_SSL=NO
WO_SSL_KEY=
WO_SSL_CERT=
WO_SSL_INSECURE_PORT_REDIRECT=80
WO_DEBUG=NO
WO_DEV=NO
WO_BROKER=redis://broker
WO_DEFAULT_NODES=1





I dont have time to test back on any results yet and This might be all wrong but its working so far.

Here is the Docker Compose file:


# This configuration does not include a processing node
# Which makes for faster setup times
version: '2.1'
volumes:
  dbdata:
  appmedia:
services:
  db:
    image: opendronemap/webodm_db
    container_name: db
    ports:
      - "5432"
    volumes:
      - dbdata:/var/lib/postgresql/data:Z
    restart: unless-stopped
    oom_score_adj: -100
  webapp:
    image: opendronemap/webodm_webapp
    container_name: webapp
    entrypoint: /bin/bash -c "chmod +x /webodm/*.sh && /bin/bash -c \"/webodm/wait-for-postgres.sh db /webodm/wait-for-it.sh -t 0 broker:6379 -- /webodm/start.sh\""
    volumes:
      - ${WO_MEDIA_DIR}:/webodm/app/media:z
    ports:
      - "${WO_PORT}:8000"
    depends_on:
      - db
      - broker
      - worker
    environment:
      - WO_PORT
      - WO_HOST
      - WO_DEBUG
      - WO_BROKER
      - WO_DEV
      - WO_DEV_WATCH_PLUGINS
    restart: unless-stopped
    oom_score_adj: 0
  broker:
    image: redis
    container_name: broker
    restart: unless-stopped
    oom_score_adj: -500
  worker:
    image: opendronemap/webodm_webapp
    container_name: worker
    entrypoint: /bin/bash -c "/webodm/wait-for-postgres.sh db /webodm/wait-for-it.sh -t 0 broker:6379 -- /webodm/wait-for-it.sh -t 0 webapp:8000 -- /webodm/worker.sh start"
    volumes:
      - ${WO_MEDIA_DIR}:/webodm/app/media:z
    depends_on:
      - db
      - broker
    environment:
      - WO_BROKER
      - WO_DEBUG
    restart: unless-stopped
    oom_score_adj: 250



Edited March 14, 20233 yr by kilobit
removed extra lines in docker compose that accidentally were copied

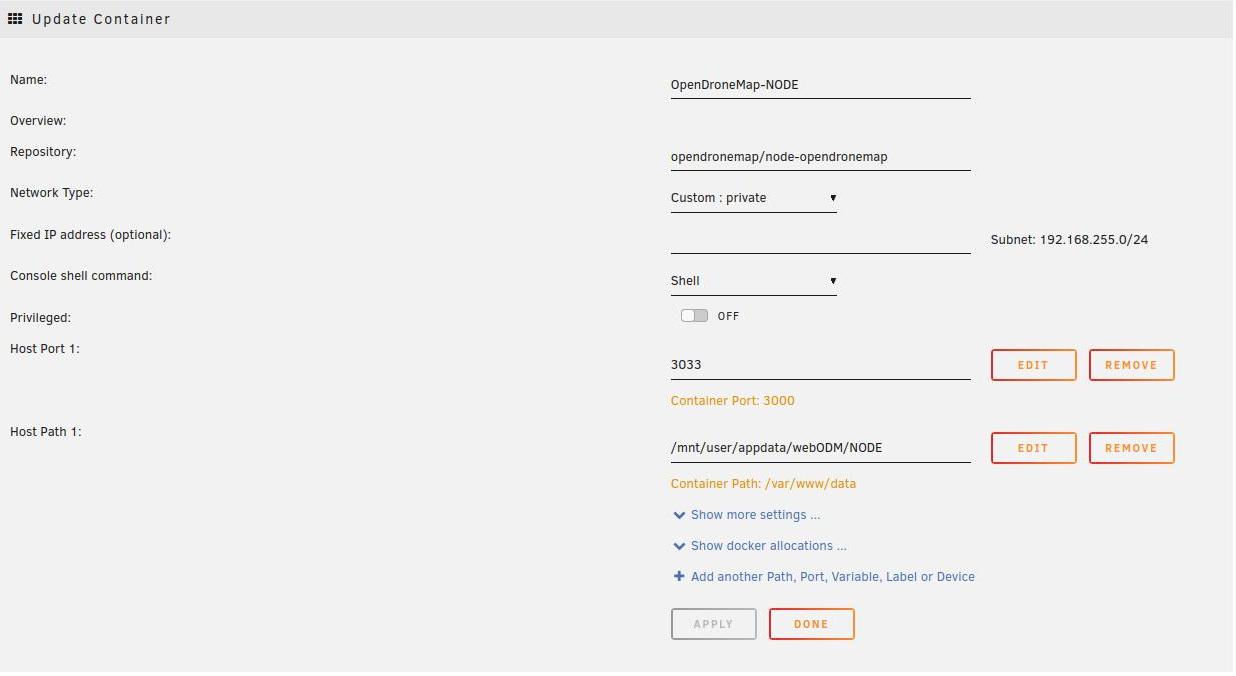

To get the Node running in docker select "Add Container"

and these are the settings that I used:



I dont know how to get these talking or anything about the program honestly.  This is a "botchy" install -sorry

Edited March 15, 20233 yr by kilobit

Thanks for posting this, I'd love to get this running too. Going to try this weekend. Any tips after running it for awhile? Still "botchy"?

Anyone have any luck with this?  I know this is an old posting but this would be cool to get on my server also.

I was able to setup this up last night. using the information above. is there somewhere you are getting stuck?

I would say the one thing i would change is this in the ENV File: "WO_MEDIA_DIR=/mnt/user/appdata/webODM/media". Use a path of another share. when left this way it was storing all my media uploaded to be anaylze in the appdata which filled up my docker img file
