Disk in error state - Device is disabled

[TekWarfare]

Just received the following two e-mail notifications:

Event: Unraid Disk 1 error
Subject: Alert [BIGBOX] - Disk 1 in error state (disk dsbl)
Description: WDC_WD120EDAZ-11F3RA0_5PG85VEF (sdd)
Importance: alert



Event: Unraid array errors
Subject: Warning [BIGBOX] - array has errors
Description: Array has 1 disk with read errors
Importance: warning

Disk 1 - WDC_WD120EDAZ-11F3RA0_5PG85VEF (sdd) (errors 9)

I've re-named my server to BIGBOX in the e-mails so I'm not publicly declaring my server name.



My understanding is that this is likely (and hopefully) a power or SATA cable issue. As such, I've attached the diagnostics file now before doing anything.



Question 1:

Am I correct in doing the following?:

     A. Shutdown server

     B. Replace SATA and/or Power cable - even reseating SATA cable in different SATA port

     C. Power on server

     D. Follow the instructions here: https://wiki.unraid.net/Manual/Storage_Management#Rebuilding_a_drive_onto_itself



Question 2: Following the rebuild steps, the preamble states "There can be cases where it is determined that the reason a disk was disabled is due to an external factor and the disk drive appears to be fine." How do I determine the disk is "fine"? That it shows up under Main after a reboot?



Question 3: I'm running an expired trial, and I believe Unraid won't allow me to start the array after a reboot. Is there any way around this for the time being?

DISK 1 primarily stores TV shows. I've checked nearly 10 shows at random at various seasons and episodes and they all playback perfectly.

Question 4: Is this data being inferred on-the-fly by the difference between the remaining Parity and Data disks?



Quote

If a drive is being emulated then you can carry out recovery actions on the emulated drive before starting the rebuild process.

Question 5: Accordingly, am I fine to copy a few important files and folders over SMB? (I am aware of having backup plans)



I greatly appreciate any help in the matter.

BIGBOX-diagnostics-20230316-1448.zip

Edited March 16, 2023 by TekWarfare

[JorgeB]

Disk1 dropped offline, this is usually a power/connection issue but since it dropped there's no SMART, you'd need to check/replace cables then post new diags after array start, but

33 minutes ago, TekWarfare said:

I'm running an expired trial

this will a problem.

[TekWarfare]

Ran a SMART short self-test and attached the SMART report. Also included new diagnostics file after reboot, but not array start

BIGBOX-diagnostics-20230316-2049.zip BIGBOX-smart-20230316-2047.zip

[TekWarfare]

Attached diagnostics after array start - bought the licence

BIGBOX-diagnostics-20230316-2100.zip

[JorgeB]

SMART looks fine, there's a recent UDMA CRC error, so the issue was likely caused by a bad SATA cable, replace that cable and since the emulated disk is mounting and assuming contents look correct you can rebuild on top:



https://wiki.unraid.net/Manual/Storage_Management#Rebuilding_a_drive_onto_itself





[TekWarfare]

Thank you for the guidance, JorgeB.

I left the array started overnight - not performed any of the rebuilding steps yet - and now Parity disk has increased UDMA CRC errors from 6 (before shutdown in OP) to 10 (now). It's the exact same cable as the one used by DISK 1 so looks like they've both gone funny at the same time, or I've accidentally knocked PARITY's SATA cable when re-doing DISK 1's. I'm going to shutdown the server and give PARITY a new cable too. Then I'll perform a SMART shot self-test and post the results I guess.

[TekWarfare]

Replaced the SATA cable to PARITY now. Ran SMART short self-test on all disks, but had to reboot due to "Array Stopped Stale Configuration" bug in Firefox. Rebooted and used Edge. Diagnostics after starting array attached.



BIGBOX-diagnostics-20230317-1917.zip

[JorgeB]

If the emulated disk is still mounting you can rebuild.

[TekWarfare]

On 3/17/2023 at 7:32 PM, JorgeB said:

If the emulated disk is still mounting you can rebuild.

Rebuild finished successfully. I was confused as to why I couldn't connect to mapped network drives afterwards, but soon realized it was because I started the array in maintenance mode.

Thank you for the help, JorgeB. 🙂

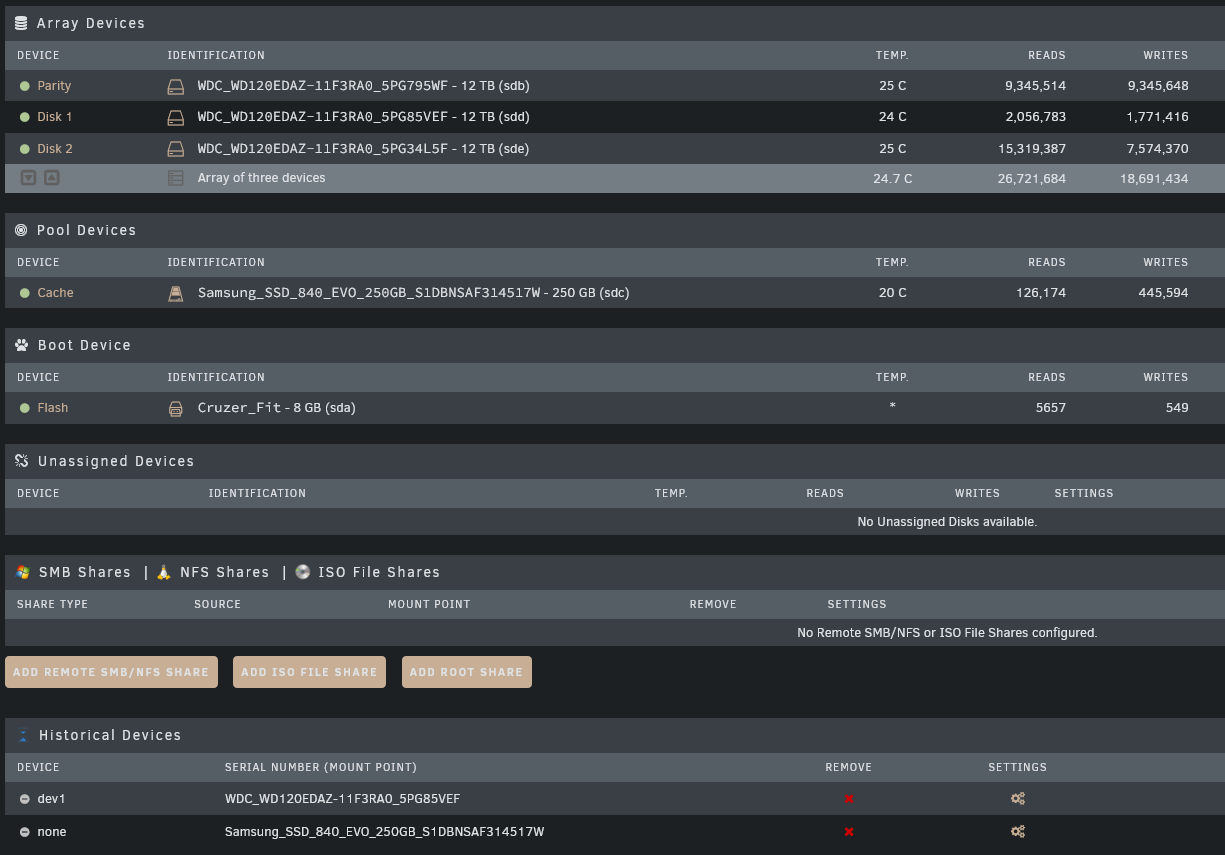

Is it fine to remove the offending disk from Historical Devices? Same with the cache drive in the attached picture. There's no point keeping either any more is there?

[JorgeB]

9 hours ago, TekWarfare said:

Is it fine to remove the offending disk from Historical Devices?

Yes, that's from the UD plugin.
