disk issues

[Kendriu]

Good morning,

so I'm using unRaid in tryal mode just to test it... only I can't make the system see the fourth hardisk.

Now, I personally don't think it's a problem with the sata controller I'm using.



01:00.0 Non-Volatile memory controller [0108]: Micron Technology Inc Device [1344:5405] Subsystem: Micron Technology Inc Device [1344:0100] Kernel driver in use: nvme Kernel modules: nvme

02:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] 500 Series Chipset USB 3.1 XHCI Controller [1022:43ee] Subsystem: ASMedia Technology Inc. ASM1042A USB 3.0 Host Controller [1b21:1142] Kernel driver in use: xhci_hcd

02:00.1 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] 500 Series Chipset SATA Controller [1022:43eb] Subsystem: ASMedia Technology Inc. ASM1062 Serial ATA Controller [1b21:1062] Kernel driver in use: ahci Kernel modules: ahci

02:00.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 500 Series Chipset Switch Upstream Port [1022:43e9] Subsystem: ASMedia Technology Inc. Device [1b21:0201] Kernel driver in use: pcieport

03:06.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43ea] Subsystem: ASMedia Technology Inc. Device [1b21:3308] Kernel driver in use: pcieport

03:08.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43ea] Subsystem: ASMedia Technology Inc. Device [1b21:3308] Kernel driver in use: pcieport

03:09.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43ea] Subsystem: ASMedia Technology Inc. Device [1b21:3308] Kernel driver in use: pcieport

04:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1166 Serial ATA Controller [1b21:1166] (rev 02)<-----------------------

Subsystem: ZyDAS Technology Corp. Device [2116:2116] Kernel driver in use: ahci Kernel modules: ahci



but if i insert it into another computer it works perfectly... is it just a few 550w to make it work?



sorry for my english

lspci.txt

Edited April 22, 2023 by Kendriu

[JorgeB]

Please post the diagnostics.

[Kendriu]

tower-diagnostics-20230422-1246 (1).zip

[JorgeB]

Not seeing any trouble detecting the missing disk, is it detected if you connect it to the onboard SATA instead?

[Kendriu]

uhm... nope dont work

[Kendriu]

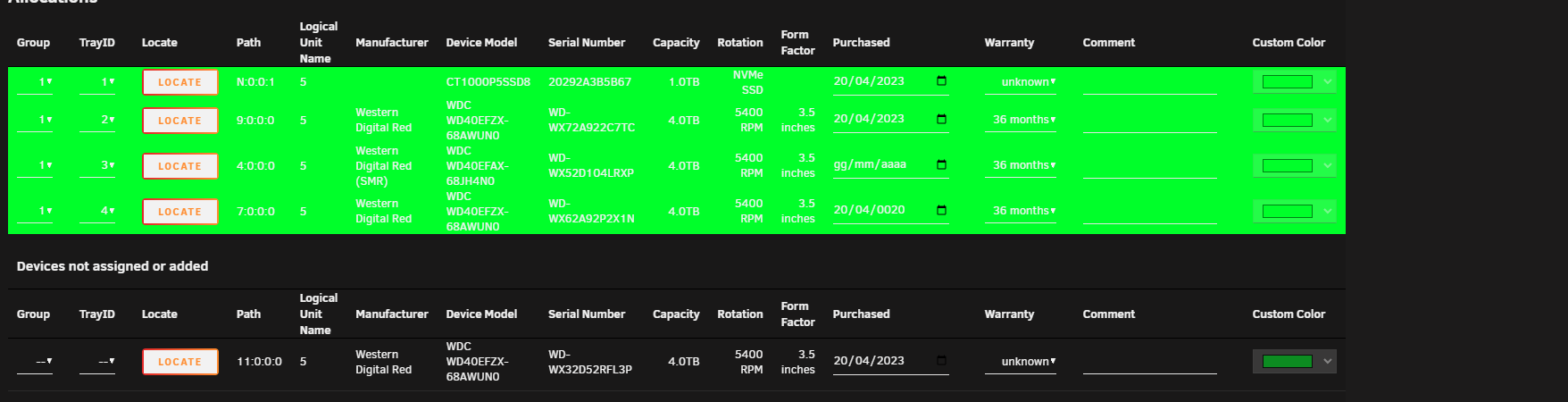

but is very strange because... Disk Location can see the disk

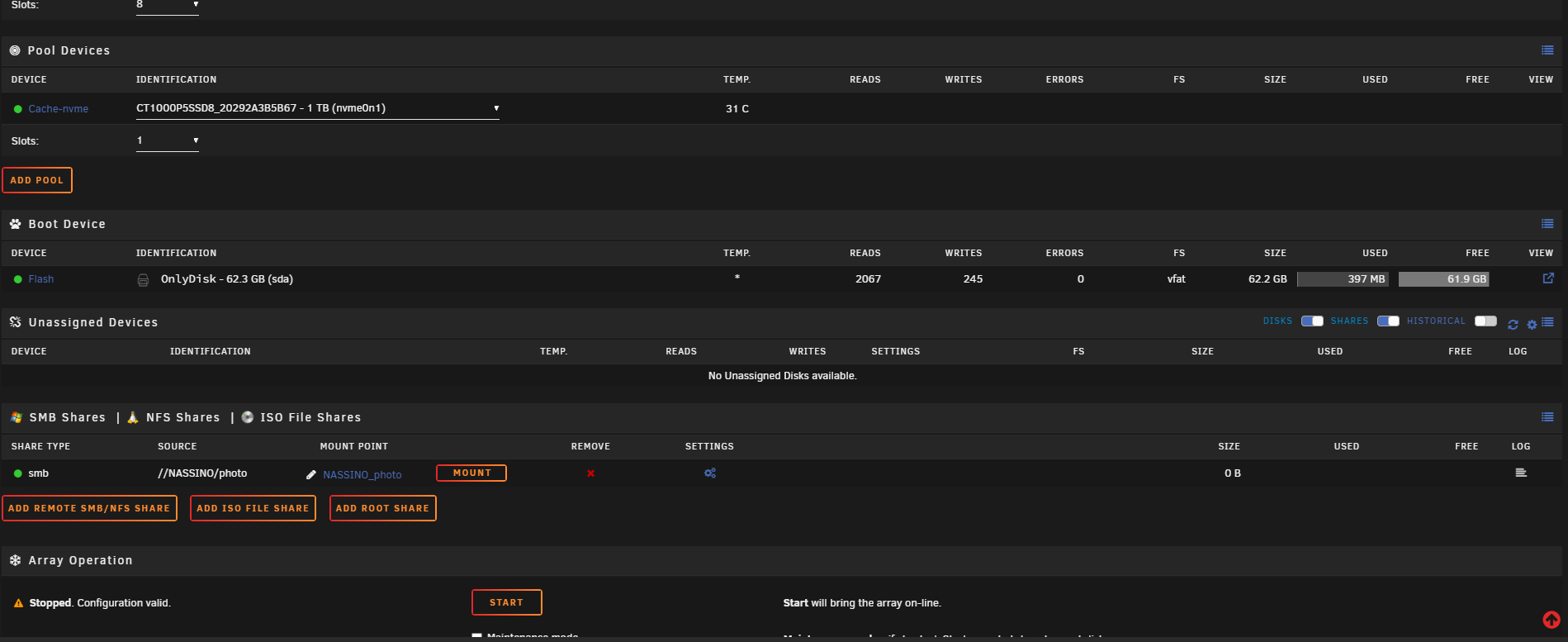

but no in the main page

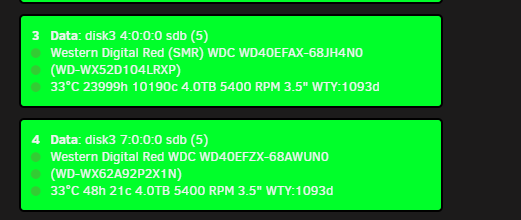

and for some reasons... this 2 have the same id "sdb"

the smr disk is the new disk I'm trying to add

Edited April 22, 2023 by Kendriu

[Kendriu]

I think I fixed it... never use a cable from another power supply to power the hard drives. it just didn't get the right current (I burned another hardisk and a dvd player so yes, i am very stupid)
