Hi all,



I'm migrating my Home Assistant setup from a dedicated (but now dead) PC to a VM on Unraid.



My Unraid Server has only one physical NIC and runs several Dockers.



I have another stand alone server running OPNSense (where I manage "everything network").



My Home Assistant VM has to be on two VLANS:



• The "General" one, that is not tagged and all devices use (including all dockers)
• A "Untrusted" one (VLAN "20"), where I have some IOT devices in



On my standalone Home Assistant PC I had two physical NICs and my switch took over for tagging.



I guess, in my new setup I could create a virtual nic and tag that one?



I am really concernced to break things on my Unraid for all other dockers, etc.

So: Could someone please give an idiot-safe instruction what to do?



Thank you very much!



Edited May 1, 20233 yr by Slarti123
typos

Enable bridge for eth0 and add vlan20, then you will got br0 and br0.20

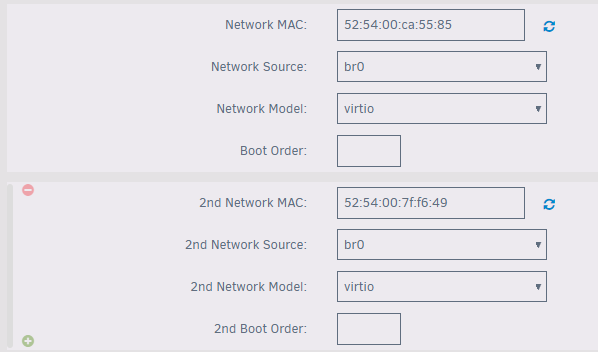

In HA VM, just add 2 virtual NIC br0 and br0.20 with random MAC address, tag vlan20 in Unraid eth0 port at switch side.



But you should setup HA VM and confirm it work 1st, then going vlan20 part. You may backup HA from old PC then restore in HA VM.



Edited May 2, 20233 yr by Vr2Io

Did you ever have any luck with this? I can create the VLAN in Unraid and Unraid is getting an IP address on both VLANs, but I cannot access the second VLAN from HA.
