Hello,



I have a bunch of SAS SSDs that currently only display drive temperature information in the SMART Attributes tab.

The SSDs in question are: Toshiba PX04SVB096 and PX04SRB096, but I assume this applies to other SAS SSDs as well.



It would be really nice if we could also see the 'Percentage used endurance indicator'.



This value is available as `Percentage used endurance indicator: xx%` through either of these commands:

smartctl -a /dev/xxx
smartctl -l ssd /dev/xxx

Or, as `"scsi_percentage_used_endurance_indicator"= xx` though the JSON command:

smartctl -a -j /dev/xxx



Examples:

> smartctl -a /dev/xxx

...
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK

Percentage used endurance indicator: 10%
...

> smartctl -l ssd /dev/xxx

...
=== START OF READ SMART DATA SECTION ===
Percentage used endurance indicator: 10%

> smartctl -a -j /dev/xxx

...
  "smart_status": {
    "passed": true
  },
  "scsi_percentage_used_endurance_indicator": 10,
  "temperature": {
    "current": 25,
    "drive_trip": 64
  },
...

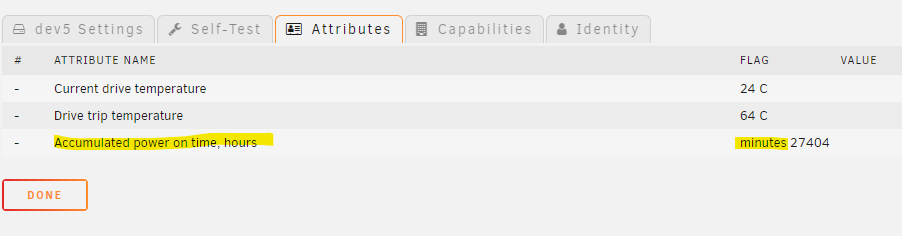

I also noticed that SAS SSDs or HDDs that show 'Accumulated power on time, hours' incorrectly show 'minutes xxxxxx' instead of 'hours xxxxxx' or just 'xxxxxx'.



Example:



Raw data:

> smartctrl -a /dev/xxx

...
=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK

Percentage used endurance indicator: 22%
Current Drive Temperature:     31 C
Drive Trip Temperature:        64 C

Accumulated power on time, hours:minutes 27404:25
...



27404 is the number of hours, not minutes.  Not sure if it is scrapping the value wrong, or just displaying it weirdly.



Edited October 26, 20232 yr by sjerisman

On 10/26/2023 at 1:42 PM, sjerisman said:

I also noticed that SAS SSDs or HDDs that show 'Accumulated power on time, hours' incorrectly show 'minutes xxxxxx' instead of 'hours xxxxxx' or just 'xxxxxx'.



I've submitted a PR to fix this issue: https://github.com/unraid/webgui/pull/1550



I'll try and work on another one for my original enhancement suggestion.

On 10/26/2023 at 1:35 PM, sjerisman said:

It would be really nice if we could also see the 'Percentage used endurance indicator'.



Ok, I've submitted a PR for this 'enhancement' as well: https://github.com/unraid/webgui/pull/1551



My PRs got merged, so it looks like these bug fixes / enhancements will be part of the next release (whenever that is).
