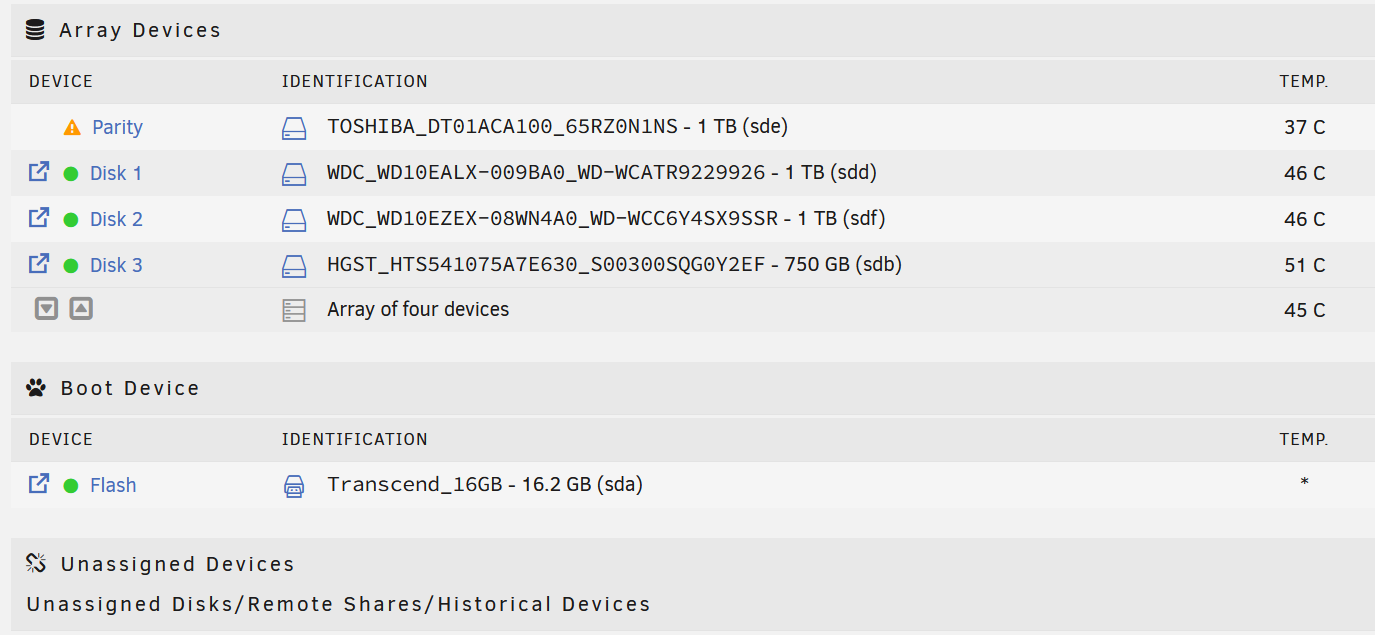

November 20, 20232 yr Hello everyone! Please advise. I have installed Unraid, made an array (please see the attachment), and played around with it for some time. Now I would like to add 2 more drives and arrange them in a separate software Raid1 array. I wand this 2 drives to be my main storage for my personal data, but it should be accessible by apps in docker (Photoprism for example), and I want to keep the Unraid array for apps, VMs, downloads, media library and etc. Is it possible?
November 20, 20232 yr Author 3 hours ago, JorgeB said: Stop the array and click on "Add Pool" Like this? They are in Raid1? How can I check it?

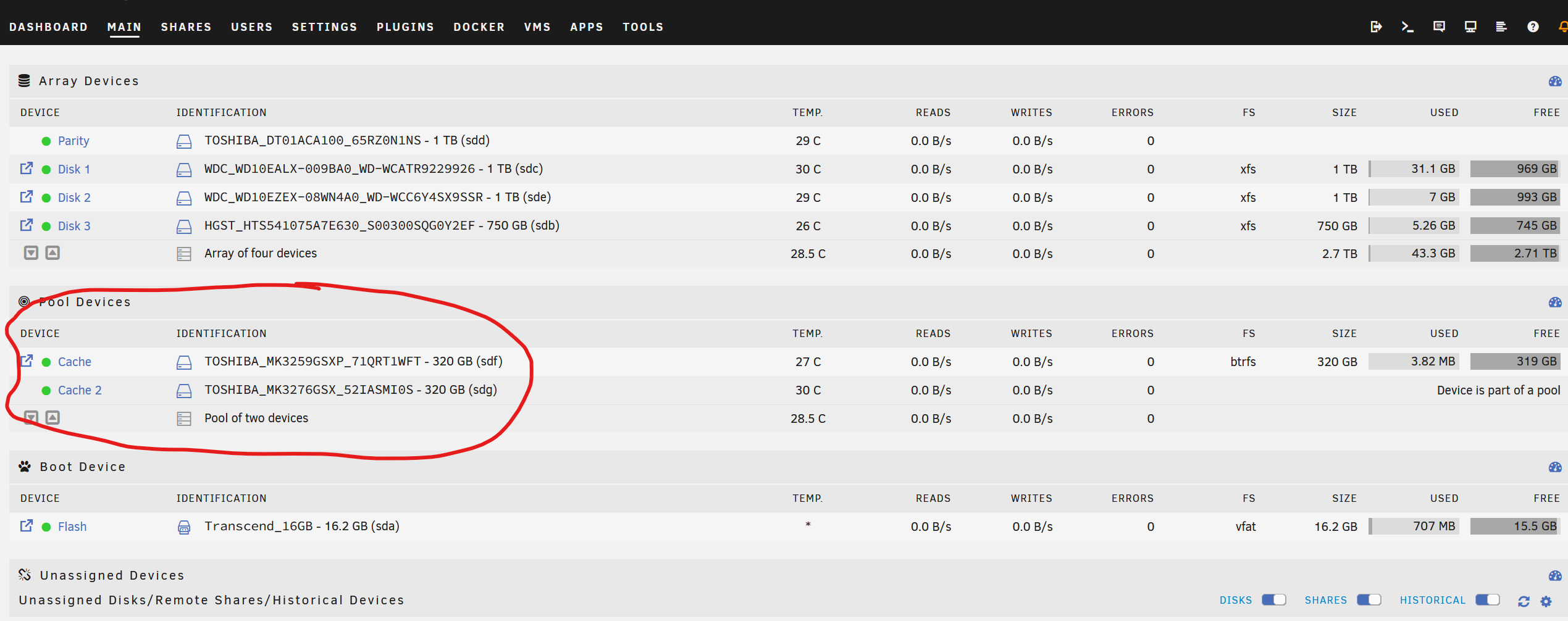

November 20, 20232 yr Community Expert It says so in your screenshot. You have two drives (Cache and Cache 2), each a 320GB drive. On the right, it shows the total size is 320GB, and that Cache 2 is part of the pool. Therefore, you must be configured as Raid1. To test, write something to the pool, and go back to the Main tab. Both drives should show write activity. Edited November 20, 20232 yr by ConnerVT
November 20, 20232 yr Community Expert You can also click on the first pool device and scroll down to the btrfs fi show info to confirm, but kike mentioned, based on the screenshot it's already raid1, and that's also the default.
November 20, 20232 yr Author 11 minutes ago, ConnerVT said: It says so in your screenshot. 6 minutes ago, JorgeB said: You can also click on the first pool device and scroll down to the btrfs fi show info to confirm, but kike mentioned, based on the screenshot it's already raid1, and that's also the default. Many thanks for your help!
