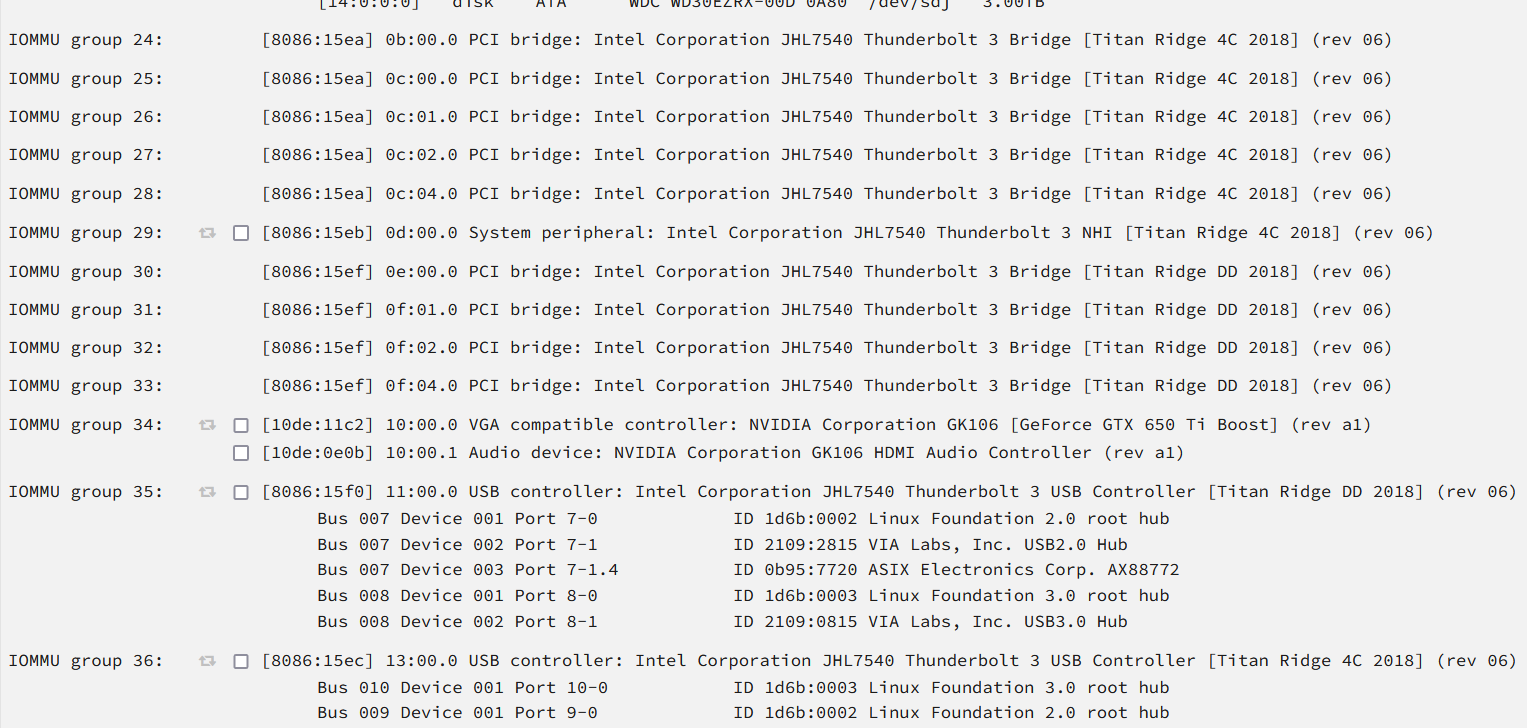

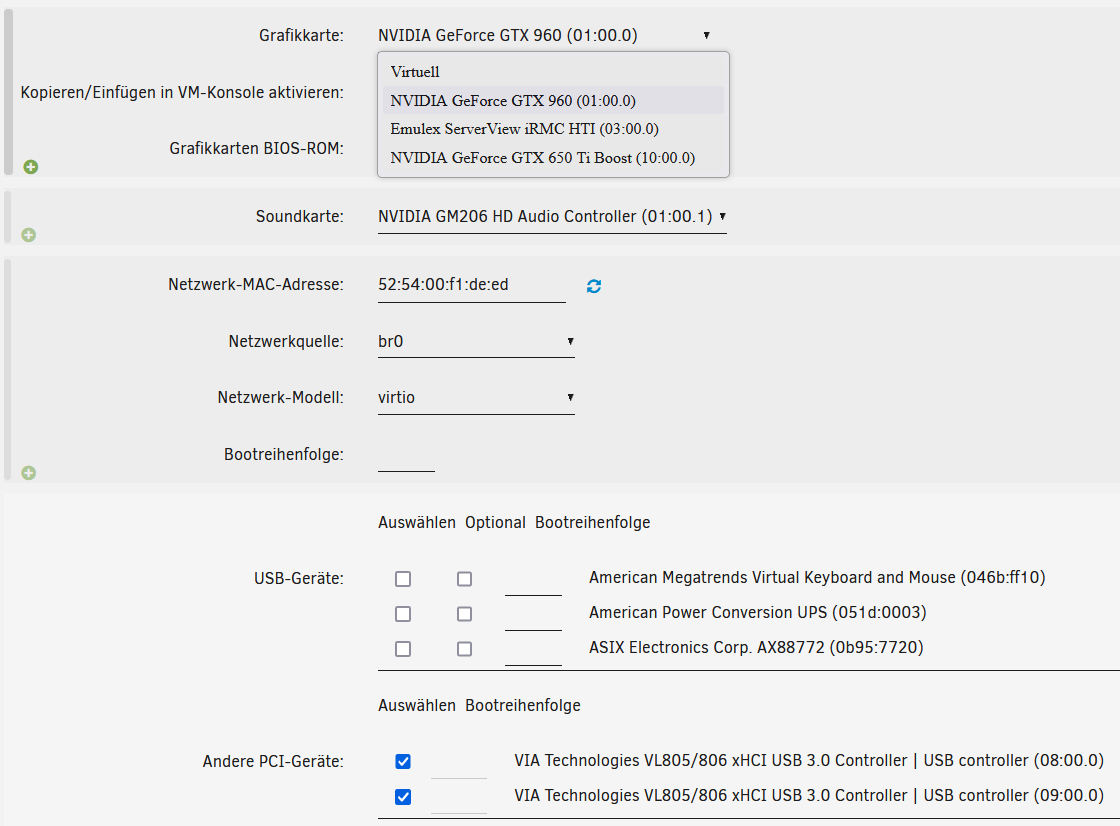

December 10, 20232 yr Hello, i am relative new on Unraid, my Server and the first VMs are running (specs in Profile). Normal Passtrough GPU and USB Cards to the VM are working. Even the GPU connected trough the Thunderbolt Controller works. But i cant find a way to passtrough the complete Thunderbolt 3 Controller (to switch Devices on the VM while running). IOMMU 24 - 35 / PCI 0b:xx.x - 11:xx.x How can i enable the Thunderbolt controller to be listet under "Other PCI-Devices" Is there somthing i did not see or have to be enabled? It would be great if you could help me. If you need more information let me know. lspci Spoiler :~# lspci 00:00.0 Host bridge: Intel Corporation Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor Host Bridge/DRAM Registers (rev 07) 00:01.0 PCI bridge: Intel Corporation 6th-10th Gen Core Processor PCIe Controller (x16) (rev 07) 00:01.1 PCI bridge: Intel Corporation Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor PCIe Controller (x8) (rev 07) 00:14.0 USB controller: Intel Corporation 100 Series/C230 Series Chipset Family USB 3.0 xHCI Controller (rev 31) 00:14.2 Signal processing controller: Intel Corporation 100 Series/C230 Series Chipset Family Thermal Subsystem (rev 31) 00:16.0 Communication controller: Intel Corporation 100 Series/C230 Series Chipset Family MEI Controller #1 (rev 31) 00:16.1 Communication controller: Intel Corporation 100 Series/C230 Series Chipset Family MEI Controller #2 (rev 31) 00:17.0 SATA controller: Intel Corporation Q170/Q150/B150/H170/H110/Z170/CM236 Chipset SATA Controller [AHCI Mode] (rev 31) 00:1c.0 PCI bridge: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #5 (rev f1) 00:1c.5 PCI bridge: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #6 (rev f1) 00:1c.6 PCI bridge: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #7 (rev f1) 00:1c.7 PCI bridge: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #8 (rev f1) 00:1d.0 PCI bridge: Intel Corporation 100 Series/C230 Series Chipset Family PCI Express Root Port #9 (rev f1) 00:1f.0 ISA bridge: Intel Corporation C236 Chipset LPC/eSPI Controller (rev 31) 00:1f.2 Memory controller: Intel Corporation 100 Series/C230 Series Chipset Family Power Management Controller (rev 31) 00:1f.4 SMBus: Intel Corporation 100 Series/C230 Series Chipset Family SMBus (rev 31) 01:00.0 VGA compatible controller: NVIDIA Corporation GM206 [GeForce GTX 960] (rev a1) 01:00.1 Audio device: NVIDIA Corporation GM206 High Definition Audio Controller (rev a1) 02:00.0 Ethernet controller: Mellanox Technologies MT27520 Family [ConnectX-3 Pro] 03:00.0 Display controller: Emulex Corporation ServerView iRMC HTI (rev 05) 03:00.1 Co-processor: Emulex Corporation ServerView iRMC HTI 04:00.0 Ethernet controller: Intel Corporation I210 Gigabit Network Connection (rev 03) 05:00.0 Ethernet controller: Intel Corporation I210 Gigabit Network Connection (rev 03) 06:00.0 PCI bridge: Pericom Semiconductor PI7C9X2G404 EL/SL PCIe2 4-Port/4-Lane Packet Switch (rev 05) 07:01.0 PCI bridge: Pericom Semiconductor PI7C9X2G404 EL/SL PCIe2 4-Port/4-Lane Packet Switch (rev 05) 07:02.0 PCI bridge: Pericom Semiconductor PI7C9X2G404 EL/SL PCIe2 4-Port/4-Lane Packet Switch (rev 05) 07:03.0 PCI bridge: Pericom Semiconductor PI7C9X2G404 EL/SL PCIe2 4-Port/4-Lane Packet Switch (rev 05) 08:00.0 USB controller: VIA Technologies, Inc. VL805/806 xHCI USB 3.0 Controller (rev 01) 09:00.0 USB controller: VIA Technologies, Inc. VL805/806 xHCI USB 3.0 Controller (rev 01) 0a:00.0 SATA controller: ASMedia Technology Inc. ASM1166 Serial ATA Controller (rev 02) 0b:00.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06) 0c:00.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06) 0c:01.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06) 0c:02.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06) 0c:04.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge 4C 2018] (rev 06) 0d:00.0 System peripheral: Intel Corporation JHL7540 Thunderbolt 3 NHI [Titan Ridge 4C 2018] (rev 06) 0e:00.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge DD 2018] (rev 06) 0f:01.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge DD 2018] (rev 06) 0f:02.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge DD 2018] (rev 06) 0f:04.0 PCI bridge: Intel Corporation JHL7540 Thunderbolt 3 Bridge [Titan Ridge DD 2018] (rev 06) 10:00.0 VGA compatible controller: NVIDIA Corporation GK106 [GeForce GTX 650 Ti Boost] (rev a1) 10:00.1 Audio device: NVIDIA Corporation GK106 HDMI Audio Controller (rev a1) 11:00.0 USB controller: Intel Corporation JHL7540 Thunderbolt 3 USB Controller [Titan Ridge DD 2018] (rev 06) 13:00.0 USB controller: Intel Corporation JHL7540 Thunderbolt 3 USB Controller [Titan Ridge 4C 2018] (rev 06) lspci -tvv Spoiler :~# lspci -tvv -[0000:00]-+-00.0 Intel Corporation Xeon E3-1200 v5/E3-1500 v5/6th Gen Core Processor Host Bridge/DRAM Registers +-01.0-[01]--+-00.0 NVIDIA Corporation GM206 [GeForce GTX 960] | \-00.1 NVIDIA Corporation GM206 High Definition Audio Controller +-01.1-[02]----00.0 Mellanox Technologies MT27520 Family [ConnectX-3 Pro] +-14.0 Intel Corporation 100 Series/C230 Series Chipset Family USB 3.0 xHCI Controller +-14.2 Intel Corporation 100 Series/C230 Series Chipset Family Thermal Subsystem +-16.0 Intel Corporation 100 Series/C230 Series Chipset Family MEI Controller #1 +-16.1 Intel Corporation 100 Series/C230 Series Chipset Family MEI Controller #2 +-17.0 Intel Corporation Q170/Q150/B150/H170/H110/Z170/CM236 Chipset SATA Controller [AHCI Mode] +-1c.0-[03]--+-00.0 Emulex Corporation ServerView iRMC HTI | \-00.1 Emulex Corporation ServerView iRMC HTI +-1c.5-[04]----00.0 Intel Corporation I210 Gigabit Network Connection +-1c.6-[05]----00.0 Intel Corporation I210 Gigabit Network Connection +-1c.7-[06-0a]----00.0-[07-0a]--+-01.0-[08]----00.0 VIA Technologies, Inc. VL805/806 xHCI USB 3.0 Controller | +-02.0-[09]----00.0 VIA Technologies, Inc. VL805/806 xHCI USB 3.0 Controller | \-03.0-[0a]----00.0 ASMedia Technology Inc. ASM1166 Serial ATA Controller +-1d.0-[0b-14]----00.0-[0c-14]--+-00.0-[0d]----00.0 Intel Corporation JHL7540 Thunderbolt 3 NHI [Titan Ridge 4C 2018] | +-01.0-[0e-12]----00.0-[0f-12]--+-01.0-[10]--+-00.0 NVIDIA Corporation GK106 [GeForce GTX 650 Ti Boost] | | | \-00.1 NVIDIA Corporation GK106 HDMI Audio Controller | | +-02.0-[11]----00.0 Intel Corporation JHL7540 Thunderbolt 3 USB Controller [Titan Ridge DD 2018] | | \-04.0-[12]-- | +-02.0-[13]----00.0 Intel Corporation JHL7540 Thunderbolt 3 USB Controller [Titan Ridge 4C 2018] | \-04.0-[14]-- +-1f.0 Intel Corporation C236 Chipset LPC/eSPI Controller +-1f.2 Intel Corporation 100 Series/C230 Series Chipset Family Power Management Controller \-1f.4 Intel Corporation 100 Series/C230 Series Chipset Family SMBus
