Hey guys I had this weird issue pop up out of nowhere over the past few days where my connectivity on my unRaid server will just disconnect for a few seconds then reconnect. I noticed this when watching a movie where it was buffering quite frequently. When this occurred I tried to open my unraid dashboard but it took much longer than usual to login.

Checking the logs soon after I seen this which tells me the network is falling over.



Feb 10 09:42:56  kernel: igb 0000:05:00.0 eth0: igb: eth0 NIC Link is Down
Feb 10 09:42:56  kernel: bond0: (slave eth0): link status definitely down, disabling slave
Feb 10 09:42:56  kernel: device eth0 left promiscuous mode
Feb 10 09:42:56  kernel: bond0: now running without any active interface!
Feb 10 09:42:56  kernel: br0: port 1(bond0) entered disabled state
Feb 10 09:42:57  dhcpcd[1755]: br0: carrier lost
Feb 10 09:42:57  avahi-daemon[20020]: Withdrawing address record for 192.168.1.4 on br0.
Feb 10 09:42:57  avahi-daemon[20020]: Leaving mDNS multicast group on interface br0.IPv4 with address 192.168.1.4.
Feb 10 09:42:57  avahi-daemon[20020]: Interface br0.IPv4 no longer relevant for mDNS.
Feb 10 09:42:57  dhcpcd[1755]: br0: deleting route to 192.168.1.0/24
Feb 10 09:42:57  dhcpcd[1755]: br0: deleting default route via 192.168.1.1
Feb 10 09:43:00  kernel: igb 0000:05:00.0 eth0: igb: eth0 NIC Link is Up 1000 Mbps Full Duplex, Flow Control: RX
Feb 10 09:43:00  kernel: bond0: (slave eth0): link status definitely up, 1000 Mbps full duplex
Feb 10 09:43:00  kernel: bond0: (slave eth0): making interface the new active one
Feb 10 09:43:00  kernel: device eth0 entered promiscuous mode
Feb 10 09:43:00  dhcpcd[1755]: br0: carrier acquired
Feb 10 09:43:00  kernel: bond0: active interface up!



I replaced the ethernet cable from my server did some testing it and it continues. Nothing was changed on my server nothing new added.



I got an Ubiquiti network in my home - Switch is a 16 Port PoE 150W. Nothing else on my network disconnects it's just my unraid server.



Full diagnostics attached. I do have another ethernet port in my wall that I could use so I will put it in that keystone and see if it continues.

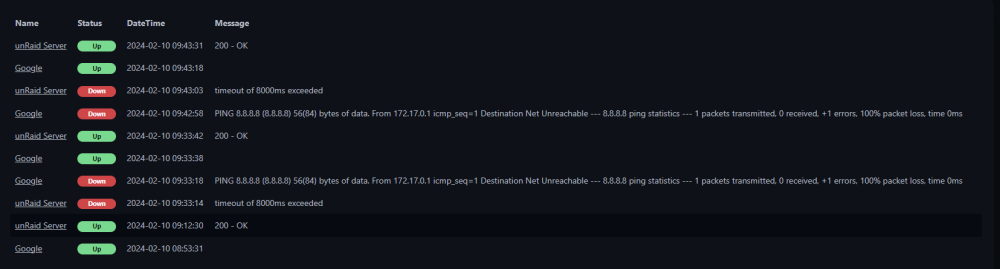

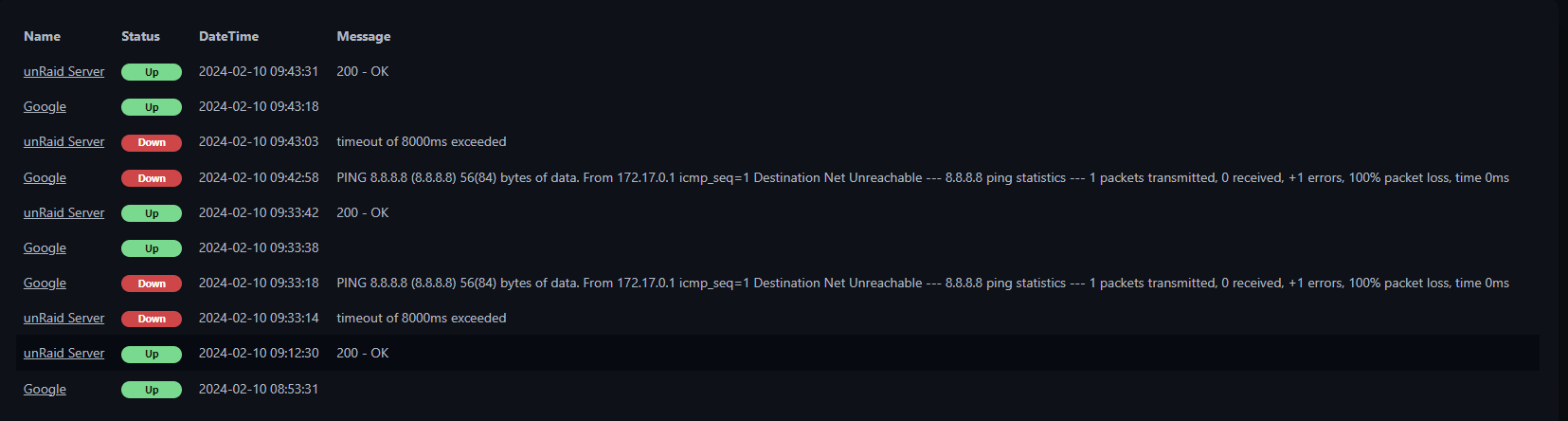

I've also setup Uptime Kuma to monitor and sure enough you can see where it's gone down. Does anyone have any ideas?





darknight-diagnostics-20240210-0954.zip

Edited February 10, 20242 yr by z0ki

I've had it connected to the ethernet port in my wall next to the one it used to be in and so far no drops in connectivity. So, i need to find out if it's something that happen to the keystone behind the wall plate, or it's something at the patch panel.
