Howdy,

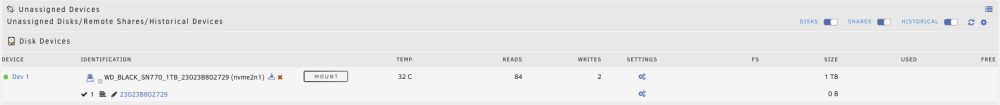

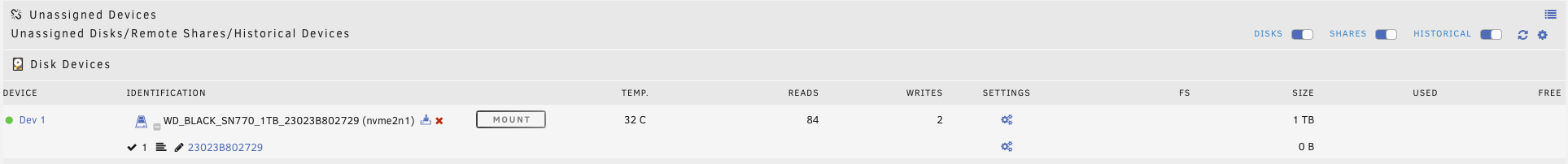

I have a brand new Western Digital Black 1TiB NVME drive in an Asus Hyper m.2 PCiE container. unRAID recognizes the drive and it will allow me to format it. I try to format it with XFS file system and according to the logs everything happens fine. But then the drive isn't mountable and my only options are to Start PreClear or Clear disk. Any idea what's going on or how to troubleshoot?



//SysLog

Mar 29 12:48:43 unRaidServerName unassigned.devices: Format device '/dev/nvme2n1'.

Mar 29 12:48:43 unRaidServerName unassigned.devices: Device '/dev/nvme2n1' block size: 1953525168.

Mar 29 12:48:43 unRaidServerName unassigned.devices: Clearing partition table of disk '/dev/nvme2n1'.

Mar 29 12:48:43 unRaidServerName unassigned.devices: Clear partition result: 1+0 records in 1+0 records out 2097152 bytes (2.1 MB, 2.0 MiB) copied, 0.00331975 s, 632 MB/s

Mar 29 12:48:45 unRaidServerName unassigned.devices: Reloading disk '/dev/nvme2n1' partition table.

Mar 29 12:48:45 unRaidServerName unassigned.devices: Reload partition table result: /dev/nvme2n1: re-reading partition table

Mar 29 12:48:45 unRaidServerName unassigned.devices: Creating Unraid compatible mbr partition on disk '/dev/nvme2n1'.

Mar 29 12:48:45 unRaidServerName unassigned.devices: Create mbr partition table result: write mbr signature done

Mar 29 12:48:45 unRaidServerName kernel: nvme2n1: p1

Mar 29 12:48:47 unRaidServerName unassigned.devices: Reloading disk '/dev/nvme2n1' partition table.

Mar 29 12:48:47 unRaidServerName kernel: nvme2n1: p1

Mar 29 12:48:47 unRaidServerName unassigned.devices: Reload partition table result: /dev/nvme2n1: re-reading partition table

Mar 29 12:48:47 unRaidServerName unassigned.devices: Formatting disk '/dev/nvme2n1' with 'xfs' filesystem.

Mar 29 12:48:47 unRaidServerName unassigned.devices: Format drive command: /sbin/mkfs.xfs -f '/dev/nvme2n1p1' 2>&1 Mar 29 12:48:49 unRaidServerName unassigned.devices: Format disk '/dev/nvme2n1' with 'xfs' filesystem: meta-data=/dev/nvme2n1p1 isize=512 agcount=4, agsize=61047598 blks = sectsz=512 attr=2, projid32bit=1 = crc=1 finobt=1, sparse=1, rmapbt=0 = reflink=1 bigtime=1 inobtcount=1 nrext64=0 data = bsize=4096 blocks=244190390, imaxpct=25 = sunit=0 swidth=0 blks naming =version 2 bsize=4096 ascii-ci=0, ftype=1 log =internal log bsize=4096 blocks=119233, version=2 = sectsz=512 sunit=0 blks, lazy-count=1 realtime =none extsz=4096 blocks=0, rtextents=0 Discarding blocks...Done. Mar 29 12:48:52 unRaidServerName unassigned.devices: Reloading disk '/dev/nvme2n1' partition table.

Mar 29 12:48:52 unRaidServerName kernel: nvme2n1: p1

Mar 29 12:48:52 unRaidServerName unassigned.devices: Reload partition table result: /dev/nvme2n1: re-reading partition table





Edited March 29, 20242 yr by zachlovescoffee

Post the output of

blkid

and

fdisk -l /dev/nvme2n1



Of course!



'blkid'

/dev/sda1: LABEL_FATBOOT="UNRAID" LABEL="UNRAID" UUID="2736-60C3" BLOCK_SIZE="512" TYPE="vfat"
/dev/loop1: TYPE="squashfs"
/dev/sdf1: UUID="70895727-cbd9-4f05-88bd-9b040d71b047" BLOCK_SIZE="4096" TYPE="xfs" PARTUUID="09e80b50-d1da-4330-b631-24d3dd2355f6"
/dev/nvme0n1p1: UUID="d97c3a72-5e97-4ce6-a2f7-b74483da65e7" UUID_SUB="be257797-56c9-4579-bcf6-5254860d7cfa" BLOCK_SIZE="4096" TYPE="btrfs"
/dev/md2p1: UUID="82076f6a-830f-4cfa-8667-4042b6ff539f" BLOCK_SIZE="4096" TYPE="xfs"
/dev/sdb1: UUID="dfc21330-793e-491d-9b1b-98b44e2b7100" BLOCK_SIZE="4096" TYPE="xfs" PARTUUID="0cc9956d-a1a7-49d1-8bac-8fd54f44fa08"
/dev/sdi1: UUID="d5ede152-a684-4f8a-b020-064209041166" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="b7225dea-29af-4837-8714-e58e88dca7eb"
/dev/md1p1: UUID="dfc21330-793e-491d-9b1b-98b44e2b7100" BLOCK_SIZE="4096" TYPE="xfs"
/dev/sdg1: UUID="3ad78dd3-3486-4412-950c-36eb4f74f32e" BLOCK_SIZE="4096" TYPE="xfs" PARTUUID="5e78a879-49ed-441e-b5b0-84c3d71317cb"
/dev/md4p1: UUID="7079006d-a1d5-42b6-8ee0-9d6538bc7e40" BLOCK_SIZE="4096" TYPE="xfs"
/dev/loop0: TYPE="squashfs"
/dev/sde1: UUID="82b61dea-d867-42b3-b9ee-e31e28153da2" BLOCK_SIZE="512" TYPE="xfs" PARTUUID="5e5fc39d-69b6-4c83-b8f6-ee9f52d6e322"
/dev/sdc1: UUID="7079006d-a1d5-42b6-8ee0-9d6538bc7e40" BLOCK_SIZE="4096" TYPE="xfs" PARTUUID="2ed89356-a705-4cb2-b9e3-06dd8d7d9ab7"
/dev/nvme1n1p1: UUID="f447550d-cc6b-4ddd-8d3b-2731cb3d3209" BLOCK_SIZE="512" TYPE="xfs"
/dev/md3p1: UUID="82b61dea-d867-42b3-b9ee-e31e28153da2" BLOCK_SIZE="512" TYPE="xfs"
/dev/sdh1: UUID="82076f6a-830f-4cfa-8667-4042b6ff539f" BLOCK_SIZE="4096" TYPE="xfs" PARTUUID="7c131225-89f3-4dc5-9aed-c9c8ab201d44"
/dev/sdd1: PARTUUID="308d308f-794b-4222-acd9-ddb34568bd8e"
/dev/nvme2n1p1: UUID="4804f262-7594-4bd3-a5a5-7b1abaa91f03" BLOCK_SIZE="512" TYPE="xfs"
/dev/loop2: UUID="4586c572-49b9-4c0e-b686-e9f84a56a5b2" UUID_SUB="6fe81130-695e-468b-add5-3e1c1261ad49" BLOCK_SIZE="4096" TYPE="btrfs"
/dev/loop3: UUID="71038acb-dcdb-4777-b449-7b37613d7e0b" UUID_SUB="3dd59551-c7fc-4e3b-bfca-90cb6a3d5bb4" BLOCK_SIZE="4096" TYPE="btrfs"



frisk -l /dev/nvme2n1



Disk /dev/nvme2n1: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors
Disk model: WD_BLACK SN770 1TB
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x00000000

Device         Boot Start        End    Sectors   Size Id Type
/dev/nvme2n1p1       2048 1953525167 1953523120 931.5G 83 Linux

There appear to be an xfs filesystem there, type



mkdir /x

mount -v -t xfs /dev/nvme2n1p1 /x



Does that work?

I did all of that

mkdir /x

mount -v -t xfs /dev/nvme2n1p1 /x/
mount: /dev/nvme2n1p1 mounted on /x

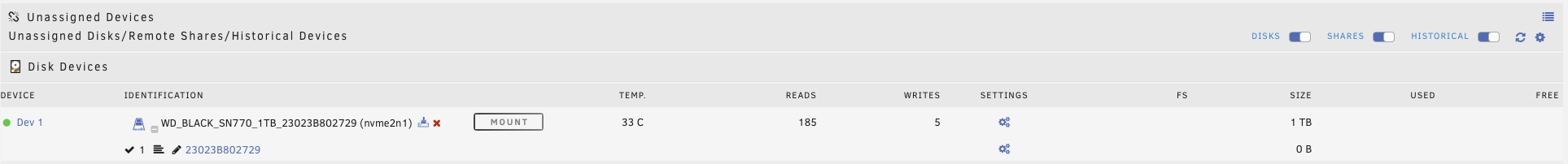

There's still nothing reflected in the Main tab and the device cannot be accessed



Mar 29 13:41:56 unRaidServerName kernel: XFS (nvme2n1p1): Mounting V5 Filesystem

Mar 29 13:41:56 daunRaidServerNamerkstar kernel: XFS (nvme2n1p1): Ending clean mount

Mar 29 13:43:40 unRaidServerName emhttpd: spinning down /dev/sdf

Mar 29 13:44:07 unRaidServerName emhttpd: spinning down /dev/sdh



Edited March 29, 20242 yr by zachlovescoffee

Then it looks more like a UD issue, unmount the device with

umount /x

and suggest reposting in the UD plugin support thread.

Okay will do. Looks like I cannot unmount it:

umount /x
umount: /x: target is busy.

make sure you not on /x, type cd /
