Hi,



Ive just upgraded my motherboard from an asusrock rack E3C246D4U to an asusrock rack

W680D4U-2L2T/G5.



In doing so I have also inserted a new nvme drive m2. All has been (reasonably) straightforward however despite being able to identify the m2 drive in the bios I am unable to see this drive once logged in.



I am not sure if this is a vfio issue or otherwise however would appreciate some help as all of my googling has amounted to nothing. I have posted my diagnostics file below.



Thanks in advance,



Micci

sosie-diagnostics-20240425-1432.zip

Apr 25 14:26:12 sosie kernel: nvme nvme0: controller is down; will reset: CSTS=0xffffffff, PCI_STATUS=0xffff
Apr 25 14:26:12 sosie kernel: nvme nvme0: Does your device have a faulty power saving mode enabled?
Apr 25 14:26:12 sosie kernel: nvme nvme0: Try "nvme_core.default_ps_max_latency_us=0 pcie_aspm=off" and report a bug



Try adding that to the syslinux options, at the end of the append line:



unfortunately no luck...



I tried your solution and the system wouldnt boot at all.

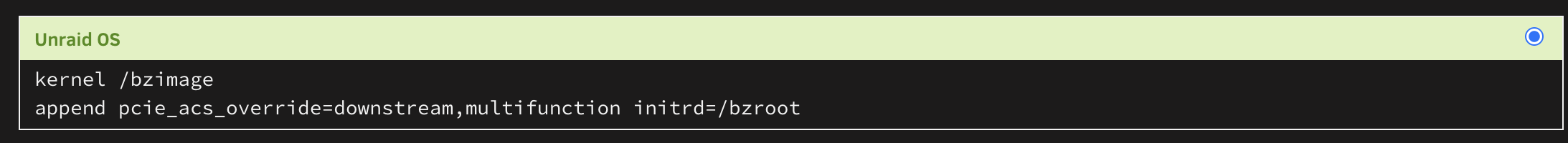

This is my current syslinux config

If it doesn't boot it's a different issue, that line won't affect booting.
