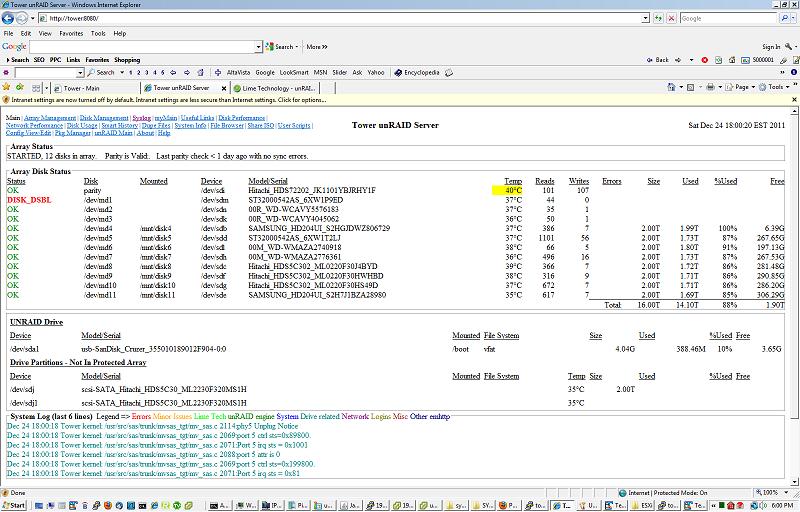

graywolf Posted December 24, 2011 Posted December 24, 2011 ESXi 5.0 unRaid 4.7 Moved my unRaid to my 4224 ESXi box. Got the 2 MV8s working. INT13 disabled, Booted up, all looked well. Installed the VMTools. Test reboot, now getting some drives stating as unformated (disk 1,2,3 & 6) and disk1 shows Disabled. Not sure how to proceed from here. And might I still have an issue if I put everything back into the old case? (1 MV8 in that case) Syslog attached. syslog.zip
graywolf Posted December 24, 2011 Author Posted December 24, 2011 Rebooted and now 3 drives show as unformatted. disk1 (sdm) also disabled/redball disk2 (sdn) disk3 (sdk) smartctl reports attached smart_reports.zip
graywolf Posted December 24, 2011 Author Posted December 24, 2011 FDISK reports on the 3 drives Disk /dev/sdk: 2000.3 GB, 2000398934016 bytes 1 heads, 63 sectors/track, 62016336 cylinders, total 3907029168 sectors Units = sectors of 1 * 512 = 512 bytes Disk identifier: 0x00000000 Device Boot Start End Blocks Id System /dev/sdk1 63 3907029167 1953514552+ 83 Linux Partition 1 does not end on cylinder boundary. Disk /dev/sdm: 2000.3 GB, 2000398934016 bytes 1 heads, 63 sectors/track, 62016336 cylinders, total 3907029168 sectors Units = sectors of 1 * 512 = 512 bytes Disk identifier: 0x00000000 Device Boot Start End Blocks Id System /dev/sdm1 63 3907029167 1953514552+ 83 Linux Partition 1 does not end on cylinder boundary. Disk /dev/sdn: 2000.3 GB, 2000398934016 bytes 1 heads, 63 sectors/track, 62016336 cylinders, total 3907029168 sectors Units = sectors of 1 * 512 = 512 bytes Disk identifier: 0x00000000 Device Boot Start End Blocks Id System /dev/sdn1 64 3907029167 1953514552 83 Linux Partition 1 does not end on cylinder boundary.
graywolf Posted December 26, 2011 Author Posted December 26, 2011 Back to square 1. Moved 1 MV8 and the drives back to the CM590 case. Got all back up and running. Still not sure what happened but need to do some more testing. Did try out using 1 M1015 & 1 MV8 card but that didn't work well either.
