Multiple devices are using the same IP address - network setup and configuration questions

[rormeister]

Hi all,



I am constantly seeing an error message on my UDMPro -



Multiple devices are using the same IP address: 192.168.50.70. Please check each device's configuration to ensure none are communicating with a rogue DHCP server.





This is my current Unraid setup -

• 3 x NICs setup as a Bond0 (Active-Backup configuration)
  • All setup as trunk port - native VLAN 50 - IP: 192.168.50.10 (static)
• Under this bond0, I have multiple VLANs setup for each of my networks
  • VLAN 10 - Main - IP: 192.168.10.206 (DHCP)
  • VLAN 20 - IoT - IP: 192.168.20.206 (DHCP)
  • VLAN 30 - Camera - IP: 192.168.30.206 (DHCP)
• Docker containers running under different networks, some using bridge mode, some using bond0 and some with custom internal network
• VMs using vhost0



Why do I see duplicate IPs for 192.168.10.205 but not for any other network?

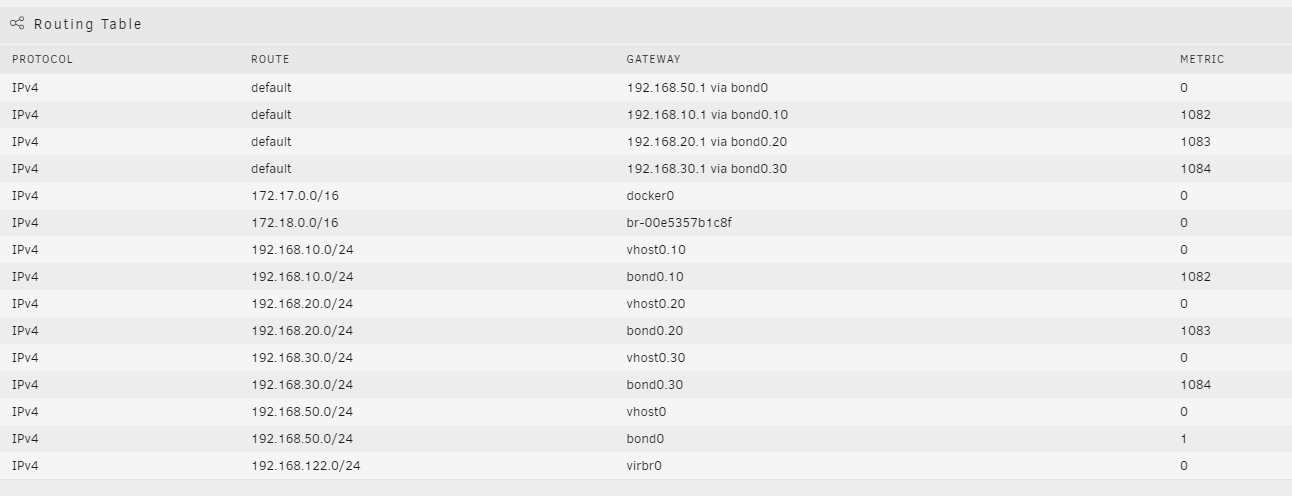

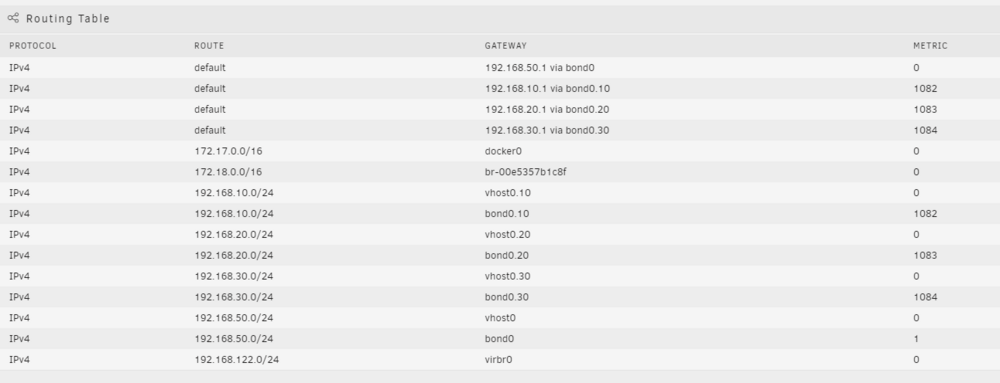

Also, can anyone tell me the different between the different gateways configured on the networking within Unraid -

• docker0
• br-<random num>
• vhost0
• bond0
• virbr0





Also, which gateway is used for accessing various things on Unraid externally?

• Unraid web interface
• Docker containers
• VMs



thanks so much!

Rory
