VM with Nvidia USB help? (keyboard and mouse)

Yeti Feet
in VM Engine (KVM)

Featured Replies

Configured a VM ok for PopOS and I am able to access ok via VNC (Virtual GPU).

When I select the GPU to be NVIDIA GT 700 and the sound card associated with it I see the output on my monitor (HDMI 2)

The other GPU is Intel integrated being used by the motherboard with Unraid.



I have a KVM switch so I can give access to my keyboard and mouse to my Unraid server. I do know that my USB Controller BUS 1 has the Sandisk USB disk that Unraid boots from (Group 25 is not usable or according to unraid: "been used by unraid")



root@THEPUGET:~# for usb_ctrl in $(find /sys/bus/usb/devices/usb* -maxdepth 0 -type
 l); do pci_path="$(dirname "$(realpath "${usb_ctrl}")")"; echo "Bus $(cat "${usb_c
trl}/busnum") --> $(basename $pci_path) (IOMMU group $(basename $(realpath $pci_pat
h/iommu_group)))"; lsusb -s "$(cat "${usb_ctrl}/busnum"):"; echo; done
Bus 1 --> 0000:00:14.0 (IOMMU group 25)
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 002: ID 0bda:5411 Realtek Semiconductor Corp. RTS5411 Hub
Bus 001 Device 003: ID 8087:0a2b Intel Corp. Bluetooth wireless interface
Bus 001 Device 004: ID 05e3:0610 Genesys Logic, Inc. Hub
Bus 001 Device 005: ID 0781:5571 SanDisk Corp. Cruzer Fit
Bus 001 Device 006: ID 05e3:0610 Genesys Logic, Inc. Hub
Bus 001 Device 007: ID 05e3:0610 Genesys Logic, Inc. Hub
Bus 001 Device 008: ID 05e3:0610 Genesys Logic, Inc. Hub
Bus 001 Device 009: ID 05a7:40fe Bose Corp. SoundLink Color II speaker
Bus 001 Device 010: ID 05e3:0610 Genesys Logic, Inc. Hub
Bus 001 Device 011: ID 1949:0281 Lab126, Inc. Fire



Bus 2 --> 0000:00:14.0 (IOMMU group 25)
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 002 Device 002: ID 0bda:0411 Realtek Semiconductor Corp. Hub



Bus 3 --> 0000:48:00.0 (IOMMU group 42)
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub



Bus 4 --> 0000:48:00.0 (IOMMU group 42)
Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub



I bound my GPU at boot so PopOs VM can use it.
I bound IOMMU group 42 at boot so PopOS VM can use it.

Result: Can see PopOS login screen on HDMI port 2 ok but I cannot use keyboard and mouse.
Troubleshooting: bind/unbind USB, changed USB ports at the back of the server.



Ideas?




Edited by Yeti Feet
Clerical

  • Quote
    • Community Expert
    10 hours ago, Yeti Feet said:

    Configured a VM ok for PopOS and I am able to access ok via VNC (Virtual GPU).

    When I select the GPU to be NVIDIA GT 700 and the sound card associated with it I see the output on my monitor (HDMI 2)

    The other GPU is Intel integrated being used by the motherboard with Unraid.



    I have a KVM switch so I can give access to my keyboard and mouse to my Unraid server. I do know that my USB Controller BUS 1 has the Sandisk USB disk that Unraid boots from (Group 25 is not usable or according to unraid: "been used by unraid")



    root@THEPUGET:~# for usb_ctrl in $(find /sys/bus/usb/devices/usb* -maxdepth 0 -type
     l); do pci_path="$(dirname "$(realpath "${usb_ctrl}")")"; echo "Bus $(cat "${usb_c
    trl}/busnum") --> $(basename $pci_path) (IOMMU group $(basename $(realpath $pci_pat
    h/iommu_group)))"; lsusb -s "$(cat "${usb_ctrl}/busnum"):"; echo; done
    Bus 1 --> 0000:00:14.0 (IOMMU group 25)
    Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
    Bus 001 Device 002: ID 0bda:5411 Realtek Semiconductor Corp. RTS5411 Hub
    Bus 001 Device 003: ID 8087:0a2b Intel Corp. Bluetooth wireless interface
    Bus 001 Device 004: ID 05e3:0610 Genesys Logic, Inc. Hub
    Bus 001 Device 005: ID 0781:5571 SanDisk Corp. Cruzer Fit
    Bus 001 Device 006: ID 05e3:0610 Genesys Logic, Inc. Hub
    Bus 001 Device 007: ID 05e3:0610 Genesys Logic, Inc. Hub
    Bus 001 Device 008: ID 05e3:0610 Genesys Logic, Inc. Hub
    Bus 001 Device 009: ID 05a7:40fe Bose Corp. SoundLink Color II speaker
    Bus 001 Device 010: ID 05e3:0610 Genesys Logic, Inc. Hub
    Bus 001 Device 011: ID 1949:0281 Lab126, Inc. Fire



    Bus 2 --> 0000:00:14.0 (IOMMU group 25)
    Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
    Bus 002 Device 002: ID 0bda:0411 Realtek Semiconductor Corp. Hub



    Bus 3 --> 0000:48:00.0 (IOMMU group 42)
    Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub



    Bus 4 --> 0000:48:00.0 (IOMMU group 42)
    Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub



    I bound my GPU at boot so PopOs VM can use it.
    I bound IOMMU group 42 at boot so PopOS VM can use it.

    Result: Can see PopOS login screen on HDMI port 2 ok but I cannot use keyboard and mouse.
    Troubleshooting: bind/unbind USB, changed USB ports at the back of the server.



    Ideas?




    so to confirm are you passing the USB thru as a PCI device as nothing is showing in the otherPCI devs,

  • Quote
    • Author

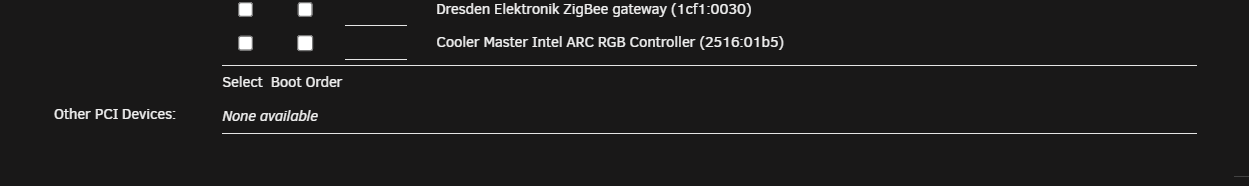

    Not sure how to pass the USB through as a PCI device but I did bind the USB Controller (42) at boot just like the Video card:

    image.thumb.png.b40a7e151b82bd0b427c0f57c5c60a2a.pngimage.thumb.png.4254b71a783000414878ad5d47db6a3e.png



    Is there a particular log we can inspect or a screenshot I can provide? Maybe syslog but I doubt the error is there. When I look at the logs of the VM it looks pretty clean:

    -blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \
    -blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/a161f96e-640a-2fef-630f-7c4ba10dea05_VARS-pure-efi.fd","node-name":"libvirt-pflash1-storage","read-only":false}' \
    -machine pc-i440fx-9.0,usb=off,dump-guest-core=off,mem-merge=off,memory-backend=pc.ram,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-storage,hpet=off,acpi=on \
    -accel kvm \
    -cpu host,migratable=on,host-cache-info=on,l3-cache=off \
    -m size=33030144k \
    -object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":33822867456}' \
    -overcommit mem-lock=off \
    -smp 6,sockets=1,dies=1,clusters=1,cores=3,threads=2 \
    -uuid a161f96e-640a-2fef-630f-7c4ba10dea05 \
    -display none \
    -no-user-config \
    -nodefaults \
    -chardev socket,id=charmonitor,fd=35,server=on,wait=off \
    -mon chardev=charmonitor,id=monitor,mode=control \
    -rtc base=utc,driftfix=slew \
    -global kvm-pit.lost_tick_policy=delay \
    -no-shutdown \
    -boot strict=on \
    -device '{"driver":"qemu-xhci","p2":15,"p3":15,"id":"usb","bus":"pci.0","addr":"0x7"}' \
    -device '{"driver":"virtio-serial-pci","id":"virtio-serial0","bus":"pci.0","addr":"0x3"}' \
    -blockdev '{"driver":"file","filename":"/mnt/user/Linux-VMs/PopOS/vdisk1.img","node-name":"libvirt-1-storage","read-only":false,"cache":{"direct":false,"no-flush":false}}' \
    -device '{"driver":"virtio-blk-pci","bus":"pci.0","addr":"0x4","drive":"libvirt-1-storage","id":"virtio-disk2","bootindex":1,"write-cache":"on","serial":"vdisk1"}' \
    -netdev '{"type":"tap","fd":"36","id":"hostnet0"}' \
    -device '{"driver":"virtio-net","netdev":"hostnet0","id":"net0","mac":"52:54:00:d4:7f:32","bus":"pci.0","addr":"0x2"}' \
    -chardev pty,id=charserial0 \
    -device '{"driver":"isa-serial","chardev":"charserial0","id":"serial0","index":0}' \
    -chardev socket,id=charchannel0,fd=34,server=on,wait=off \
    -device '{"driver":"virtserialport","bus":"virtio-serial0.0","nr":1,"chardev":"charchannel0","id":"channel0","name":"org.qemu.guest_agent.0"}' \
    -audiodev '{"id":"audio1","driver":"none"}' \
    -device '{"driver":"vfio-pci","host":"0000:a1:00.0","id":"hostdev0","bus":"pci.0","addr":"0x5"}' \
    -device '{"driver":"vfio-pci","host":"0000:a1:00.1","id":"hostdev1","bus":"pci.0","addr":"0x6"}' \
    -device '{"driver":"vfio-pci","host":"0000:48:00.0","id":"hostdev2","bus":"pci.0","addr":"0x8"}' \
    -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
    -msg timestamp=on
    2024-09-11 06:19:49.207+0000: Domain id=1 is tainted: high-privileges
    char device redirected to /dev/pts/0 (label charserial0)
    2024-09-11T06:19:49.272813Z qemu-system-x86_64: warning: Deprecated CPU topology (considered invalid): Unsupported clusters parameter mustn't be specified as 1
    2024-09-11T06:27:14.667029Z qemu-system-x86_64: terminating on signal 15 from pid 13299 (libvirtd)
    2024-09-11 06:27:17.869+0000: shutting down, reason=destroyed
    2024-09-12 04:35:58.155+0000: starting up libvirt version: 10.5.0, qemu version: 9.0.1, kernel: 6.8.12-Unraid, hostname: THEPUGET
    LC_ALL=C \
    PATH=/bin:/sbin:/usr/bin:/usr/sbin \
    HOME=/var/lib/libvirt/qemu/domain-2-PopOS \
    XDG_DATA_HOME=/var/lib/libvirt/qemu/domain-2-PopOS/.local/share \
    XDG_CACHE_HOME=/var/lib/libvirt/qemu/domain-2-PopOS/.cache \
    XDG_CONFIG_HOME=/var/lib/libvirt/qemu/domain-2-PopOS/.config \
    /usr/local/sbin/qemu \
    -name guest=PopOS,debug-threads=on \
    -S \
    -object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-2-PopOS/master-key.aes"}' \
    -blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \
    -blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \
    -blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/a161f96e-640a-2fef-630f-7c4ba10dea05_VARS-pure-efi.fd","node-name":"libvirt-pflash1-storage","read-only":false}' \
    -machine pc-i440fx-9.0,usb=off,dump-guest-core=off,mem-merge=off,memory-backend=pc.ram,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-storage,hpet=off,acpi=on \
    -accel kvm \
    -cpu host,migratable=on,host-cache-info=on,l3-cache=off \
    -m size=33030144k \
    -object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":33822867456}' \
    -overcommit mem-lock=off \
    -smp 6,sockets=1,dies=1,clusters=1,cores=3,threads=2 \
    -uuid a161f96e-640a-2fef-630f-7c4ba10dea05 \
    -display none \
    -no-user-config \
    -nodefaults \
    -chardev socket,id=charmonitor,fd=36,server=on,wait=off \
    -mon chardev=charmonitor,id=monitor,mode=control \
    -rtc base=utc,driftfix=slew \
    -global kvm-pit.lost_tick_policy=delay \
    -no-shutdown \
    -boot strict=on \
    -device '{"driver":"qemu-xhci","p2":15,"p3":15,"id":"usb","bus":"pci.0","addr":"0x7"}' \
    -device '{"driver":"virtio-serial-pci","id":"virtio-serial0","bus":"pci.0","addr":"0x3"}' \
    -blockdev '{"driver":"file","filename":"/mnt/user/Linux-VMs/PopOS/vdisk1.img","node-name":"libvirt-1-storage","read-only":false,"cache":{"direct":false,"no-flush":false}}' \
    -device '{"driver":"virtio-blk-pci","bus":"pci.0","addr":"0x4","drive":"libvirt-1-storage","id":"virtio-disk2","bootindex":1,"write-cache":"on","serial":"vdisk1"}' \
    -netdev '{"type":"tap","fd":"37","id":"hostnet0"}' \
    -device '{"driver":"virtio-net","netdev":"hostnet0","id":"net0","mac":"52:54:00:d4:7f:32","bus":"pci.0","addr":"0x2"}' \
    -chardev pty,id=charserial0 \
    -device '{"driver":"isa-serial","chardev":"charserial0","id":"serial0","index":0}' \
    -chardev socket,id=charchannel0,fd=35,server=on,wait=off \
    -device '{"driver":"virtserialport","bus":"virtio-serial0.0","nr":1,"chardev":"charchannel0","id":"channel0","name":"org.qemu.guest_agent.0"}' \
    -audiodev '{"id":"audio1","driver":"none"}' \
    -device '{"driver":"vfio-pci","host":"0000:a1:00.0","id":"hostdev0","bus":"pci.0","addr":"0x5"}' \
    -device '{"driver":"vfio-pci","host":"0000:a1:00.1","id":"hostdev1","bus":"pci.0","addr":"0x6"}' \
    -device '{"driver":"vfio-pci","host":"0000:48:00.0","id":"hostdev2","bus":"pci.0","addr":"0x8"}' \
    -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
    -msg timestamp=on
    2024-09-12 04:35:58.155+0000: Domain id=2 is tainted: high-privileges
    char device redirected to /dev/pts/0 (label charserial0)
    2024-09-12T04:35:58.217287Z qemu-system-x86_64: warning: Deprecated CPU topology (considered invalid): Unsupported clusters parameter mustn't be specified as 1


  • Quote
    • Author

    Here are all groups which shows (42) can be RESET ok:

    Now I did try to put my mouse and keyboard at the back of the server on group 25 but still same error (no mouse/keyboard activity).
    The KVM switch is a USB-to-USB block (4 USB ports at the back where one USB cable will connnect to the desired entity; the 4 front USB's is where I plug in my keyboard, mouse and camera)

    IOMMU group 55
            c0:05.2 System peripheral [0880]: Intel Corporation Sky Lake-E RAS Configuration Registers [8086:2035] (rev 04)
    IOMMU group 83
            e0:05.0 System peripheral [0880]: Intel Corporation Sky Lake-E VT-d [8086:2034] (rev 04)
    IOMMU group 17
            00:04.6 System peripheral [0880]: Intel Corporation Sky Lake-E CBDMA Registers [8086:2021] (rev 04)
    IOMMU group 45
            a0:05.4 PIC [0800]: Intel Corporation Sky Lake-E IOxAPIC Configuration Registers [8086:2036] (rev 04)
    IOMMU group 73
            c0:0c.2 System peripheral [0880]: Intel Corporation Sky Lake-E Integrated Memory Controller [8086:2042] (rev 04)
    IOMMU group 35
            00:1f.0 ISA bridge [0601]: Intel Corporation X299 Chipset LPC/eSPI Controller [8086:a2d2]
            00:1f.2 Memory controller [0580]: Intel Corporation 200 Series/Z370 Chipset Family Power Management Controller [8086:a2a1]
            00:1f.3 Audio device [0403]: Intel Corporation 200 Series PCH HD Audio [8086:a2f0]
            00:1f.4 SMBus [0c05]: Intel Corporation 200 Series/Z370 Chipset Family SMBus Controller [8086:a2a3]
    IOMMU group 7
            a0:01.0 PCI bridge [0604]: Intel Corporation Sky Lake-E PCI Express Root Port B [8086:2031] (rev 04)
    IOMMU group 63
            c0:0a.4 System peripheral [0880]: Intel Corporation Sky Lake-E Integrated Memory Controller [8086:2044] (rev 04)
    IOMMU group 25
            00:14.0 USB controller [0c03]: Intel Corporation 200 Series/Z370 Chipset Family USB 3.0 xHCI Controller [8086:a2af]
    IOMMU group 53
            a0:1e.0 System peripheral [0880]: Intel Corporation Sky Lake-E PCU Registers [8086:2080] (rev 04)
            a0:1e.1 System peripheral [0880]: Intel Corporation Sky Lake-E PCU Registers [8086:2081] (rev 04)
            a0:1e.2 System peripheral [0880]: Intel Corporation Sky Lake-E PCU Registers [8086:2082] (rev 04)
            a0:1e.3 System peripheral [0880]: Intel Corporation Sky Lake-E PCU Registers [8086:2083] (rev 04)
            a0:1e.4 System peripheral [0880]: Intel Corporation Sky Lake-E PCU Registers [8086:2084] (rev 04)
            a0:1e.5 System peripheral [0880]: Intel Corporation Sky Lake-E PCU Registers [8086:2085] (rev 04)
            a0:1e.6 System peripheral [0880]: Intel Corporation Sky Lake-E PCU Registers [8086:2086] (rev 04)
    IOMMU group 81
            c0:0d.2 System peripheral [0880]: Intel Corporation Sky Lake-E LMS Channel 2 [8086:204a] (rev 04)
    IOMMU group 15
            00:04.4 System peripheral [0880]: Intel Corporation Sky Lake-E CBDMA Registers [8086:2021] (rev 04)
    IOMMU group 43
            a0:05.0 System peripheral [0880]: Intel Corporation Sky Lake-E VT-d [8086:2034] (rev 04)
    IOMMU group 71
            c0:0c.0 System peripheral [0880]: Intel Corporation Sky Lake-E Integrated Memory Controller [8086:2040] (rev 04)
    IOMMU group 33
    [RESET] 00:1d.0 PCI bridge [0604]: Intel Corporation 200 Series PCH PCI Express Root Port #9 [8086:a298] (rev f0)
    IOMMU group 5
            c0:00.0 PCI bridge [0604]: Intel Corporation Sky Lake-E PCI Express Root Port A [8086:2030] (rev 04)
    IOMMU group 61
            c0:0a.2 System peripheral [0880]: Intel Corporation Sky Lake-E Integrated Memory Controller [8086:2042] (rev 04)
    IOMMU group 23
            00:08.1 Performance counters [1101]: Intel Corporation Sky Lake-E Ubox Registers [8086:2015] (rev 04)
    IOMMU group 51
            a0:10.0 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:10.1 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
    IOMMU group 13
            00:04.2 System peripheral [0880]: Intel Corporation Sky Lake-E CBDMA Registers [8086:2021] (rev 04)
    IOMMU group 41
    [RESET] 47:00.0 Non-Volatile memory controller [0108]: Phison Electronics Corporation E12 NVMe Controller [1987:5012] (rev 01)
    IOMMU group 31
    [RESET] 00:1c.2 PCI bridge [0604]: Intel Corporation 200 Series PCH PCI Express Root Port #3 [8086:a292] (rev f0)
    IOMMU group 3
    [RESET] e1:00.2 Ethernet controller [0200]: Intel Corporation I350 Gigabit Network Connection [8086:1521] (rev 01)
    IOMMU group 88
            e0:15.0 System peripheral [0880]: Intel Corporation Sky Lake-E M2PCI Registers [8086:2018] (rev 04)
    IOMMU group 21
            00:05.4 PIC [0800]: Intel Corporation Sky Lake-E IOAPIC [8086:2026] (rev 04)
    IOMMU group 78
            c0:0c.7 System peripheral [0880]: Intel Corporation Sky Lake-E LMDP Channel 1 [8086:2047] (rev 04)
    IOMMU group 11
            00:04.0 System peripheral [0880]: Intel Corporation Sky Lake-E CBDMA Registers [8086:2021] (rev 04)
    IOMMU group 68
            c0:0b.1 System peripheral [0880]: Intel Corporation Sky Lake-E LM Channel 2 [8086:2049] (rev 04)
    IOMMU group 1
    [RESET] e1:00.0 Ethernet controller [0200]: Intel Corporation I350 Gigabit Network Connection [8086:1521] (rev 01)
    IOMMU group 58
            c0:09.0 System peripheral [0880]: Intel Corporation Sky Lake-E Integrated Memory Controller [8086:2066] (rev 04)
    IOMMU group 86
            e0:12.0 Performance counters [1101]: Intel Corporation Sky Lake-E M3KTI Registers [8086:204c] (rev 04)
    IOMMU group 48
            a0:0a.0 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:0a.1 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
    IOMMU group 76
            c0:0c.5 System peripheral [0880]: Intel Corporation Sky Lake-E LM Channel 1 [8086:2045] (rev 04)
    IOMMU group 38
    [RESET] 02:00.0 Network controller [0280]: Intel Corporation Wireless 8265 / 8275 [8086:24fd] (rev 78)
    IOMMU group 66
            c0:0a.7 System peripheral [0880]: Intel Corporation Sky Lake-E LMDP Channel 1 [8086:2047] (rev 04)
    IOMMU group 28
    [RESET] 00:1b.0 PCI bridge [0604]: Intel Corporation 200 Series PCH PCI Express Root Port #17 [8086:a2e7] (rev f0)
    IOMMU group 56
            c0:05.4 PIC [0800]: Intel Corporation Sky Lake-E IOxAPIC Configuration Registers [8086:2036] (rev 04)
    IOMMU group 84
            e0:05.2 System peripheral [0880]: Intel Corporation Sky Lake-E RAS Configuration Registers [8086:2035] (rev 04)
    IOMMU group 18
            00:04.7 System peripheral [0880]: Intel Corporation Sky Lake-E CBDMA Registers [8086:2021] (rev 04)
    IOMMU group 46
            a0:08.0 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:08.1 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:08.2 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:08.3 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:08.4 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:08.5 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:08.6 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:08.7 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
    IOMMU group 74
            c0:0c.3 System peripheral [0880]: Intel Corporation Sky Lake-E Integrated Memory Controller [8086:2043] (rev 04)
    IOMMU group 36
    [RESET] 00:1f.6 Ethernet controller [0200]: Intel Corporation Ethernet Connection (2) I219-V [8086:15b8]
    IOMMU group 8
    [RESET] a1:00.0 VGA compatible controller [0300]: NVIDIA Corporation GK208B [GeForce GT 710] [10de:128b] (rev a1)
    IOMMU group 64
            c0:0a.5 System peripheral [0880]: Intel Corporation Sky Lake-E LM Channel 1 [8086:2045] (rev 04)
    IOMMU group 26
            00:16.0 Communication controller [0780]: Intel Corporation 200 Series PCH CSME HECI #1 [8086:a2ba]
    IOMMU group 54
            c0:05.0 System peripheral [0880]: Intel Corporation Sky Lake-E VT-d [8086:2034] (rev 04)
    IOMMU group 82
            c0:0d.3 System peripheral [0880]: Intel Corporation Sky Lake-E LMDP Channel 2 [8086:204b] (rev 04)
    IOMMU group 16
            00:04.5 System peripheral [0880]: Intel Corporation Sky Lake-E CBDMA Registers [8086:2021] (rev 04)
    IOMMU group 44
            a0:05.2 System peripheral [0880]: Intel Corporation Sky Lake-E RAS Configuration Registers [8086:2035] (rev 04)
    IOMMU group 72
            c0:0c.1 System peripheral [0880]: Intel Corporation Sky Lake-E Integrated Memory Controller [8086:2041] (rev 04)
    IOMMU group 34
    [RESET] 00:1d.4 PCI bridge [0604]: Intel Corporation 200 Series PCH PCI Express Root Port #13 [8086:a29c] (rev f0)
    IOMMU group 6
    [RESET] c1:00.0 Serial Attached SCSI controller [0107]: Broadcom / LSI MegaRAID SAS-3 3108 [Invader] [1000:005d] (rev 02)
    IOMMU group 62
            c0:0a.3 System peripheral [0880]: Intel Corporation Sky Lake-E Integrated Memory Controller [8086:2043] (rev 04)
    IOMMU group 90
            e0:17.0 System peripheral [0880]: Intel Corporation Sky Lake-E M2PCI Registers [8086:2018] (rev 04)
    IOMMU group 24
            00:08.2 System peripheral [0880]: Intel Corporation Sky Lake-E Ubox Registers [8086:2016] (rev 04)
    IOMMU group 52
            a0:1d.0 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:2054] (rev 04)
            a0:1d.1 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:2055] (rev 04)
            a0:1d.2 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:2056] (rev 04)
            a0:1d.3 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:2057] (rev 04)
    IOMMU group 80
            c0:0d.1 System peripheral [0880]: Intel Corporation Sky Lake-E LM Channel 2 [8086:2049] (rev 04)
    IOMMU group 14
            00:04.3 System peripheral [0880]: Intel Corporation Sky Lake-E CBDMA Registers [8086:2021] (rev 04)
    IOMMU group 42
    [RESET] 48:00.0 USB controller [0c03]: ASMedia Technology Inc. ASM2142/ASM3142 USB 3.1 Host Controller [1b21:2142]
    IOMMU group 70
            c0:0b.3 System peripheral [0880]: Intel Corporation Sky Lake-E LMDP Channel 2 [8086:204b] (rev 04)
    IOMMU group 32
    [RESET] 00:1c.4 PCI bridge [0604]: Intel Corporation 200 Series PCH PCI Express Root Port #5 [8086:a294] (rev f0)
    IOMMU group 4
    [RESET] e1:00.3 Ethernet controller [0200]: Intel Corporation I350 Gigabit Network Connection [8086:1521] (rev 01)
    IOMMU group 60
            c0:0a.1 System peripheral [0880]: Intel Corporation Sky Lake-E Integrated Memory Controller [8086:2041] (rev 04)
    IOMMU group 89
            e0:16.0 System peripheral [0880]: Intel Corporation Sky Lake-E M2PCI Registers [8086:2018] (rev 04)
            e0:16.4 System peripheral [0880]: Intel Corporation Sky Lake-E M2PCI Registers [8086:2018] (rev 04)
    IOMMU group 22
            00:08.0 System peripheral [0880]: Intel Corporation Sky Lake-E Ubox Registers [8086:2014] (rev 04)
    IOMMU group 50
            a0:0f.0 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0f.1 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0f.2 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0f.3 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0f.4 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0f.5 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0f.6 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0f.7 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
    IOMMU group 79
            c0:0d.0 System peripheral [0880]: Intel Corporation Sky Lake-E DECS Channel 2 [8086:2048] (rev 04)
    IOMMU group 12
            00:04.1 System peripheral [0880]: Intel Corporation Sky Lake-E CBDMA Registers [8086:2021] (rev 04)
    IOMMU group 40
    [RESET] 04:00.0 Ethernet controller [0200]: Intel Corporation I211 Gigabit Network Connection [8086:1539] (rev 03)
    IOMMU group 69
            c0:0b.2 System peripheral [0880]: Intel Corporation Sky Lake-E LMS Channel 2 [8086:204a] (rev 04)
    IOMMU group 30
    [RESET] 00:1c.1 PCI bridge [0604]: Intel Corporation 200 Series PCH PCI Express Root Port #2 [8086:a291] (rev f0)
    IOMMU group 2
    [RESET] e1:00.1 Ethernet controller [0200]: Intel Corporation I350 Gigabit Network Connection [8086:1521] (rev 01)
    IOMMU group 59
            c0:0a.0 System peripheral [0880]: Intel Corporation Sky Lake-E Integrated Memory Controller [8086:2040] (rev 04)
    IOMMU group 87
            e0:12.1 Performance counters [1101]: Intel Corporation Sky Lake-E M3KTI Registers [8086:204d] (rev 04)
            e0:12.2 System peripheral [0880]: Intel Corporation Sky Lake-E M3KTI Registers [8086:204e] (rev 04)
    IOMMU group 20
            00:05.2 System peripheral [0880]: Intel Corporation Sky Lake-E RAS [8086:2025] (rev 04)
    IOMMU group 49
            a0:0e.0 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0e.1 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0e.2 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0e.3 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0e.4 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0e.5 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0e.6 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
            a0:0e.7 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208e] (rev 04)
    IOMMU group 77
            c0:0c.6 System peripheral [0880]: Intel Corporation Sky Lake-E LMS Channel 1 [8086:2046] (rev 04)
    IOMMU group 10
            00:00.0 Host bridge [0600]: Intel Corporation Sky Lake-E DMI3 Registers [8086:2020] (rev 04)
    IOMMU group 39
    [RESET] 03:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1061/ASM1062 Serial ATA Controller [1b21:0612] (rev 02)
    IOMMU group 67
            c0:0b.0 System peripheral [0880]: Intel Corporation Sky Lake-E DECS Channel 2 [8086:2048] (rev 04)
    IOMMU group 29
    [RESET] 00:1c.0 PCI bridge [0604]: Intel Corporation 200 Series PCH PCI Express Root Port #1 [8086:a290] (rev f0)
    IOMMU group 0
            e0:03.0 PCI bridge [0604]: Intel Corporation Sky Lake-E PCI Express Root Port D [8086:2033] (rev 04)
    IOMMU group 57
            c0:08.0 System peripheral [0880]: Intel Corporation Sky Lake-E Integrated Memory Controller [8086:2066] (rev 04)
    IOMMU group 85
            e0:05.4 PIC [0800]: Intel Corporation Sky Lake-E IOxAPIC Configuration Registers [8086:2036] (rev 04)
    IOMMU group 19
            00:05.0 System peripheral [0880]: Intel Corporation Sky Lake-E MM/Vt-d Configuration Registers [8086:2024] (rev 04)
    IOMMU group 47
            a0:09.0 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:09.1 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:09.2 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:09.3 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:09.4 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:09.5 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:09.6 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
            a0:09.7 System peripheral [0880]: Intel Corporation Sky Lake-E CHA Registers [8086:208d] (rev 04)
    IOMMU group 75
            c0:0c.4 System peripheral [0880]: Intel Corporation Sky Lake-E Integrated Memory Controller [8086:2044] (rev 04)
    IOMMU group 37
    [RESET] 01:00.0 Non-Volatile memory controller [0108]: Phison Electronics Corporation E12 NVMe Controller [1987:5012] (rev 01)
    IOMMU group 9
            a1:00.1 Audio device [0403]: NVIDIA Corporation GK208 HDMI/DP Audio Controller [10de:0e0f] (rev a1)
    IOMMU group 65
            c0:0a.6 System peripheral [0880]: Intel Corporation Sky Lake-E LMS Channel 1 [8086:2046] (rev 04)
    IOMMU group 27
            00:17.0 SATA controller [0106]: Intel Corporation 200 Series PCH SATA controller [AHCI mode] [8086:a282]

  • Quote
    • Community Expert
    1 hour ago, Yeti Feet said:

    Not sure how to pass the USB through as a PCI device but I did bind the USB Controller (42) at boot just like the Video card:

    image.thumb.png.b40a7e151b82bd0b427c0f57c5c60a2a.pngimage.thumb.png.4254b71a783000414878ad5d47db6a3e.png



    Is there a particular log we can inspect or a screenshot I can provide? Maybe syslog but I doubt the error is there. When I look at the logs of the VM it looks pretty clean:

    -blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \
    -blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/a161f96e-640a-2fef-630f-7c4ba10dea05_VARS-pure-efi.fd","node-name":"libvirt-pflash1-storage","read-only":false}' \
    -machine pc-i440fx-9.0,usb=off,dump-guest-core=off,mem-merge=off,memory-backend=pc.ram,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-storage,hpet=off,acpi=on \
    -accel kvm \
    -cpu host,migratable=on,host-cache-info=on,l3-cache=off \
    -m size=33030144k \
    -object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":33822867456}' \
    -overcommit mem-lock=off \
    -smp 6,sockets=1,dies=1,clusters=1,cores=3,threads=2 \
    -uuid a161f96e-640a-2fef-630f-7c4ba10dea05 \
    -display none \
    -no-user-config \
    -nodefaults \
    -chardev socket,id=charmonitor,fd=35,server=on,wait=off \
    -mon chardev=charmonitor,id=monitor,mode=control \
    -rtc base=utc,driftfix=slew \
    -global kvm-pit.lost_tick_policy=delay \
    -no-shutdown \
    -boot strict=on \
    -device '{"driver":"qemu-xhci","p2":15,"p3":15,"id":"usb","bus":"pci.0","addr":"0x7"}' \
    -device '{"driver":"virtio-serial-pci","id":"virtio-serial0","bus":"pci.0","addr":"0x3"}' \
    -blockdev '{"driver":"file","filename":"/mnt/user/Linux-VMs/PopOS/vdisk1.img","node-name":"libvirt-1-storage","read-only":false,"cache":{"direct":false,"no-flush":false}}' \
    -device '{"driver":"virtio-blk-pci","bus":"pci.0","addr":"0x4","drive":"libvirt-1-storage","id":"virtio-disk2","bootindex":1,"write-cache":"on","serial":"vdisk1"}' \
    -netdev '{"type":"tap","fd":"36","id":"hostnet0"}' \
    -device '{"driver":"virtio-net","netdev":"hostnet0","id":"net0","mac":"52:54:00:d4:7f:32","bus":"pci.0","addr":"0x2"}' \
    -chardev pty,id=charserial0 \
    -device '{"driver":"isa-serial","chardev":"charserial0","id":"serial0","index":0}' \
    -chardev socket,id=charchannel0,fd=34,server=on,wait=off \
    -device '{"driver":"virtserialport","bus":"virtio-serial0.0","nr":1,"chardev":"charchannel0","id":"channel0","name":"org.qemu.guest_agent.0"}' \
    -audiodev '{"id":"audio1","driver":"none"}' \
    -device '{"driver":"vfio-pci","host":"0000:a1:00.0","id":"hostdev0","bus":"pci.0","addr":"0x5"}' \
    -device '{"driver":"vfio-pci","host":"0000:a1:00.1","id":"hostdev1","bus":"pci.0","addr":"0x6"}' \
    -device '{"driver":"vfio-pci","host":"0000:48:00.0","id":"hostdev2","bus":"pci.0","addr":"0x8"}' \
    -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
    -msg timestamp=on
    2024-09-11 06:19:49.207+0000: Domain id=1 is tainted: high-privileges
    char device redirected to /dev/pts/0 (label charserial0)
    2024-09-11T06:19:49.272813Z qemu-system-x86_64: warning: Deprecated CPU topology (considered invalid): Unsupported clusters parameter mustn't be specified as 1
    2024-09-11T06:27:14.667029Z qemu-system-x86_64: terminating on signal 15 from pid 13299 (libvirtd)
    2024-09-11 06:27:17.869+0000: shutting down, reason=destroyed
    2024-09-12 04:35:58.155+0000: starting up libvirt version: 10.5.0, qemu version: 9.0.1, kernel: 6.8.12-Unraid, hostname: THEPUGET
    LC_ALL=C \
    PATH=/bin:/sbin:/usr/bin:/usr/sbin \
    HOME=/var/lib/libvirt/qemu/domain-2-PopOS \
    XDG_DATA_HOME=/var/lib/libvirt/qemu/domain-2-PopOS/.local/share \
    XDG_CACHE_HOME=/var/lib/libvirt/qemu/domain-2-PopOS/.cache \
    XDG_CONFIG_HOME=/var/lib/libvirt/qemu/domain-2-PopOS/.config \
    /usr/local/sbin/qemu \
    -name guest=PopOS,debug-threads=on \
    -S \
    -object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-2-PopOS/master-key.aes"}' \
    -blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \
    -blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \
    -blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/a161f96e-640a-2fef-630f-7c4ba10dea05_VARS-pure-efi.fd","node-name":"libvirt-pflash1-storage","read-only":false}' \
    -machine pc-i440fx-9.0,usb=off,dump-guest-core=off,mem-merge=off,memory-backend=pc.ram,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-storage,hpet=off,acpi=on \
    -accel kvm \
    -cpu host,migratable=on,host-cache-info=on,l3-cache=off \
    -m size=33030144k \
    -object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":33822867456}' \
    -overcommit mem-lock=off \
    -smp 6,sockets=1,dies=1,clusters=1,cores=3,threads=2 \
    -uuid a161f96e-640a-2fef-630f-7c4ba10dea05 \
    -display none \
    -no-user-config \
    -nodefaults \
    -chardev socket,id=charmonitor,fd=36,server=on,wait=off \
    -mon chardev=charmonitor,id=monitor,mode=control \
    -rtc base=utc,driftfix=slew \
    -global kvm-pit.lost_tick_policy=delay \
    -no-shutdown \
    -boot strict=on \
    -device '{"driver":"qemu-xhci","p2":15,"p3":15,"id":"usb","bus":"pci.0","addr":"0x7"}' \
    -device '{"driver":"virtio-serial-pci","id":"virtio-serial0","bus":"pci.0","addr":"0x3"}' \
    -blockdev '{"driver":"file","filename":"/mnt/user/Linux-VMs/PopOS/vdisk1.img","node-name":"libvirt-1-storage","read-only":false,"cache":{"direct":false,"no-flush":false}}' \
    -device '{"driver":"virtio-blk-pci","bus":"pci.0","addr":"0x4","drive":"libvirt-1-storage","id":"virtio-disk2","bootindex":1,"write-cache":"on","serial":"vdisk1"}' \
    -netdev '{"type":"tap","fd":"37","id":"hostnet0"}' \
    -device '{"driver":"virtio-net","netdev":"hostnet0","id":"net0","mac":"52:54:00:d4:7f:32","bus":"pci.0","addr":"0x2"}' \
    -chardev pty,id=charserial0 \
    -device '{"driver":"isa-serial","chardev":"charserial0","id":"serial0","index":0}' \
    -chardev socket,id=charchannel0,fd=35,server=on,wait=off \
    -device '{"driver":"virtserialport","bus":"virtio-serial0.0","nr":1,"chardev":"charchannel0","id":"channel0","name":"org.qemu.guest_agent.0"}' \
    -audiodev '{"id":"audio1","driver":"none"}' \
    -device '{"driver":"vfio-pci","host":"0000:a1:00.0","id":"hostdev0","bus":"pci.0","addr":"0x5"}' \
    -device '{"driver":"vfio-pci","host":"0000:a1:00.1","id":"hostdev1","bus":"pci.0","addr":"0x6"}' \
    -device '{"driver":"vfio-pci","host":"0000:48:00.0","id":"hostdev2","bus":"pci.0","addr":"0x8"}' \
    -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
    -msg timestamp=on
    2024-09-12 04:35:58.155+0000: Domain id=2 is tainted: high-privileges
    char device redirected to /dev/pts/0 (label charserial0)
    2024-09-12T04:35:58.217287Z qemu-system-x86_64: warning: Deprecated CPU topology (considered invalid): Unsupported clusters parameter mustn't be specified as 1


    So does the PCI USB card shows in this section and you have selected the device? It may be the interupts are not getting thru to the card to say a new device is connected.



    If you have a USB device connected at boot does it show in the VM? I guess you are only switching the KVM once booted?






    You could try enable the unsafe interrupts.




    You could try the USB_Manager plugin rather than doing PCI passthru as it supports auto hot plugin of USB devices into a VM.



  • Quote
    • Author

    Frankly, there is something with the VIDEO output and/or USB. Per the USB manager it found the Bluetooth but I cannot "VM attach" the Generic 4 port USB 3.0 hub. I think I will forgo using a VM at all with a dedicated GPU - not worth the trouble. I cant seem to find any sort of error or warning that something failed in the output (video/keyboard/mouse).

    After I rebooted the server, when I switch to HDMI port 2, I do not see anything.. blank screen. (VM works ok via VNC ok mouse/keyboard ok)

    image.thumb.png.5d69256205b69d052291c7a4d56effaa.pngimage.thumb.png.86a91a35962eec9d4164e16467dfaf02.pngimage.thumb.png.e5784b7e33d542cb7c7d9231a5a6507a.pngimage.thumb.png.972c6eafa39858a24503355422b5b779.png

  • Quote

    • Join the conversation

    You can post now and register later. If you have an account, sign in now to post with your account.
    Note: Your post will require moderator approval before it will be visible.

    Guest
    Reply to this topic...
    Go to topic listing

    Account

    Navigation

    Search

    Search

    Configure browser push notifications
    Chrome (Android)
    1. Tap the lock icon next to the address bar.
    2. Tap Permissions → Notifications.
    3. Adjust your preference.
    Chrome (Desktop)
    1. Click the padlock icon in the address bar.
    2. Select Site settings.
    3. Find Notifications and adjust your preference.
