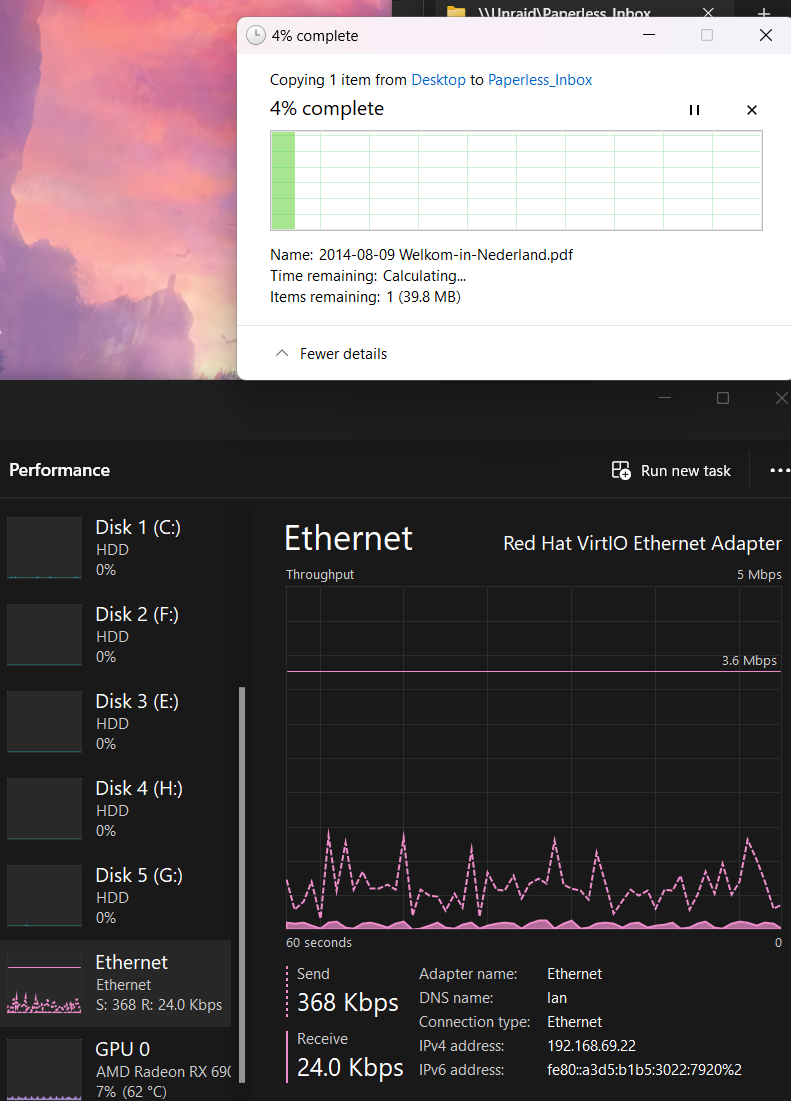

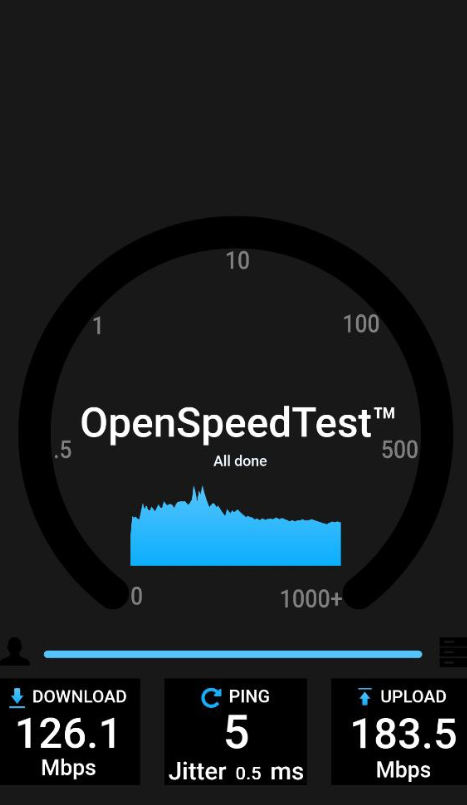

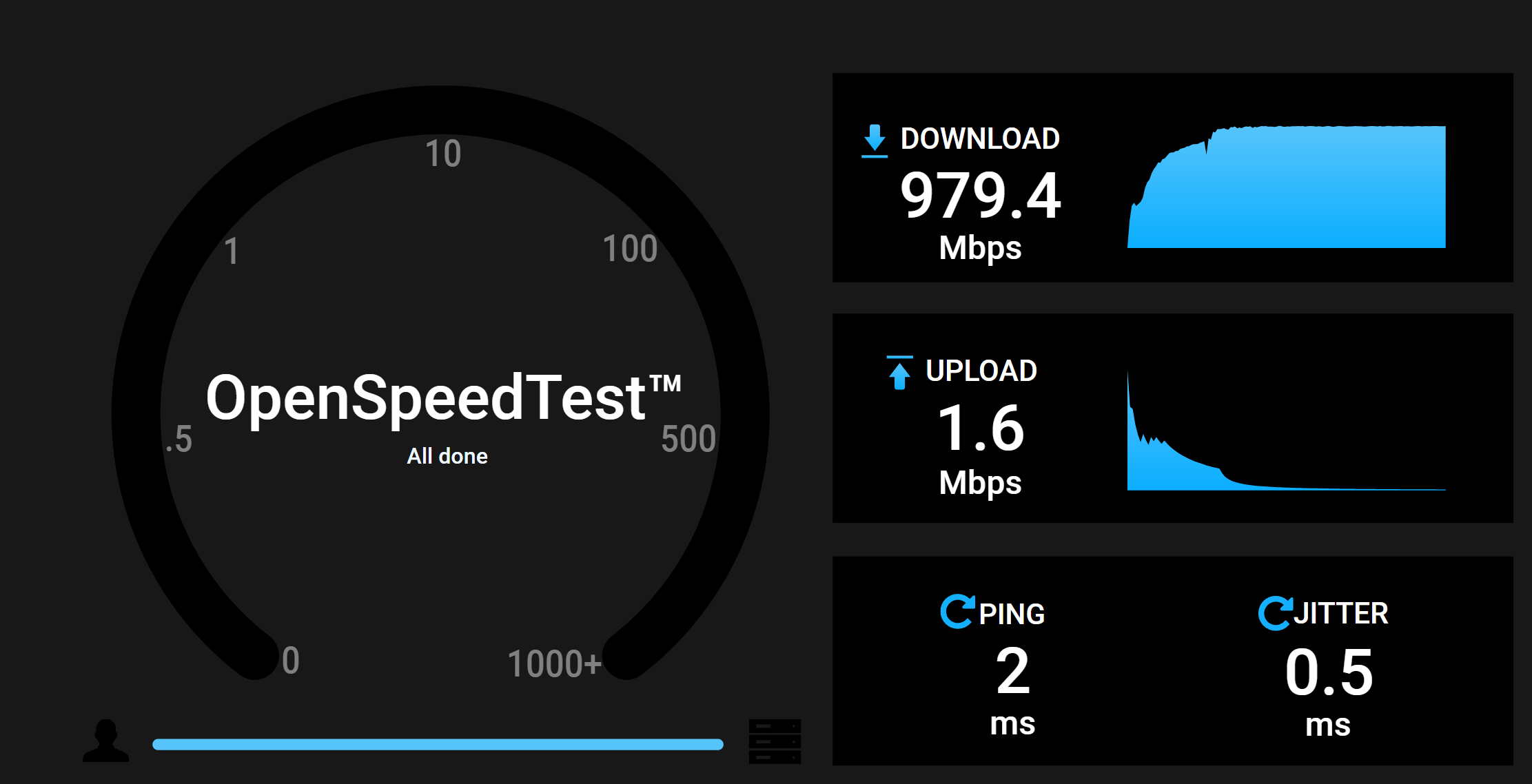

kto Posted September 21, 2024 Posted September 21, 2024 (edited) Hi all, My issue: I can't upload any big file to Unraid from my Windows machine in a reasonable amount of time. I see a speed of around 300 Kbps. My setup: Omada network with multiple LANs. ProxMox PC (PC1) with Windows 11 VM. Bouth on LAN 1. ProxMox PC (PC2) with Unraid and other VMs. ALL on LAN 20. Android phone on LAN 1. Windows 11 (PC1) installed with all necessary drivers from Proxmox and using best practices in configuration. Unraid (PC2) has direct access to HHD drives, but Virtual to SSD. No issues there. What I tried: I moved PC1 with Windows VM to LAN 20 - no changes. Rolled it back. Checked different settings on Windows trying with or Without a Firewall - no changes. Rolled it back. Enabling and disabling LSO for outbound traffic - no changes. Rolled it back. Trying different virtual Network adapters on my Windows VM - no changes. Rolled it back to the recommended option. Tests: OpenSpeedTest from Windows VM(PC1) to Unraid(PC2) OpenSpeedTest from Android mobile (same LAN as PC1) to Unraid(PC2) My Note: Looks like a problem with Windows or somewhere in the middle of the connection. But the problem is not because of different LANs for machines. iperf3: From Unraid (PC2) to Windows VM (PC1): root@unraid:/# iperf3 -c 192.168.69.22 Connecting to host 192.168.69.22, port 5201 [ 5] local 192.168.20.26 port 41528 connected to 192.168.69.22 port 5201 [ ID] Interval Transfer Bitrate Retr Cwnd [ 5] 0.00-1.00 sec 58.8 MBytes 493 Mbits/sec 17 242 KBytes [ 5] 1.00-2.00 sec 56.2 MBytes 472 Mbits/sec 0 297 KBytes [ 5] 2.00-3.00 sec 53.8 MBytes 451 Mbits/sec 0 279 KBytes [ 5] 3.00-4.00 sec 55.0 MBytes 461 Mbits/sec 0 277 KBytes [ 5] 4.00-5.00 sec 58.8 MBytes 493 Mbits/sec 0 328 KBytes [ 5] 5.00-6.00 sec 52.5 MBytes 440 Mbits/sec 0 259 KBytes [ 5] 6.00-7.00 sec 55.0 MBytes 461 Mbits/sec 0 282 KBytes [ 5] 7.00-8.00 sec 53.8 MBytes 451 Mbits/sec 0 279 KBytes [ 5] 8.00-9.00 sec 55.0 MBytes 461 Mbits/sec 0 277 KBytes [ 5] 9.00-10.00 sec 53.8 MBytes 451 Mbits/sec 16 299 KBytes - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate Retr [ 5] 0.00-10.00 sec 552 MBytes 463 Mbits/sec 33 sender [ 5] 0.00-10.00 sec 549 MBytes 461 Mbits/sec receiver iperf Done. From Unraid (PC2) to Windows VM (PC1) but Reverse: root@unraid:/# iperf3 -c 192.168.69.22 -R Connecting to host 192.168.69.22, port 5201 Reverse mode, remote host 192.168.69.22 is sending [ 5] local 192.168.20.26 port 51462 connected to 192.168.69.22 port 5201 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.00 sec 42.8 KBytes 350 Kbits/sec [ 5] 1.00-2.00 sec 42.8 KBytes 350 Kbits/sec [ 5] 2.00-3.00 sec 20.0 KBytes 164 Kbits/sec [ 5] 3.00-4.00 sec 31.4 KBytes 257 Kbits/sec [ 5] 4.00-5.00 sec 133 KBytes 1.09 Mbits/sec [ 5] 5.00-6.00 sec 81.3 KBytes 666 Kbits/sec [ 5] 6.00-7.00 sec 55.6 KBytes 456 Kbits/sec [ 5] 7.00-8.00 sec 51.3 KBytes 420 Kbits/sec [ 5] 8.00-9.00 sec 25.7 KBytes 210 Kbits/sec [ 5] 9.00-10.00 sec 49.9 KBytes 409 Kbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.00 sec 16.8 MBytes 14.0 Mbits/sec sender [ 5] 0.00-10.00 sec 533 KBytes 437 Kbits/sec receiver iperf Done. Windows VM (PC1) iperf server output for prev 2 tests: ----------------------------------------------------------- Server listening on 5201 (test #11) ----------------------------------------------------------- Accepted connection from 192.168.20.26, port 41516 [ 5] local 192.168.69.22 port 5201 connected to 192.168.20.26 port 41528 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.01 sec 55.1 MBytes 457 Mbits/sec [ 5] 1.01-2.01 sec 56.5 MBytes 475 Mbits/sec [ 5] 2.01-3.00 sec 53.6 MBytes 453 Mbits/sec [ 5] 3.00-4.01 sec 54.5 MBytes 454 Mbits/sec [ 5] 4.01-5.01 sec 58.8 MBytes 495 Mbits/sec [ 5] 5.01-6.01 sec 52.9 MBytes 440 Mbits/sec [ 5] 6.01-7.01 sec 54.8 MBytes 459 Mbits/sec [ 5] 7.01-8.01 sec 54.0 MBytes 453 Mbits/sec [ 5] 8.01-9.01 sec 55.0 MBytes 461 Mbits/sec [ 5] 9.01-10.00 sec 54.1 MBytes 458 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.00 sec 549 MBytes 461 Mbits/sec receiver ----------------------------------------------------------- Server listening on 5201 (test #12) ----------------------------------------------------------- Accepted connection from 192.168.20.26, port 51454 [ 5] local 192.168.69.22 port 5201 connected to 192.168.20.26 port 51462 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.00 sec 16.8 MBytes 140 Mbits/sec [ 5] 1.00-2.00 sec 0.00 Bytes 0.00 bits/sec [ 5] 2.00-3.01 sec 0.00 Bytes 0.00 bits/sec [ 5] 3.01-4.01 sec 0.00 Bytes 0.00 bits/sec [ 5] 4.01-5.01 sec 0.00 Bytes 0.00 bits/sec [ 5] 5.01-6.01 sec 0.00 Bytes 0.00 bits/sec [ 5] 6.01-7.01 sec 0.00 Bytes 0.00 bits/sec [ 5] 7.01-8.01 sec 0.00 Bytes 0.00 bits/sec [ 5] 8.01-9.01 sec 0.00 Bytes 0.00 bits/sec [ 5] 9.01-10.00 sec 0.00 Bytes 0.00 bits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.00 sec 16.8 MBytes 14.0 Mbits/sec sender My Note: Looks like something is wrong on the Windows 11 side or with ProxMox PC1. Same tests, but for PC1 (ProxMox with Windows 11 VM) From Unraid (PC2) to PC1: Connecting to host 192.168.69.21, port 5201 [ 5] local 192.168.20.26 port 41312 connected to 192.168.69.21 port 5201 [ ID] Interval Transfer Bitrate Retr Cwnd [ 5] 0.00-1.00 sec 114 MBytes 955 Mbits/sec 130 311 KBytes [ 5] 1.00-2.00 sec 113 MBytes 945 Mbits/sec 0 308 KBytes [ 5] 2.00-3.00 sec 113 MBytes 951 Mbits/sec 0 402 KBytes [ 5] 3.00-4.00 sec 112 MBytes 944 Mbits/sec 100 308 KBytes [ 5] 4.00-5.00 sec 111 MBytes 933 Mbits/sec 231 308 KBytes [ 5] 5.00-6.00 sec 112 MBytes 944 Mbits/sec 121 308 KBytes [ 5] 6.00-7.00 sec 112 MBytes 944 Mbits/sec 0 314 KBytes [ 5] 7.00-8.00 sec 111 MBytes 933 Mbits/sec 0 308 KBytes [ 5] 8.00-9.00 sec 112 MBytes 944 Mbits/sec 0 308 KBytes [ 5] 9.00-10.00 sec 112 MBytes 944 Mbits/sec 0 577 KBytes - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate Retr [ 5] 0.00-10.00 sec 1.10 GBytes 944 Mbits/sec 582 sender [ 5] 0.00-10.00 sec 1.09 GBytes 939 Mbits/sec receiver iperf Done. From Unraid (PC2) to PC1 but Reverse: root@unraid:/# iperf3 -c 192.168.69.21 -R Connecting to host 192.168.69.21, port 5201 Reverse mode, remote host 192.168.69.21 is sending [ 5] local 192.168.20.26 port 51708 connected to 192.168.69.21 port 5201 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.00 sec 112 MBytes 938 Mbits/sec [ 5] 1.00-2.00 sec 112 MBytes 939 Mbits/sec [ 5] 2.00-3.00 sec 112 MBytes 937 Mbits/sec [ 5] 3.00-4.00 sec 110 MBytes 922 Mbits/sec [ 5] 4.00-5.00 sec 110 MBytes 921 Mbits/sec [ 5] 5.00-6.00 sec 112 MBytes 938 Mbits/sec [ 5] 6.00-7.00 sec 111 MBytes 935 Mbits/sec [ 5] 7.00-8.00 sec 112 MBytes 938 Mbits/sec [ 5] 8.00-9.00 sec 112 MBytes 941 Mbits/sec [ 5] 9.00-10.00 sec 112 MBytes 940 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate Retr [ 5] 0.00-10.00 sec 1.09 GBytes 937 Mbits/sec 1259 sender [ 5] 0.00-10.00 sec 1.09 GBytes 935 Mbits/sec receiver iperf Done. My note: After this test, I think that there is no problem with PC1 to connect Unraid (PC2). Same tests, but for checking different VM on PC2 From Media (PC2) to Windows VM (PC1): kto@vault-media:~$ iperf3 -c 192.168.69.22 Connecting to host 192.168.69.22, port 5201 [ 5] local 192.168.20.31 port 60656 connected to 192.168.69.22 port 5201 [ ID] Interval Transfer Bitrate Retr Cwnd [ 5] 0.00-1.00 sec 53.0 MBytes 445 Mbits/sec 0 2.10 MBytes [ 5] 1.00-2.00 sec 41.2 MBytes 346 Mbits/sec 0 2.10 MBytes [ 5] 2.00-3.00 sec 47.5 MBytes 398 Mbits/sec 0 2.10 MBytes [ 5] 3.00-4.00 sec 53.8 MBytes 451 Mbits/sec 0 2.10 MBytes [ 5] 4.00-5.00 sec 52.5 MBytes 440 Mbits/sec 0 2.10 MBytes [ 5] 5.00-6.00 sec 50.0 MBytes 419 Mbits/sec 14 1.47 MBytes [ 5] 6.00-7.00 sec 45.0 MBytes 378 Mbits/sec 0 1.63 MBytes [ 5] 7.00-8.00 sec 48.8 MBytes 409 Mbits/sec 0 1.76 MBytes [ 5] 8.00-9.00 sec 50.0 MBytes 419 Mbits/sec 22 1.81 MBytes [ 5] 9.00-10.00 sec 52.5 MBytes 440 Mbits/sec 0 1.39 MBytes - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate Retr [ 5] 0.00-10.00 sec 494 MBytes 415 Mbits/sec 36 sender [ 5] 0.00-10.00 sec 490 MBytes 411 Mbits/sec receiver iperf Done. From Media (PC2) to Windows VM (PC1) but Reverse: kto@vault-media:~$ iperf3 -c 192.168.69.22 -R Connecting to host 192.168.69.22, port 5201 Reverse mode, remote host 192.168.69.22 is sending [ 5] local 192.168.20.31 port 41372 connected to 192.168.69.22 port 5201 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.00 sec 112 MBytes 941 Mbits/sec [ 5] 1.00-2.00 sec 112 MBytes 943 Mbits/sec [ 5] 2.00-3.00 sec 113 MBytes 944 Mbits/sec [ 5] 3.00-4.00 sec 113 MBytes 949 Mbits/sec [ 5] 4.00-5.00 sec 113 MBytes 948 Mbits/sec [ 5] 5.00-6.00 sec 113 MBytes 948 Mbits/sec [ 5] 6.00-7.00 sec 112 MBytes 937 Mbits/sec [ 5] 7.00-8.00 sec 113 MBytes 947 Mbits/sec [ 5] 8.00-9.00 sec 113 MBytes 946 Mbits/sec [ 5] 9.00-10.00 sec 113 MBytes 948 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.00 sec 1.10 GBytes 947 Mbits/sec sender [ 5] 0.00-10.00 sec 1.10 GBytes 945 Mbits/sec receiver iperf Done. Windows VM (PC1) iperf server output for prev 2 tests: ----------------------------------------------------------- Server listening on 5201 (test #13) ----------------------------------------------------------- Accepted connection from 192.168.20.31, port 60640 [ 5] local 192.168.69.22 port 5201 connected to 192.168.20.31 port 60656 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.01 sec 49.9 MBytes 413 Mbits/sec [ 5] 1.01-2.01 sec 41.4 MBytes 347 Mbits/sec [ 5] 2.01-3.01 sec 48.2 MBytes 406 Mbits/sec [ 5] 3.01-4.01 sec 53.2 MBytes 445 Mbits/sec [ 5] 4.01-5.00 sec 52.4 MBytes 445 Mbits/sec [ 5] 5.00-6.01 sec 49.1 MBytes 409 Mbits/sec [ 5] 6.01-7.01 sec 46.2 MBytes 387 Mbits/sec [ 5] 7.01-8.01 sec 47.9 MBytes 402 Mbits/sec [ 5] 8.01-9.01 sec 50.4 MBytes 422 Mbits/sec [ 5] 9.01-10.00 sec 51.8 MBytes 437 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.00 sec 490 MBytes 411 Mbits/sec receiver ----------------------------------------------------------- Server listening on 5201 (test #14) ----------------------------------------------------------- Accepted connection from 192.168.20.31, port 41370 [ 5] local 192.168.69.22 port 5201 connected to 192.168.20.31 port 41372 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.01 sec 116 MBytes 956 Mbits/sec [ 5] 1.01-2.01 sec 112 MBytes 942 Mbits/sec [ 5] 2.01-3.01 sec 113 MBytes 945 Mbits/sec [ 5] 3.01-4.01 sec 112 MBytes 948 Mbits/sec [ 5] 4.01-5.01 sec 113 MBytes 948 Mbits/sec [ 5] 5.01-6.02 sec 114 MBytes 948 Mbits/sec [ 5] 6.02-7.02 sec 112 MBytes 937 Mbits/sec [ 5] 7.02-8.02 sec 113 MBytes 945 Mbits/sec [ 5] 8.02-9.00 sec 111 MBytes 948 Mbits/sec [ 5] 9.00-10.00 sec 113 MBytes 947 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.00 sec 1.10 GBytes 947 Mbits/sec sender My Note: Looks like Windows 11 (PC1) doesn't have any issues with Media VM (PC2). So, and now I'm completely lost. I see that: PC1 has Normal speed to Unraid (PC2) Windows 11 (PC1) has Low speed to Unraid (PC2) Windows 11 (PC1) has Normal speed to Media VM(PC2) Android phone (same lan as PC1) has Normal speed to Unraid (PC2) Windows 11 (PC1) has Normal speed to public servers and SpeedTest (didn't add it here, because the post is already huge). Because of points 1. and 3. It doesn't look like an issue in PC1 or PC2. Points 1. 3. 4. and 5. show that it's less likely with internet equipment. Points 1. and 4. show that there are no problems with Unraid (PC2). Points 3. and 5. show that there are no problems with Windows 11 (PC1). But if everything is correct why do I also have point 2? Maybe I'm missing something obvious? Do you need any extra information from my side? unraid-diagnostics-20240921-1149.zip Edited September 21, 2024 by kto Quote
JorgeB Posted September 21, 2024 Posted September 21, 2024 See the release notes, there's a kernel issue with virtio, try virtio-net for example. Quote
kto Posted September 21, 2024 Author Posted September 21, 2024 14 minutes ago, JorgeB said: See the release notes, there's a kernel issue with virtio, try virtio-net for example. Missed that. Then I will wait for the next release, it's not a big deal. I found a few workarounds on how I can upload big files. My Windows VM is on a ProxMox(PC1) machine, I tried to select a different adapter (E1000), but it's slower in general and didn't solve the issue. Quote
