I have a pcie x6 slot on my itx mobo and would like to know exactly how its wired as I'm thinking of getting an GPU for it if that makes sense?



is there anyway of knowing via a command or something? (running unraid 6.12.13 )



thanks in advance!



Ash

Edited October 2, 20241 yr by Ash3000k
added unraid ver

What's the board chipset?

6 minutes ago, JorgeB said:

What's the board chipset?

Hi im not 100% its a n100 intel cpu here is paste of the hardware info does it show it?



PCI Devices and IOMMU Groups

IOMMU group 0:[8086:46d1] 00:02.0 VGA compatible controller: Intel Corporation Alder Lake-N [UHD Graphics]

IOMMU group 1:[8086:461c] 00:00.0 Host bridge: Intel Corporation Device 461c

IOMMU group 2:[8086:464e] 00:0d.0 USB controller: Intel Corporation Alder Lake-N Thunderbolt 4 USB Controller

Bus 001 Device 001 Port 1-0 ID 1d6b:0002 Linux Foundation 2.0 root hub

Bus 002 Device 001 Port 2-0 ID 1d6b:0003 Linux Foundation 3.0 root hub

Bus 002 Device 002 Port 2-1 ID 090c:1000 Silicon Motion, Inc. - Taiwan (formerly Feiya Technology Corp.) Flash Drive

IOMMU group 3:[8086:54ed] 00:14.0 USB controller: Intel Corporation Alder Lake-N PCH USB 3.2 xHCI Host Controller

Bus 003 Device 001 Port 3-0 ID 1d6b:0002 Linux Foundation 2.0 root hub

Bus 004 Device 001 Port 4-0 ID 1d6b:0003 Linux Foundation 3.0 root hub

[8086:54ef] 00:14.2 RAM memory: Intel Corporation Alder Lake-N PCH Shared SRAM

IOMMU group 4:[8086:54e0] 00:16.0 Communication controller: Intel Corporation Alder Lake-N PCH HECI Controller

IOMMU group 5:[8086:54d3] 00:17.0 SATA controller: Intel Corporation Alder Lake-N SATA AHCI Controller

[2:0:0:0] disk ATA WDC WD60EFAX-68J 0A83 /dev/sdb 6.00TB

IOMMU group 6:[8086:54b8] 00:1c.0 PCI bridge: Intel Corporation Device 54b8

IOMMU group 7:[8086:54b9] 00:1c.1 PCI bridge: Intel Corporation Device 54b9

IOMMU group 8:[8086:54ba] 00:1c.2 PCI bridge: Intel Corporation Device 54ba

IOMMU group 9:[8086:54bb] 00:1c.3 PCI bridge: Intel Corporation Device 54bb

IOMMU group 10:[8086:54be] 00:1c.6 PCI bridge: Intel Corporation Device 54be

IOMMU group 11:[8086:54b1] 00:1d.0 PCI bridge: Intel Corporation Alder Lake-N PCI Express Root Port #10

IOMMU group 12:[8086:5481] 00:1f.0 ISA bridge: Intel Corporation Alder Lake-N PCH eSPI Controller

[8086:54c8] 00:1f.3 Multimedia audio controller: Intel Corporation Alder Lake-N PCH High Definition Audio Controller

[8086:54a3] 00:1f.4 SMBus: Intel Corporation Alder Lake-N SMBus

[8086:54a4] 00:1f.5 Serial bus controller: Intel Corporation Alder Lake-N SPI (flash) Controller

IOMMU group 13:[8086:125c] 01:00.0 Ethernet controller: Intel Corporation Ethernet Controller I226-V (rev 04)

IOMMU group 14:[8086:125c] 02:00.0 Ethernet controller: Intel Corporation Ethernet Controller I226-V (rev 04)

IOMMU group 15:[8086:125c] 03:00.0 Ethernet controller: Intel Corporation Ethernet Controller I226-V (rev 04)

IOMMU group 16:[8086:125c] 04:00.0 Ethernet controller: Intel Corporation Ethernet Controller I226-V (rev 04)

IOMMU group 17:[197b:0585] 05:00.0 SATA controller: JMicron Technology Corp. JMB58x AHCI SATA controller

[3:0:0:0] disk ATA WDC WD60EFAX-68J 0A83 /dev/sdc 6.00TB

[5:0:0:0] disk ATA WDC WD60EFAX-68J 0A83 /dev/sdd 6.00TB

[6:0:0:0] disk ATA WDC WD60EFAX-68J 0A83 /dev/sde 6.00TB

[7:0:0:0] disk ATA WDC WD60EFAX-68J 0A83 /dev/sdf 6.00TB

IOMMU group 18:[15b7:5017] 06:00.0 Non-Volatile memory controller: Sandisk Corp WD Black SN770 / PC SN740 256GB / PC SN560 (DRAM-less) NVMe SSD (rev 01)

[N:0:0:1] disk WD_BLACK SN770 500GB__1 /dev/nvme0n1 500GB

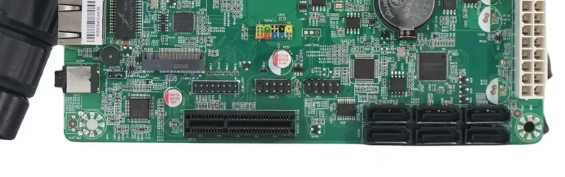

here is alink to the purchase page: https://www.aliexpress.com/item/1005006374919476.html?spm=a2g0o.order_list.order_list_main.9.727d18027Kt7HS

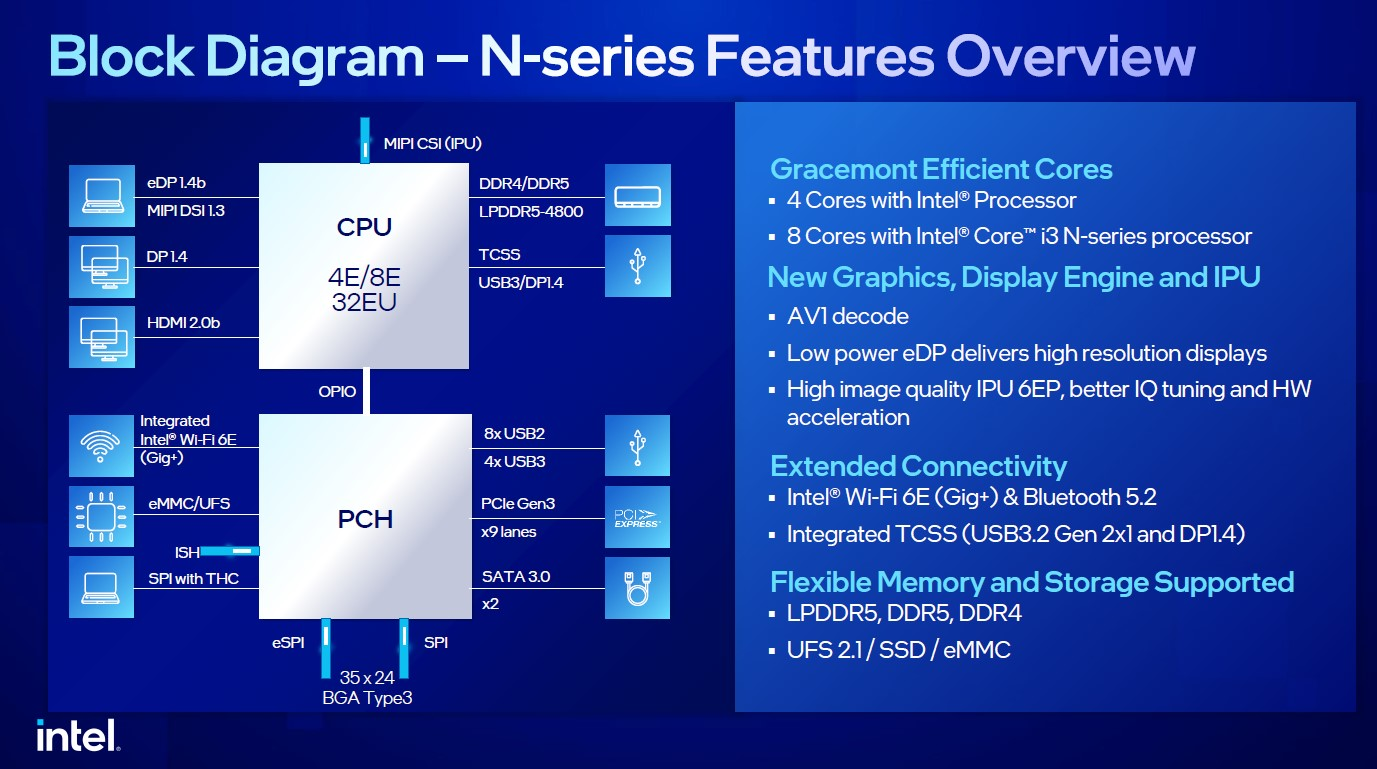

The's no CPU slot with those CPUs, it's from the PCH, but depending on what the GPU is for it may still be fine.

thanks, im only thinking of getting a tiny arc a310 or similar to use TDARR to convert my plex lib to av1 as all almost all h.265 and I know that format is dead now so when I download new media I will convert to av1 rather than h.265 if that make sense, do you think it will be ok for that ?

I don't transcode, but for that I think it should be fine.

42 minutes ago, JorgeB said:

I don't transcode, but for that I think it should be fine.

Thanks!
