October 19, 20241 yr Hi everyone, I tried adding a unriad user share to existing VMs to put backups there. However, no matter the mode (9p or virtiofs) or share location, both VMs i tried crash to the UEFI shell on startup and show a 'mapping table' message. Once I remove the share share, everything boots fine again. Both VMs are running Ubuntu one 20.x.x LTS, the other 22.x.x LTS. However I have a third VM running Ubuntu 22.x.x LTS as well, where I use a user share which I added when setting up the VM in the first place, running fine and booting fine when restarting. What might be the issue here? I added the VMs log, in hope there might be something in there. EDIT: Ok it gets weirder. I thought I might be able to fix this by creating a new VM and use the old drive image. Now the system is booting with the share attached and I can mount it, but it won't connect to br0. Once I remove the share from the new VM it connects to br0 again! Thanks for any help! log.txt Edited October 19, 20241 yr by jkami
October 19, 20241 yr Community Expert 1 hour ago, jkami said: Hi everyone, I tried adding a unriad user share to existing VMs to put backups there. However, no matter the mode (9p or virtiofs) or share location, both VMs i tried crash to the UEFI shell on startup and show a 'mapping table' message. Once I remove the share share, everything boots fine again. Both VMs are running Ubuntu one 20.x.x LTS, the other 22.x.x LTS. However I have a third VM running Ubuntu 22.x.x LTS as well, where I use a user share which I added when setting up the VM in the first place, running fine and booting fine when restarting. What might be the issue here? I added the VMs log, in hope there might be something in there. EDIT: Ok it gets weirder. I thought I might be able to fix this by creating a new VM and use the old drive image. Now the system is booting with the share attached and I can mount it, but it won't connect to br0. Once I remove the share from the new VM it connects to br0 again! Thanks for any help! log.txt 8.8 kB · 2 downloads What is your network type, suggest virtio-net if not selected already. As there is a kernel issue with 6.12.13 for virtio.
October 19, 20241 yr Author 2 hours ago, SimonF said: What is your network type, suggest virtio-net if not selected already. As there is a kernel issue with 6.12.13 for virtio. Hi Simon, thanks for the quick reply. I did select virtio-net for all the VMs. Just to make sure, I tried the inverse as well and selected virtio on the newly created VM with the old image, with the same result.
October 19, 20241 yr Community Expert 33 minutes ago, jkami said: Hi Simon, thanks for the quick reply. I did select virtio-net for all the VMs. Just to make sure, I tried the inverse as well and selected virtio on the newly created VM with the old image, with the same result. How much memory do you have allocated, virtiofs needs shared memory try increasing.
October 19, 20241 yr Author 8 minutes ago, SimonF said: How much memory do you have allocated, virtiofs needs shared memory try increasing. Diffent amounts on the different VMs, but even the one with the most amount of memory, 50gb of root storage and 4gb of RAM, is not able to boot with a share attached EDIT: And the host has 16gb of RAM Edited October 19, 20241 yr by jkami
October 19, 20241 yr Community Expert Just now, jkami said: Diffent amounts on the different VMs, but even the one with the most amount of memory, 50gb of root storage and 4gb of RAM, is not able to boot with a share attached Can you post diagnostics?
October 19, 20241 yr Author 4 minutes ago, SimonF said: Can you post diagnostics? Sure, here they are kaminski-server-diagnostics-20241019-2250.zip

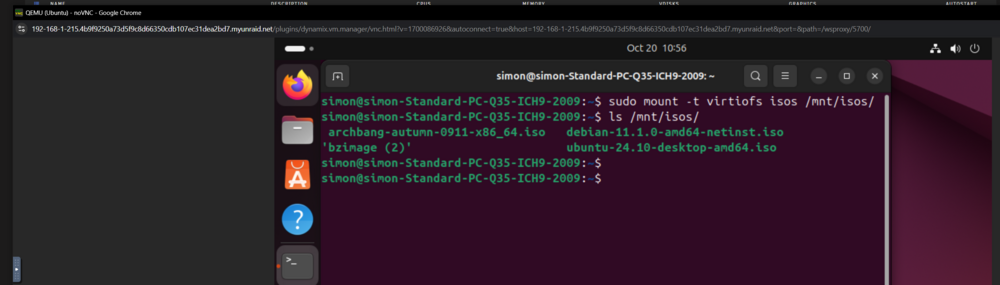

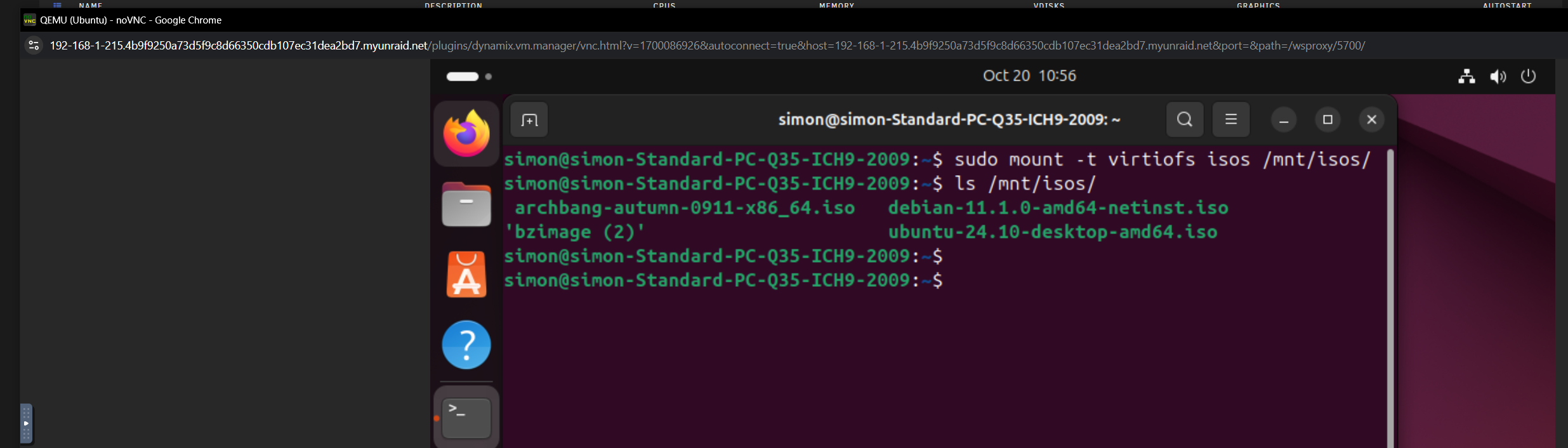

October 20, 20241 yr Community Expert I cannot see any issue from Diags. I have created Ubuntu 24.10 on both 6.12.13 and 7 with no issues. I did find that VM did not install correctly with < 4Gb memory. Once VM is booted I had to install virtiofsd and could map a drive. So have not been able to replicate yur issue,
