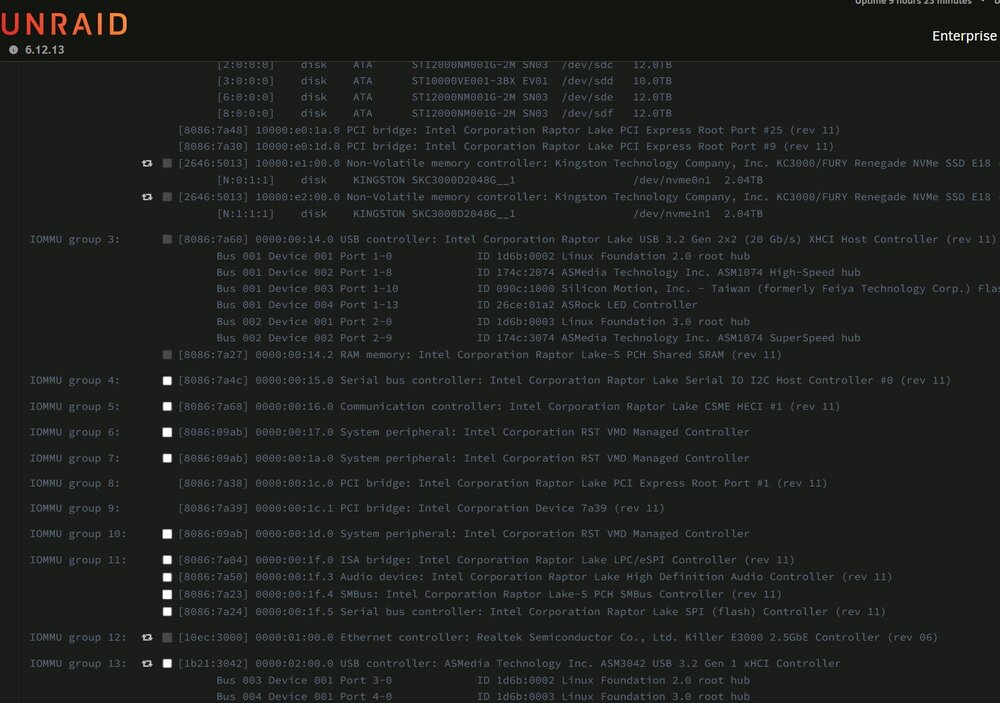

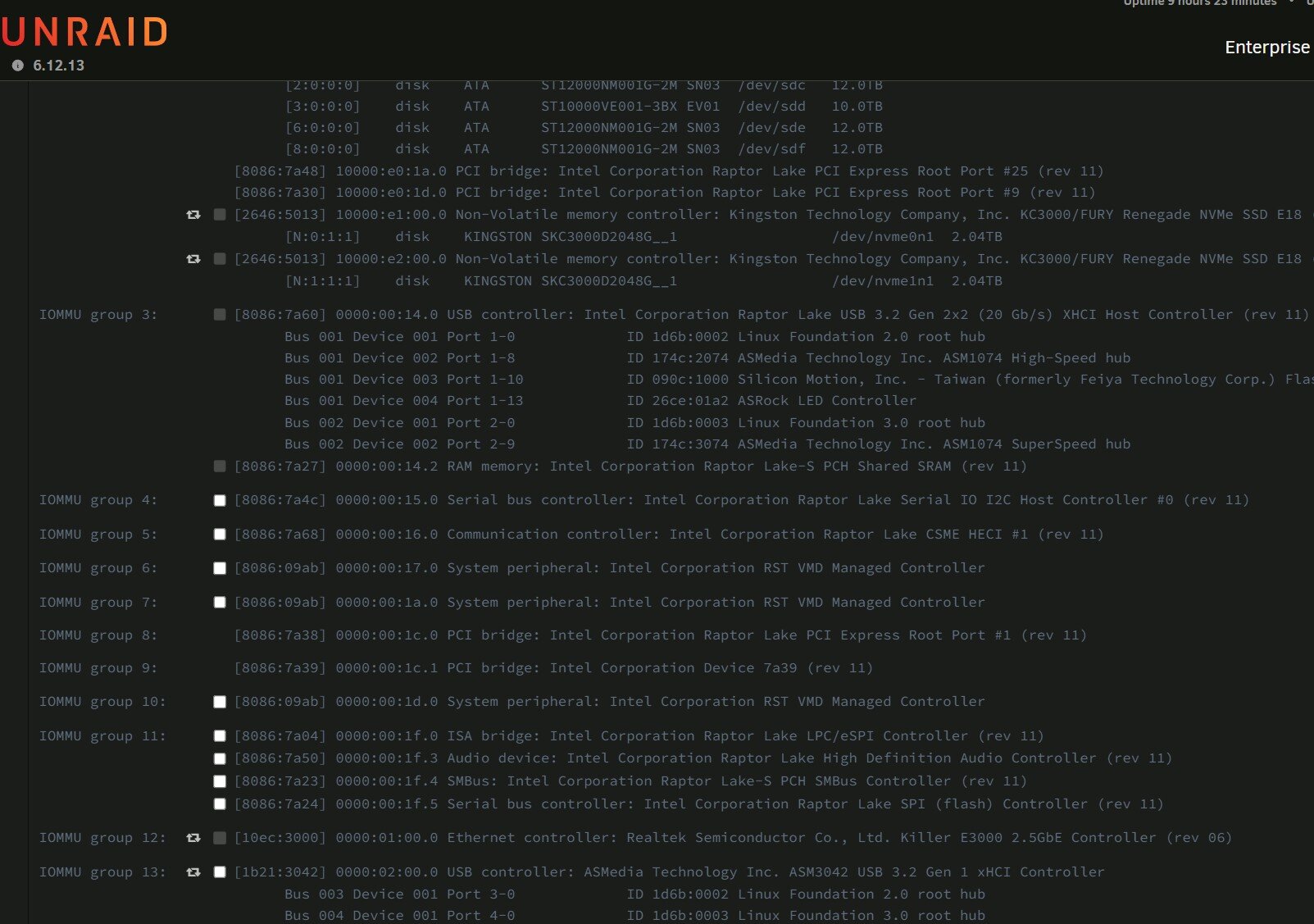

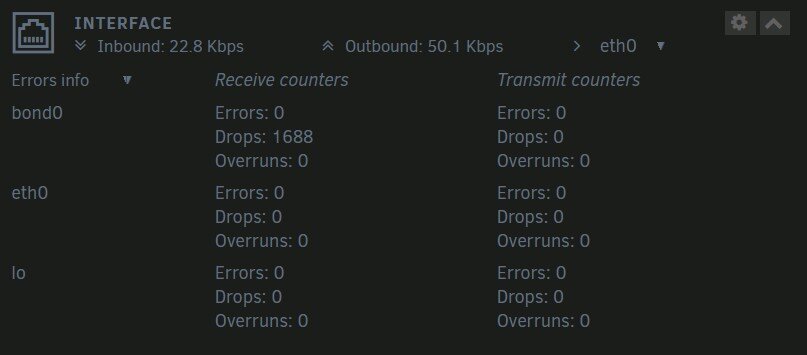

October 23, 20241 yr Hi guys, New build, New user Love unRAID but short after deployment setup I tried to transfer files from the Synology on my wired network. Speeds at best 25 MB/s on the 1gbit ethernet. Have tried with Parity off, tried with cache on/off, tried SMB settings, Turbo writes, Network MTU's, NO parity calculations ongoing or other loads on cpui etc etc.. Downloads via Sabnzb + Wireguard VPN is at 70 MB/s which is fine. Also checked network cable and checked unifi router which says connected to GbE. Unraid also says connected to GbE. ASRock | Z790 PG Riptide motherboard has the Intel Killer E3100 NIC. unRaid Driver automatically installed: r8169RealTek RTL-8169 Gigabit Ethernet Location: net/ethernet/realtek The device is getting many drops in the dashboard, so something is very wrong? (See picture) Device found by unRaid is: IOMMU group 12:[10ec:3000] 0000:01:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. Killer E3000 2.5GbE Controller (rev 06) Question, is this not wrong version? should be E3100? I've seen that the forum has had issues with RTL-8169 driver and suggest changing to 8125, but I'm new to this ,and would really like some confirmation. Or if unRAID could update this in coming releases? Thanks for all your time and effort, I've attached my Diagnostics below. ______________________________________________________________ Chassi: Define R7 XL M/B:ASRock Z790 PG Riptide s/n M80-G9018600076 BIOS:American Megatrends International, LLC. Version 17.01 Dated 09/27/2024 CPU:Intel® Core™ i5-14500 @ 2574 MHz HVM:Enabled IOMMU:Enabled Cache:L1 Cache: 288 KiB, L1 Cache: 192 KiB, L2 Cache: 7680 KiB, L3 Cache: 24 MiB, L1 Cache: 256 KiB, L1 Cache: 512 KiB, L2 Cache: 4 MiB, L3 Cache: 24 MiB Memory:96 GiB DDR5 (max. installable capacity 128 GiB) Network:bond0: fault-tolerance (active-backup), mtu 1500 Kernel:Linux 6.1.106-Unraid x86_64 enterprise-diagnostics-20241023-0945.zip Edited October 23, 20241 yr by don_weasel adjusted
October 23, 20241 yr Community Expert Post the results of a single stream iperf test in both directions.
October 23, 20241 yr Author Unraid as Server listening on 5201 (test #1) ----------------------------------------------------------- Accepted connection from 192.168.1.21, port 53052 [ 5] local 192.168.1.231 port 5201 connected to 192.168.1.21 port 53053 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.00 sec 113 MBytes 947 Mbits/sec [ 5] 1.00-2.00 sec 113 MBytes 949 Mbits/sec [ 5] 2.00-3.00 sec 113 MBytes 949 Mbits/sec [ 5] 3.00-4.00 sec 113 MBytes 949 Mbits/sec [ 5] 4.00-5.00 sec 113 MBytes 949 Mbits/sec [ 5] 5.00-6.00 sec 113 MBytes 949 Mbits/sec [ 5] 6.00-7.00 sec 113 MBytes 949 Mbits/sec [ 5] 7.00-8.00 sec 113 MBytes 949 Mbits/sec [ 5] 8.00-9.00 sec 113 MBytes 949 Mbits/sec [ 5] 9.00-10.00 sec 113 MBytes 949 Mbits/sec [ 5] 10.00-10.02 sec 2.31 MBytes 949 Mbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.02 sec 1.11 GBytes 949 Mbits/sec receiver ----------------------------------------------------------- Server listening on 5201 (test #2) ----------------------------------------------------------- Unraid as Client: [ 5] local 192.168.1.231 port 57352 connected to 192.168.1.21 port 5201 [ ID] Interval Transfer Bitrate Retr Cwnd [ 5] 0.00-1.00 sec 114 MBytes 957 Mbits/sec 0 240 KBytes [ 5] 1.00-2.00 sec 112 MBytes 936 Mbits/sec 0 235 KBytes [ 5] 2.00-3.00 sec 112 MBytes 942 Mbits/sec 0 235 KBytes [ 5] 3.00-4.00 sec 112 MBytes 942 Mbits/sec 0 238 KBytes [ 5] 4.00-5.00 sec 112 MBytes 942 Mbits/sec 0 232 KBytes [ 5] 5.00-6.00 sec 112 MBytes 936 Mbits/sec 0 232 KBytes [ 5] 6.00-7.00 sec 112 MBytes 942 Mbits/sec 0 235 KBytes [ 5] 7.00-8.00 sec 112 MBytes 941 Mbits/sec 0 232 KBytes [ 5] 8.00-9.00 sec 112 MBytes 941 Mbits/sec 0 238 KBytes [ 5] 9.00-10.00 sec 112 MBytes 941 Mbits/sec 0 232 KBytes - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate Retr [ 5] 0.00-10.00 sec 1.10 GBytes 942 Mbits/sec 0 sender [ 5] 0.00-10.00 sec 1.09 GBytes 941 Mbits/sec receiver
October 23, 20241 yr Community Expert That looks fine, post a screenshot from the Windows explorer graph during a large file transfer to the array without parity, or with turbo write enabled, but for the latter note that parity must be synced, in the diags it's still invalid, turbo write doesn't work with an invalid parity.
October 23, 20241 yr Author Thank you for helping out, yes It looks great actually. Without parity? U mean: stop array, take parity disc out, and restart array? Or Just letting it be online, and just setting writes to recunstructive? a.k.a Turbo? Both of these needs Parity's been completed?
October 23, 20241 yr Community Expert To remove parity you don't need to sync it, just unassign it and start the array, to test with parity and turbo write, you need to let it sync first .
October 24, 20241 yr Author Hey @JorgeB I'm seeing 60-80MB/s when doing a Turbo-write now. Parity is on. High water profile. I should be seeing 100+mb/s right? still glad it's no 20....
October 25, 20241 yr Community Expert 12 hours ago, don_weasel said: I should be seeing 100+mb/s right? Usually yes, but will depend on the hardware, post new diags saved during a large file transfer.
