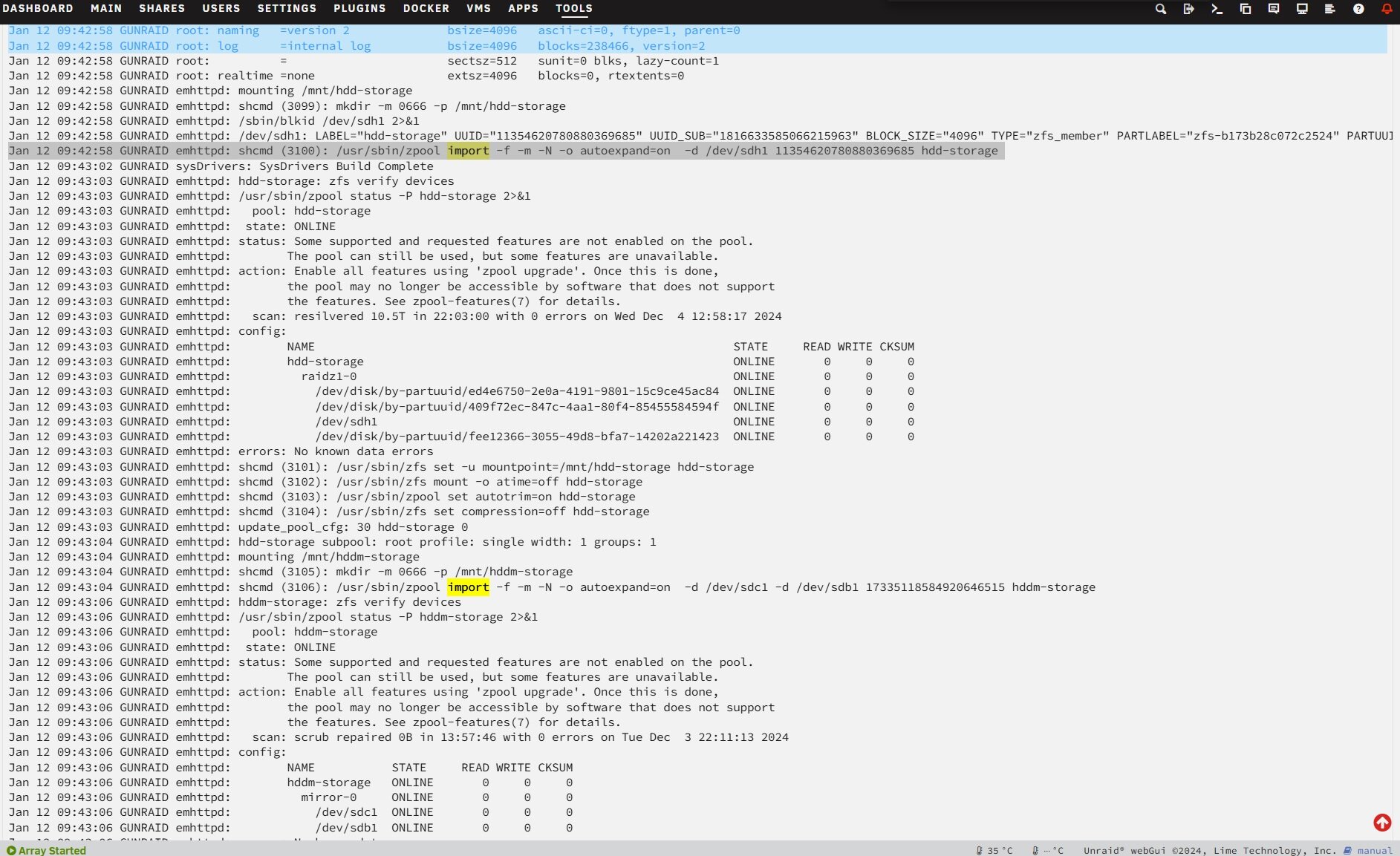

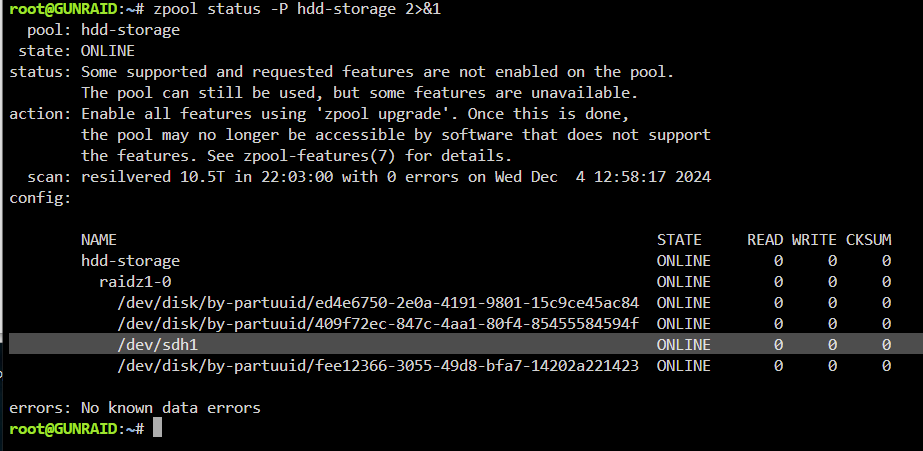

I've upgraded from 6.11.5 to 7.0, and after a lot of debugging here is what I see is happening. Everything works, but the UI shows my 4-drive RAIDZ1 incorrectly. The reason is because it maps the /dev/sdh1 drive in the UI but not the /by-partuuid/ drives. In the syslog, the zfs import command only includes /dev/sdh1 . You can see for the "hddm-storage" mirror import command it includes both /dev/sdc1 and /dev/sdb1 .



I figured out that it simply needs to import the pool like this "zpool import -d /dev/disk/by-id <pool-name>" but it doesn't and i can't force it to. The best I was able to do was start a new config with just the hddm-storage and not the hdd-storage 4-drive RAIDZ1, and manually import hdd-storage with "-d /dev/disk/by-id" , THEN add the pool, and THEN the UI shows all 4 drives BUT to the right it says "unable to mount this pool" so it's bugged THAT way instead.



How can I make it import the hdd-storage pool with "by-id" or at least all uniformly so that one drive (sdh1) isn't different from the others which then confuses the UI reporting?















Unraid always uses the device IDs, since the pools must be assigned, so it doesn't matter if they change, where/how was the pool created, and do you know why just one device is using /dev/sdX?



Please post the complete diagnostics after trying to start the array but you will likely need to recreate the pool.

4 hours ago, JorgeB said:

you will likely need to recreate the pool.

Another option, and possibly easier if you don't have a full backup, would be to offline one of the devices that is using the UUID, and then replace it with the same device using /dev/sdX1, then repeat for the remianing ones.

7 hours ago, JorgeB said:

Another option, and possibly easier if you don't have a full backup, would be to offline one of the devices that is using the UUID, and then replace it with the same device using /dev/sdX1, then repeat for the remianing ones.

I tried offlining sdh and replacing with itself with its by-partuuid like the others. It said you can’t replace a drive with itself.


Sdh is different because it is the drive that failed and i had to replace back under 6.11.5 i did a manual replace with another disk and it ended up going by dev/sdh instead of partuuid.



i can’t recreate the whole pool. Should be possible to remove the drive and add it back as a new drive but by its by-partuuid. It would have to resilver all over again. Would that work, Does unraid just want them all by partuuid?

Edited January 13, 20251 yr by 0edge

10 hours ago, 0edge said:

I tried offlining sdh and replacing with itself with its by-partuuid like the others.

No, the other way around, replace them all with /dev/sdX devices.

You get an error that you can’t replace a drive with itself, like I said.

However, are you saying Unraid will simply not detect any drive that does not go by /dev/sdX? I’m starting to think that’s the case (i thought surely if they were all the same aka by partuuid, unraid would not be confused).



This is pretty shortsighted, especially since /dev/sdX is not actually recommended and people may be migrating their ZFS pools from elsewhere. Unraid should detect all drives as provided by the zpool status command…

1 hour ago, 0edge said:

(i thought surely if they were all the same aka by partuuid, unraid would not be confused)

Possibly, never tested.



1 hour ago, 0edge said:

You get an error that you can’t replace a drive with itself, like I said.

Try again after offlining the disk and then rebooting, if it still doesn't allow, try swapping vales wot a different disk so that the sdX IDs change

I need to know if it’s enough for all of them to go by-partuuid before I replace the sdh drive with my spare to force it to be by-partuuid from the beginning. This will take time and resilvering. I suspect that’s the only thing that would work, if Unraid doesnt fix this bug. The offlining does not work because at the very least the replace command leads to a resilver, and i’m not resilvering 3 drives instead of just the 1 to make it by-partuuid like the others.

Edited January 14, 20251 yr by 0edge

Did a quick test and it does work if all devices are using by-partuuid.

Hmm, but it's also working for me with the same mismatched config you had:

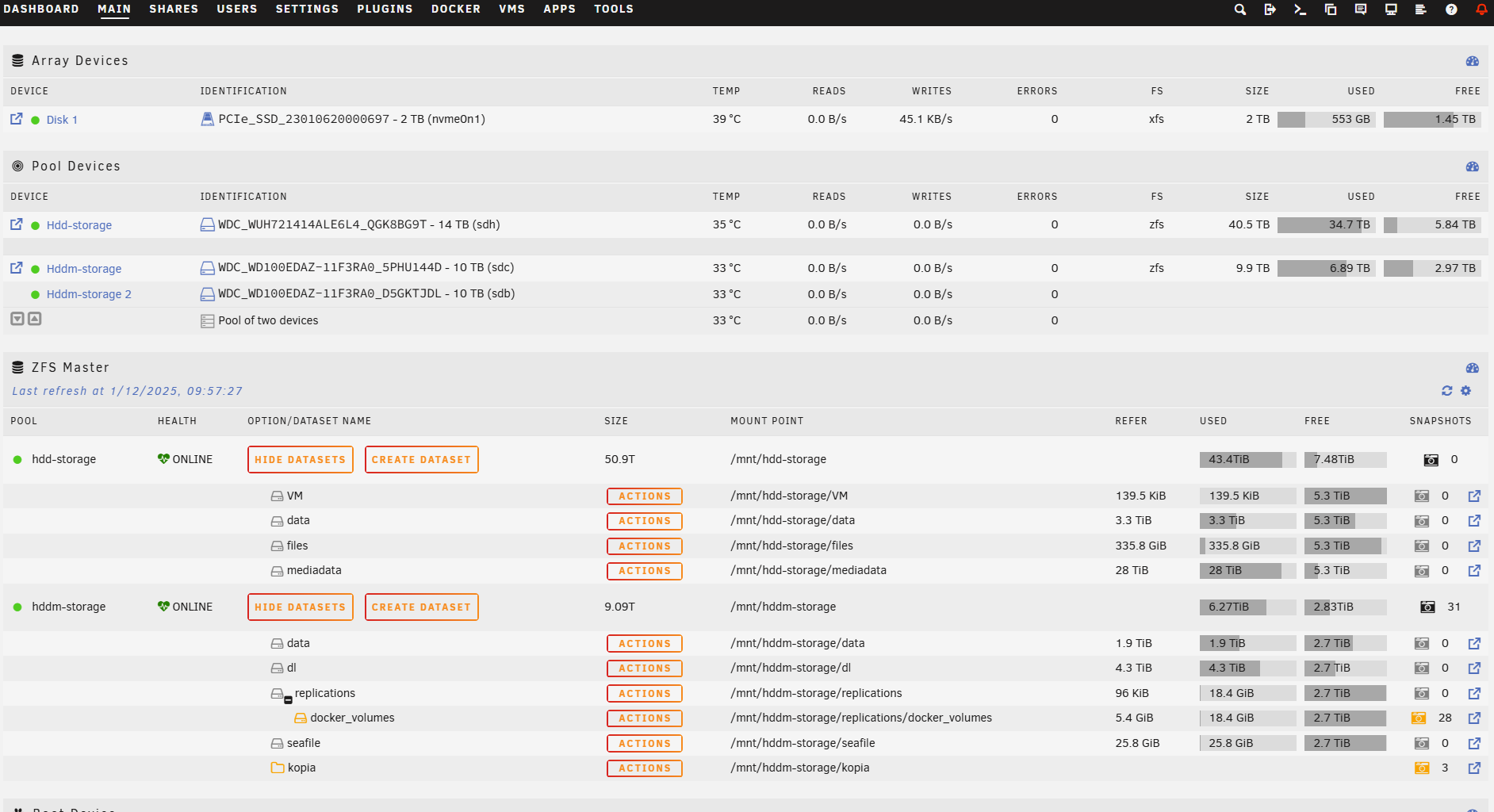

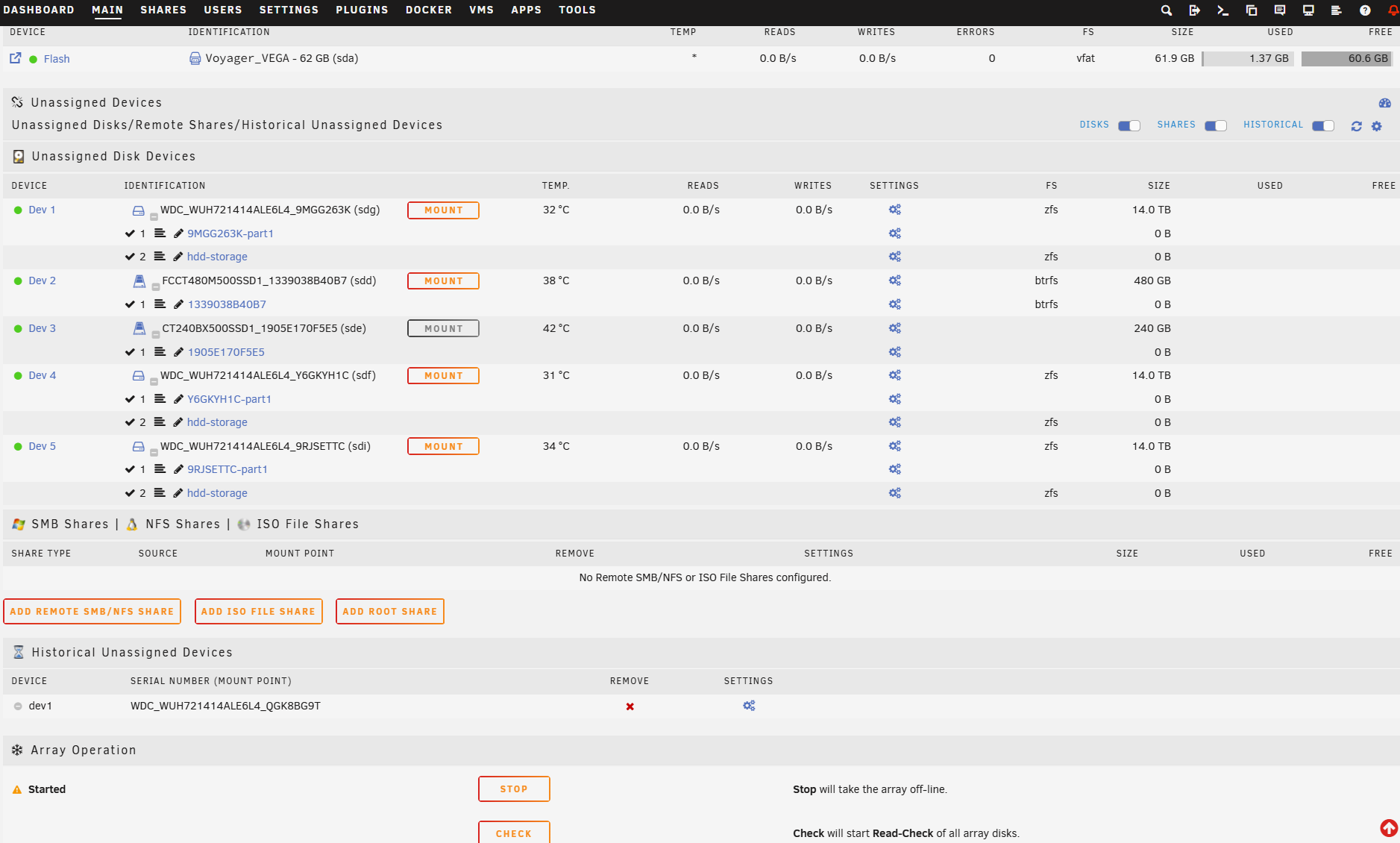

It works, it’s the UNRAID UI that displays it weird. My mirror says “this is a pool of 2 drives”, but the RAIDZ1 just shows the single sdh drive and the other 3 show up under “unassigned”

38 minutes ago, 0edge said:

It works, it’s the UNRAID UI that displays it weird. My mirror says “this is a pool of 2 drives”, but the RAIDZ1 just shows the single sdh drive and the other 3 show up under “unassigned”

I meant that the pool was imported correctly using the GUI, and it renamed all the devices to sdX
