Hello,

I am not able anymore to connect to my exposed services from outside my local network, from inside the local network works, even reaching for the external URL.



The Problem, I'm not completely shure, started when i upgraded to Unraid OS 7.0.0, I reveted back to 6.12.14 and trying to diagnose the issue now the server is on 6.12.15 version but the problem still persists.



The involved Network configuration is:

- Ubiquiti Gateway                                                                            STATIC IP 192.168.9.1

- Unraid Server Machine                                                                    STATIC IP 192.168.9.2

- Nginx Proxy Docker                            Set to Custom : br0 -- Ethernet Fixed IP 192.168.9.22

- Home Assistant VM                                                                         STATIC IP 192.168.9.20

- Vaultwarden Docker                           Set to Custom : br0 -- Ethernet Fixed IP 192.168.9.24

- Nextcloud Docker                               Set to Bridge



The services that I have exposed are : - Nextcloud in Docker

                                                          - Vaultwarden in Docker

                                                          - Home Assistant in VM



All of these services are behind a Docker Reverse Proxy (Nginx-Proxy-Manager-Official) running on the same Unraid Machine.

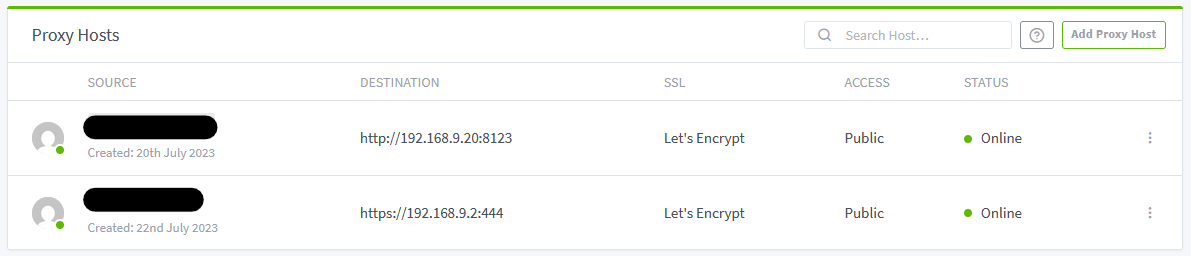

This is the configuration: - First row is the Home Assistant VM

                                      - Second row the Nextcloud Docker Container

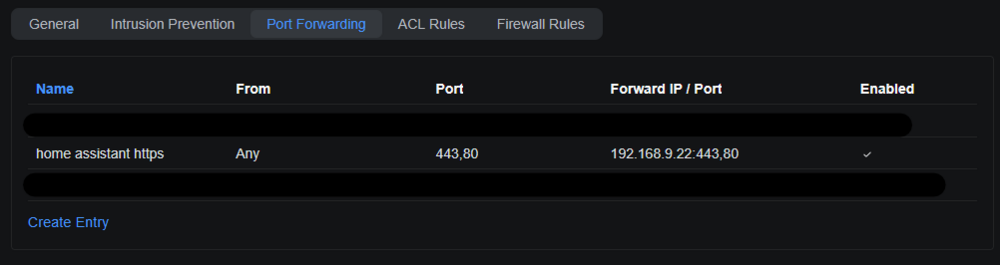

The Ubiquity Gateway is configured this way:



Taking Home Assistant VM as an example: as I mentioned above I can reach the Internal URL from LAN side (http://192.168.9.20:8123). From LAN also the External URL works (my.external.domain), but from WAN the client keeps loading with a timeout error in the end.



I'm pretty sure that the Port Forward rules are working 1. because I didn't change anything 2. because the VPN server is working correctly (Hidden forward rule).



Thanks to all that will help out.

Alessandro

srvnascasa-diagnostics-20250219-1033.zip

Have you had any luck on figuring out your issue?   I finally decided to upgrade to 7.0 today.   I lost all external access to my Plex, Nextcloud, & Overseer.   nextcloud can't connect to the mariadb any more either.    all this was working this morning.   all I did was update each docker first this morning with there local updates, then did the 7.0 update.   seem like a network issue that has been introduced.   not sure what to do next.
