I am having an issue after migrating to Dell T630 with Perc H330 in HBA Mode.

I documented drive assignments with serial numbers on my old Dell server.



I moved al the drives over to the new server along with the USB Drive.



Powered up the new server and logged into the Unraid Console.

I see all the drives with correct serial numbers and assign each drive to the same position as the old drive.

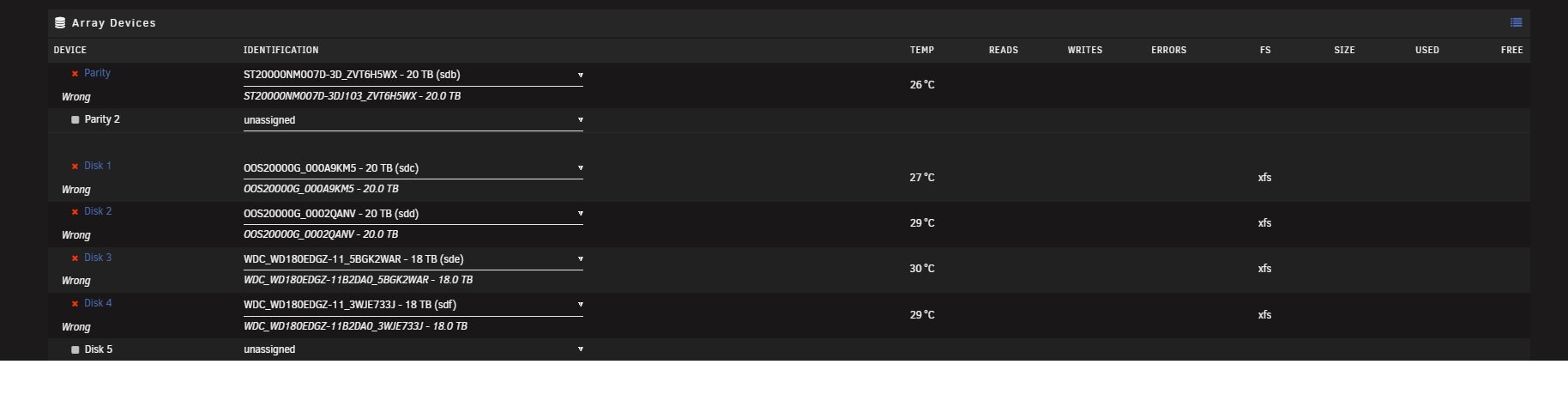

Each Disk shows as "Wrong" and the "Start Array" option is not enabled.



What am I missing here?  The last time I did a hardware migration back in 2018 I had 0 issues.





mediatower-diagnostics-20250413-0821.zip

Edited April 13, 20251 yr by a12vman

You should not have needed to reassign any drives. Are you sure no RAID controllers involved in old or new system?

My old system had a LSI Card flashed in IT Mode.

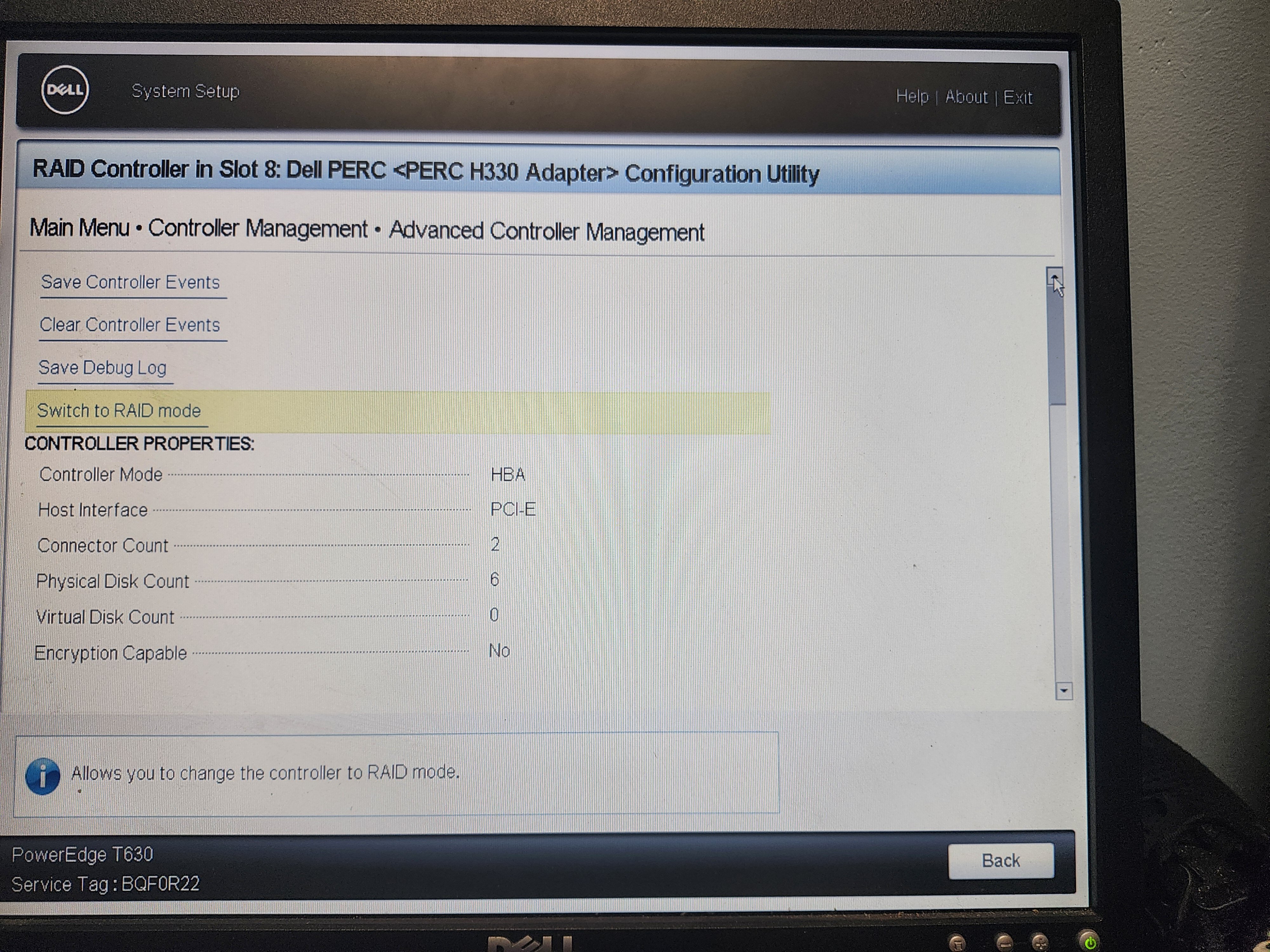

New system has a PERC H330 and I double checked that it is in HBA Mode from Dell's System Setup.



Are there issues with UnRaid and the H330?

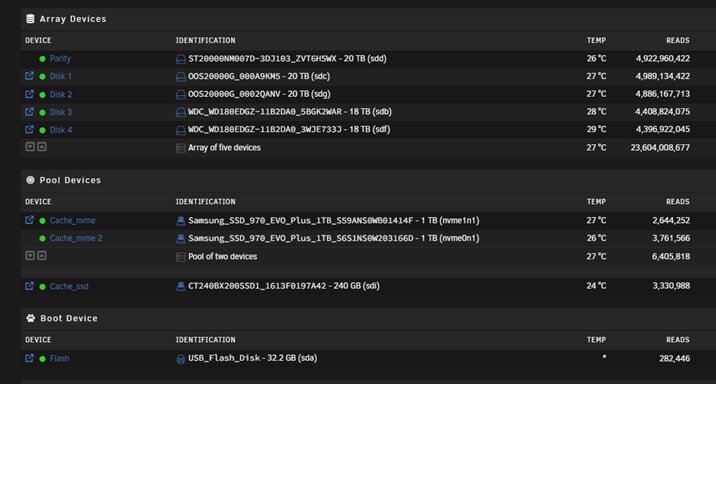

Is the screenshot from the old system?

Attach Diagnostics ZIP to your NEXT post in this thread.

mediatower-diagnostics-20250413-0821.zip

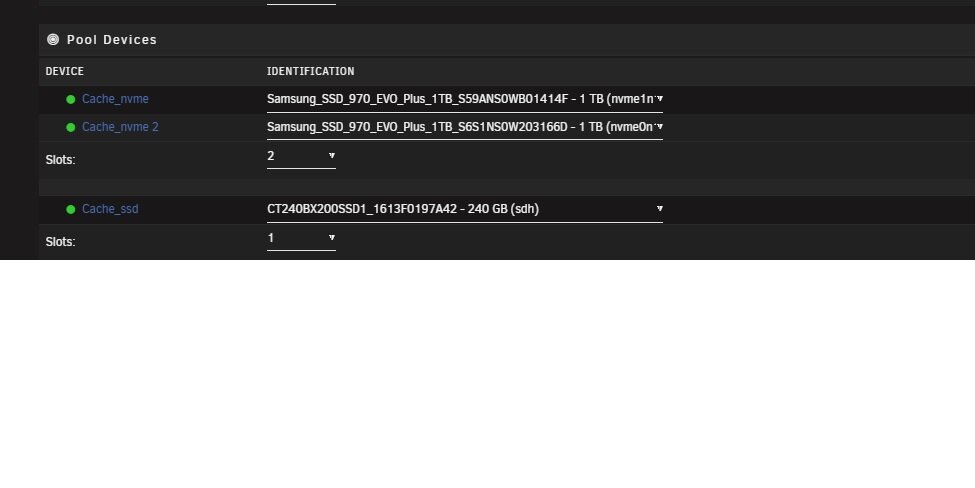

Here is old and new configs.

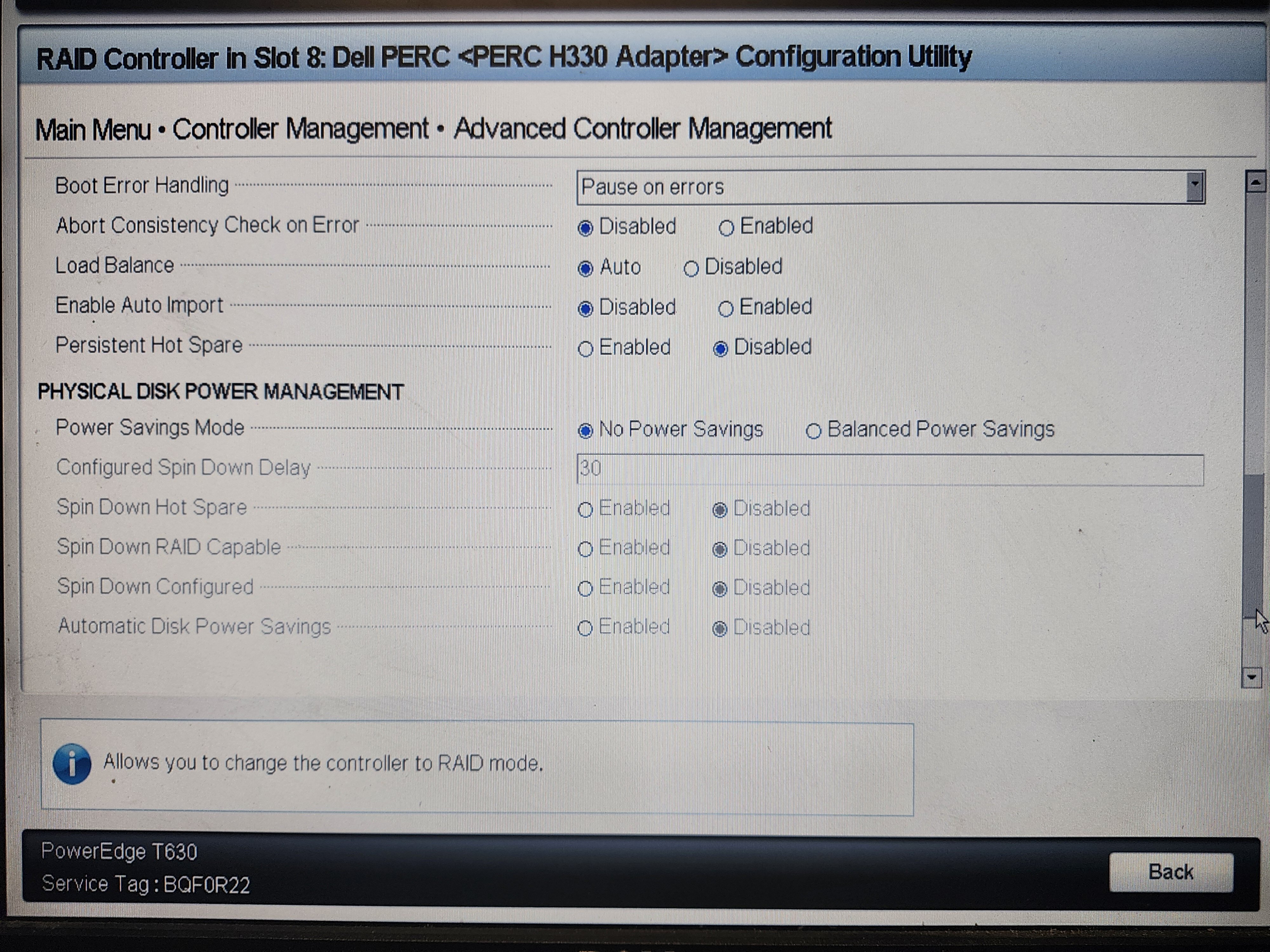

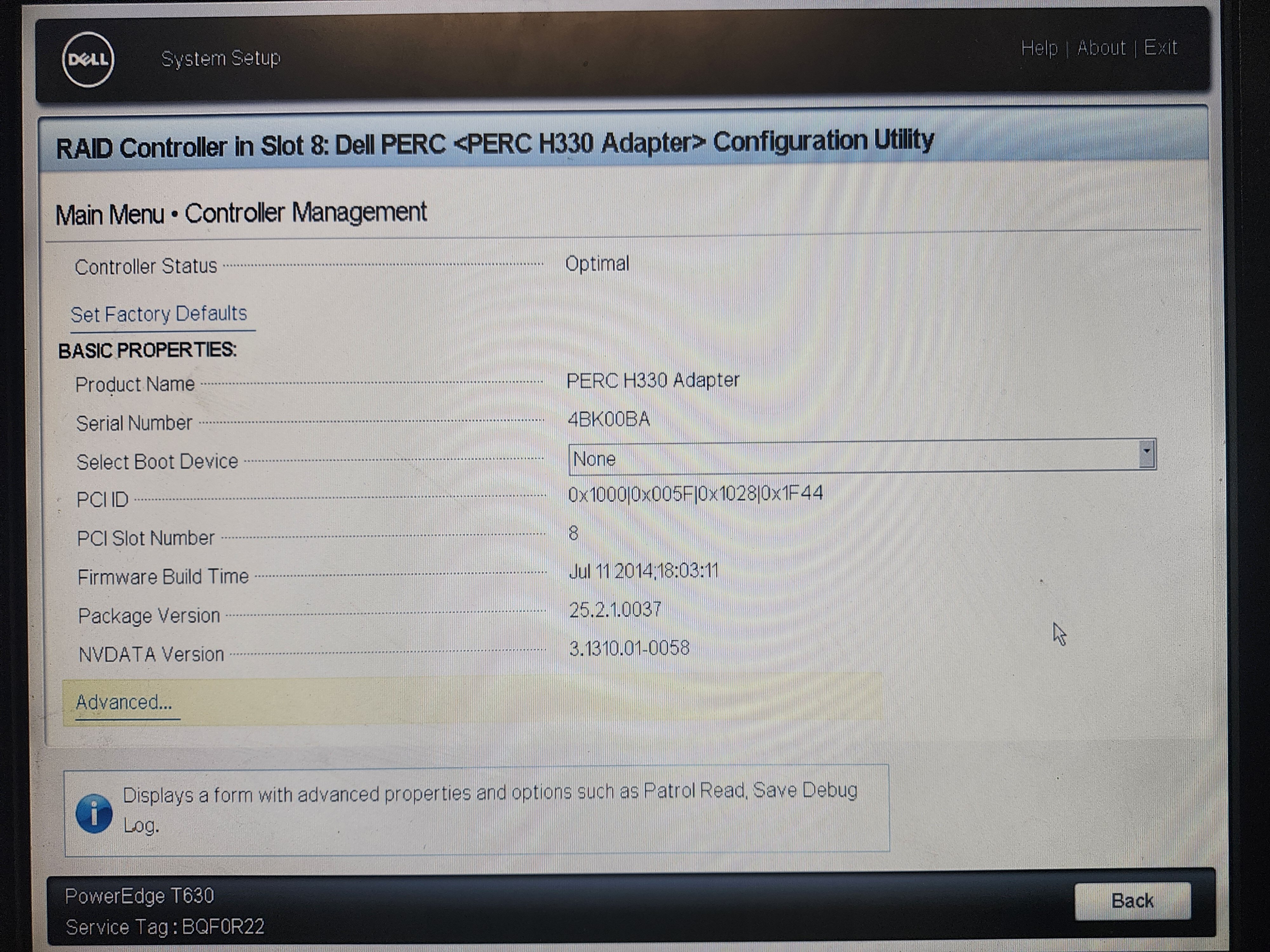

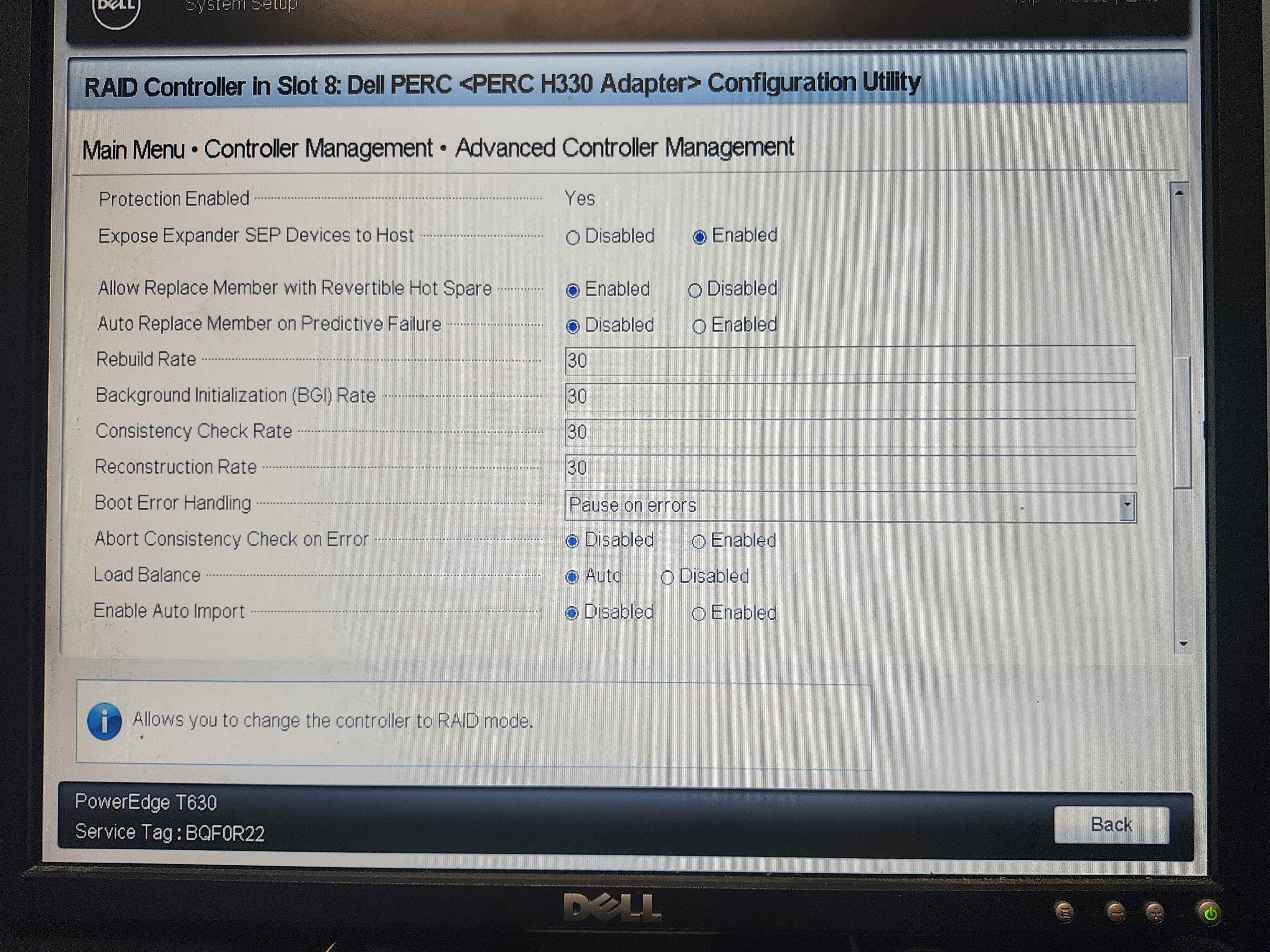

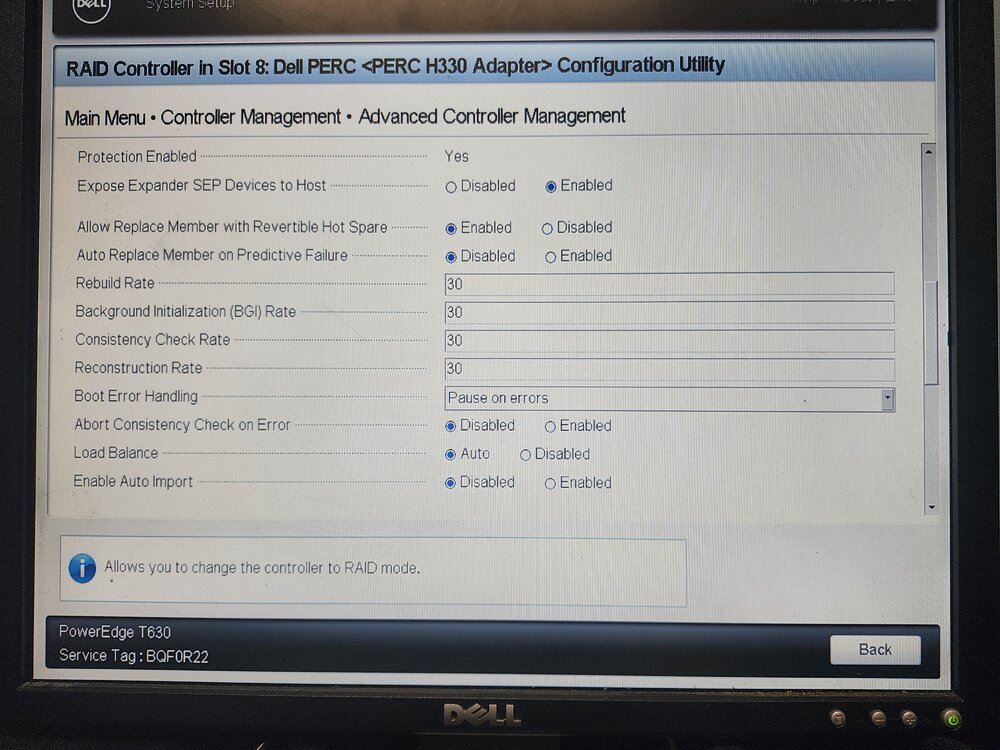

Here are the PERC Settings from BIOS:



All good now!  PERC Drivers were outdated and i missed that.



Updated to latest version and all is well.
