Graphics card showing pcie1x1

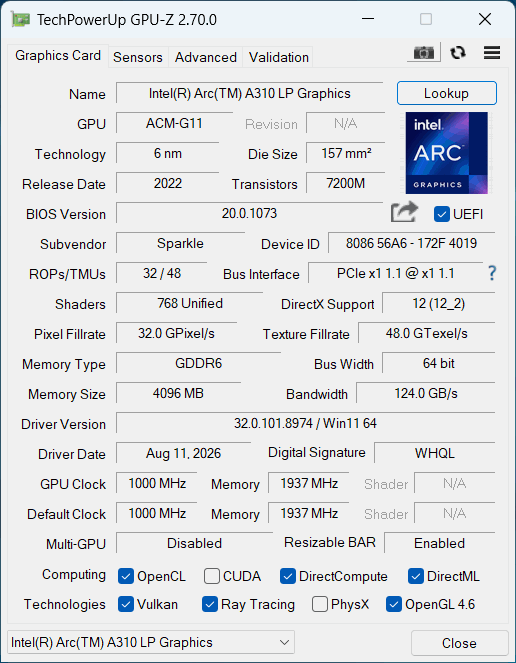

Have created windows 11 vm and installed a new intel arc a310LP, this is just for video encoding. Everything seems to be fine but GPUz reporting pcei 1 x1, card is definitely in x16 slot and bios setup correctly and resize bar enabled as well. Power plan is set to high performance. Any more ideas please see below for xml for vm. I have also attached photo of gpuz. Thanks in advance. If checked AI but really don't trust it. 🫣

<?xml version='1.0' encoding='UTF-8'?>

<domain type='kvm' id='33'>

<name>Windows 11</name>

<uuid>e032cde4-37fd-4a51-0f34-1fc024e05a22</uuid>

<metadata>

<vmtemplate xmlns="unraid" name="Windows 11" iconold="windows11.png" icon="windows11.png" os="windowstpm" webui="" storage="default"/>

</metadata>

<memory unit='KiB'>12582912</memory>

<currentMemory unit='KiB'>12582912</currentMemory>

<memoryBacking>

<nosharepages/>

</memoryBacking>

<vcpu placement='static'>14</vcpu>

<cputune>

<vcpupin vcpu='0' cpuset='2'/>

<vcpupin vcpu='1' cpuset='3'/>

<vcpupin vcpu='2' cpuset='4'/>

<vcpupin vcpu='3' cpuset='5'/>

<vcpupin vcpu='4' cpuset='6'/>

<vcpupin vcpu='5' cpuset='7'/>

<vcpupin vcpu='6' cpuset='8'/>

<vcpupin vcpu='7' cpuset='9'/>

<vcpupin vcpu='8' cpuset='10'/>

<vcpupin vcpu='9' cpuset='11'/>

<vcpupin vcpu='10' cpuset='12'/>

<vcpupin vcpu='11' cpuset='13'/>

<vcpupin vcpu='12' cpuset='14'/>

<vcpupin vcpu='13' cpuset='15'/>

</cputune>

<resource>

<partition>/machine</partition>

</resource>

<os>

<type arch='x86_64' machine='pc-q35-10.2'>hvm</type>

<loader readonly='yes' type='pflash' format='raw'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd</loader>

<nvram format='raw'>/etc/libvirt/qemu/nvram/e032cde4-37fd-4a51-0f34-1fc024e05a22_VARS-pure-efi-tpm.fd</nvram>

</os>

<features>

<acpi/>

<apic/>

<hyperv mode='custom'>

<relaxed state='on'/>

<vapic state='on'/>

<spinlocks state='on' retries='8191'/>

<vpindex state='on'/>

<synic state='on'/>

<stimer state='on'/>

<vendor_id state='on' value='none'/>

</hyperv>

</features>

<cpu mode='host-passthrough' check='none' migratable='off'>

<topology sockets='1' dies='1' clusters='1' cores='7' threads='2'/>

<cache mode='passthrough'/>

</cpu>

<clock offset='localtime'>

<timer name='hpet' present='no'/>

<timer name='hypervclock' present='yes'/>

</clock>

<on_poweroff>destroy</on_poweroff>

<on_reboot>restart</on_reboot>

<on_crash>restart</on_crash>

<devices>

<emulator>/usr/local/sbin/qemu</emulator>

<disk type='file' device='disk'>

<driver name='qemu' type='raw' cache='writeback' discard='unmap'/>

<source file='/mnt/user/domains/Windows 11/vdisk1.img' index='3'/>

<backingStore/>

<target dev='hdc' bus='virtio'/>

<serial>vdisk1</serial>

<boot order='1'/>

<alias name='virtio-disk2'/>

<address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/>

</disk>

<disk type='file' device='cdrom'>

<driver name='qemu' type='raw'/>

<source file='/mnt/user/isos/Windows/Win11_25H2_EnglishInternational_x64_v2 (1).iso' index='2'/>

<backingStore/>

<target dev='hda' bus='sata'/>

<readonly/>

<boot order='2'/>

<alias name='sata0-0-0'/>

<address type='drive' controller='0' bus='0' target='0' unit='0'/>

</disk>

<disk type='file' device='cdrom'>

<driver name='qemu' type='raw'/>

<source file='/mnt/user/isos/virtio-win-0.1.285-1.iso' index='1'/>

<backingStore/>

<target dev='hdb' bus='sata'/>

<readonly/>

<alias name='sata0-0-1'/>

<address type='drive' controller='0' bus='0' target='0' unit='1'/>

</disk>

<controller type='pci' index='0' model='pcie-root'>

<alias name='pcie.0'/>

</controller>

<controller type='pci' index='1' model='pcie-root-port'>

<model name='pcie-root-port'/>

<target chassis='1' port='0x8'/>

<alias name='pci.1'/>

<address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/>

</controller>

<controller type='pci' index='2' model='pcie-to-pci-bridge'>

<model name='pcie-pci-bridge'/>

<alias name='pci.2'/>

<address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>

</controller>

<controller type='pci' index='3' model='pcie-root-port'>

<model name='pcie-root-port'/>

<target chassis='3' port='0x9'/>

<alias name='pci.3'/>

<address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>

</controller>

<controller type='pci' index='4' model='pcie-root-port'>

<model name='pcie-root-port'/>

<target chassis='4' port='0xa'/>

<alias name='pci.4'/>

<address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>

</controller>

<controller type='pci' index='5' model='pcie-root-port'>

<model name='pcie-root-port'/>

<target chassis='5' port='0xb'/>

<alias name='pci.5'/>

<address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x3'/>

</controller>

<controller type='pci' index='6' model='pcie-root-port'>

<model name='pcie-root-port'/>

<target chassis='6' port='0xc'/>

<alias name='pci.6'/>

<address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x4'/>

</controller>

<controller type='pci' index='7' model='pcie-root-port'>

<model name='pcie-root-port'/>

<target chassis='7' port='0xd'/>

<alias name='pci.7'/>

<address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x5'/>

</controller>

<controller type='virtio-serial' index='0'>

<alias name='virtio-serial0'/>

<address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>

</controller>

<controller type='sata' index='0'>

<alias name='ide'/>

<address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>

</controller>

<controller type='usb' index='0' model='nec-xhci' ports='15'>

<alias name='usb'/>

<address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>

</controller>

<interface type='bridge'>

<mac address='52:54:00:18:96:88'/>

<source bridge='br0'/>

<target dev='vnet32'/>

<model type='virtio'/>

<alias name='net0'/>

<address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>

</interface>

<serial type='pty'>

<source path='/dev/pts/0'/>

<target type='isa-serial' port='0'>

<model name='isa-serial'/>

</target>

<alias name='serial0'/>

</serial>

<console type='pty' tty='/dev/pts/0'>

<source path='/dev/pts/0'/>

<target type='serial' port='0'/>

<alias name='serial0'/>

</console>

<channel type='unix'>

<source mode='bind' path='/run/libvirt/qemu/channel/33-Windows 11/org.qemu.guest_agent.0'/>

<target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>

<alias name='channel0'/>

<address type='virtio-serial' controller='0' bus='0' port='1'/>

</channel>

<input type='mouse' bus='ps2'>

<alias name='input0'/>

</input>

<input type='keyboard' bus='ps2'>

<alias name='input1'/>

</input>

<tpm model='tpm-tis'>

<backend type='emulator' version='2.0' persistent_state='yes'/>

<alias name='tpm0'/>

</tpm>

<audio id='1' type='none'/>

<hostdev mode='subsystem' type='pci' managed='yes'>

<driver name='vfio'/>

<source>

<address domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>

</source>

<alias name='hostdev0'/>

<address type='pci' domain='0x0000' bus='0x06' slot='0x00' function='0x0'/>

</hostdev>

<hostdev mode='subsystem' type='pci' managed='yes'>

<driver name='vfio'/>

<source>

<address domain='0x0000' bus='0x00' slot='0x14' function='0x0'/>

</source>

<alias name='hostdev1'/>

<address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/>

</hostdev>

<watchdog model='itco' action='reset'>

<alias name='watchdog0'/>

</watchdog>

<memballoon model='none'/>

</devices>

<seclabel type='dynamic' model='dac' relabel='yes'>

<label>+0:+100</label>

<imagelabel>+0:+100</imagelabel>

</seclabel>

</domain>
