Securely Allowing AI to Control n8n on Unraid - API, Tailscale, MCP or Gateway?

Hi all,

I'm looking for some advice on an automation environment I've been building. There are really two related, but distinct, questions:

1. The best way to securely give an SI/AI system controlled access to services running on my Unraid server.

2. The best architecture for allowing that AI system to interact with, inspect, troubleshoot, and potentially modify n8n workflows.

The Environment

I'm running Unraid as the server platform, with n8n running in Docker. The broader automation stack currently includes:

• Unraid

• Docker

• n8n

• Tailscale

• Unraid Connect / myunraid.net for remote server administration

• WordPress

• WPVibe for AI-to-WordPress interaction

• Blog2Social for social-media distribution

• LinkedIn company and individual profile posting

• ChatGPT as the primary AI orchestration and content-development layer

I have also built a webhook-based execution gateway (bfp-gateway) so the AI side can initiate specific n8n processes without exposing the n8n administrative interface directly. For example, one of the current Tailscale services looks roughly like:

• https://[server IP].ts.net:10000/bfp-gateway -> http://127.0.0.1:5678/webhook/bfp-content-execution

The intent is to expose narrowly defined execution endpoints rather than simply making the entire n8n instance publicly reachable.

What We're Automating

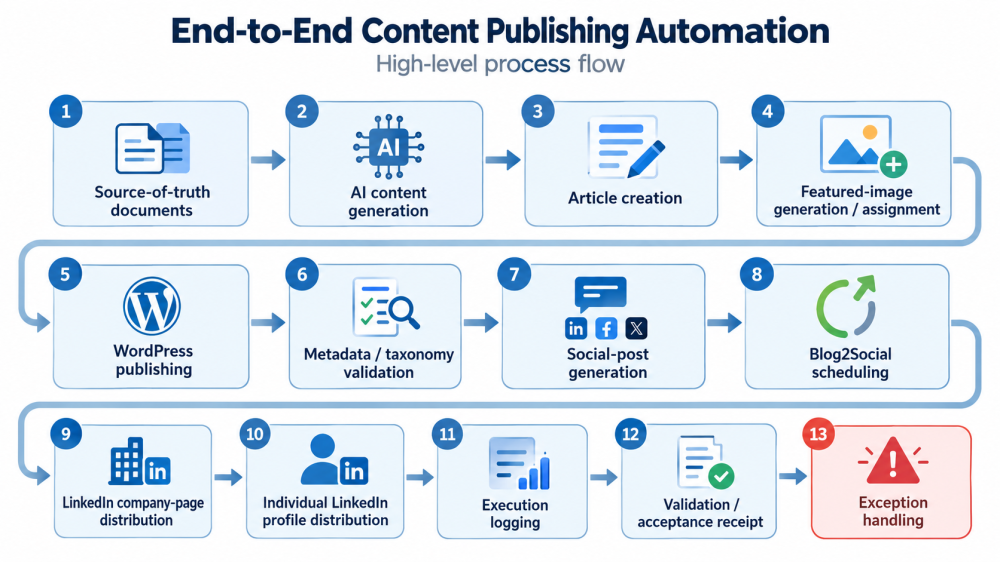

The project is an end-to-end content publishing system for a company blog and its associated social-media channels. At a high level, the process is intended to look like this:

I've developed fairly extensive operating rules around the process, including content templates, editorial standards, taxonomy rules, image standards, social-media formats, QA procedures, and validation requirements. The AI therefore isn't just generating an article and throwing it at WordPress. It is being used more like an orchestration and QA layer around a fairly deterministic publishing pipeline generated from a sophisticated source of truth for both content topics and editorial/imagery standards.

What Is Already Working

I've had surprisingly good success with individual pieces. The AI can develop the complete content package. It can interact with WordPress through WPVibe and perform operations such as:

• Create/update posts

• Assign categories and tags

• Set metadata

• Work with featured images

• Execute controlled WordPress operations

• Audit the resulting post

n8n can receive execution requests through webhooks and act as the workflow/orchestration engine. Blog2Social provides the downstream social-posting layer. I have also added concepts such as:

• Execution manifests

• Acceptance receipts

• Failure branches

• Logging

• Validation steps

• Stop conditions

• Explicit external-call boundaries

So the system is getting close to being a genuine automated publishing pipeline rather than a collection of scripts.

Where I'm Still Getting Stuck

The remaining problem is closing the loop. Today the AI can reason about what should happen and can initiate parts of the process, but it doesn't have sufficiently controlled visibility into the Unraid/n8n environment on my unRaid sever to reliably answer questions like:

• Did the workflow actually execute?

• Which node failed?

• What data was passed between nodes?

• Was the correct workflow version executed?

• Did Blog2Social receive the payload?

• Was the LinkedIn post really scheduled?

• Did the WordPress post end up with the expected metadata?

• Should the workflow retry, repair something, or stop?

• Can the AI safely make a workflow correction and rerun it?

Right now I can give the AI console output, JSON exports, screenshots, logs, or other information manually, but that defeats much of the objective. I'd like the AI to be able to inspect the relevant environment directly while still maintaining a strong security boundary.

Topic 1: Secure AI Access to Unraid Services

I'm interested in how others would expose selected capabilities on an Unraid system to an external AI/orchestration system. I'm specifically NOT looking to simply expose the Unraid GUI, Docker socket, SSH, or n8n editor to the public Internet. Some approaches I'm considering include:

• Tailscale

• Tailscale Serve/Funnel

• A dedicated API gateway

• Reverse proxy with authentication

• Restricted SSH/API account

• A purpose-built container acting as an AI control gateway

• n8n webhooks

• Unraid APIs, if appropriate

• Capabilities available through Unraid Connect/myunraid.net

• A VPN-accessible management/API network

The idea is to place a secure, authenticated gateway between the AI system and the Unraid environment rather than giving the AI direct administrative access. The gateway would expose only a defined set of approved operations, such as triggering a specific n8n workflow, reading execution status, retrieving selected logs, checking Docker container health, or calling a particular application API. Each request could be authenticated, logged, permission-scoped, and validated before it reaches n8n, Docker, or another backend service. This creates a controlled interface where the AI can observe and act on the automation environment without receiving unrestricted shell access or broad control over the Unraid server. Rather than the AI having unrestricted shell access to Unraid.

I'd be very interested in how people would design that boundary.

Topic 2: AI Access to n8n Workflows

The second question is more specifically about n8n.

Ideally, I'd like the AI to be able to:

• List workflows

• Read workflow definitions

• Determine whether a workflow is active

• See recent executions

• Inspect execution errors

• Examine node input/output

• Trigger a workflow

• Potentially activate/deactivate a workflow

• Update a workflow under controlled circumstances

• Validate the modified workflow

• Roll back if necessary

I know n8n has APIs and its own permission/security model, so I'm interested in whether people have built something similar. Would you expose the n8n API directly through a secure private network, or put another service in front of it?

For AI-driven administration, would you allow the AI to modify workflows directly, or instead have it generate proposed JSON changes that another controlled process validates and applies?

The Bigger Goal

The target design is something fairly ambitious: "Create and publish tomorrow's content package." The AI would then be able to:

1. Develop the article and social content from our source-of-truth material.

2. Create or update the WordPress content.

3. Create/assign the appropriate image.

4. Validate the WordPress article.

5. Hand the approved social package to n8n.

6. n8n passes it through the required distribution workflows.

7. Blog2Social schedules/publishes it.

8. The system verifies the actual result.

9. Failures are returned to the AI with enough information to diagnose them.

10. The AI either repairs/retries the process or escalates the exception.

The important distinction is Step 8. Triggering a workflow is easy. Knowing that the entire business process successfully completed - and being able to diagnose it when it didn't - is the harder problem.

Questions for the Community

I'd particularly appreciate thoughts on:

• How would you securely expose selected Unraid capabilities to an AI agent?

• Is Tailscale the right foundation, or is there a better Unraid-native architecture?

• Does Unraid Connect expose any useful API or integration capabilities for this type of application?

• What is the safest way to expose the n8n REST API in this environment?

• Has anyone built an AI/MCP/API gateway in front of n8n?

• Would you allow AI to modify n8n workflows directly?

• What permissions or isolation model would you use?

• How would you implement execution auditing and rollback?

• Is there an existing Unraid container/project that already solves part of this problem?

I'm particularly interested in architectures people are actually running rather than simply exposing another administrative interface to the Internet. The system is already far enough along that we're successfully automating substantial portions of the process, but the remaining barriers tend to appear at the handoff points between systems. We run into issues such as authentication or authorization stopping an action, webhook calls succeeding without enough confirmation that the downstream process actually completed, limited visibility into n8n execution state, difficulty retrieving node-level errors or logs, API or plugin approval gates that still require manual intervention, uncertainty about whether a workflow actually scheduled or published the intended social post, and cases where the AI can identify what needs to be corrected but does not have a sufficiently controlled mechanism to inspect or repair the workflow directly. In other words, initiating an action is often relatively easy; reliably confirming the result, diagnosing failures, making a bounded correction, and safely retrying the process without human intervention is much harder. The remaining challenge is establishing the secure control, observability, permission model, error handling, and feedback loop required to move from "AI-assisted automation" to genuinely unattended end-to-end execution.

Thanks in advance for any suggestions, criticism, or examples of how others have approached this.

Jeff

Edited October 5Oct 5 by jeffreywhunter
