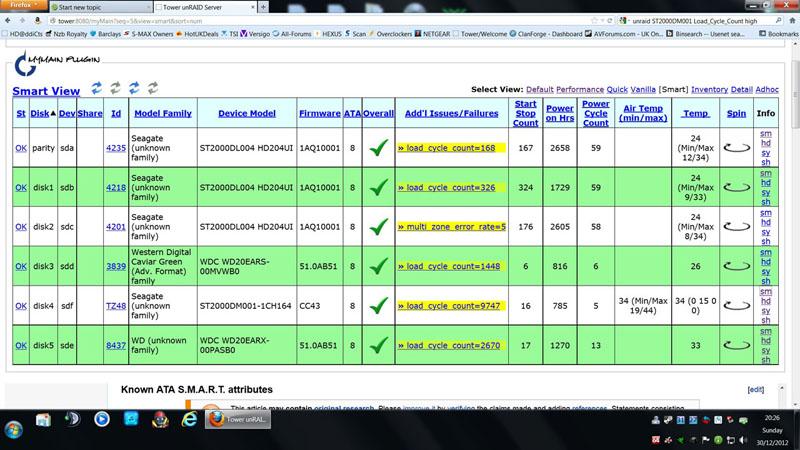

Ive recently added 2tb seagate to my array pre cleared it etc and recently noticed the load cycle count is high



my first drive problem with unraid what ya all think



Device Model:    ST2000DM001-1CH164

Serial Number:    W*******

Firmware Version: CC43

User Capacity:    2,000,398,934,016 bytes

Device is:        Not in smartctl database [for details use: -P showall]

ATA Version is:  8

ATA Standard is:  ATA-8-ACS revision 4

Local Time is:    Sun Dec 30 20:26:10 2012 GMT

SMART support is: Available - device has SMART capability.

SMART support is: Enabled



SMART Attributes Data Structure revision number: 10

Vendor Specific SMART Attributes with Thresholds:

ID# ATTRIBUTE_NAME          FLAG    VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE

  1 Raw_Read_Error_Rate    0x000f  117  099  006    Pre-fail  Always      -      154907672

  3 Spin_Up_Time            0x0003  093  091  000    Pre-fail  Always      -      0

  4 Start_Stop_Count        0x0032  100  100  020    Old_age  Always      -      16

  5 Reallocated_Sector_Ct  0x0033  100  100  036    Pre-fail  Always      -      0

  7 Seek_Error_Rate        0x000f  066  060  030    Pre-fail  Always      -      4636122

  9 Power_On_Hours          0x0032  100  100  000    Old_age  Always      -      785

10 Spin_Retry_Count        0x0013  100  100  097    Pre-fail  Always      -      0

12 Power_Cycle_Count      0x0032  100  100  020    Old_age  Always      -      5

183 Runtime_Bad_Block      0x0032  100  100  000    Old_age  Always      -      0

184 End-to-End_Error        0x0032  100  100  099    Old_age  Always      -      0

187 Reported_Uncorrect      0x0032  100  100  000    Old_age  Always      -      0

188 Command_Timeout        0x0032  100  100  000    Old_age  Always      -      0

189 High_Fly_Writes        0x003a  100  100  000    Old_age  Always      -      0

190 Airflow_Temperature_Cel 0x0022  066  056  045    Old_age  Always      -      34 (Min/Max 19/44)

191 G-Sense_Error_Rate      0x0032  100  100  000    Old_age  Always      -      0

192 Power-Off_Retract_Count 0x0032  100  100  000    Old_age  Always      -      5

193 Load_Cycle_Count        0x0032  096  096  000    Old_age  Always      -      9747

194 Temperature_Celsius    0x0022  034  044  000    Old_age  Always      -      34 (0 15 0 0)

197 Current_Pending_Sector  0x0012  100  100  000    Old_age  Always      -      0

198 Offline_Uncorrectable  0x0010  100  100  000    Old_age  Offline      -      0

199 UDMA_CRC_Error_Count    0x003e  200  200  000    Old_age  Always      -      0

240 Head_Flying_Hours      0x0000  100  253  000    Old_age  Offline      -      236562503697066

241 Total_LBAs_Written      0x0000  100  253  000    Old_age  Offline      -      4986479054

242 Total_LBAs_Read        0x0000  100  253  000    Old_age  Offline      -      4808575356

Check the spindown delay and open it up.  I believe it defaults to 15 minutes, but the math shows the drive is spinning down around every 5 minutes.  Open it up to an hour or so if you want the load cycle count to slow.  The drive is rated for 300K cycles according to the Seagate datasheet.  That's about all I can offer without a syslog.

thanks for reply unevent ive got the drives set not to spin down, in the disk.cfg file all the attached drive have -1 entry next to each spindowndelay for each disc



Heres attached syslog hopefully you can see something i cant



Cheers

syslog-2012-12-30.txt

Could be APM on the drive itself causing the high cycle count since your log didn't show any spin downs, though the log was short.  Can use the hdparam utility to disable it - google it as it is probably covered here as well as with other NAS products using the newer greener drives.



ok will do thanks for help
