Hi,



I'm trying to setup a script to control the fans rotation speed based on disk temp and other sensors on my motherboard.
I can access disks temperature and Unraid is displaying correctly their temp in the WebUI, but I can't find any information about the fans in the OS, any idea how I can have this information?

Thanks

Cyrille

bash command: sensors

Thanks Squid, tried that but as you can see below there is no information about Fans:


acpitz-virtual-0
Adapter: Virtual device
temp1:        +27.8°C  (crit = +119.0°C)
temp2:        +29.8°C  (crit = +119.0°C)

coretemp-isa-0000
Adapter: ISA adapter
Physical id 0:  +37.0°C  (high = +80.0°C, crit = +100.0°C)
Core 0:         +37.0°C  (high = +80.0°C, crit = +100.0°C)
Core 1:         +33.0°C  (high = +80.0°C, crit = +100.0°C)
Core 2:         +30.0°C  (high = +80.0°C, crit = +100.0°C)
Core 3:         +31.0°C  (high = +80.0°C, crit = +100.0°C)



1 hour ago, 6yb said:

Thanks Squid, tried that but as you can see below there is no information about Fans:


acpitz-virtual-0
Adapter: Virtual device
temp1:        +27.8°C  (crit = +119.0°C)
temp2:        +29.8°C  (crit = +119.0°C)

coretemp-isa-0000
Adapter: ISA adapter
Physical id 0:  +37.0°C  (high = +80.0°C, crit = +100.0°C)
Core 0:         +37.0°C  (high = +80.0°C, crit = +100.0°C)
Core 1:         +33.0°C  (high = +80.0°C, crit = +100.0°C)
Core 2:         +30.0°C  (high = +80.0°C, crit = +100.0°C)
Core 3:         +31.0°C  (high = +80.0°C, crit = +100.0°C)



Then you've got to do the sensors-detect etc



Easiest solution would be to install perl via the NerdPack plugin, then install Dynamix System Temperature plugin, detect the sensors and apply.  Now the output of sensors should include the fan (and the selected fan rpm will display at the bottom of every UI page)



Optional: Perl is only required to detect the sensors.  After its detected, you can set nerd pack to not install it anymore



Thanks Squid.

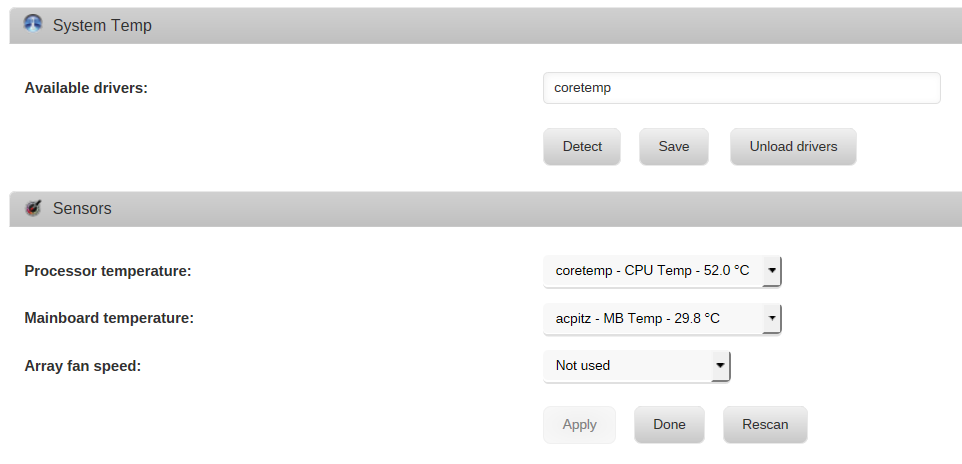

Didn't know about the Nerd Pack, it's great, I've done what you said but still no luck, the Array Fan list is empty.


Then its not finding drivers for the fan sensors.  If your motherboard has IPMI try the IPMI plugin, or post in the Dynamix v6 plugins thread



Thanks Squid, I posted in the Dynamix - V6 Plugins thread
