I seem to have a problem with disk space.

I'm running user shares, and was about to transfer all my data back to may disks.

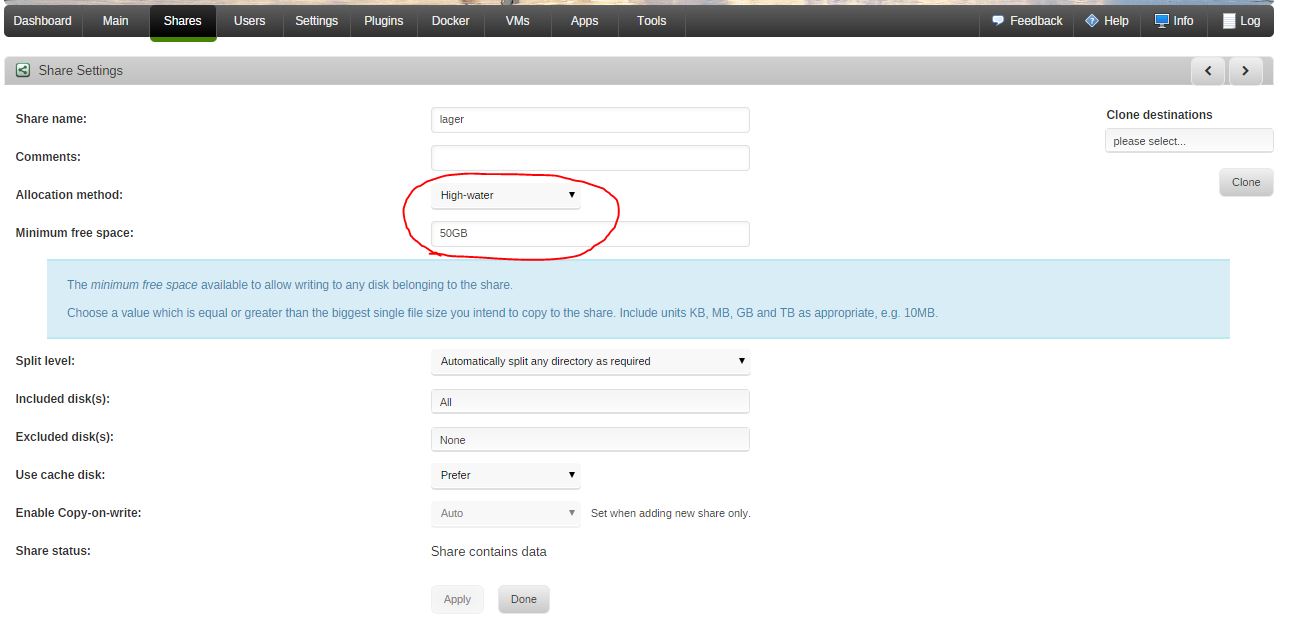

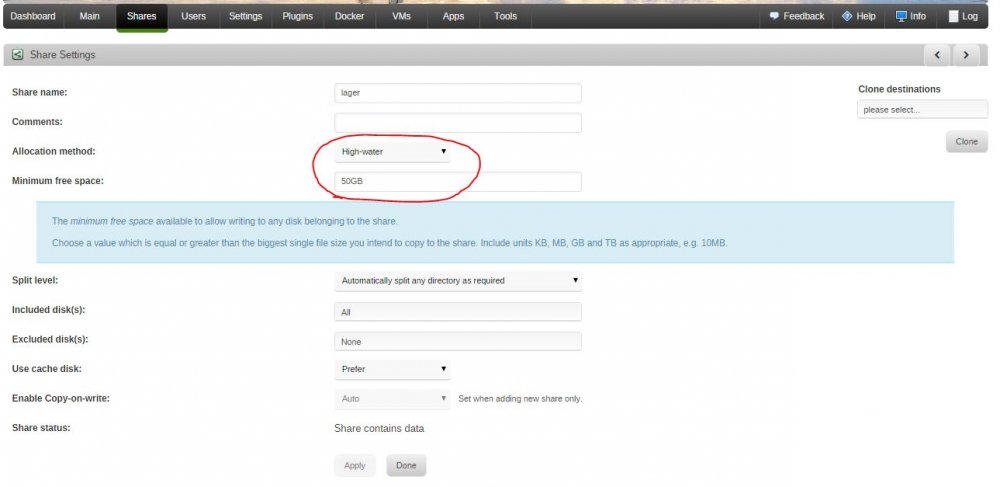

It is running High water, with a 50G minimum space, as seen on the first picture(shares)

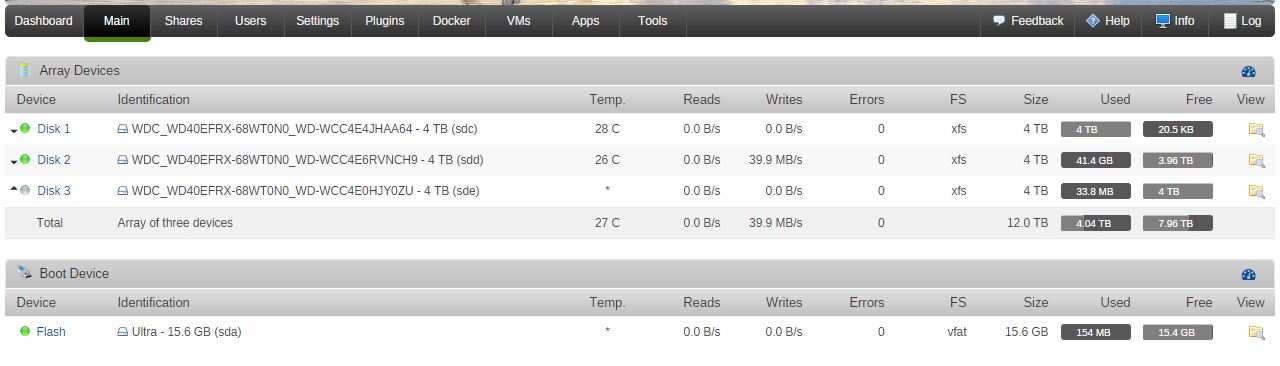

Yet as the first disk was filled, suddenly my VM stopped and it stopped downloading my data, it doesn't seem to split the data at all ?

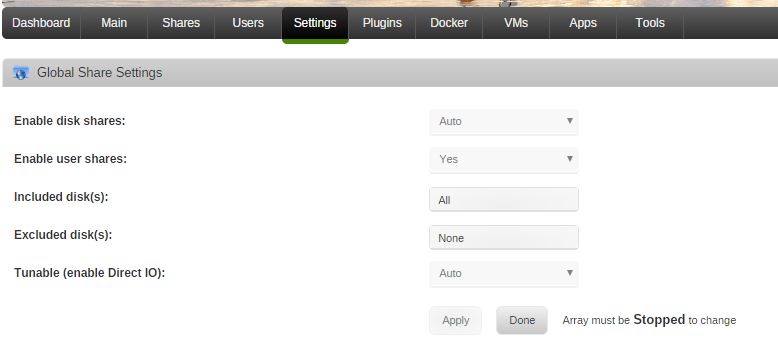

Check included and excluded disks both for the share and in the global share settings, if you can't find the problem post your diags.

All disks are included in all settings, and none is excluded.



I've attached my diags.

There is ALOT ot these:
May 14 11:18:27 Tower kernel: usb 2-1.3: USB disconnect, device number 17
May 14 11:18:28 Tower kernel: usb 2-1.3: new high-speed USB device number 18 using ehci-pci
May 14 11:18:28 Tower kernel: hub 2-1.3:1.0: USB hub found
May 14 11:18:28 Tower kernel: hub 2-1.3:1.0: 2 ports detected



But noone have had an answer as to what it is. and I've tried disabeling all of the USB's i could in bios, to no effect.

Unraid is running from internal USB port, maybe that is the problem.

tower-diagnostics-20170514-1112.zip

You have shares with split level 1, split level overrides included disks.

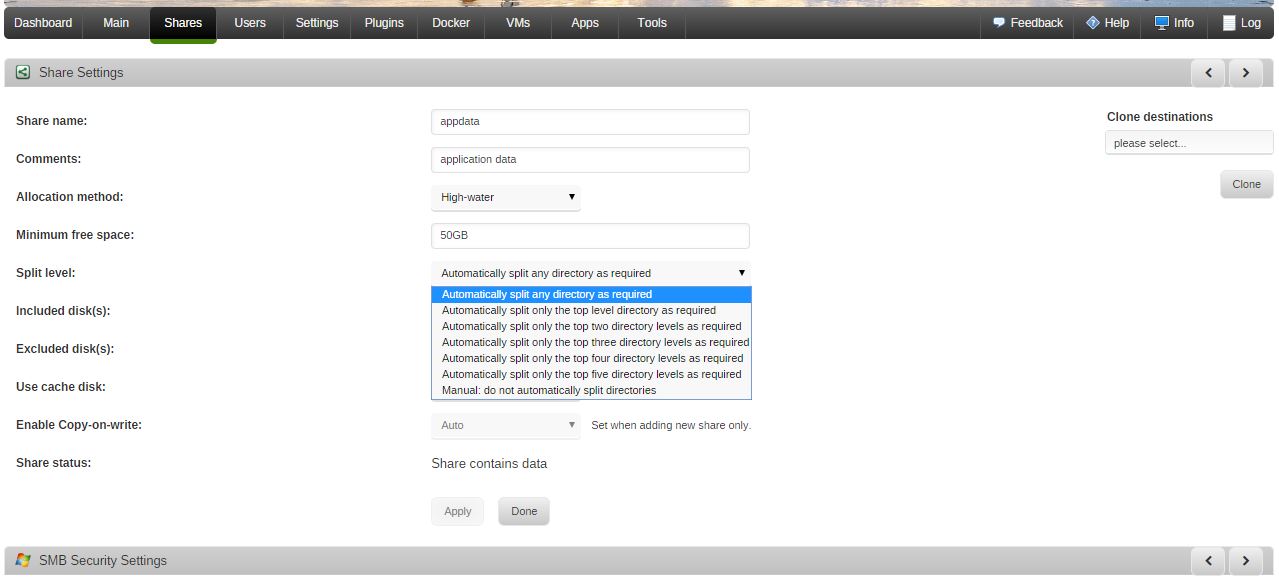

I'm not sure what split level 1 translates to in Unraid Gui ?



I've change all my shares to "autoamtically split any directory as required"

To me that sounds to be the correct in order to have Unraid auto fill the disks ?

That's not what your diags show, can't say the full name of the shares because it's anonymized but these 3 are split level 1 (split top level only):



a-----a

d------s

s-------m



Yeah those I changed to the above( split any)



Is there a way to have unraid rebalance all the data automatically ?

Not automatically, you can use the unbalance plugin.

Quick question here, after I fixed the split level thing, I delete all data on the shares and started redownloading all my data.



So now how WILL unraid handle the data, what should I expect to see.
I got around 6 TB data downloading from Amazon Cloud Drive.



My setup is, Unraid on baremetal.
A VM with rclone, downloading to an Unraid user share.



Should I expect to see the disk fill up equally, or does it just fill one to the max and then the next ?

Using the default high water disk1 should fill to 50%, then disks 2 and 3 to 50%, then disk1 again to 75%, and so on.

Okay, Great many thanks

I have this exact problem, I don't know when it started, since I took more attention of the logs after upgrading a lot of hardware.

With only the boot USB Flash drive in  - the  logs cycle through devices 1 > 128..



I have gone through the share split config as above, and, as far as I can discern, I have removed any Level 1  share splitting.. Restarted the Array, and the errors come flooding back again..

Oct 26 22:49:27 KBNAS kernel: usb 2-1.3: USB disconnect, device number 54
Oct 26 22:49:28 KBNAS kernel: usb 2-1.3: new high-speed USB device number 55 using ehci-pci
Oct 26 22:49:28 KBNAS kernel: hub 2-1.3:1.0: USB hub found
Oct 26 22:49:28 KBNAS kernel: hub 2-1.3:1.0: 2 ports detected
Oct 26 22:50:18 KBNAS kernel: usb 2-1.3: USB disconnect, device number 55
Oct 26 22:50:19 KBNAS kernel: usb 2-1.3: new high-speed USB device number 56 using ehci-pci
Oct 26 22:50:19 KBNAS kernel: hub 2-1.3:1.0: USB hub found
Oct 26 22:50:19 KBNAS kernel: hub 2-1.3:1.0: 2 ports detected
Oct 26 22:51:18 KBNAS kernel: usb 2-1.3: USB disconnect, device number 56
Oct 26 22:51:18 KBNAS kernel: usb 2-1.3: new high-speed USB device number 57 using ehci-pci
Oct 26 22:51:19 KBNAS kernel: hub 2-1.3:1.0: USB hub found
Oct 26 22:51:19 KBNAS kernel: hub 2-1.3:1.0: 2 ports detected
Oct 26 22:52:44 KBNAS kernel: usb 2-1.3: USB disconnect, device number 57
Oct 26 22:52:45 KBNAS kernel: usb 2-1.3: new high-speed USB device number 58 using ehci-pci
Oct 26 22:52:45 KBNAS kernel: hub 2-1.3:1.0: USB hub found
Oct 26 22:52:45 KBNAS kernel: hub 2-1.3:1.0: 2 ports detected
Oct 26 22:53:39 KBNAS kernel: usb 2-1.3: USB disconnect, device number 58
Oct 26 22:53:40 KBNAS kernel: usb 2-1.3: new high-speed USB device number 59 using ehci-pci
Oct 26 22:53:40 KBNAS kernel: hub 2-1.3:1.0: USB hub found
Oct 26 22:53:40 KBNAS kernel: hub 2-1.3:1.0: 2 ports detected
Oct 26 22:54:35 KBNAS kernel: usb 2-1.3: USB disconnect, device number 59
Oct 26 22:54:35 KBNAS kernel: usb 2-1.3: new high-speed USB device number 60 using ehci-pci
Oct 26 22:54:35 KBNAS kernel: hub 2-1.3:1.0: USB hub found
Oct 26 22:54:35 KBNAS kernel: hub 2-1.3:1.0: 2 ports detected
Oct 26 22:56:01 KBNAS kernel: usb 2-1.3: USB disconnect, device number 60
Oct 26 22:56:02 KBNAS kernel: usb 2-1.3: new high-speed USB device number 61 using ehci-pci
Oct 26 22:56:02 KBNAS kernel: hub 2-1.3:1.0: USB hub found
Oct 26 22:56:02 KBNAS kernel: hub 2-1.3:1.0: 2 ports detected
Oct 26 22:56:56 KBNAS kernel: usb 2-1.3: USB disconnect, device number 61
Oct 26 22:56:57 KBNAS kernel: usb 2-1.3: new high-speed USB device number 62 using ehci-pci
Oct 26 22:56:57 KBNAS kernel: hub 2-1.3:1.0: USB hub found
Oct 26 22:56:57 KBNAS kernel: hub 2-1.3:1.0: 2 ports detected
Oct 26 22:57:52 KBNAS kernel: usb 2-1.3: USB disconnect, device number 62
Oct 26 22:57:52 KBNAS kernel: usb 2-1.3: new high-speed USB device number 63 using ehci-pci
Oct 26 22:57:53 KBNAS kernel: hub 2-1.3:1.0: USB hub found
Oct 26 22:57:53 KBNAS kernel: hub 2-1.3:1.0: 2 ports detected
Oct 26 22:59:19 KBNAS kernel: usb 2-1.3: USB disconnect, device number 63
Oct 26 22:59:19 KBNAS kernel: usb 2-1.3: new high-speed USB device number 64 using ehci-pci
Oct 26 22:59:19 KBNAS kernel: hub 2-1.3:1.0: USB hub found
Oct 26 22:59:19 KBNAS kernel: hub 2-1.3:1.0: 2 ports detected

Any other ideas, please? @JorgeB

kbnas-diagnostics-20231026-2313.zip

Try to identify which device is causing that by unplugging one USB device at a time.

@JorgeB "With only the boot USB Flash drive in"
No other USB ports are in use.



I've just rebooted and without the array started - the errors are occurring.
Fresh logs attached.

Any ideas would be appreciated.

kbnas-diagnostics-20231027-1023.zip kbnas-syslog-20231027-0923.zip

Try connecting the USB to a different port ideally USB 2.0, if it persists and there's nothing else connected it could be a board problem.

I put my boot USB into a different port, updated my system BIOS - and the errors still occurred.
I then put it back in the mobo USB slot - and the errors have stopped; which makes no sense at all.
