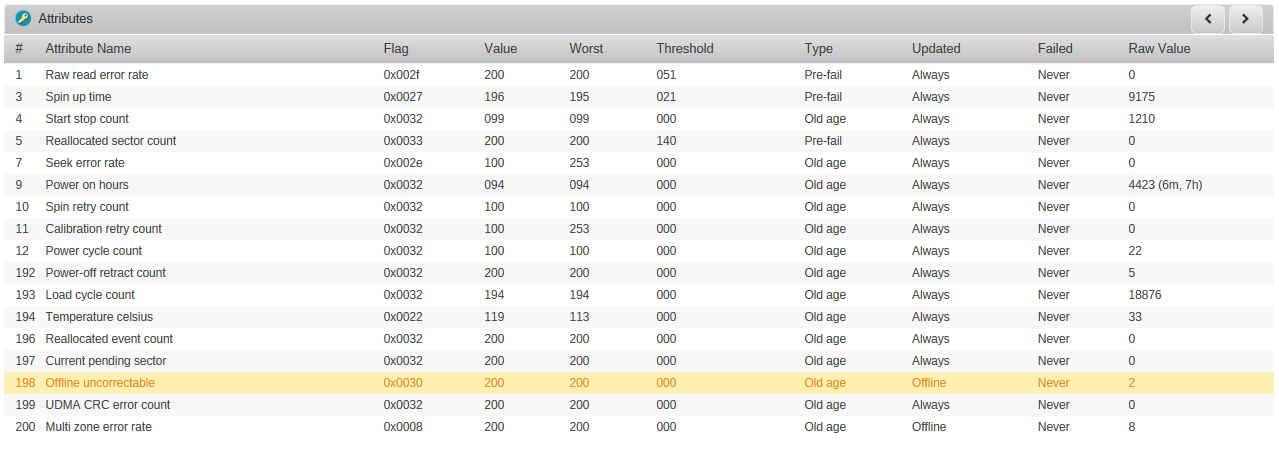

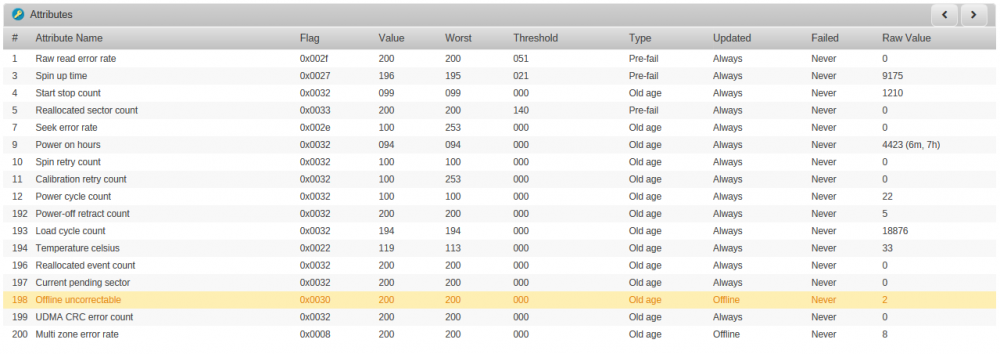

Fonzarelli Posted November 4, 2017 Share Posted November 4, 2017 I just noticed this today. Should I be concerned about this error and replace the drive, or is this not something to worry about? Link to comment
JorgeB Posted November 4, 2017 Share Posted November 4, 2017 It's never a good sign but check if it passes an extended SMART test. Link to comment
Fonzarelli Posted November 5, 2017 Author Share Posted November 5, 2017 Here is the result of the extended SMART test. It says the overall test passed but it also shows Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Completed: read failure 60% 4427 842782376 The parity that is failing is a 6TB where all the other drives in my array are 2 and 4TB. not sure if it is less concern for failing sectors considering there is lots of room to rewrite the data in another sector. Or am I wrong? I bought the drive only a couple months ago, but it was in an external enclosure that i broke open so no warranty. smartctl 6.5 2016-05-07 r4318 [x86_64-linux-4.9.30-unRAID] (local build) Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org === START OF INFORMATION SECTION === Model Family: Western Digital Blue Device Model: WDC WD60EZRZ-00RWYB1 Serial Number: WD-WX81D65CAT95 LU WWN Device Id: 5 0014ee 261dc6eca Firmware Version: 80.00A80 User Capacity: 6,001,175,126,016 bytes [6.00 TB] Sector Sizes: 512 bytes logical, 4096 bytes physical Rotation Rate: 5700 rpm Device is: In smartctl database [for details use: -P show] ATA Version is: ACS-2, ACS-3 T13/2161-D revision 3b SATA Version is: SATA 3.1, 6.0 Gb/s (current: 3.0 Gb/s) Local Time is: Sun Nov 5 07:46:49 2017 PST SMART support is: Available - device has SMART capability. SMART support is: Enabled === START OF READ SMART DATA SECTION === SMART overall-health self-assessment test result: PASSED General SMART Values: Offline data collection status: (0x82) Offline data collection activity was completed without error. Auto Offline Data Collection: Enabled. Self-test execution status: ( 118) The previous self-test completed having the read element of the test failed. Total time to complete Offline data collection: ( 4604) seconds. Offline data collection capabilities: (0x7b) SMART execute Offline immediate. Auto Offline data collection on/off support. Suspend Offline collection upon new command. Offline surface scan supported. Self-test supported. Conveyance Self-test supported. Selective Self-test supported. SMART capabilities: (0x0003) Saves SMART data before entering power-saving mode. Supports SMART auto save timer. Error logging capability: (0x01) Error logging supported. General Purpose Logging supported. Short self-test routine recommended polling time: ( 2) minutes. Extended self-test routine recommended polling time: ( 700) minutes. Conveyance self-test routine recommended polling time: ( 5) minutes. SCT capabilities: (0x3035) SCT Status supported. SCT Feature Control supported. SCT Data Table supported. SMART Attributes Data Structure revision number: 16 Vendor Specific SMART Attributes with Thresholds: ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE 1 Raw_Read_Error_Rate 0x002f 200 200 051 Pre-fail Always - 0 3 Spin_Up_Time 0x0027 196 195 021 Pre-fail Always - 9175 4 Start_Stop_Count 0x0032 099 099 000 Old_age Always - 1210 5 Reallocated_Sector_Ct 0x0033 200 200 140 Pre-fail Always - 0 7 Seek_Error_Rate 0x002e 200 200 000 Old_age Always - 0 9 Power_On_Hours 0x0032 094 094 000 Old_age Always - 4439 10 Spin_Retry_Count 0x0032 100 100 000 Old_age Always - 0 11 Calibration_Retry_Count 0x0032 100 253 000 Old_age Always - 0 12 Power_Cycle_Count 0x0032 100 100 000 Old_age Always - 22 192 Power-Off_Retract_Count 0x0032 200 200 000 Old_age Always - 5 193 Load_Cycle_Count 0x0032 194 194 000 Old_age Always - 18941 194 Temperature_Celsius 0x0022 120 113 000 Old_age Always - 32 196 Reallocated_Event_Count 0x0032 200 200 000 Old_age Always - 0 197 Current_Pending_Sector 0x0032 200 200 000 Old_age Always - 0 198 Offline_Uncorrectable 0x0030 200 200 000 Old_age Offline - 2 199 UDMA_CRC_Error_Count 0x0032 200 200 000 Old_age Always - 0 200 Multi_Zone_Error_Rate 0x0008 200 200 000 Old_age Offline - 1 SMART Error Log Version: 1 No Errors Logged SMART Self-test log structure revision number 1 Num Test_Description Status Remaining LifeTime(hours) LBA_of_first_error # 1 Extended offline Completed: read failure 60% 4427 842782376 # 2 Short offline Completed without error 00% 4422 - SMART Selective self-test log data structure revision number 1 SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS 1 0 0 Not_testing 2 0 0 Not_testing 3 0 0 Not_testing 4 0 0 Not_testing 5 0 0 Not_testing Selective self-test flags (0x0): After scanning selected spans, do NOT read-scan remainder of disk. If Selective self-test is pending on power-up, resume after 0 minute delay. Link to comment
JorgeB Posted November 5, 2017 Share Posted November 5, 2017 17 minutes ago, Fonzarelli said: It says the overall test passed but it also shows That doesn't mean anything in this case, just that the SMART attributes are within limits. 17 minutes ago, Fonzarelli said: Completed: read failure This is the the result of the extended test, and it failed with a read error. 19 minutes ago, Fonzarelli said: The parity that is failing is a 6TB where all the other drives in my array are 2 and 4TB. not sure if it is less concern for failing sectors considering there is lots of room to rewrite the data in another sector. Or am I wrong? That's not how it works, that LBA is before the 4TB mark, so if another disk fails and you need to rebuild it there will read error(s) resulting in a corrupt rebuild. You could try preclearing the disk (or re-syncing parity) since sectors are only remapped on writes, and then run another extended test to confirm if it's now good, but I personally would just replace it. Link to comment
Fonzarelli Posted November 6, 2017 Author Share Posted November 6, 2017 Thanks for the advice johnnie.black. I did a pre clear and am about to re-sync parity. but regardless I think im going to order up a new drive like you said just because its not worth the chance of failure. ############################################################################################################################ # # # unRAID Server Preclear of disk WD-WX81D65CAT95 # # Cycle 1 of 1, partition start on sector 64. # # # # # # Step 1 of 4 - Zeroing the disk: [12:12:29 @ 136 MB/s] SUCCESS # # Step 2 of 4 - Writing unRAID's Preclear signature: SUCCESS # # Step 3 of 4 - Verifying unRAID's Preclear signature: SUCCESS # # Step 4 of 4 - Post-Read verification: [12:23:11 @ 134 MB/s] SUCCESS # # # # # # # # # # # # # # # # # ############################################################################################################################ # Cycle elapsed time: 24:35:46 | Total elapsed time: 24:35:47 # ############################################################################################################################ ############################################################################################################################ # # # S.M.A.R.T. Status default # # # # # # ATTRIBUTE INITIAL CYCLE 1 STATUS # # 5-Reallocated_Sector_Ct 0 0 - # # 9-Power_On_Hours 4441 4465 Up 24 # # 194-Temperature_Celsius 32 35 Up 3 # # 196-Reallocated_Event_Count 0 0 - # # 197-Current_Pending_Sector 0 2 Up 2 # # 198-Offline_Uncorrectable 2 2 - # # 199-UDMA_CRC_Error_Count 0 0 - # # # # # # # # # # # ############################################################################################################################ # SMART overall-health self-assessment test result: PASSED # ############################################################################################################################ --> ATTENTION: Please take a look into the SMART report above for drive health issues. --> RESULT: Preclear Finished Successfully!. Link to comment
