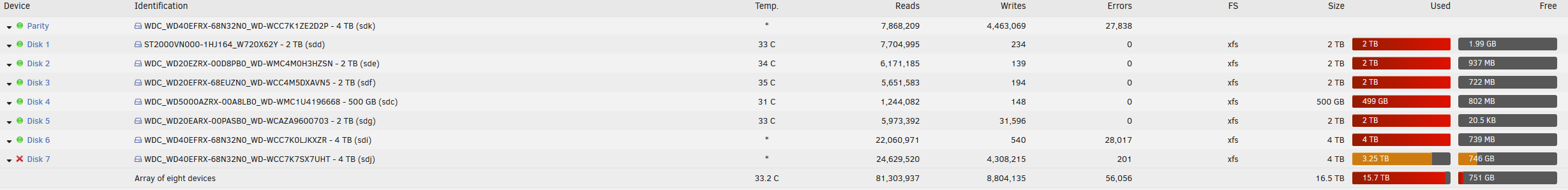

Hey all, just had Fix Common Problems tell me that I had three drives disabled and with read errors. All of which I believe are connected to my PCI 4 port SATA controller.

Diagnostics attached. It appears 2 of the three drives have come back online as they dont have red 'x' next to them??



Not sure what to do from here?



Any help appreciated.



PS: I tried to clean reboot but it wont work so not sure if i should do a hard reset or not and see what happens?



tower-diagnostics-20190118-1833.zip

1 hour ago, mgladwin said:

tell me that I had three drives disabled

You have one drive disable, three with read errors, Unraid doesn't disable more drives than the number of parity disks in use.

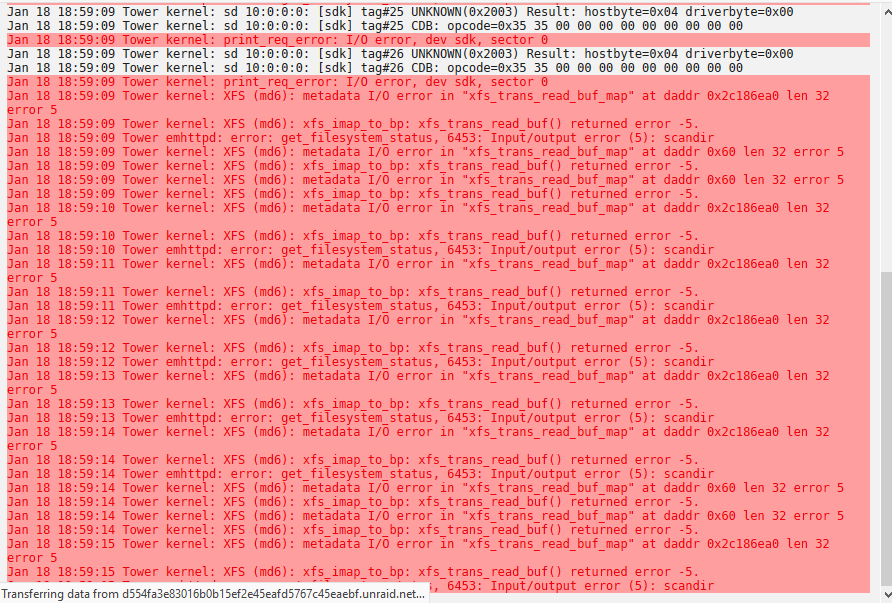

Problem appears to be the Marvell controller, all 3 disks with errors are connected there, I would recommend you replace it, Marvell controllers have a tendency to drop disks, it is known, first thing to do is to reboot (by force if needed) and post new diags so we can confirm SMART for the dropped disks is OK.

Thanks johnnie.



I force restarted and have attached new diags.



Look forward to hearing what you think.



Controller is only a few months old

tower-diagnostics-20190118-2034.zip

Edited January 18, 20197 yr by mgladwin

All three disks looks fine.



You'll need to rebuild the disabled disk, emulated disk is mounting so check data appears fine before rebuilding on top of the old disk, a filesystem check on the emulated disk before doing it is also a good idea.



Safest option would be rebuilding to a new disk while keeping the old one intact in case something goes wrong during the rebuild.



Also note that this same issue can happen again until you replace that controller, it can take days or months but it will likely happen again.

Thanks again johnnie. Really appreciate your help!



That controller is only a few months old. Oh well I guess I will look for another.



One last thing, how do I go about doing a file system check? Do you mean xfs repair?



2 minutes ago, mgladwin said:

Do you mean xfs repair?

Yes:

https://wiki.unraid.net/Check_Disk_Filesystems#Checking_and_fixing_drives_in_the_webGui

or

https://wiki.unraid.net/Check_Disk_Filesystems#Drives_formatted_with_XFS

No worries will run that first.



Thanks again.

ran xfs_repair and get 'Sorry, could not find valid secondary superblock. Exiting now.'





2 minutes ago, mgladwin said:

ran xfs_repair and get 'Sorry, could not find valid secondary superblock. Exiting now.'





Likely specified the wrong device, what command did you use?

Just now, johnnie.black said:

Likely specified the wrong device, what command did you use?

xfs_repair -v /dev/sdj

That's not the correct device since it's missing the partition, still and to keep parity valid you need to use the md device, as it says in the link above, it should be:



xfs_repair -v /dev/md7

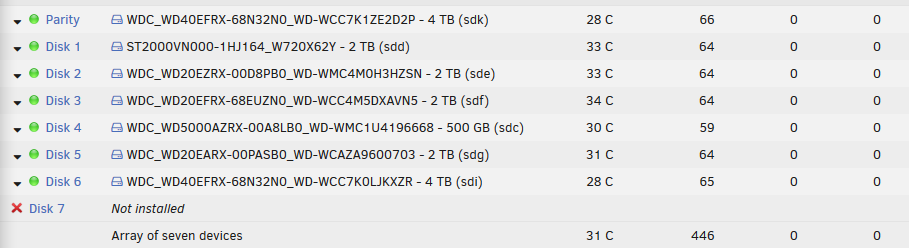

Ahh I think the controller is stuffed! Unraid is now saying Disk 7 is not installed.

8 minutes ago, johnnie.black said:

That's not the correct device since it's missing the partition, still and to keep parity valid you need to use the md device, as it says in the link above, it should be:



xfs_repair -v /dev/md7



That command still seems to work even though it says disk is missing and it doesn't report any errors.



1 minute ago, mgladwin said:

That command still seems to work even though it says disk is missing

That's expected since it's running on the emulated disk.

Ahh right that makes sense.



So that just leaves getting a new controller then.



Oh well I guess time to throw more money at it. Who new data hoarding would get so expensive haha.



Thanks again!

https://rover.ebay.com/rover/0/0/0?mpre=https%3A%2F%2Fwww.ebay.com.au%2Fulk%2Fitm%2F192717979974

Would this one be OK?

Sent from my Pixel 2 XL using Tapatalk

Yes, it will likely need to be crossflashed to LSI IT mode, details in the wiki.

Yes, it will likely need to be crossflashed to LSI IT mode, details in the wiki.

And am I right in saying I need a sas breakout cable for this? Or two even.

Sent from my Pixel 2 XL using Tapatalk

Each cable connects to fours drives, you need 2 to connect to 8 drives, also you need forward breakout cables, reverse breakout look the same but won't work for this.

Each cable connects to fours drives, you need 2 to connect to 8 drives, also you need forward breakout cables, reverse breakout look the same but won't work for this.

Thanks mate

Sent from my Pixel 2 XL using Tapatalk
