AinsWorth Posted August 10, 2019 Share Posted August 10, 2019 Aug 10 06:16:21 Tower ntpd[1729]: 69.89.207.199 local addr 192.168.1.79 -> <null> Aug 10 06:16:21 Tower ntpd[1729]: 185.213.26.143 local addr 192.168.1.79 -> <null> Aug 10 06:16:21 Tower ntpd[1729]: Deleting interface #6 eth0, fe80::ae1f:6bff:fe63:2a10%10#123, interface stats: received=0, sent=0, dropped=0, active_time=306143 secs Aug 10 06:17:36 Tower kernel: ixgbe 0000:05:00.0 eth0: NIC Link is Up 1 Gbps, Flow Control: None Aug 10 06:17:37 Tower ntpd[1729]: Listen normally on 7 eth0 192.168.1.79:123 Aug 10 06:17:37 Tower ntpd[1729]: Listen normally on 8 eth0 [fe80::ae1f:6bff:fe63:2a10%10]:123 Aug 10 06:17:37 Tower ntpd[1729]: new interface(s) found: waking up resolver Aug 10 06:17:41 Tower kernel: ixgbe 0000:05:00.0 eth0: NIC Link is Down Aug 10 06:17:42 Tower ntpd[1729]: Deleting interface #7 eth0, 192.168.1.79#123, interface stats: received=1, sent=3, Is this normal? Version 6.7.2 tower-diagnostics-20190810-1137.zip Quote Link to comment
testdasi Posted August 10, 2019 Share Posted August 10, 2019 NIC link is down is down suggesting a NIC / cable / router problem. Try a different port / cable / router. Quote Link to comment
AinsWorth Posted August 10, 2019 Author Share Posted August 10, 2019 I have a dual 10Gbe nic. I do have one of the interfaces port downed. I couldnt figure out how to get that all setup correctly. Quote Link to comment

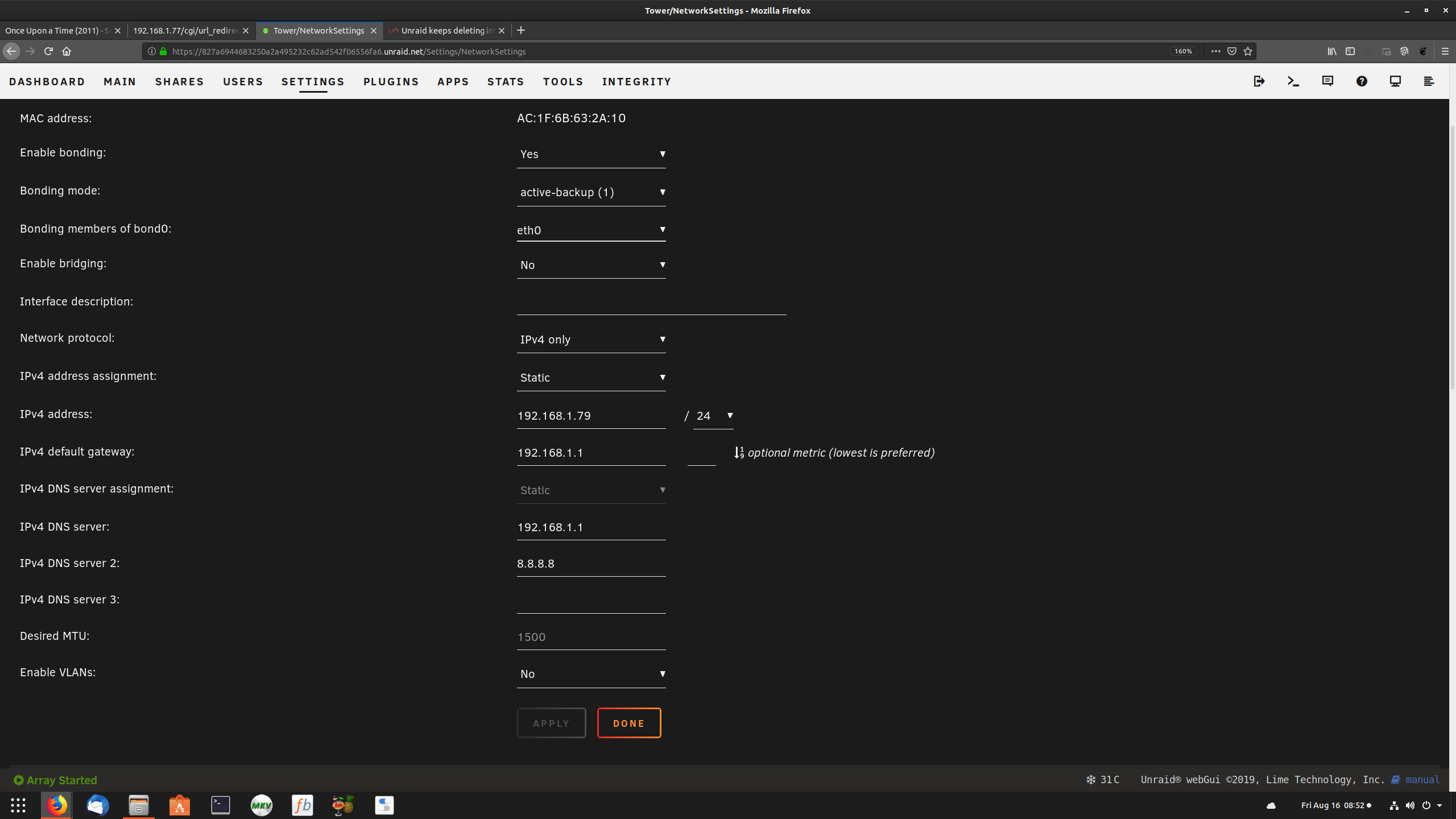

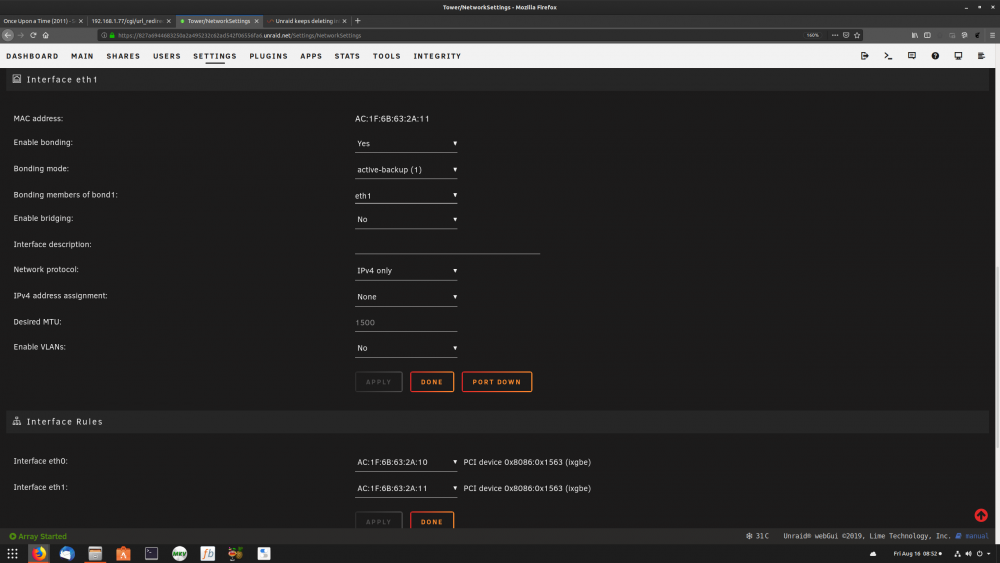

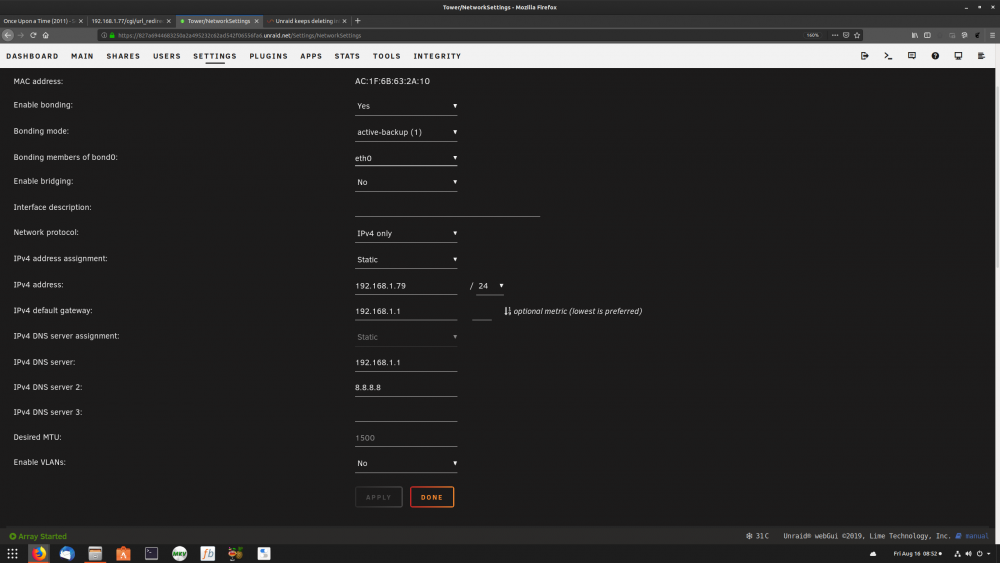

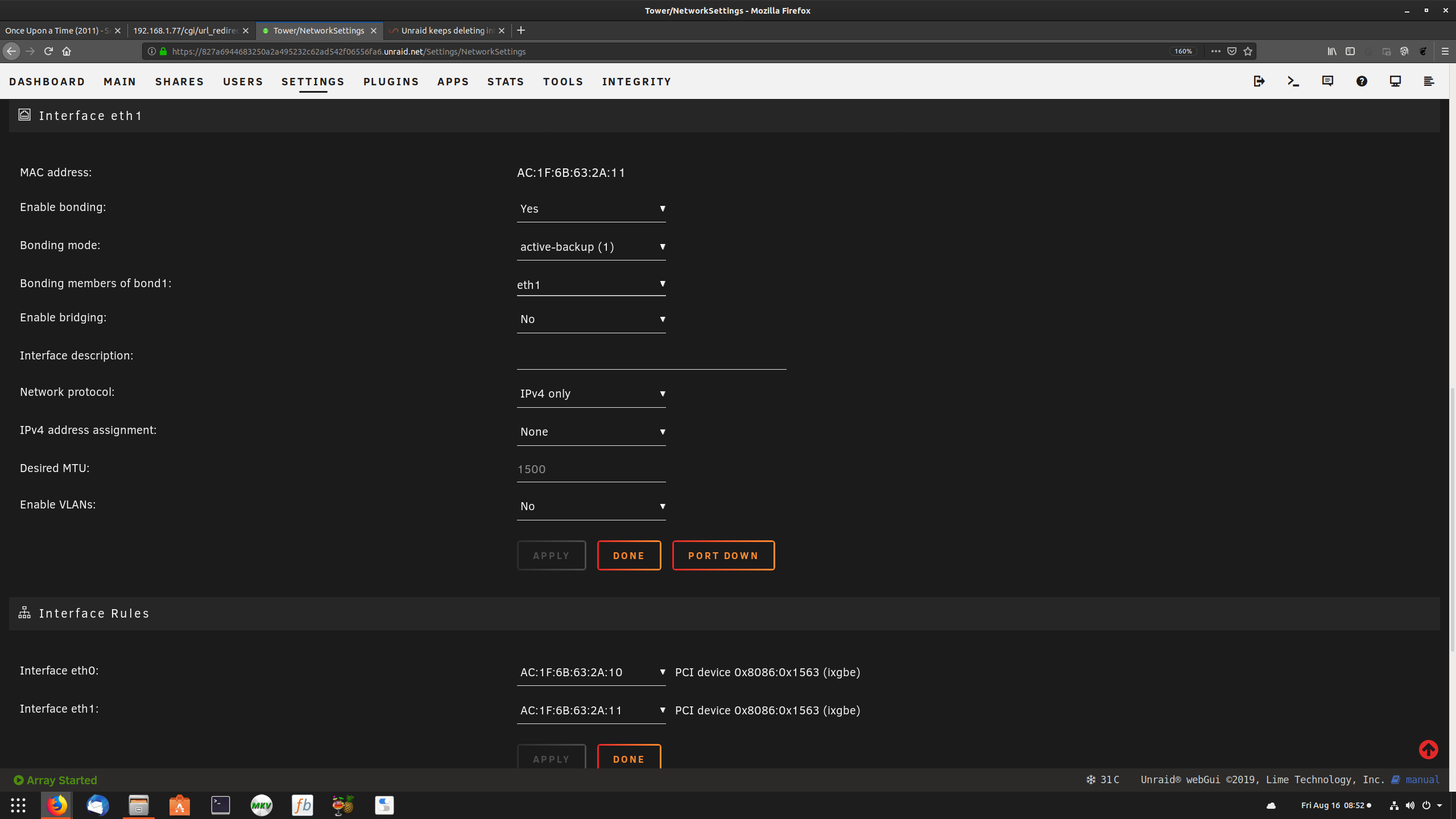

AinsWorth Posted August 10, 2019 Author Share Posted August 10, 2019 my current setup Quote Link to comment
AinsWorth Posted August 11, 2019 Author Share Posted August 11, 2019 Any help would be greatly appreciated. Quote Link to comment
testdasi Posted August 11, 2019 Share Posted August 11, 2019 Maybe try the easy way out first: unplug your cable to the current port, plug it into the other port. Any particular reason why you don't have bridge enabled? Does your router / switch support 10GbE? Is your cable Cat 6? Quote Link to comment
AinsWorth Posted August 11, 2019 Author Share Posted August 11, 2019 Honestly, I kept having issues with the second port obtaining an IP. I am a complete novice at this. I have read multiple articles and for the life of me. I can't seem to set it up right.Sent from my Moto Z (2) using Tapatalk Quote Link to comment
AinsWorth Posted August 11, 2019 Author Share Posted August 11, 2019 I have a unifi gateway pro, and a unifi 24 port Poe switch with their cloud key.Yes on cat6e cablesDual 10GB nicStorinator AV15 Sent from my Moto Z (2) using Tapatalk Quote Link to comment
testdasi Posted August 14, 2019 Share Posted August 14, 2019 On 8/11/2019 at 4:15 PM, AinsWorth said: Honestly, I kept having issues with the second port obtaining an IP. I am a complete novice at this. I have read multiple articles and for the life of me. I can't seem to set it up right. NIC problem is hard to diagnosed because there can be many failure points. So you might want to try to remove the variables one by one. Do you have a spare router from a friend? See if you have the same issue using a different router. Do you have a different device (e.g. another PC or laptop)? Does it work with the same port on the switch? Do you have a different NIC (e.g. the LAN port on your motherboard or a different NIC card)? Maybe test that out to see if perhaps the 10Gb NIC is not working properly. Can you plug the eth1 port to a non-10Gb port on the router? Does it work? Have you tried a different cable? To remove Unraid as a variable (e.g. perhaps a driver issue), you can create a Linux install from USB (stick with something popular like Ubuntu) to see if you have the same problem. Those are some basic tests you can do to try to isolate where the issue lies. At least you are not doing some super funky. Quote Link to comment
AinsWorth Posted August 14, 2019 Author Share Posted August 14, 2019 8 hours ago, testdasi said: NIC problem is hard to diagnosed because there can be many failure points. So you might want to try to remove the variables one by one. Do you have a spare router from a friend? See if you have the same issue using a different router. Do you have a different device (e.g. another PC or laptop)? Does it work with the same port on the switch? Do you have a different NIC (e.g. the LAN port on your motherboard or a different NIC card)? Maybe test that out to see if perhaps the 10Gb NIC is not working properly. Can you plug the eth1 port to a non-10Gb port on the router? Does it work? Have you tried a different cable? To remove Unraid as a variable (e.g. perhaps a driver issue), you can create a Linux install from USB (stick with something popular like Ubuntu) to see if you have the same problem. Those are some basic tests you can do to try to isolate where the issue lies. At least you are not doing some super funky. Router is brand new unifi gateway pro. No I do not have a second router. I own 2 PC's one on windows and other unbuntu 19.04. I get the same log file on both devices. I do not have another nic. My system was prebuilt. I have tried different cables. I can connect to either of my ports from my nic. I am waiting for a day to really trouble shoot. Quote Link to comment
testdasi Posted August 15, 2019 Share Posted August 15, 2019 13 hours ago, AinsWorth said: I own 2 PC's one on windows and other unbuntu 19.04. I get the same log file on both devices. What do you mean by the same log file on both devices? So both devices connect to the same router ends up with issues too? Quote Link to comment
AinsWorth Posted August 15, 2019 Author Share Posted August 15, 2019 28 minutes ago, testdasi said: What do you mean by the same log file on both devices? So both devices connect to the same router ends up with issues too? its not the devices connecting to unraid server that have issues. In fact no device connecting to unraid in the house has any connection issues. 4 nvidia shields 2 computers 1 windows 1 ubuntu. The log file I posted was from unraid server having issues some time after boot, I don't know why its deleting and resolving. I assume this issue is happening some time after boot. My system has been running for 24 hours so far with no host resolving in the logs. Other then what I saw at boot. I apologize, My work hours keep me away from home a lot so I haven't had time to test and mess around with the server. I should have tomorrow off I can check everything then. Again thank you, Quote Link to comment
testdasi Posted August 15, 2019 Share Posted August 15, 2019 22 minutes ago, AinsWorth said: its not the devices connecting to unraid server that have issues. In fact no device connecting to unraid in the house has any connection issues. 4 nvidia shields 2 computers 1 windows 1 ubuntu. The log file I posted was from unraid server having issues some time after boot, I don't know why its deleting and resolving. I assume this issue is happening some time after boot. My system has been running for 24 hours so far with no host resolving in the logs. Other then what I saw at boot. I apologize, My work hours keep me away from home a lot so I haven't had time to test and mess around with the server. I should have tomorrow off I can check everything then. Again thank you, So it sounds like we can eliminate the router as being the problem (other devices are working fine with it so presumably it's ok). As I said, the deleting interface errors is due the server losing connection. So it sounds like the issue is somewhere downstream from the router. Just let your server run and see if there's any further issue. Quote Link to comment

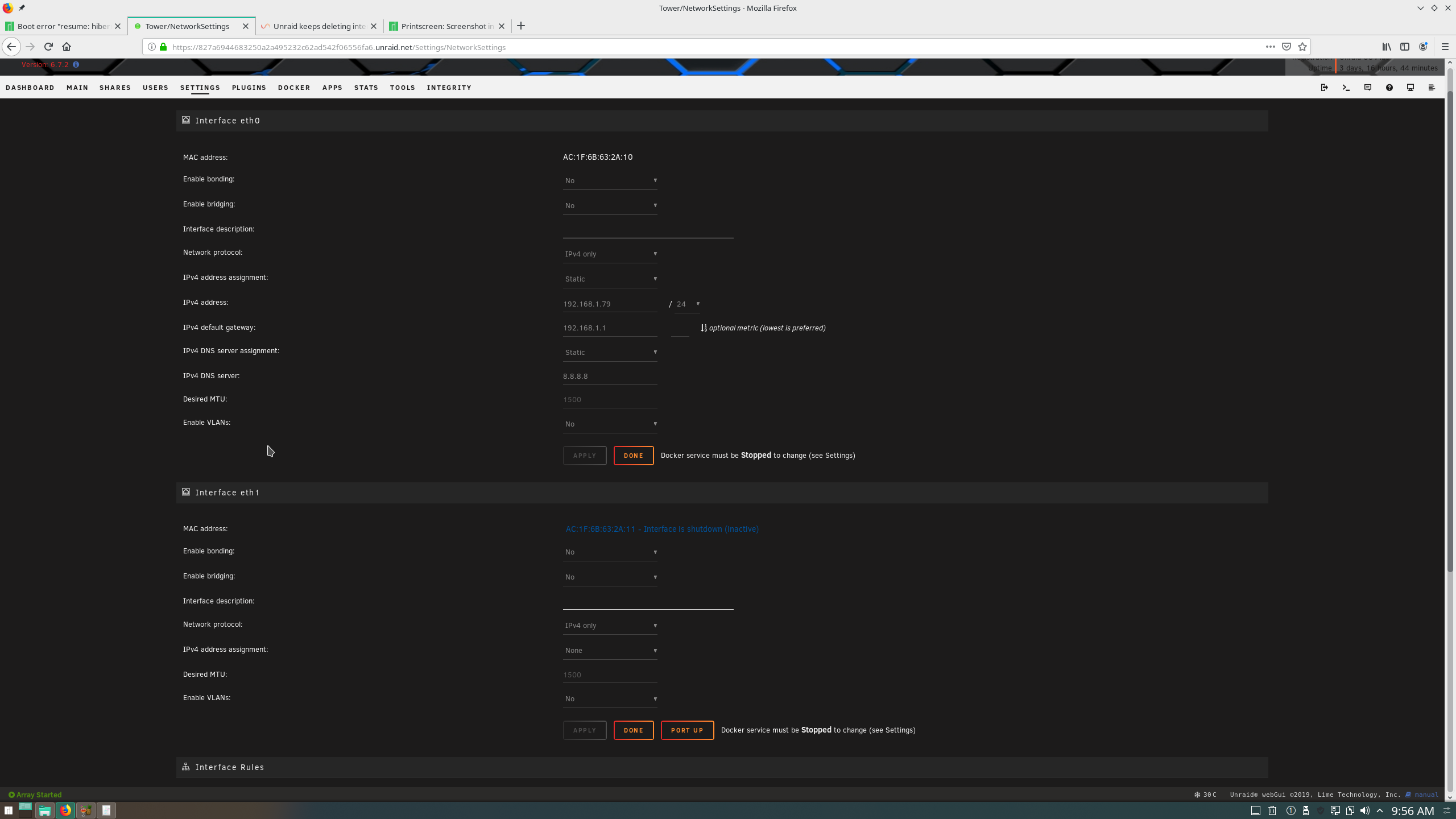

AinsWorth Posted August 16, 2019 Author Share Posted August 16, 2019 I messed around with my network settings a little and now this is my logs after boot. Aug 16 08:50:01 Tower shfs: stderr redirected to syslog Aug 16 08:50:01 Tower emhttpd: shcmd (99): /usr/local/sbin/update_cron Aug 16 08:50:01 Tower ntpd[1748]: Deleting interface #3 bond0, 192.168.1.79#123, interface stats: received=12, sent=12, dropped=0, active_time=44 secs Aug 16 08:50:01 Tower ntpd[1748]: 66.7.96.1 local addr 192.168.1.79 -> <null> Aug 16 08:50:01 Tower ntpd[1748]: 34.227.158.1 local addr 192.168.1.79 -> <null> Aug 16 08:50:01 Tower ntpd[1748]: Deleting interface #4 bond0, fe80::ae1f:6bff:fe63:2a10%12#123, interface stats: received=0, sent=0, dropped=0, active_time=44 secs Aug 16 08:50:01 Tower root: Delaying execution of fix common problems scan for 10 minutes Aug 16 08:50:01 Tower unassigned.devices: Mounting 'Auto Mount' Devices... Aug 16 08:50:01 Tower emhttpd: Starting services... Aug 16 08:50:01 Tower emhttpd: shcmd (101): /etc/rc.d/rc.samba restart Aug 16 08:50:03 Tower kernel: ixgbe 0000:05:00.0 eth0: NIC Link is Up 1 Gbps, Flow Control: None Aug 16 08:50:03 Tower kernel: bond0: link status definitely up for interface eth0, 1000 Mbps full duplex Aug 16 08:50:03 Tower kernel: bond0: making interface eth0 the new active one Aug 16 08:50:03 Tower kernel: bond0: first active interface up! Aug 16 08:50:03 Tower root: Starting Samba: /usr/sbin/nmbd -D Aug 16 08:50:03 Tower root: /usr/sbin/smbd -D Aug 16 08:50:03 Tower root: /usr/sbin/winbindd -D Aug 16 08:50:03 Tower emhttpd: nothing to sync Aug 16 08:50:03 Tower unassigned.devices: Mounting 'Auto Mount' Remote Shares... Aug 16 08:50:03 Tower sudo: root : TTY=unknown ; PWD=/ ; USER=nobody ; COMMAND=/bin/bash -c /usr/local/emhttp/plugins/unbalance/unbalance -port 6237 Aug 16 08:50:05 Tower ntpd[1748]: Listen normally on 5 bond0 192.168.1.79:123 Aug 16 08:50:05 Tower ntpd[1748]: Listen normally on 6 bond0 [fe80::ae1f:6bff:fe63:2a10%12]:123 Aug 16 08:50:05 Tower ntpd[1748]: new interface(s) found: waking up resolver Quote Link to comment
AinsWorth Posted August 16, 2019 Author Share Posted August 16, 2019 second reboot just to check Aug 16 09:14:04 Tower root: naming =version 2 bsize=4096 ascii-ci=0, ftype=1 Aug 16 09:14:04 Tower root: log =internal log bsize=4096 blocks=476930, version=2 Aug 16 09:14:04 Tower root: = sectsz=512 sunit=0 blks, lazy-count=1 Aug 16 09:14:04 Tower root: realtime =none extsz=4096 blocks=0, rtextents=0 Aug 16 09:14:04 Tower emhttpd: shcmd (91): mkdir -p /mnt/cache Aug 16 09:14:04 Tower ntpd[1748]: Deleting interface #3 bond0, 192.168.1.79#123, interface stats: received=12, sent=12, dropped=0, active_time=43 secs Aug 16 09:14:04 Tower ntpd[1748]: 45.33.84.208 local addr 192.168.1.79 -> <null> Aug 16 09:14:04 Tower ntpd[1748]: 108.61.73.243 local addr 192.168.1.79 -> <null> Aug 16 09:14:04 Tower ntpd[1748]: Deleting interface #4 bond0, fe80::ae1f:6bff:fe63:2a10%12#123, interface stats: received=0, sent=0, dropped=0, active_time=43 secs Aug 16 09:14:04 Tower emhttpd: shcmd (92): mount -t btrfs -o noatime,nodiratime /dev/sdb1 /mnt/cache Aug 16 09:14:04 Tower kernel: BTRFS info (device sdb1): disk space caching is enabled Aug 16 09:14:04 Tower kernel: BTRFS info (device sdb1): has skinny extents Aug 16 09:14:04 Tower kernel: BTRFS info (device sdb1): enabling ssd optimizations Aug 16 09:14:04 Tower emhttpd: shcmd (93): sync Aug 16 09:14:04 Tower emhttpd: shcmd (94): mkdir /mnt/user0 Aug 16 09:14:04 Tower emhttpd: shcmd (95): /usr/local/sbin/shfs /mnt/user0 -disks 14 -o noatime,big_writes,allow_other |& logger Aug 16 09:14:04 Tower shfs: stderr redirected to syslog Aug 16 09:14:04 Tower emhttpd: shcmd (96): mkdir /mnt/user Aug 16 09:14:04 Tower emhttpd: shcmd (97): /usr/local/sbin/shfs /mnt/user -disks 15 2048000000 -o noatime,big_writes,allow_other -o remember=0 |& logger Aug 16 09:14:04 Tower shfs: stderr redirected to syslog Aug 16 09:14:04 Tower emhttpd: shcmd (99): /usr/local/sbin/update_cron Aug 16 09:14:04 Tower root: Delaying execution of fix common problems scan for 10 minutes Aug 16 09:14:04 Tower unassigned.devices: Mounting 'Auto Mount' Devices... Aug 16 09:14:04 Tower emhttpd: Starting services... Aug 16 09:14:04 Tower emhttpd: shcmd (101): /etc/rc.d/rc.samba restart Aug 16 09:14:06 Tower kernel: ixgbe 0000:05:00.0 eth0: NIC Link is Up 1 Gbps, Flow Control: None Aug 16 09:14:06 Tower root: Starting Samba: /usr/sbin/nmbd -D Aug 16 09:14:06 Tower root: /usr/sbin/smbd -D Aug 16 09:14:06 Tower root: /usr/sbin/winbindd -D Aug 16 09:14:06 Tower kernel: bond0: link status definitely up for interface eth0, 1000 Mbps full duplex Aug 16 09:14:06 Tower kernel: bond0: making interface eth0 the new active one Aug 16 09:14:06 Tower kernel: bond0: first active interface up! Aug 16 09:14:06 Tower emhttpd: nothing to sync Aug 16 09:14:06 Tower unassigned.devices: Mounting 'Auto Mount' Remote Shares... Aug 16 09:14:06 Tower sudo: root : TTY=unknown ; PWD=/ ; USER=nobody ; COMMAND=/bin/bash -c /usr/local/emhttp/plugins/unbalance/unbalance -port 6237 Aug 16 09:14:08 Tower ntpd[1748]: Listen normally on 5 bond0 192.168.1.79:123 Aug 16 09:14:08 Tower ntpd[1748]: Listen normally on 6 bond0 [fe80::ae1f:6bff:fe63:2a10%12]:123 Aug 16 09:14:08 Tower ntpd[1748]: new interface(s) found: waking up resolver Quote Link to comment
