August 28, 20196 yr My array looks like this: Parity drive - 4tb Drive 1 - 1tb Drive 2 - 4tb (failing) So this happened two days ago. All of a sudden most of my files became unreadable from shares. So naturally i logged on unraid and noticed a bunch of error messages (i only have browser notifications enabled. I know iknow..). Apparently one of my disks had a bunch of read errors and some write erros aswell. At first I tried to restart the array and the failing disk had a big red cross over it and there was a messages saying something like ”unrecognized file format”. Oh well. At this point 90% of all my data was missing from the share. I stopped the array once more and went out and bought a new disk. After preclearing and formating the new disk I added it to the array, same spot and everything. Unraid noticed it as a replacement disk and would start a rebuild when starting the array. So I did. At this moment the rebuild is in progress, it states that my files are emulated but my files are still missing. What did I do wrong? t30-diagnostics-20190826-2052.zip Edited August 28, 20196 yr by MichaelHawk
August 28, 20196 yr Author 18 minutes ago, johnnie.black said: Please post diags. Sorry, forgot to attach. Posted.
August 28, 20196 yr Community Expert Check file system on disk2: https://wiki.unraid.net/Check_Disk_Filesystems
August 28, 20196 yr Author Are you suggesting I should try and repair the failed drive? If so how? My array is currently rebuilding a faulty parity. So if I were to connect my old drive to the old slot, wouldn't the parity delete my old data (if it still exists). Or should I connect it to a new slot, or would that mess up my array? I'm sorry. I'm not nearly smart enough for this. But I appreciate all help I can get!
August 28, 20196 yr Community Expert 7 minutes ago, MichaelHawk said: Are you suggesting I should try and repair the failed drive? Yes. 7 minutes ago, MichaelHawk said: If so how? By following the instruction on the link above. 7 minutes ago, MichaelHawk said: My array is currently rebuilding a faulty parity. No, it currently has disk2 disabled.
August 28, 20196 yr Author 4 minutes ago, johnnie.black said: No, it currently has disk2 disabled. The diag is from before I inserted the new disk. t30-diagnostics-20190828-1718.zip
August 28, 20196 yr Community Expert 20 minutes ago, MichaelHawk said: The diag is from before I inserted the new disk. OK, so looking at these you formatted disk2, so any data there was lost, you might recover some if old disk wasn't completely dead and/or by using a deleted file recovery tool, like UFS explorer.
August 28, 20196 yr Author 1 minute ago, johnnie.black said: OK, so looking at these you formatted disk2, so any data there was lost, you might recover some if old disk wasn't completely dead and/or by using a deleted file recovery tool, like UFS explorer. Yeah, I formatted the new disk before adding it to they array and starting the rebuild. But that shouldn't matter right? Since it's a completely new drive. The old disk is not formatted.
August 28, 20196 yr Author I'm sorry, but I don't understand what you are referring to. I never formatted the old drive. I formatted the new drive before adding it to the array and starting the rebuild. I don't see how that is relevant. Please help me understand.

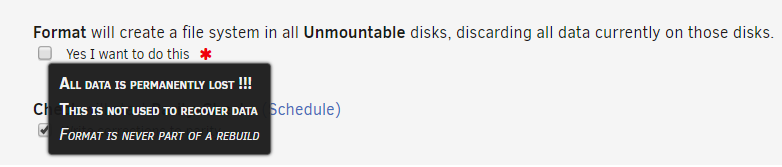

August 28, 20196 yr Community Expert Your formatted the emulated disk, formatting deletes all data and updates parity accordingly, then you rebuilt an empty disk. Edited August 28, 20196 yr by johnnie.black
September 1, 20196 yr Author Oh, I see.. Well that probably messed up my emulated disk. But one thing I don't understand though, when my disk first crashed everything became unreadable instantly. As I stated earlier, I first tried restart the array but the disk wouldn't mount. At that point, shouldn't I still have been able to access my files from the emulated disk? Either way. Is there a way fix my failed drive? I found this thread with almost the same issue: Difference is that I can't mount my drive with UD. The drive is listed under /dev as sdb but without the partition. Whats the next step here? Is it possible to clear the disk log without mounting?
September 1, 20196 yr Community Expert 7 hours ago, MichaelHawk said: At that point, shouldn't I still have been able to access my files from the emulated disk? Most times yes, but sometimes filesystem gets corrupt. 7 hours ago, MichaelHawk said: The drive is listed under /dev as sdb but without the partition. If the drive doesn't have a partition someone or something deleted it, in that case you'll need a file recovery util, e.g. UFS explorer.
